Model Whirlpool KERC600HBS0 COOKTOP – Common Parts & Diagrams

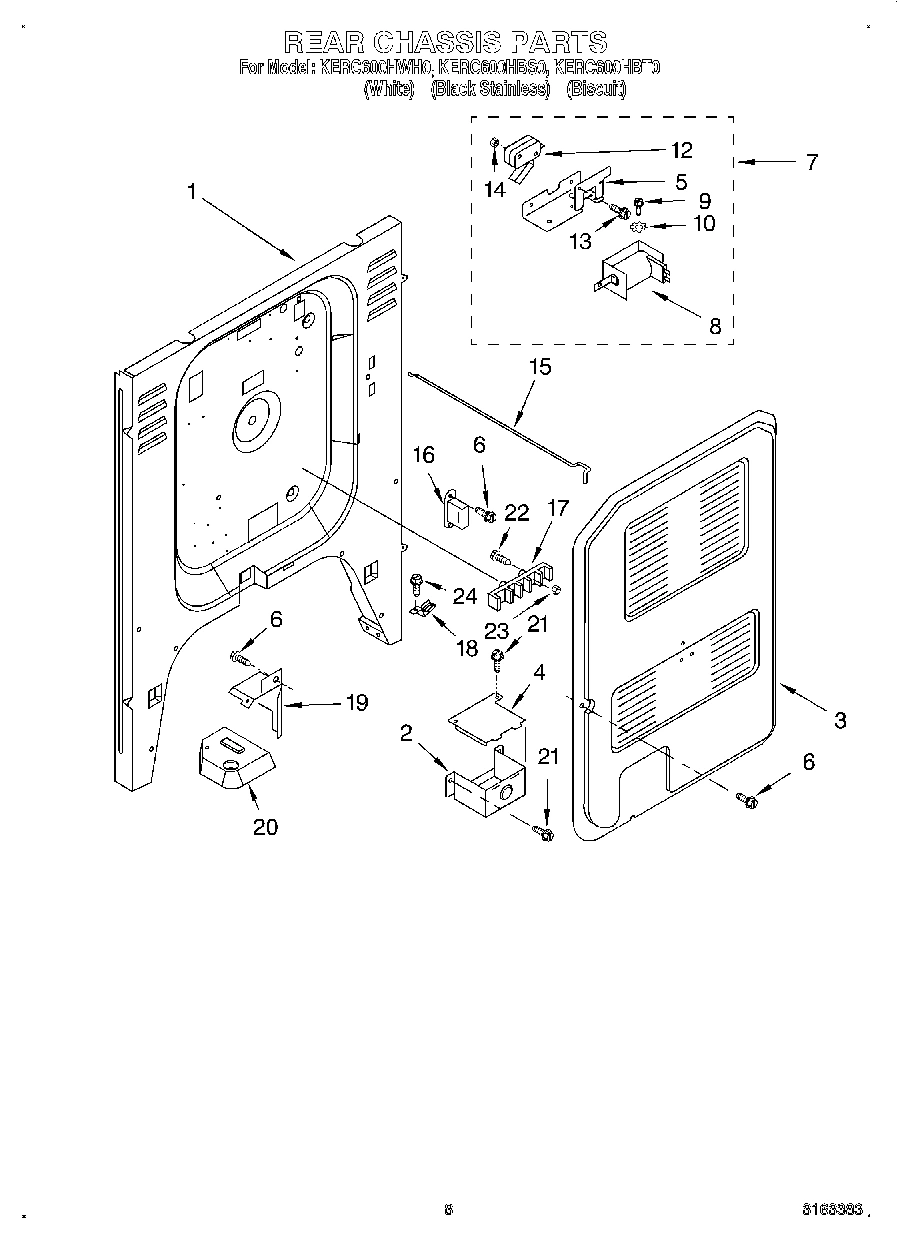

05 - REAR CHASSIS

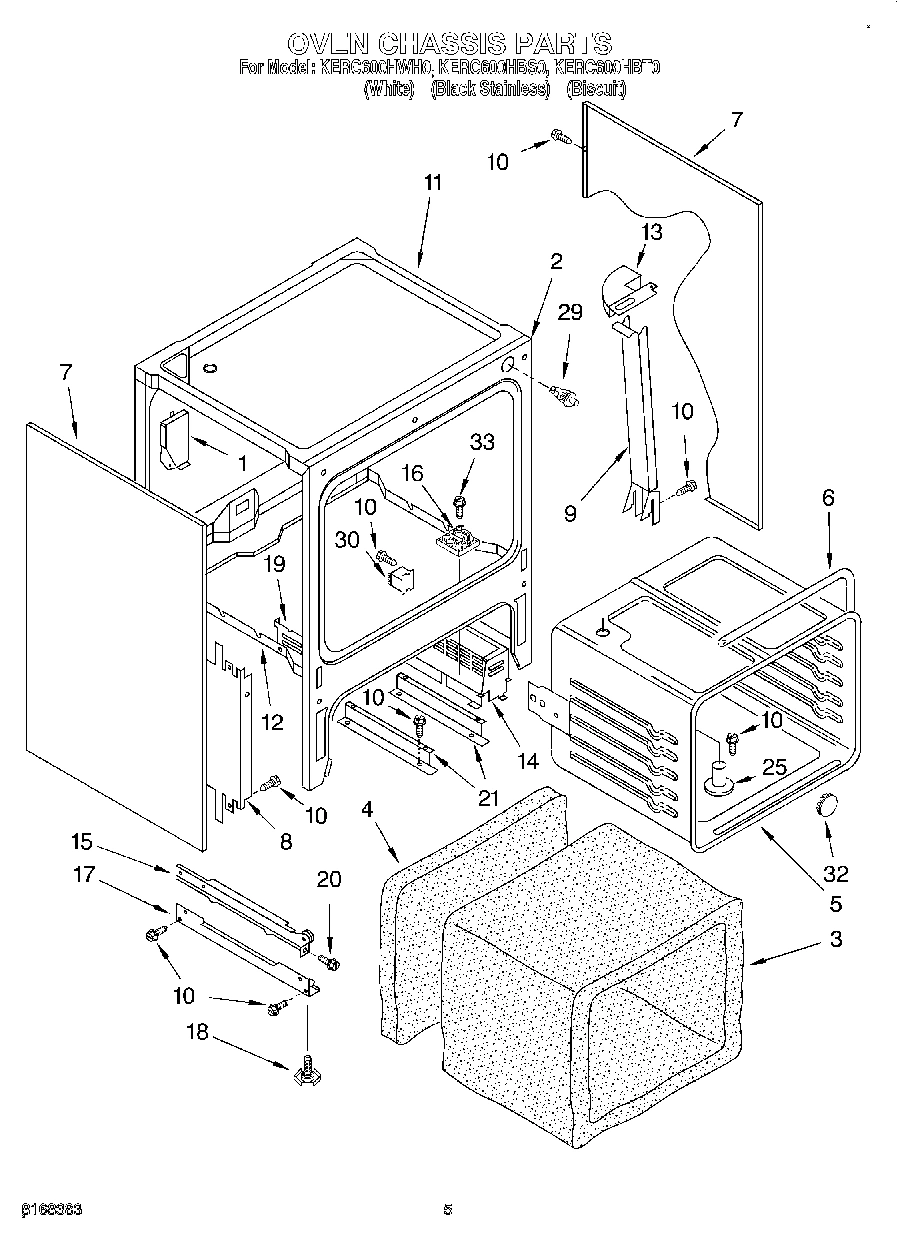

03 - OVEN CHASSIS
01 - COOKTOP, LITERATURE
02 - DOOR AND DRAWER
04 - OVEN
06 - CONTROL PANEL, OPTIONAL
Common parts from model Whirlpool KERC600HBS0 COOKTOP
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752043 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753027 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753028 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753845 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Console, Glass (Black) WPL 9753897CB Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9753897CC Contact Us For Availability
1
Console, Glass (White) WPL 9753897CW Contact Us For Availability
1
Console, Glass (Spacer) WPL 9781488 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Gasket, Silicone WPL 9781614 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9750631PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Timer, Electronic WPL 3191107 Contact Us For Availability
3
Gasket, Console WPL 9751478 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9750632PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
3
Screw, 8-18 x 1/2 WPL 9780271 Contact Us For Availability
4
Rod, Large Element WPL 9781459 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
(End Cap Left Hand) (Black) WPL 9751279FB Contact Us For Availability
4
End Cap (Biscuit, Left) WPL 9751279FC Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Black, Right) WPL 9751280FB Contact Us For Availability
4
End Cap (Biscuit, Right) WPL 9751280FC Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door (Black) WPL 9753378 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
8
Clip, Support (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Knobs, Control (Black) WPL 9750372FB Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
11
Element, Surface (2200W - RR) WPL 9753663 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753711CB Contact Us For Availability
14
Cooktop, Ceran (Biscuit) WPL 9753711CC Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753711CW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Small Element WPL 9781460 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent WPL 9751800 Contact Us For Availability
18
Insulation WPL 9781626 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
Gasket, Vent Cover WPL 9751841 Contact Us For Availability
20
Backsplash (Black) WPL 9781896GB Contact Us For Availability
20
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
20
Backsplash (White) WPL 9781896GW Contact Us For Availability
20
Drawer & Roller (Black Stainless) WPL 9750257 Contact Us For Availability
20
Drawer & Roller (White or Biscuit Model) WPL 9780583 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Rail, Support WPL 421771 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
22
Limiter, Temp. (LF) WPL 3191966 Contact Us For Availability
22
Limiter, Temp. (LR-RF-RR) WPL 8053620 Contact Us For Availability
22
Nut, Mounting (Dual Element) WPL 9751711 Contact Us For Availability
23
WPL W10355051 No Longer Available
23
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
23
WPL 799344 WPL 799344 Contact Us For Availability
23
WPL 9751745 WPL 9751745 Contact Us For Availability
23
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
23
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
23
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
23
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
23
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
23
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
23
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
23
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
23
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
23
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
23
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
23
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
23
Grease WPL 261582 Contact Us For Availability
23
Coffee WPL 261886 Contact Us For Availability
23
New Avocado WPL 261888 Contact Us For Availability
23
Harvest Gold WPL 261890 Contact Us For Availability
23
Harvest Go WPL 261891 Contact Us For Availability
23
WPL 72108 WPL 72108 Contact Us For Availability
23
WPL 799832 WPL 799832 Contact Us For Availability
23
WPL 9750221 WPL 9750221 Contact Us For Availability
23
WPL 9750222 WPL 9750222 Contact Us For Availability
23
WPL 9750376 WPL 9750376 Contact Us For Availability
23
WPL 9751750 WPL 9751750 Contact Us For Availability
23
WPL 9751868 WPL 9751868 Contact Us For Availability
23
WPL 9753382 WPL 9753382 Contact Us For Availability
23
WPL 9781455 WPL 9781455 Contact Us For Availability
23
WPL 9781655 WPL 9781655 Contact Us For Availability
23
WPL 9781767 WPL 9781767 Contact Us For Availability
23
WPL 9781842 WPL 9781842 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Receptacle, Light WPL 9752760 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
26
Cover, Backsplash WPL 9751664 Contact Us For Availability
27
Endcap, Backsplash (Black, Left) WPL 9781884FB Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Left) WPL 9781884FC Contact Us For Availability
27
Endcap, Backsplash (White, Left) WPL 9781884FW Contact Us For Availability
27
Endcap, Backsplash Right (Black) WPL 9781885FB Contact Us For Availability
27
Endcap, Backsplash (Biscuit, Right) WPL 9781885FC Contact Us For Availability
27
Endcap, Backspl WPL 9781885FW Contact Us For Availability
28
WPL 9751327 WPL 9751327 Contact Us For Availability
28
WPL 9751632 WPL 9751632 Contact Us For Availability
28
WPL 9753320 WPL 9753320 Contact Us For Availability
28
Retainer, Glass (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
29
WPL 9781118 WPL 9781118 Contact Us For Availability
29
Channel, Heat WPL 9750693 Contact Us For Availability
30
Relay, Dlb. WPL 9751948 Contact Us For Availability
30
WPL 9751275PB WPL 9751275PB Contact Us For Availability
30
WPL 9751275PC WPL 9751275PC Contact Us For Availability
30
WPL 9751275PW WPL 9751275PW Contact Us For Availability
30
WPL 9751276PB WPL 9751276PB Contact Us For Availability
30
WPL 9751276PC WPL 9751276PC Contact Us For Availability
30
WPL 9751276PW WPL 9751276PW Contact Us For Availability
30
Baffle, Glass WPL 9781592 Contact Us For Availability
31
WPL 9750866 WPL 9750866 Contact Us For Availability
31
Trim, Door WPL 9750614PB Contact Us For Availability
32
WPL 9753292 WPL 9753292 Contact Us For Availability
32
Button, Plug WPL 9780578 Contact Us For Availability
32
WPL 9781154 WPL 9781154 Contact Us For Availability
32
Spacer WPL 9753329 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
33
Panel, Drawer WPL 9753293 Contact Us For Availability
34
Trim, Door WPL 9750613PB Contact Us For Availability
35
WPL 9751871 WPL 9751871 Contact Us For Availability
36
WPL 3149333 WPL 3149333 Contact Us For Availability
37
WPL 9753291 WPL 9753291 Contact Us For Availability
× ![]()
