Model Whirlpool KERC507YWH2 – Common Parts & Diagrams
03 - DOOR AND DRAWER
04 - OVEN CHASSIS

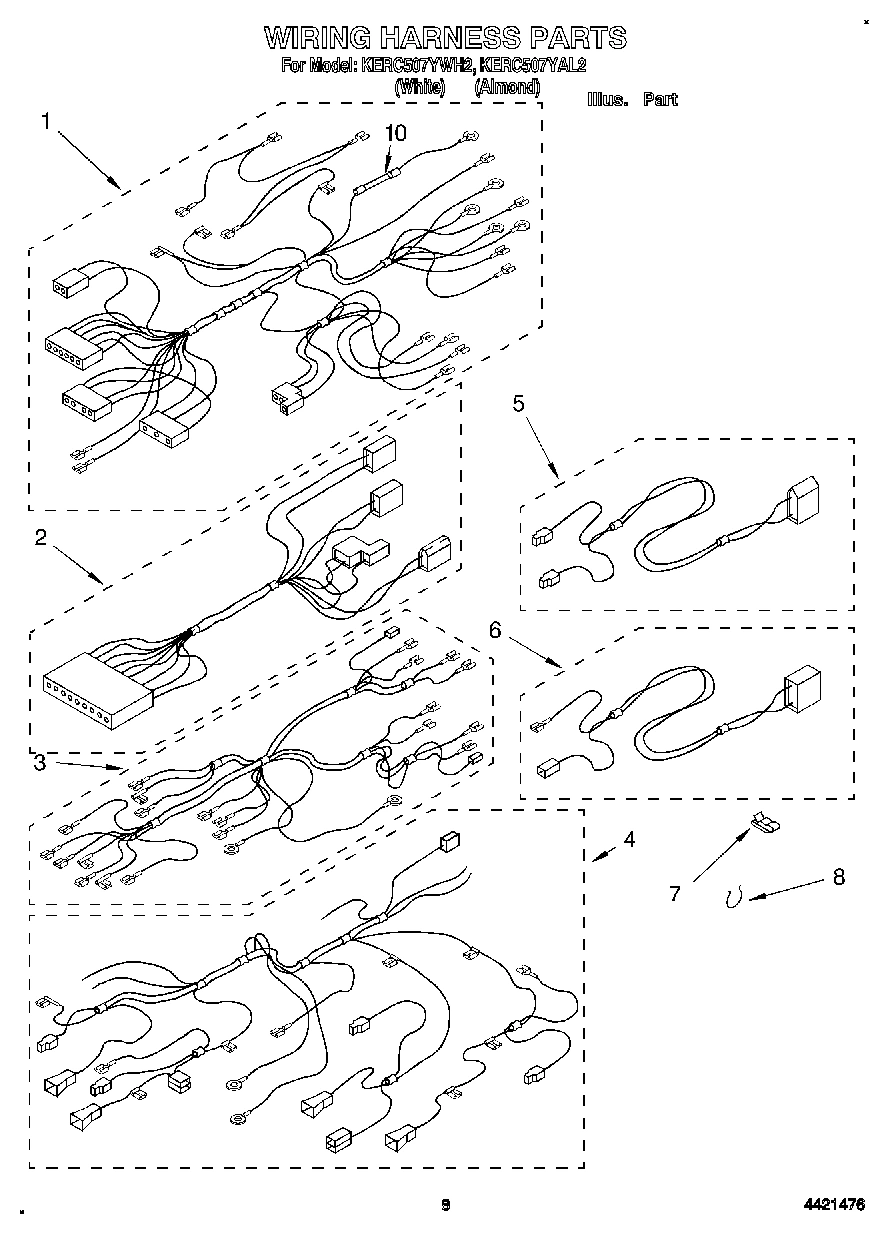

06 - WIRING HARNESS

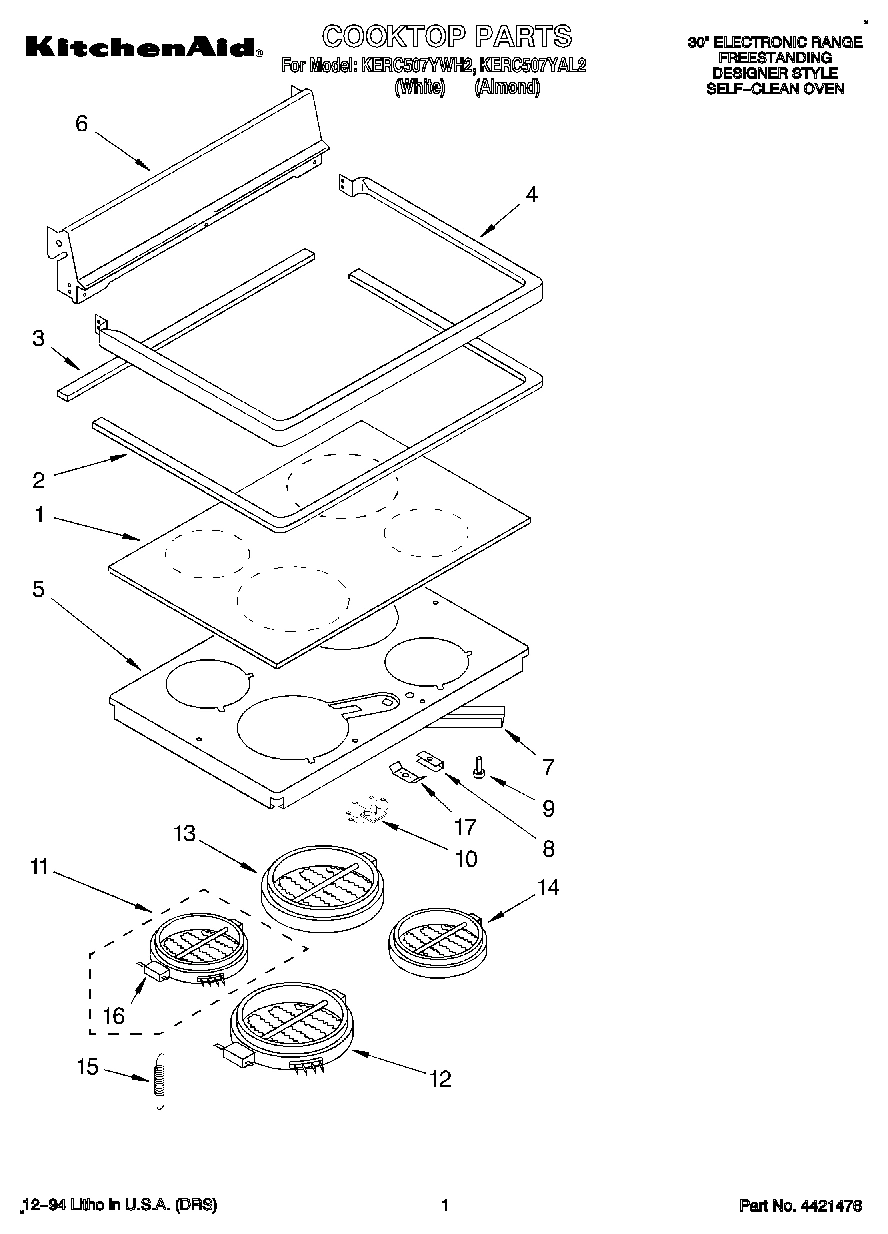

01 - COOKTOP, LITERATURE

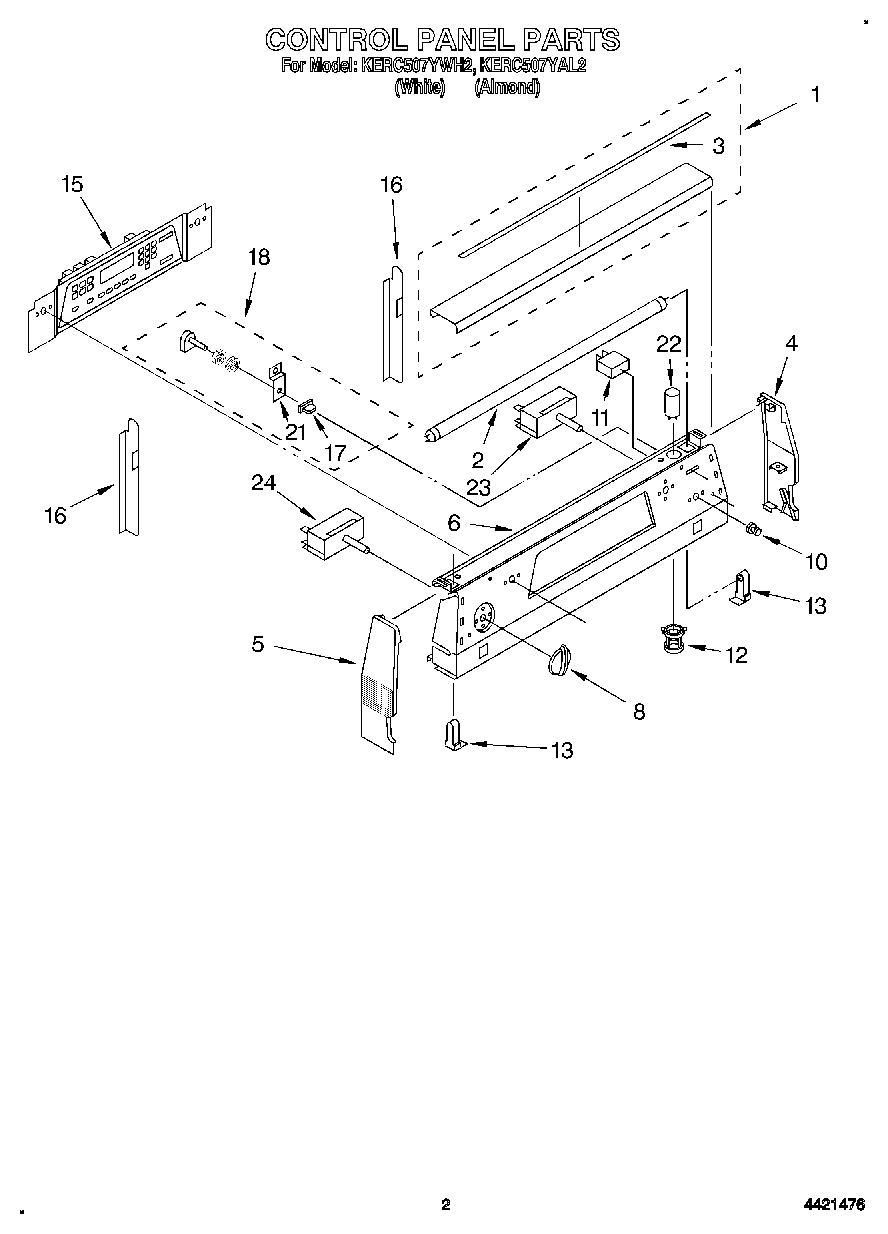

02 - CONTROL PANEL

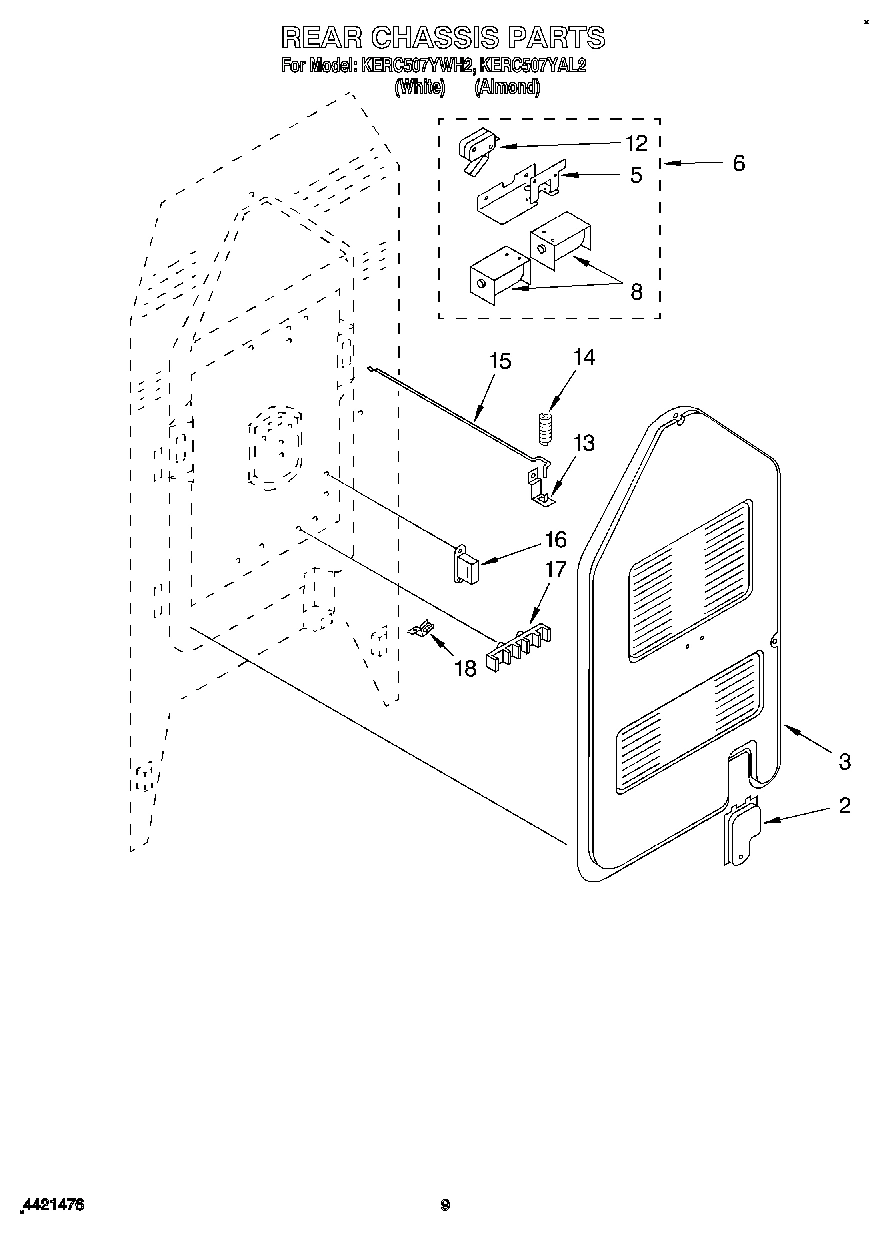

07 - REAR CHASSIS, OPTIONAL

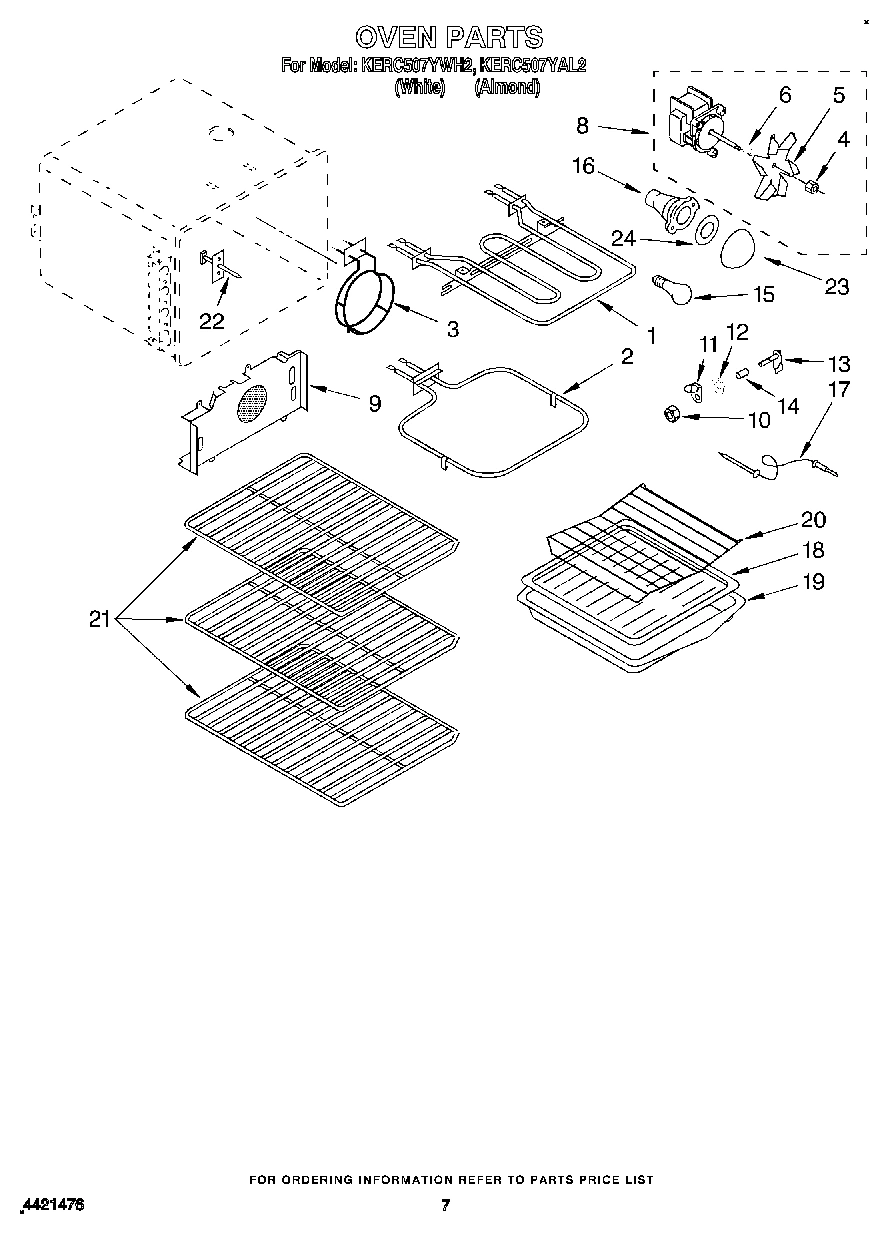

05 - OVEN
Common parts from model Whirlpool KERC507YWH2
Cookbook, T/C Ovens WPL LIT3150693 Contact Us For Availability
Video, Cooking WPL LIT3183790 Contact Us For Availability
Guide, Auto Set WPL LIT3183987 Contact Us For Availability
Instructions, Installation WPL LIT9750520 Contact Us For Availability
Wiring Diagram WPL LIT9750876 Contact Us For Availability
Tech Sheet WPL LIT9750877 Contact Us For Availability
Quick Set Instr. (Timer) WPL LIT9780689 Contact Us For Availability
Use And Care Guide WPL LIT9780936 Contact Us For Availability
Label, Instruction (Lamp Cover) WPL LIT9780945 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Harness, Convection (Oven-Fused) WPL 9751151 Contact Us For Availability
1
Cooktop, Ceran (White Mdl.) WPL 9780853 Contact Us For Availability
1
Cooktop, Ceran (Almond Mdl.) WPL 9781060 Contact Us For Availability
1
Lamp Cover (White) WPL 9780580 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9780581 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 4211893 Contact Us For Availability
2
Harness, (Lock Switch) WPL 9751155 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
3
Harness, (Cooktop) WPL 9751111 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
3
Lamp Cover Insert (White) WPL 9780295 Contact Us For Availability
3
Lamp Cover Insert (Almond) WPL 9780332 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Washer WPL 4212071 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Harness, Wire (Control) WPL 9751148 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4211918 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4211919 Contact Us For Availability
4
End Cap R.H. (Almond) WPL 4211933 Contact Us For Availability
4
End Cap R.H. (White) WPL 4211934 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
5
Oven Liner WPL 4211892 Contact Us For Availability
5
Harness, (Door) WPL 9750376 Contact Us For Availability
5
Support, Element WPL 9750455 Contact Us For Availability
5
End Cap L.H. (Almond) WPL 4211936 Contact Us For Availability
5
End Cap L.H. (White) WPL 4211937 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
6
Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Harness, (Probe) WPL 9751139 Contact Us For Availability
6
Back Splash (White) WPL 4211921 Contact Us For Availability
6
Back Splash (Almond) WPL 4211922 Contact Us For Availability
6
Panel, Control (White) WPL 9780293 Contact Us For Availability
6
Panel, Control (Almond) WPL 9780329 Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
8
Knobs, Control (Almond (4)) WPL 4211913 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Hanger, Cable WPL 9750984 Contact Us For Availability
8
Screw, (4) 10 x 3/4`` WPL 423248 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
8
Assembly, Fan WPL 9751118 Contact Us For Availability
8
Screw, 10 x 1/2 WPL 9781073 Contact Us For Availability
9
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
9
Baffle, Convection WPL 4211894 Contact Us For Availability
10
Guard, Wire WPL 9780585 Contact Us For Availability
10
Harness, Lead (Fused) WPL 9751369 Contact Us For Availability
10
Hot Light Element, Surface WPL 9780931 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
6`` L.R. WPL 9750752 Contact Us For Availability
11
Light Module (4) WPL 9750964 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
9`` L.F. WPL 9750755 Contact Us For Availability
12
Starter, Holder WPL 9750866 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
13
8`` - RR WPL 9750754 Contact Us For Availability
13
Receptacle, Lamp WPL 9750273 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Spring (12) WPL 9780679 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9750699 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750700 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Limiter Temp. (8`` - RR) WPL 3149123 Contact Us For Availability
16
Limiter, Temp. (9`` L.F.) WPL 3149124 Contact Us For Availability
16
Limiter, Temp. (6`` L.R.) WPL 3149129 Contact Us For Availability
16
Limiter Temp. (7`` - RF) WPL 3183972 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Washer WPL 4211875 Contact Us For Availability
16
Ballast, Lamp WPL 9780881 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Screw, Anchor WPL 915720 Contact Us For Availability
17
Button, Light (White) WPL 4212112 Contact Us For Availability
17
Button, Light (Almond) WPL 4212113 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Switch, Light WPL 9751110 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 308498 WPL 308498 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Hinge, Base L or R WPL 9750149 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
21
Bracket, Switch WPL 9750721 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Starter, Light WPL 9781118 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Trim, Drawer Top (White) WPL 4211931 Contact Us For Availability
23
Trim, Drawer Top (Almond) WPL 4211932 Contact Us For Availability
23
Bracket, Power Cord WPL 9750491 Contact Us For Availability
23
Screw, (2) WPL 9780272 Contact Us For Availability
24
Front, Drawer (White) WPL 4211916 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211917 Contact Us For Availability
24
Screw (8) 8-32 x 3/16 WPL 9780268 Contact Us For Availability
25
Glass, Drawer Face (White) WPL 9750612 Contact Us For Availability
25
Glass, Drawer Face (Almond) WPL 9780326 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Switch, Door-Light WPL 9750897 Contact Us For Availability
29
Glass Cleaner WPL W10355051 No Longer Available
29
Vent Gasket WPL 9750767 Contact Us For Availability
× ![]()
