Model Whirlpool KERC507YAL5 – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR AND DRAWER

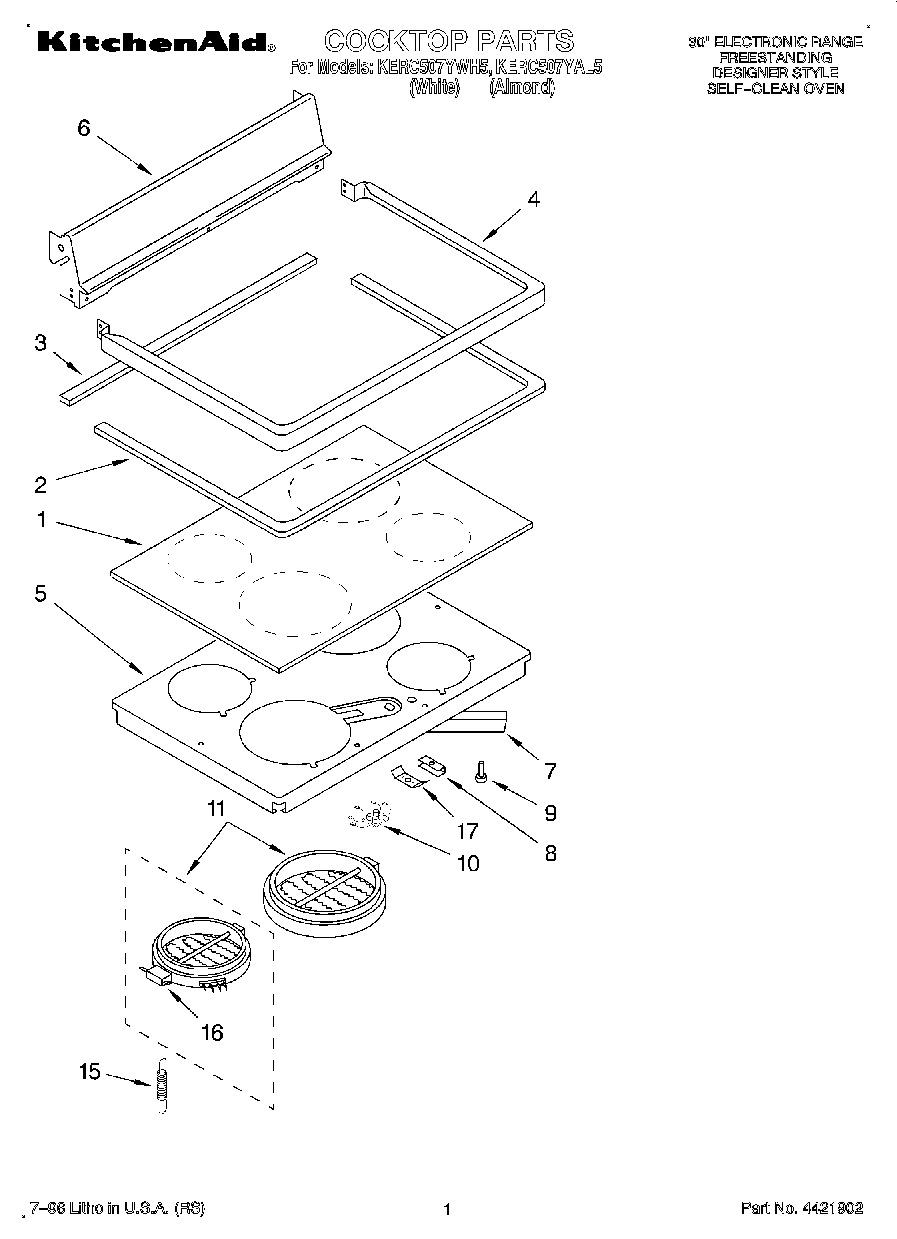

01 - COOKTOP

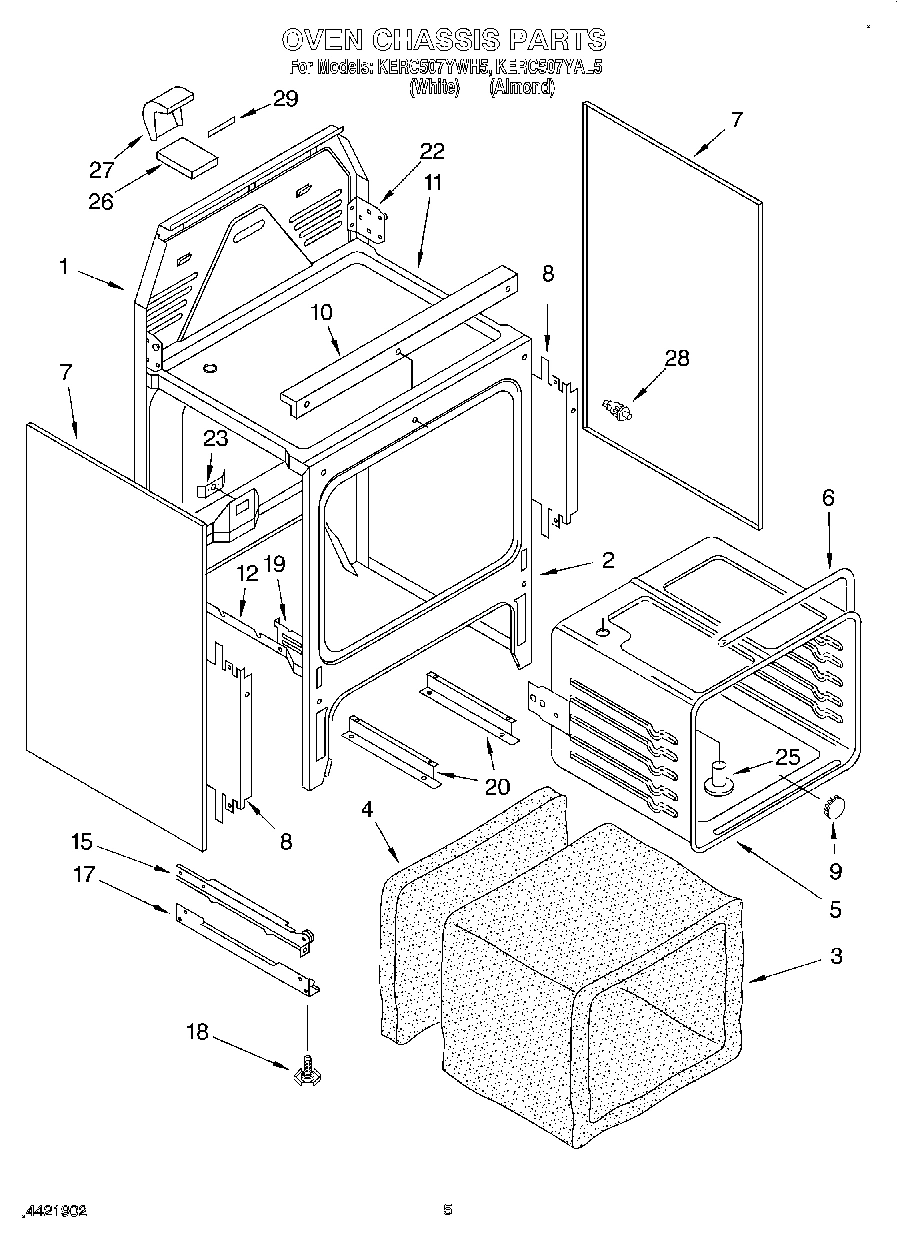

04 - OVEN CHASSIS

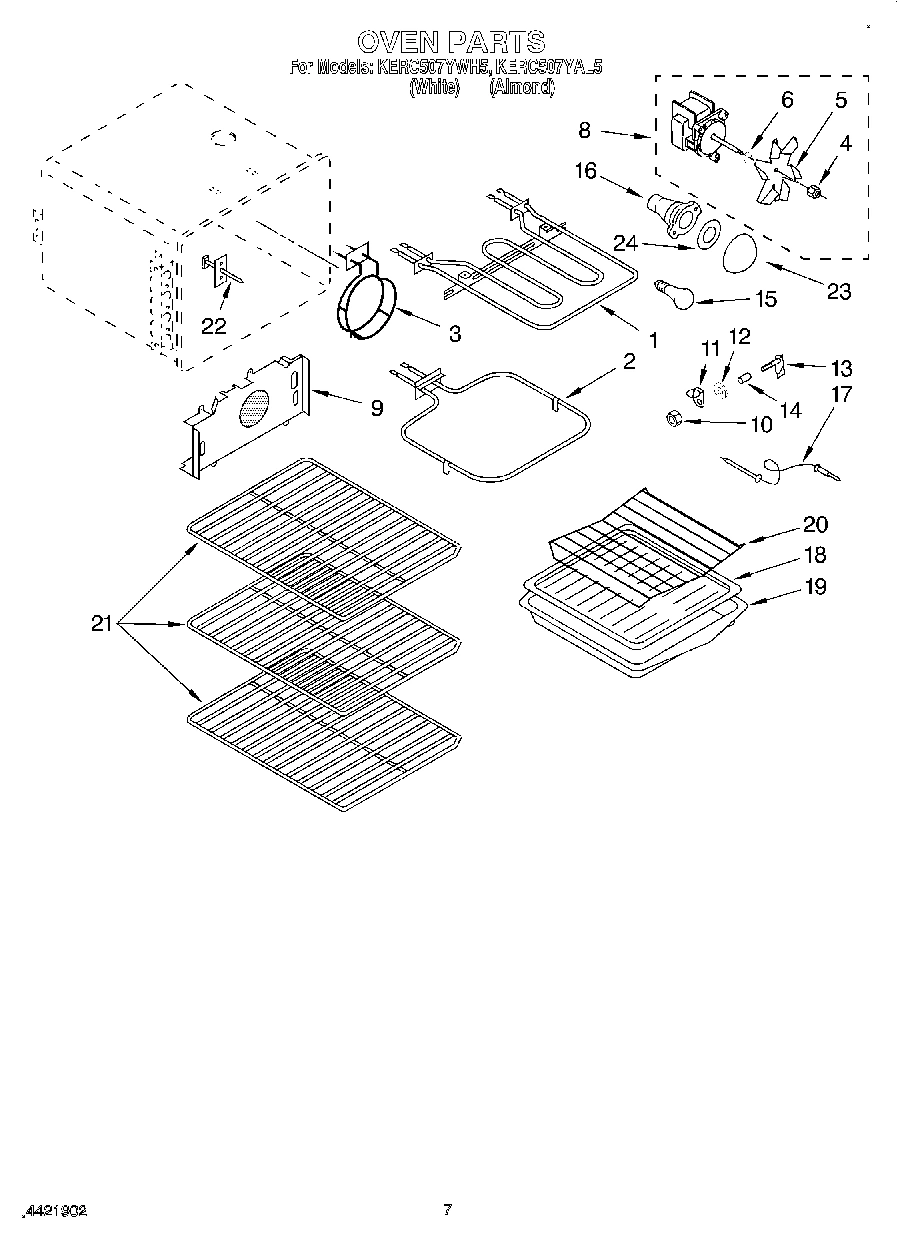

05 - OVEN
Common parts from model Whirlpool KERC507YAL5
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Retainer, Glass WPL 9750676 Contact Us For Availability
1
Cooktop, Ceran (White Mdl.) WPL 9780853 Contact Us For Availability
1
Cooktop, Ceran (Almond Mdl.) WPL 9781060 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4211912 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 4211914 Contact Us For Availability
2
Chassis, Front WPL 4212002 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4211910 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 4211911 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
3
Insulation, Wrap WPL 9750222 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PL Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PS Contact Us For Availability
4
Frame, Cooktop (White) WPL 4211918 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4211919 Contact Us For Availability
4
Insulation, Rear WPL 9750221 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
5
Support, Element WPL 9781466 Contact Us For Availability
5
Oven Liner WPL 9781292GM Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
6
Back Splash (Screw (4) 10AB x 1/2``) WPL 3149333 Contact Us For Availability
6
Vent, Door (Almond) WPL 9781166GT Contact Us For Availability
6
Vent, Door (White) WPL 9781166GW Contact Us For Availability
6
Vent, Door (Gasket, Vent) WPL 9781450 Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Back Splash (White) WPL 4211921 Contact Us For Availability
6
Back Splash (Almond) WPL 4211922 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
7
Spacer, Door Vent WPL 9781453 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
8
Knobs, Control (Almond (4)) WPL 4211913 Contact Us For Availability
8
Handle, Door (White Mdl.) WPL 4212234 Contact Us For Availability
8
Handle, Door (Almond) WPL 4212235 Contact Us For Availability
8
Screw, (4) 10 x 3/4`` WPL 423248 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Assembly, Fan WPL 9751118 Contact Us For Availability
8
Screw, 10 x 1/2 WPL 9781073 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Hot Light WPL 9781497 Contact Us For Availability
10
Guard, Wire WPL 9780585 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
11
Element, Surface (1400W - LR) WPL 3189894 Contact Us For Availability
11
Element, Surface (1700W - RF) WPL 3189895 Contact Us For Availability
11
Element, Surface (2100W - RR) WPL 3189896 Contact Us For Availability
11
Element, Surface (2400W - LF) WPL 3189897 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
13
Shield, Door WPL 9750233 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750700 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
15
Spring (12) WPL 9780679 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
16
Limiter, Temp (1700W - RF) WPL 3190250 Contact Us For Availability
16
Limiter, Temp. (2400 W - LF) WPL 3190251 Contact Us For Availability
16
Limiter, Temp (2100W - RR) WPL 3190252 Contact Us For Availability
16
Limiter, Temp. (1400 W - LR) WPL 3190253 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Button, Light (White) WPL 4212112 Contact Us For Availability
17
Button, Light (Almond) WPL 4212113 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Switch, Light WPL 9751110 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
19
Hinge, Base L or R WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
21
Bracket, Switch WPL 9750721 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Starter, Light WPL 9781118 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Switch, Infinite (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability
23
Screw, (2) WPL 9780272 Contact Us For Availability
23
Bracket, Power Cord WPL 9750491 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw WPL 9780806 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Retainer, Glass WPL 9781206 Contact Us For Availability
28
Switch, Door-Light WPL 9750897 Contact Us For Availability
29
Vent Gasket WPL 9750767 Contact Us For Availability
× ![]()
