Model Whirlpool KERC507HAL3 COOKTOP – Common Parts & Diagrams
03 - DOOR AND DRAWER
02 - CONTROL PANEL

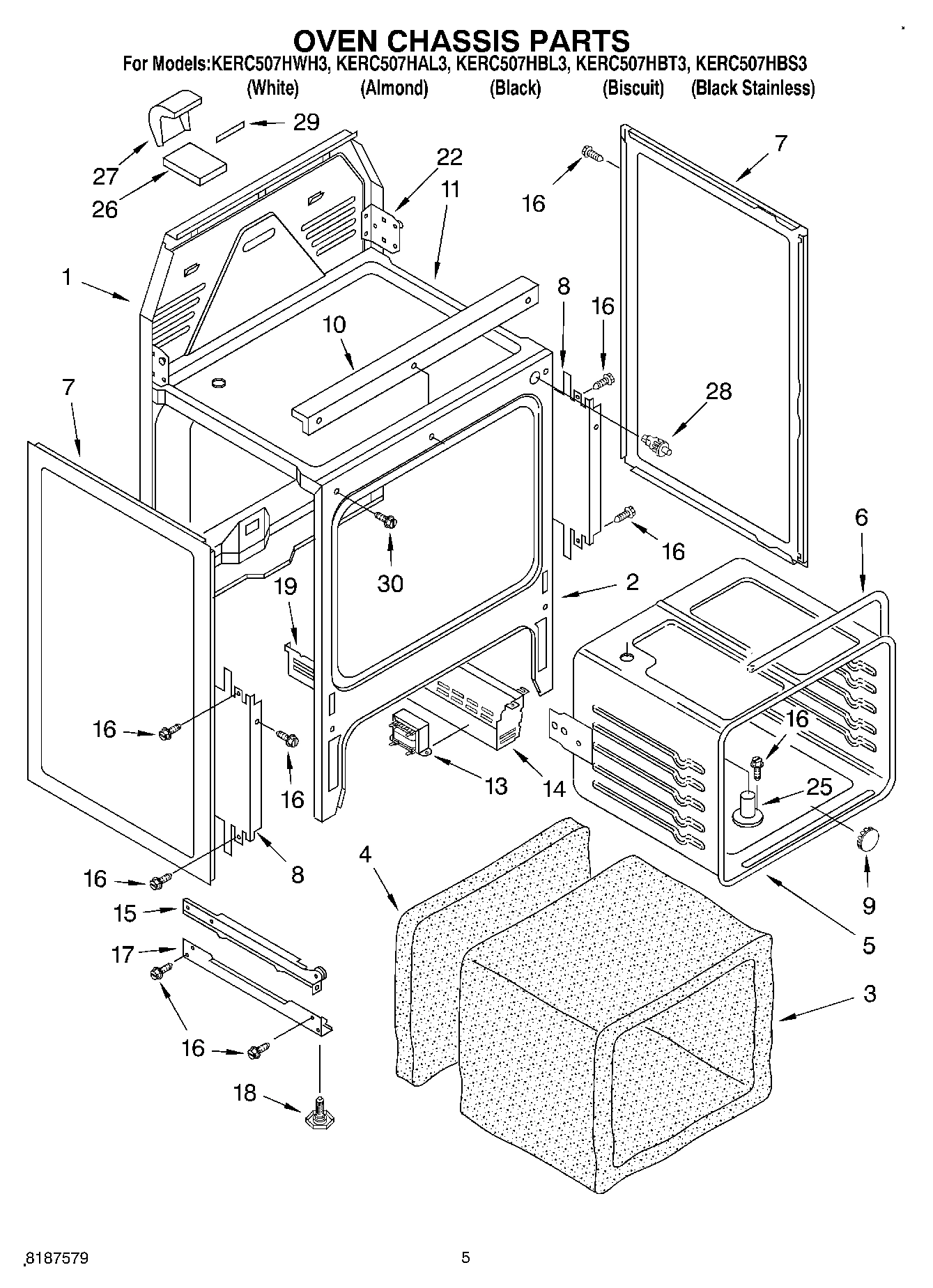

04 - OVEN CHASSIS

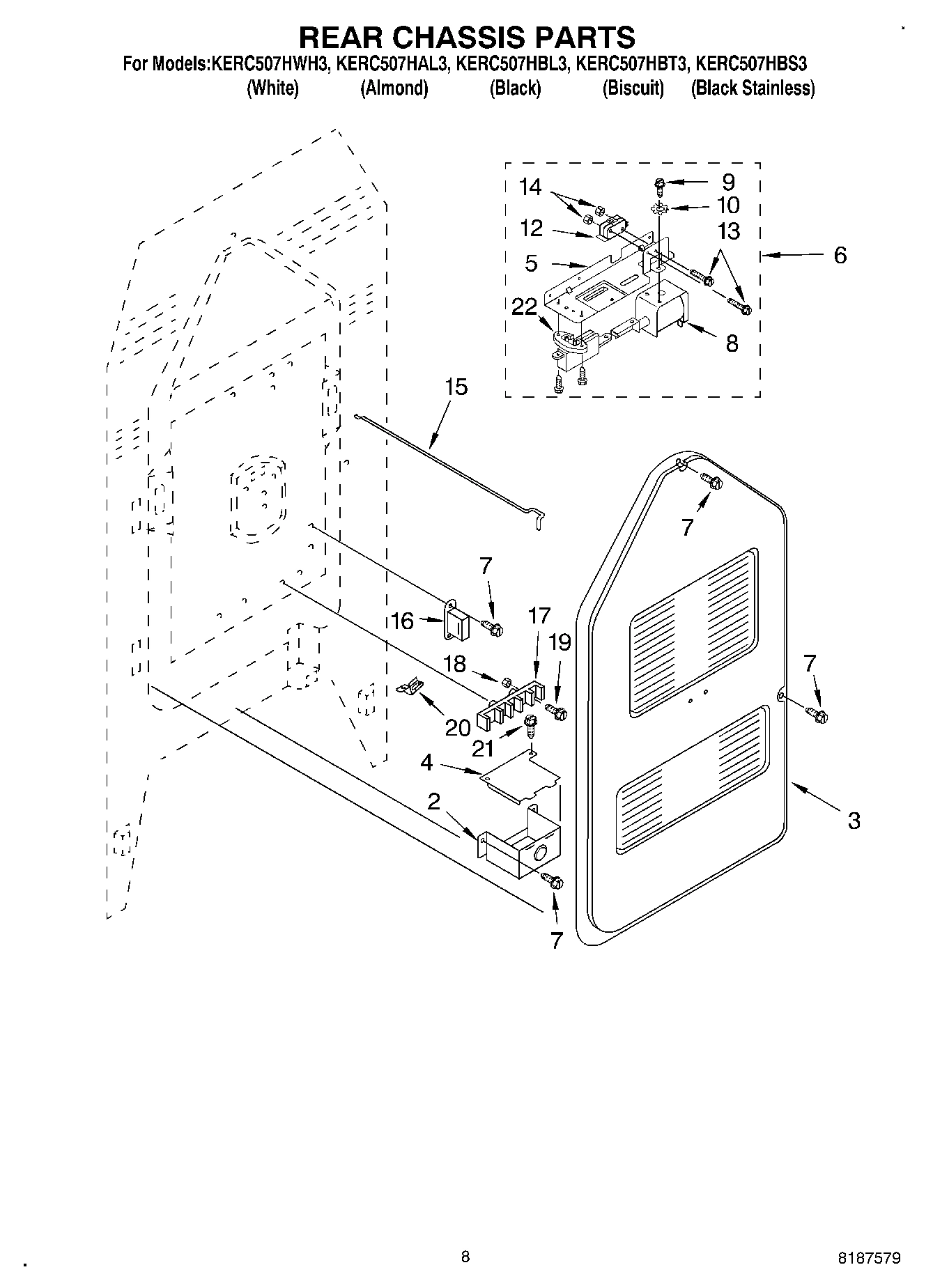

06 - REAR CHASSIS

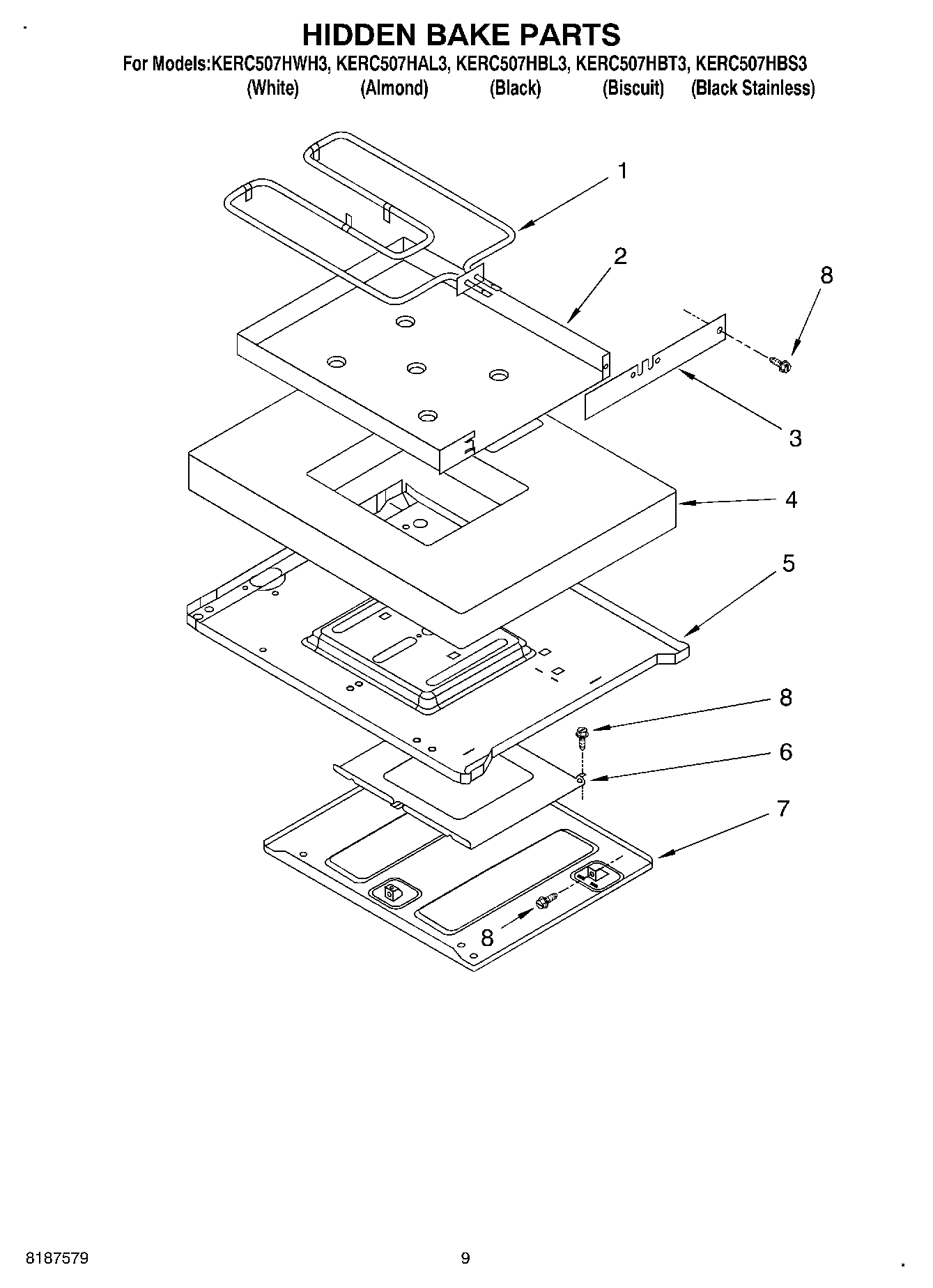

07 - HIDDEN BAKE

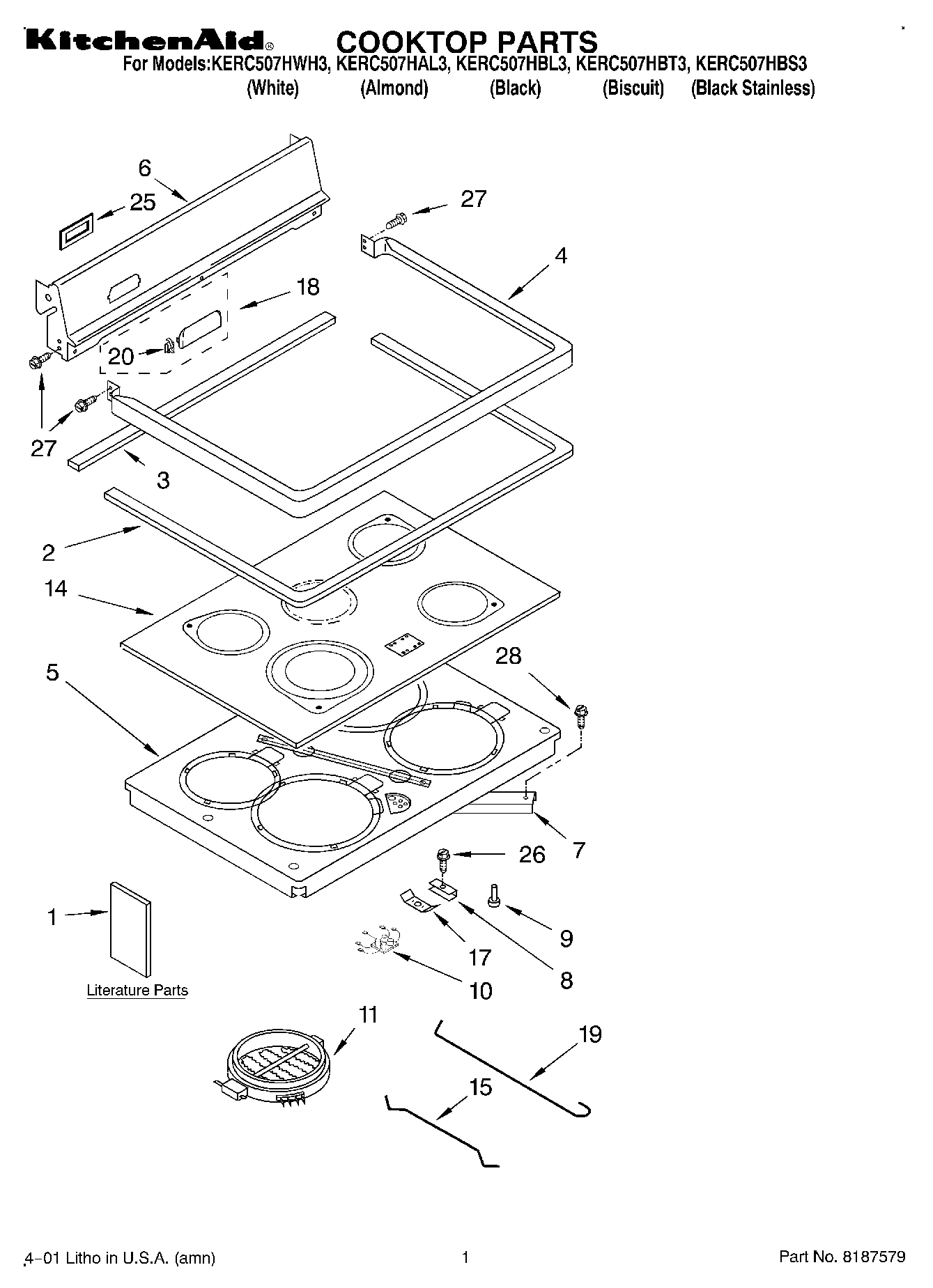

01 - COOKTOP, LITERATURE

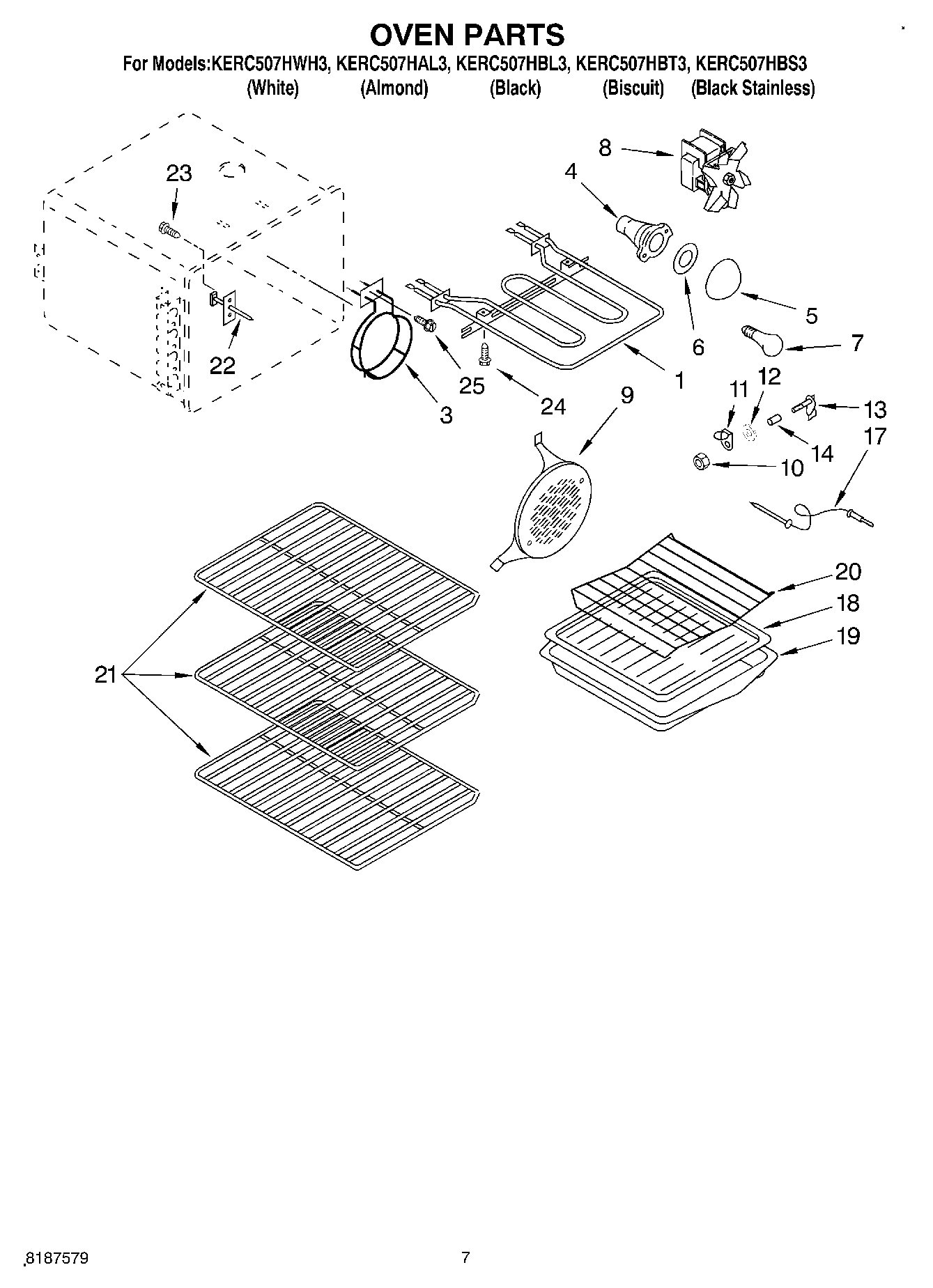

05 - OVEN
Common parts from model Whirlpool KERC507HAL3 COOKTOP
1
Element, Bake WPL 9752294 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Lamp Cover (Black) WPL 9753156PB Contact Us For Availability
1
Lamp Cover (Biscuit) WPL 9753156PC Contact Us For Availability
1
Lamp Cover (Almond) WPL 9753156PT Contact Us For Availability
1
Lamp Cover (White) WPL 9753156PW Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752387 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753843 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9782235 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Box, Terminal WPL 9752344 Contact Us For Availability
2
Pan, Hidden Bake WPL 9782048 Contact Us For Availability
3
Insulation, Wrap WPL 9754003 Contact Us For Availability
3
Rear Panel WPL 9750150 Contact Us For Availability
3
Cover, Hidden Bake WPL 9782049 Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
4
End Cap (Left Hand) (Black) WPL 9750366FB Contact Us For Availability
4
End Cap (Left Hand) (Biscuit) WPL 9750366FC Contact Us For Availability
4
End Cap (Left Hand) (Almond) WPL 9750366FT Contact Us For Availability
4
End Cap (Left Hand) (White) WPL 9750366FW Contact Us For Availability
4
End Cap (Right Hand) (Black) WPL 9750367FB Contact Us For Availability
4
End Cap (Right Hand) (Biscuit) WPL 9750367FC Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9750367FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9750367FW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Cover, Terminal Box WPL 9752345 Contact Us For Availability
4
Insulation WPL 9754005 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9750456PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9750456PC Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 9750456PT Contact Us For Availability
4
Frame, Cooktop (White) WPL 9750456PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Switch, Rocker (Warm Zone) (Black) WPL 9753692FB Contact Us For Availability
5
Switch, Rocker (Warm Zone) (Biscuit) WPL 9753692FC Contact Us For Availability
5
Switch, Rocker (Warm Zone) (Almond) WPL 9753692FT Contact Us For Availability
5
Switch, Rocker (Warm Zone) (White) WPL 9753692FW Contact Us For Availability
5
Oven Liner WPL 9753744GM Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Reatiner, Insulation WPL 9752735 Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
6
Panel, Control (Black) WPL 9753726PB Contact Us For Availability
6
Panel, Control (Biscuit) WPL 9753726PC Contact Us For Availability
6
Panel, Control (Black Stainless) WPL 9753726PS Contact Us For Availability
6
Panel, Control (Almond) WPL 9753726PT Contact Us For Availability
6
Panel, Control (White) WPL 9753726PW Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Oven Lock Assembly WPL 9752404 Contact Us For Availability
6
Plate, Reflector WPL 9782050 Contact Us For Availability
6
Back Splash (Black) WPL 9752337GB Contact Us For Availability
6
Back Splash (Biscuit) WPL 9752337GC Contact Us For Availability
6
Back Splash (Almond) WPL 9752337GT Contact Us For Availability
6
Back Splash (White) WPL 9752337GW Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (Almond) WPL 9781907PT Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Shield WPL 9782051 Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
8
WPL W10355051 No Longer Available
8
Assembly, Fan WPL 9781543 Contact Us For Availability
8
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
8
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
WPL 9751745 WPL 9751745 Contact Us For Availability
8
Knobs, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
Grease WPL 261582 Contact Us For Availability
8
Clip, Ground WPL 313660 Contact Us For Availability
8
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
8
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
8
Harness, Wire (Oven D WPL 9750376 Contact Us For Availability
8
WPL 9752365 WPL 9752365 Contact Us For Availability
8
WPL 9752771 WPL 9752771 Contact Us For Availability
8
WPL 9752772 WPL 9752772 Contact Us For Availability
8
WPL 9753680 WPL 9753680 Contact Us For Availability
8
WPL 9753682 WPL 9753682 Contact Us For Availability
8
WPL 9753683 WPL 9753683 Contact Us For Availability
8
WPL 9753687 WPL 9753687 Contact Us For Availability
8
WPL 9753921 WPL 9753921 Contact Us For Availability
8
WPL 9781930 WPL 9781930 Contact Us For Availability
8
WPL 9782080 WPL 9782080 Contact Us For Availability
8
WPL 9782123 WPL 9782123 Contact Us For Availability
8
WPL 978883 WPL 978883 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
9
Switch, Rocker (White) WPL 9753261FW Contact Us For Availability
9
Button, Plug WPL 9780578 Contact Us For Availability
9
Screw, 10-32 x .31 WPL 422222 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
10
Wire Guard WPL 9780585 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Light, Indicator WPL 9753422 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Starter, Holder WPL 9750866 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
13
Receptacle, Light WPL 9782259 Contact Us For Availability
13
Transformer, Light WPL 4451891 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9753710CB Contact Us For Availability
14
Cooktop, Ceran (Almond) WPL 9753710CT Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753710CW Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Oven Control Assembly (Black) WPL 9753667CB Contact Us For Availability
15
Oven Control Assembly (Biscuit) WPL 9753667CC Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9753667CT Contact Us For Availability
15
Oven Control Assembly ( WPL 9753667CW Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
WPL 9780655 WPL 9780655 Contact Us For Availability
16
Ballast, Lamp WPL 3191044 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Cover, Vent (Black) WPL 9753040CB Contact Us For Availability
18
Cover, Vent (Biscuit) WPL 9753040CC Contact Us For Availability
18
Cover, Vent (Almond) WPL 9753040CT Contact Us For Availability
18
Cover, Vent (White) WPL 9753040CW Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Base L or R WPL 9782005 Contact Us For Availability
19
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
19
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
20
Clip, Mounting WPL 3149190 Contact Us For Availability
20
Ground Strap WPL 3169573 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
21
Rack, Standard WPL 9750823 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
WPL 9781118 WPL 9781118 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
22
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
23
Screw, 8-32 x 3/8 WPL 9780269 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Gasket WPL 9750767 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
26
WPL 9781771 WPL 9781771 Contact Us For Availability
26
WPL 9754008 WPL 9754008 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
26
Screw, 10-16 X 3/4 WPL 423248 Contact Us For Availability
27
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Switch, Door-Light WPL 9781581 Contact Us For Availability
28
WPL 9781502 WPL 9781502 Contact Us For Availability
28
Spring, Warm Zone control panel parts WPL 9753677 Contact Us For Availability
28
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
30
Screw, 8-18 x 3/8 WPL 9780275 Contact Us For Availability
31
WPL ARI86350A8 WPL ARI86350A8 Contact Us For Availability
32
WPL 9753329 WPL 9753329 Contact Us For Availability
33
WPL 9753293 WPL 9753293 Contact Us For Availability
34
WPL 9750613PB WPL 9750613PB Contact Us For Availability
35
WPL 9750614PB WPL 9750614PB Contact Us For Availability
× ![]()
