Model Whirlpool KERC506HWH2 – Common Parts & Diagrams
04 - OVEN CHASSIS
05 - OVEN, OPTIONAL

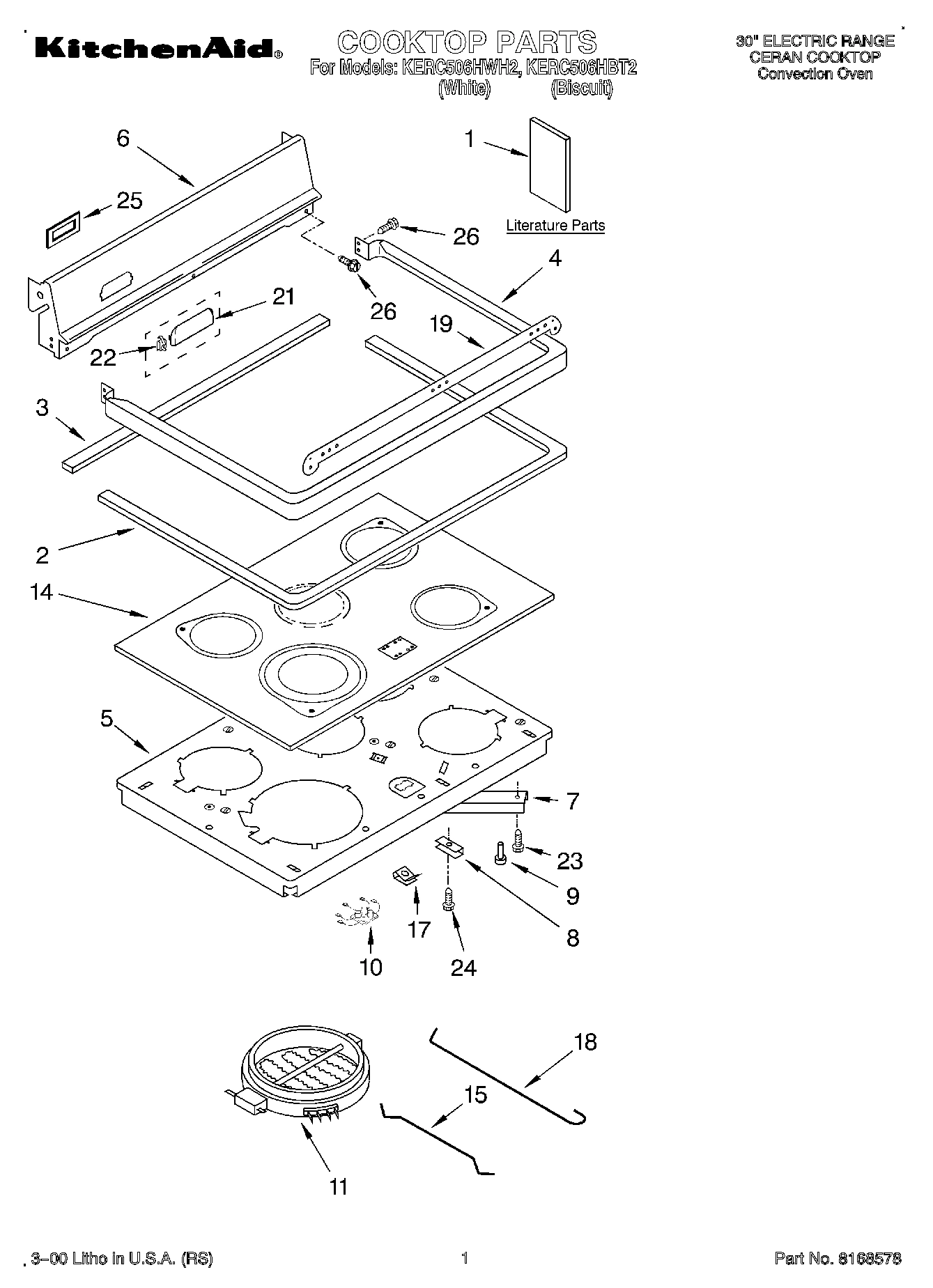

01 - COOKTOP, LITERATURE

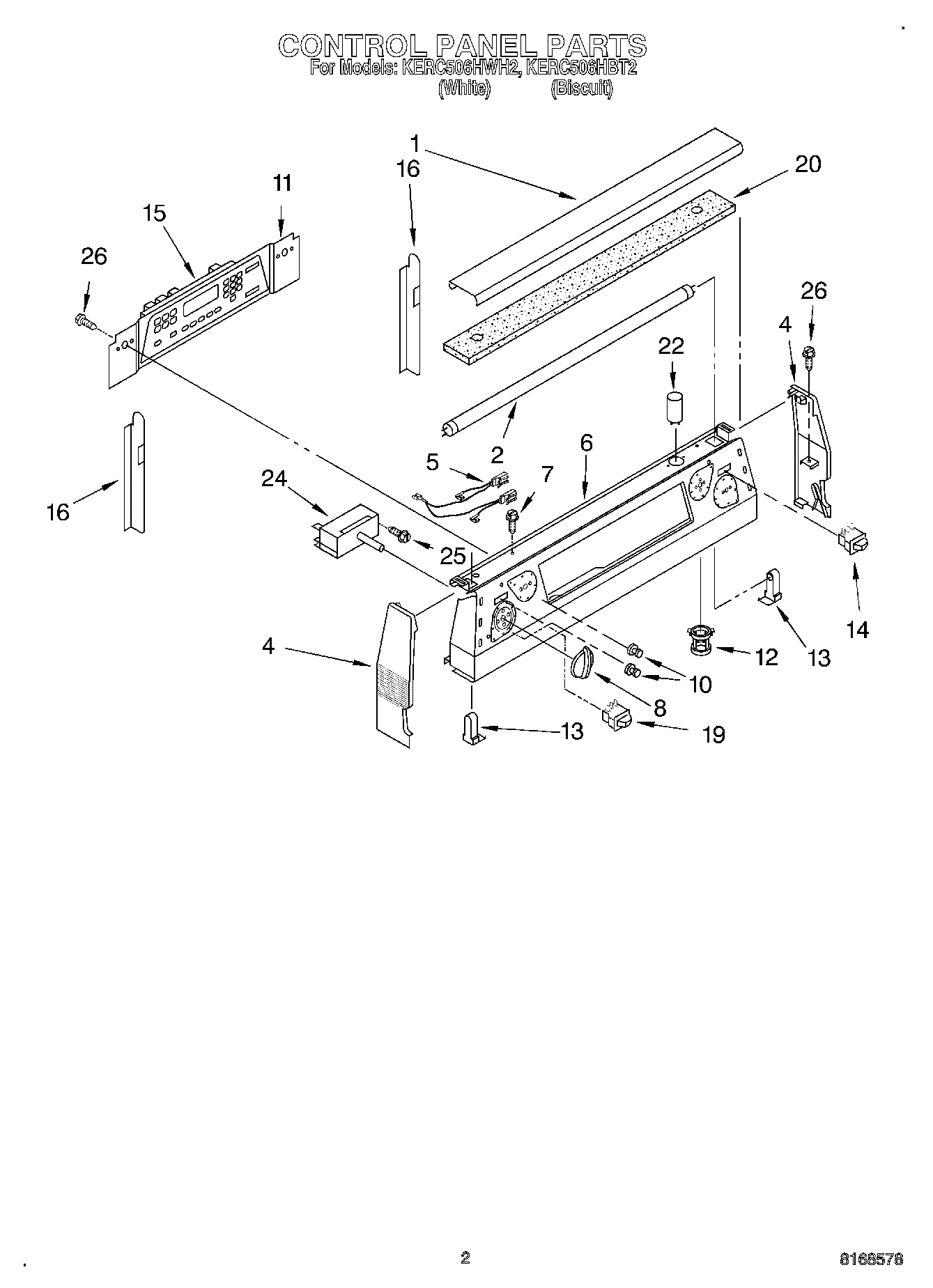

02 - CONTROL PANEL

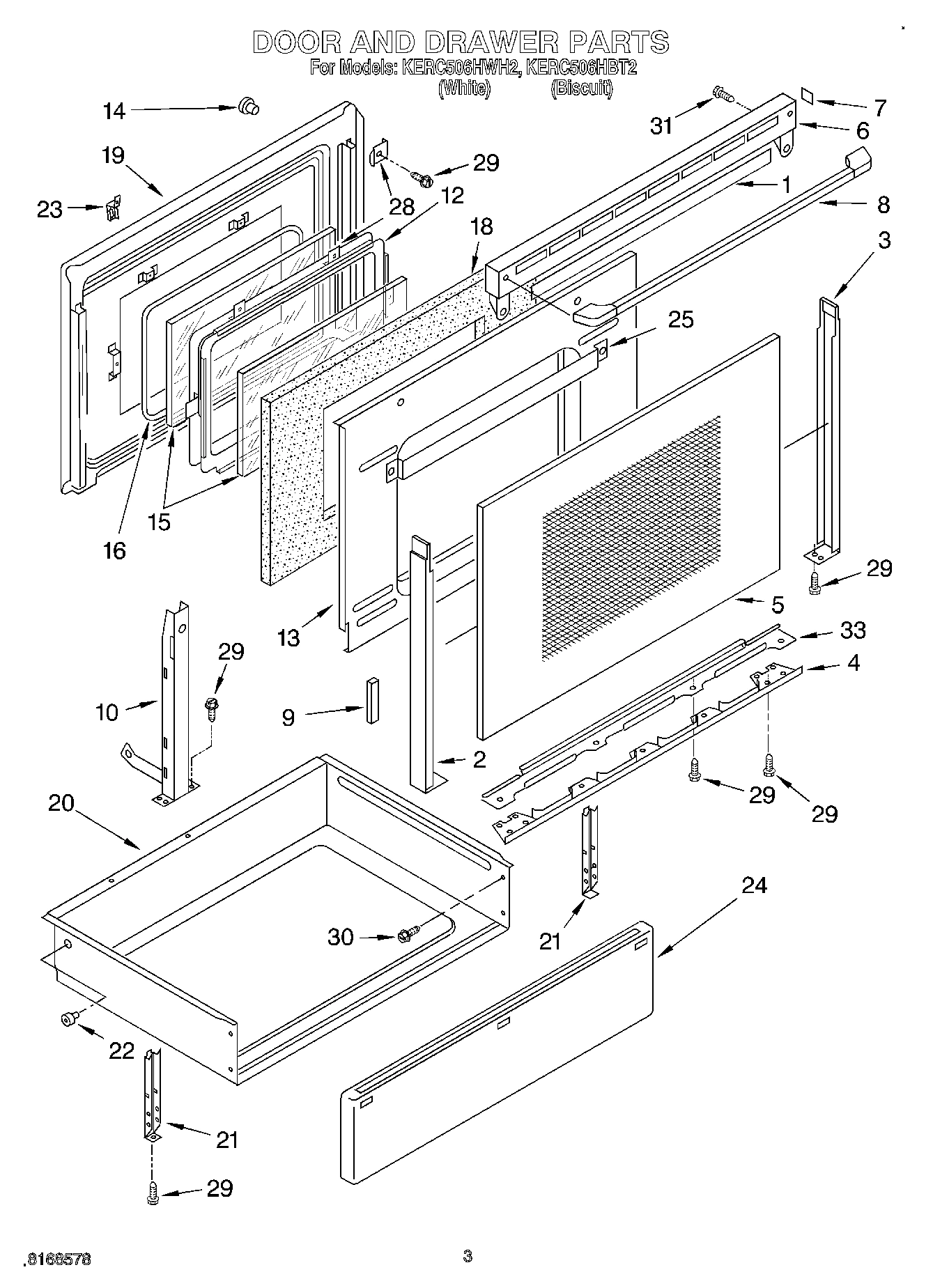

03 - DOOR AND DRAWER
Common parts from model Whirlpool KERC506HWH2
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Cookbook WPL 4449066 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752387 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753844 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753984 Contact Us For Availability
1
Lamp Cover (Biscuit) WPL 9753156P Contact Us For Availability
1
Gasket, Door Vent WPL 9781659 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9750456PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9750456PW Contact Us For Availability
4
End Cap L.H. (Biscuit) WPL 9750366FC Contact Us For Availability
4
(End Cap L.H.) (White) WPL 9750366FW Contact Us For Availability
4
End Cap R.H. (Biscuit) WPL 9750367FC Contact Us For Availability
4
End Cap R.H. (White) WPL 9750367FW Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
5
Light, Indicator WPL 9753422 Contact Us For Availability
5
Glass, Door Front (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door Front (White) WPL 9781627PW Contact Us For Availability
6
Back Splash (Biscuit) WPL 9752337GC Contact Us For Availability
6
Back Splash (White) WPL 9752337GW Contact Us For Availability
6
Panel, Control (Biscuit) WPL 9753725PC Contact Us For Availability
6
Panel, Control (White) WPL 9753725PW Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
7
Rack, Standard (3) WPL 9750823 Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
7
Seal, Door WPL 9781490 Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
11
Bracket, Timer WPL 9753690 Contact Us For Availability
12
Starter, Holder WPL 9750866 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Fan Assembly WPL 9781543 Contact Us For Availability
13
Receptacle, Light WPL 9752760 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Baffle, Convection WPL 9751904GM Contact Us For Availability
14
Cooktop, Ceran (Almond) WPL 9753710CT Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9753710CW Contact Us For Availability
14
Switch, Simmer (White) WPL 9753261FW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rack, Roasting WPL 9750827 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Control, Oven (Biscuit) WPL 9753638CC Contact Us For Availability
15
Control, Oven (White) WPL 9753638CW Contact Us For Availability
16
Screw WPL 9781509 Contact Us For Availability
16
Brace, Timer Bracket WPL 9780655 Contact Us For Availability
18
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
Coffee WPL 261886 Contact Us For Availability
19
New Avocado WPL 261888 Contact Us For Availability
19
Harvest Gold WPL 261890 Contact Us For Availability
19
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
19
Clip, Ground Strap WPL 313660 Contact Us For Availability
19
Strap, Ground WPL 3169573 Contact Us For Availability
19
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 9750744 WPL 9750744 Contact Us For Availability
19
WPL 9752771 WPL 9752771 Contact Us For Availability
19
WPL 9752772 WPL 9752772 Contact Us For Availability
19
WPL 9753680 WPL 9753680 Contact Us For Availability
19
WPL 9753682 WPL 9753682 Contact Us For Availability
19
WPL 9753685 WPL 9753685 Contact Us For Availability
19
WPL 9753687 WPL 9753687 Contact Us For Availability
19
WPL 9781542 WPL 9781542 Contact Us For Availability
19
WPL 9781930 WPL 9781930 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Guard, Wire WPL 9780585 Contact Us For Availability
19
Switch, Warm Zone (Biscuit) WPL 9753692FC Contact Us For Availability
19
Switch, Warm Zone (White) WPL 9753692FW Contact Us For Availability
20
Insulation, Cntrl WPL 9754008 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Cover, Vent (Biscuit) WPL 9753040CC Contact Us For Availability
21
Cover, Vent (White) WPL 9753040CW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Clip, Vent Cover WPL 3149190 Contact Us For Availability
22
Starter, Light WPL 9781118 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Screw WPL 423248 Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Gasket WPL 9750767 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Screw WPL 3149333 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
26
Spring, Warm Zone Element WPL 9753677 Contact Us For Availability
28
Spacer, Door (9) WPL 9781502 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
42
Washer WPL 424238 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Box, Terminal WPL 9752344 Contact Us For Availability
46
Cover, Terminal Box WPL 9752345 Contact Us For Availability
× ![]()
