Model Whirlpool KERC500YWH4 – Common Parts & Diagrams

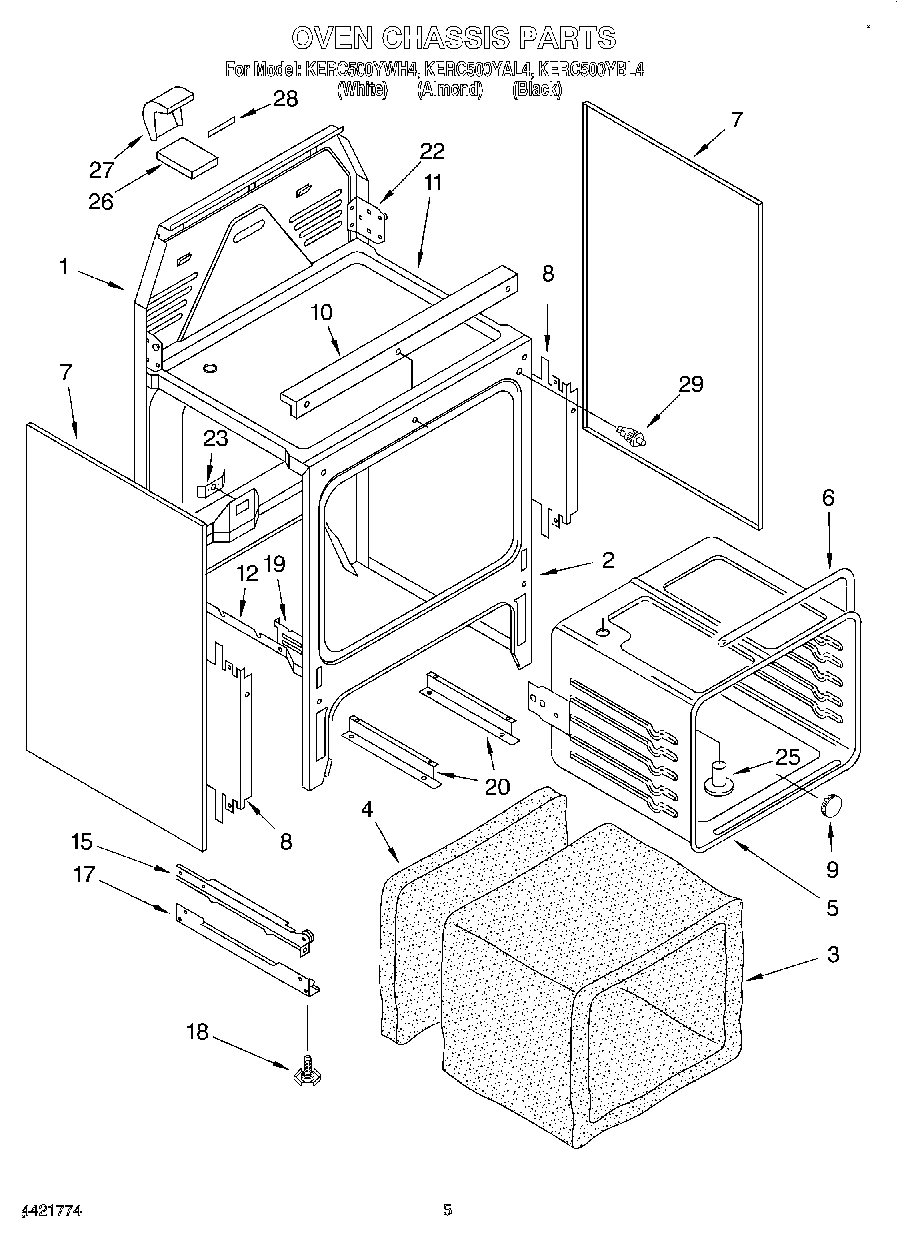

04 - OVEN CHASSIS

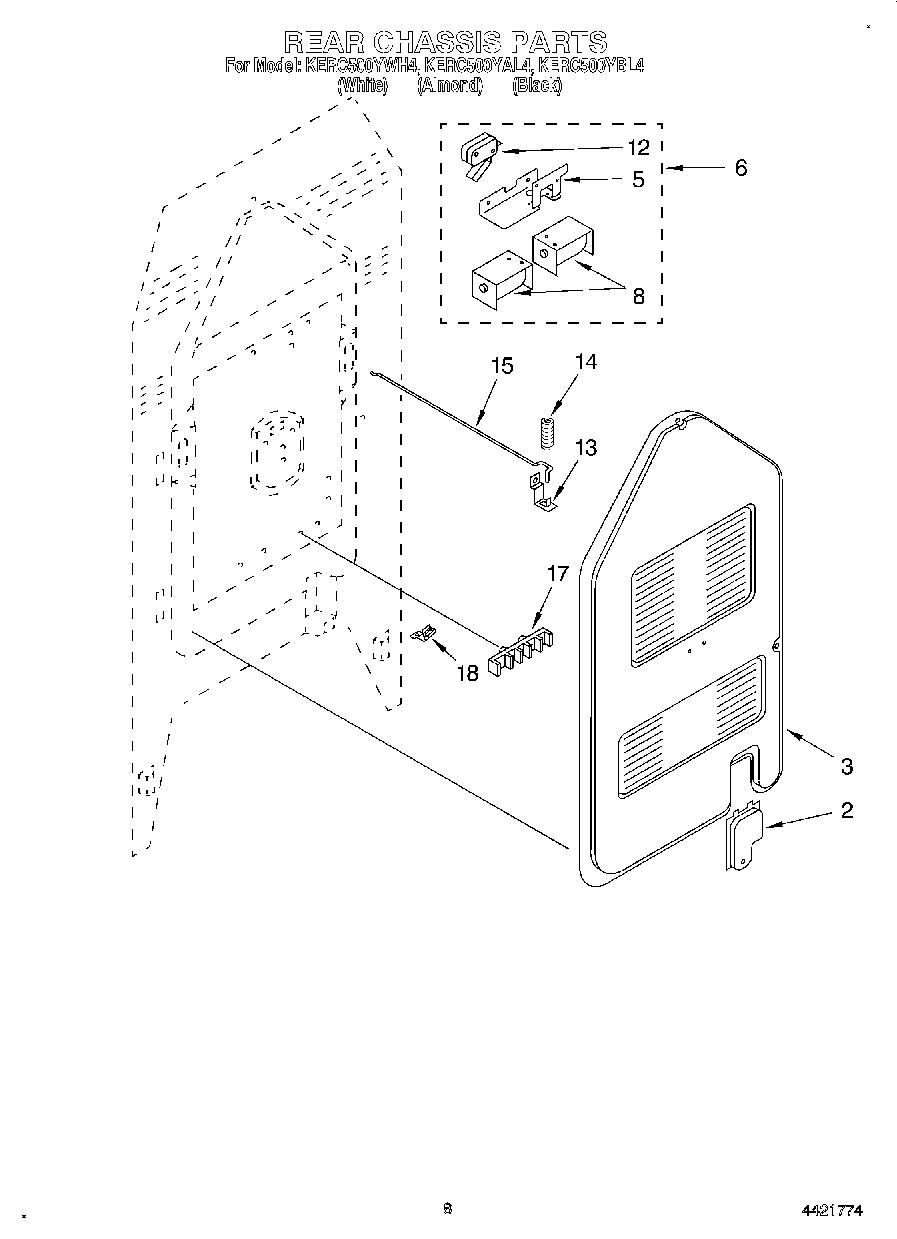

06 - REAR CHASSIS, LIT/OPTIONAL
03 - DOOR AND DRAWER
01 - COOKTOP
02 - CONTROL PANEL
05 - OVEN
Common parts from model Whirlpool KERC500YWH4
WPL 9750376 WPL 9750376 Contact Us For Availability
WPL 9750910 WPL 9750910 Contact Us For Availability
WPL 9751111 WPL 9751111 Contact Us For Availability
WPL 9781213 WPL 9781213 Contact Us For Availability
WPL 9781214 WPL 9781214 Contact Us For Availability
WPL LIT4317161 WPL LIT4317161 Contact Us For Availability
WPL LIT9750520 WPL LIT9750520 Contact Us For Availability
WPL LIT9750876 WPL LIT9750876 Contact Us For Availability
WPL LIT9750877 WPL LIT9750877 Contact Us For Availability
WPL LIT9780689 WPL LIT9780689 Contact Us For Availability
WPL LIT9780933 WPL LIT9780933 Contact Us For Availability
WPL LIT9780944 WPL LIT9780944 Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Cooktop, Ceran (White Mdl.) WPL 9780853 Contact Us For Availability
1
Cooktop, Ceran (Almond/Black Mdl.) WPL 9781060 Contact Us For Availability
1
Lamp Cover (Black) WPL 9780579 Contact Us For Availability
1
Lamp Cover (White) WPL 9780732 Contact Us For Availability
1
Lamp Cover (Almond) WPL 9780733 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cover, Rear Access WPL 9750490 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 4211899 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4211912 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 4211914 Contact Us For Availability
3
Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability
3
Rear Panel WPL 9750245 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 4211900 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4211910 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 4211911 Contact Us For Availability
3
Rear Gasket WPL 9780742 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 4211924 Contact Us For Availability
4
Trim, Door Bottom (White) WPL 4211925 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 4211926 Contact Us For Availability
4
Frame, Cooktop (White) WPL 4211918 Contact Us For Availability
4
Frame, Cooktop (Almond) WPL 4211919 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 4211920 Contact Us For Availability
4
End Cap (Almond RH) WPL 4211933 Contact Us For Availability
4
End Cap (White RH) WPL 4211934 Contact Us For Availability
4
End Cap (Black RH) WPL 4211935 Contact Us For Availability
4
End Cap (Almond LH) WPL 4211936 Contact Us For Availability
4
End Cap (White LH) WPL 4211937 Contact Us For Availability
4
End Cap (Black LH) WPL 4211938 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Glass, Door (Black) WPL 9781243 Contact Us For Availability
5
Glass, Door (White) WPL 9781244 Contact Us For Availability
5
Glass, Door (Almond) WPL 9781245 Contact Us For Availability
5
Support, Element WPL 9750455 Contact Us For Availability
6
Back Splash (Screw (4) 10AB x 1/2``) WPL 3149333 Contact Us For Availability
6
Oven Lock Assembly WPL 9750522 Contact Us For Availability
6
Vent, Door (Black) WPL 9781166GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9781166GT Contact Us For Availability
6
Vent, Door (White) WPL 9781166GW Contact Us For Availability
6
Vent, Door (Gasket, Vent) WPL 9781450 Contact Us For Availability
6
Back Splash (White) WPL 4211921 Contact Us For Availability
6
Back Splash (Almond) WPL 4211922 Contact Us For Availability
6
Back Splash (Black) WPL 4211923 Contact Us For Availability
6
Panel, Control (Black) WPL 9780516 Contact Us For Availability
6
Panel, Control (White) WPL 9780727 Contact Us For Availability
6
Panel, Control (Almond) WPL 9780728 Contact Us For Availability
6
Panel, Control (Screw, (2) 8 x 3/8) WPL 9780852 Contact Us For Availability
7
Brace, Support WPL 422404 Contact Us For Availability
8
Knobs, Control (Almond) WPL 4211913 Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9750524 Contact Us For Availability
8
Handle, Door (White) WPL 4212234 Contact Us For Availability
8
Handle, Door (Almond) WPL 4212235 Contact Us For Availability
8
Handle, Door (Black) WPL 4212236 Contact Us For Availability
8
Screw, (4) 10PH-B x 3/4 WPL 423248 Contact Us For Availability
8
Support Clip (4) WPL 9750821 Contact Us For Availability
8
Knobs, Control (Black) WPL 4211901 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Bumper (4) (Screw, Anchor) WPL 9781370 Contact Us For Availability
10
Hot Light WPL 9780931 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
11
Element, Surface (7`` R.F. 1700W) WPL 9751529 Contact Us For Availability
11
Element, Surface (6`` L.R. 1400W) WPL 9752182 Contact Us For Availability
11
Element, Surface (8`` R.R. 2100W) WPL 9752183 Contact Us For Availability
11
Element, Surface (9`` L.F. 2400W) WPL 9752184 Contact Us For Availability
11
Light Module WPL 9750964 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Bracket, Spring WPL 9750834 Contact Us For Availability
13
Shield Door WPL 4211941 Contact Us For Availability
14
Spring, Door Lock WPL 9750833 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
15
Spring (12) WPL 9780679 Contact Us For Availability
15
Oven Control Assembly (Black) WPL 9750716 Contact Us For Availability
15
Oven Control Assembly (Almond) WPL 9750918 Contact Us For Availability
15
Oven Control Assembly (White) WPL 9750919 Contact Us For Availability
16
Seal, Window WPL 9751135 Contact Us For Availability
16
Brace, Control Pnl WPL 9780655 Contact Us For Availability
17
Screw, (2) 10-16 x 1 WPL 98884 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~ WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
18
Platinum (Uncut) WPL 285368 Contact Us For Availability
18
Ground Str WPL 308498 Contact Us For Availability
18
WPL 313660 WPL 313660 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9780269 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
23
Infinite Switch (Screw (8) 8-32 x 3/16) WPL 9780268 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
24
Front, Drawer (Black) WPL 4212056 Contact Us For Availability
26
Cover, Vent WPL 9750393 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
27
Back, Vent WPL 9750394 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Switch, Door WPL 9750897 Contact Us For Availability
× ![]()
