Model Whirlpool KEMS377GBT0 – Common Parts & Diagrams

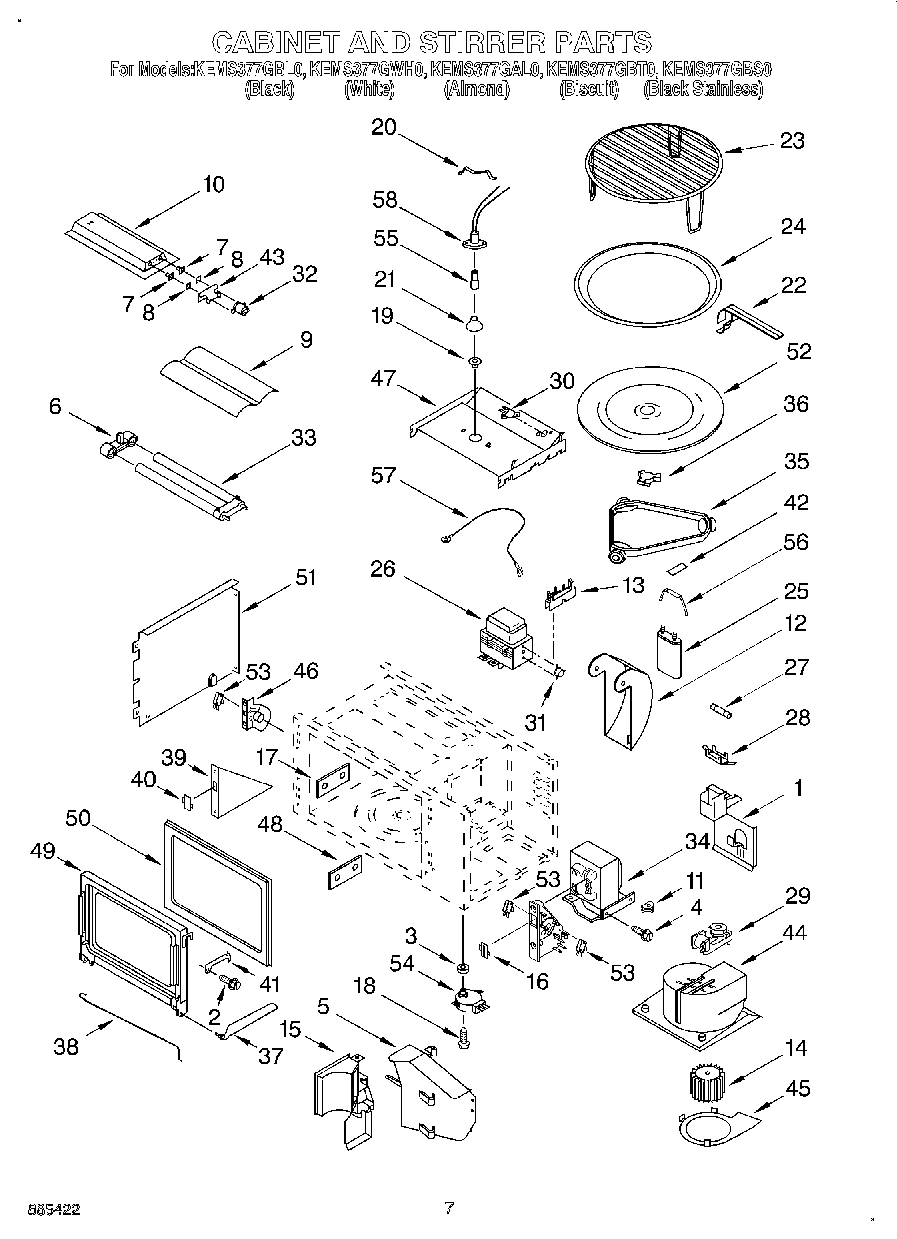

06 - CABINET AND STIRRER

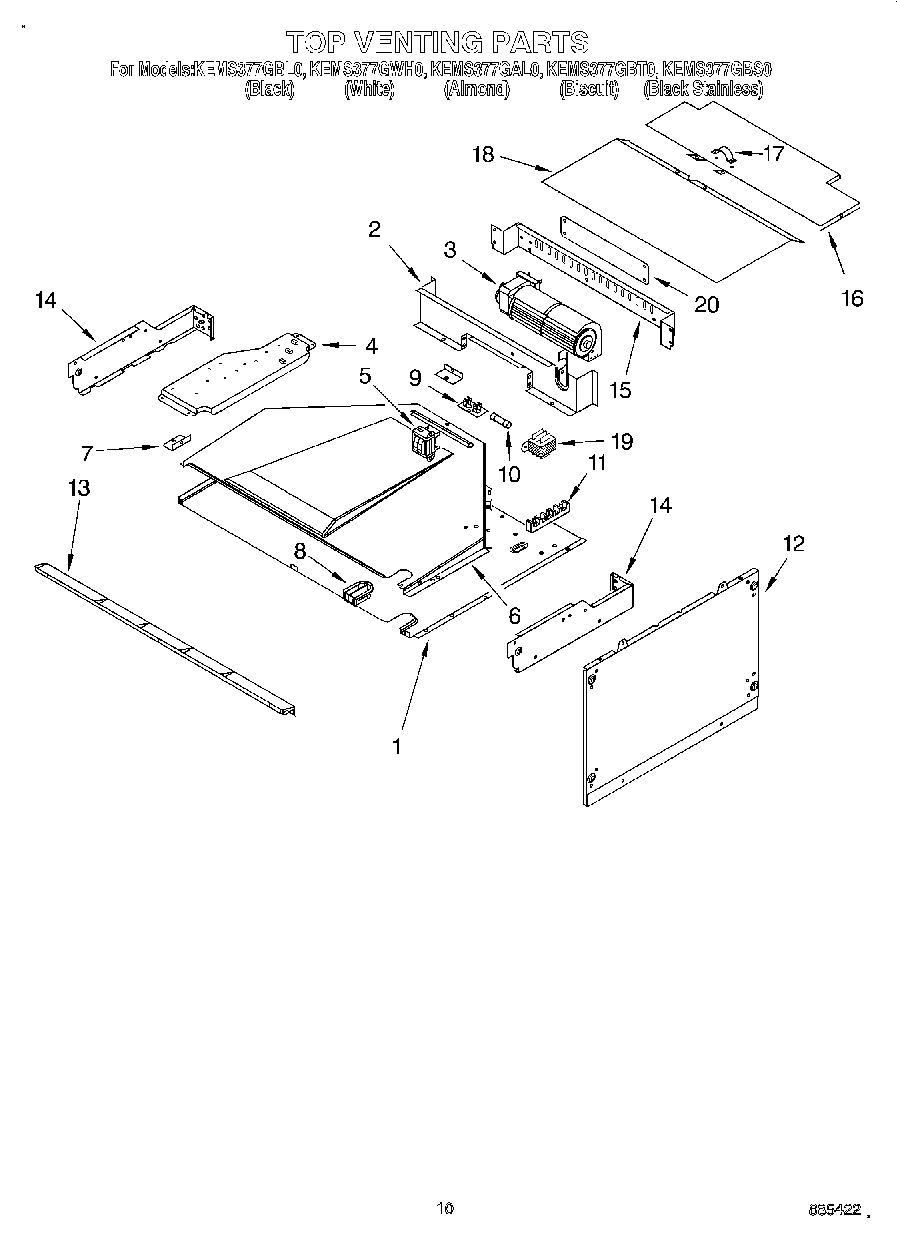

08 - TOP VENTING

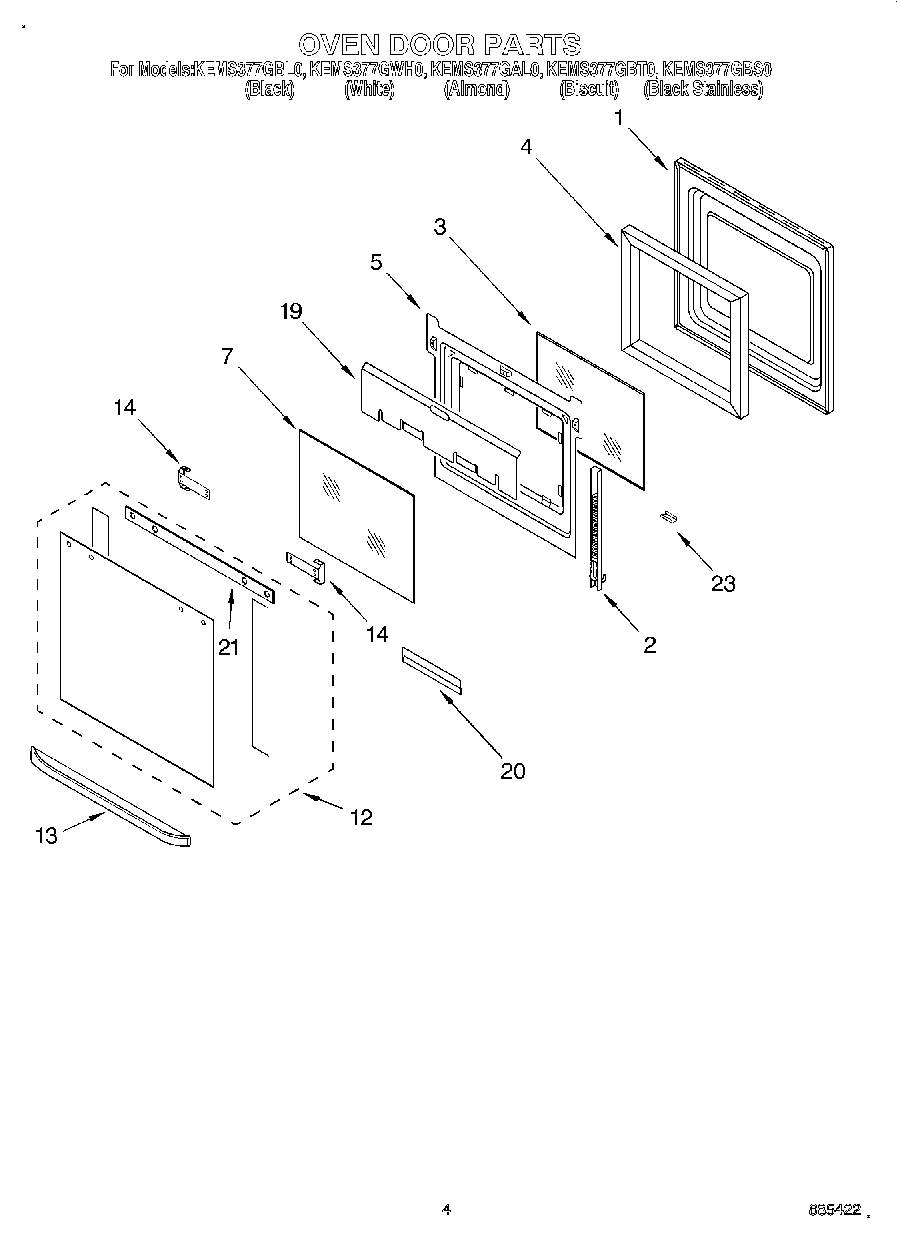

03 - OVEN DOOR

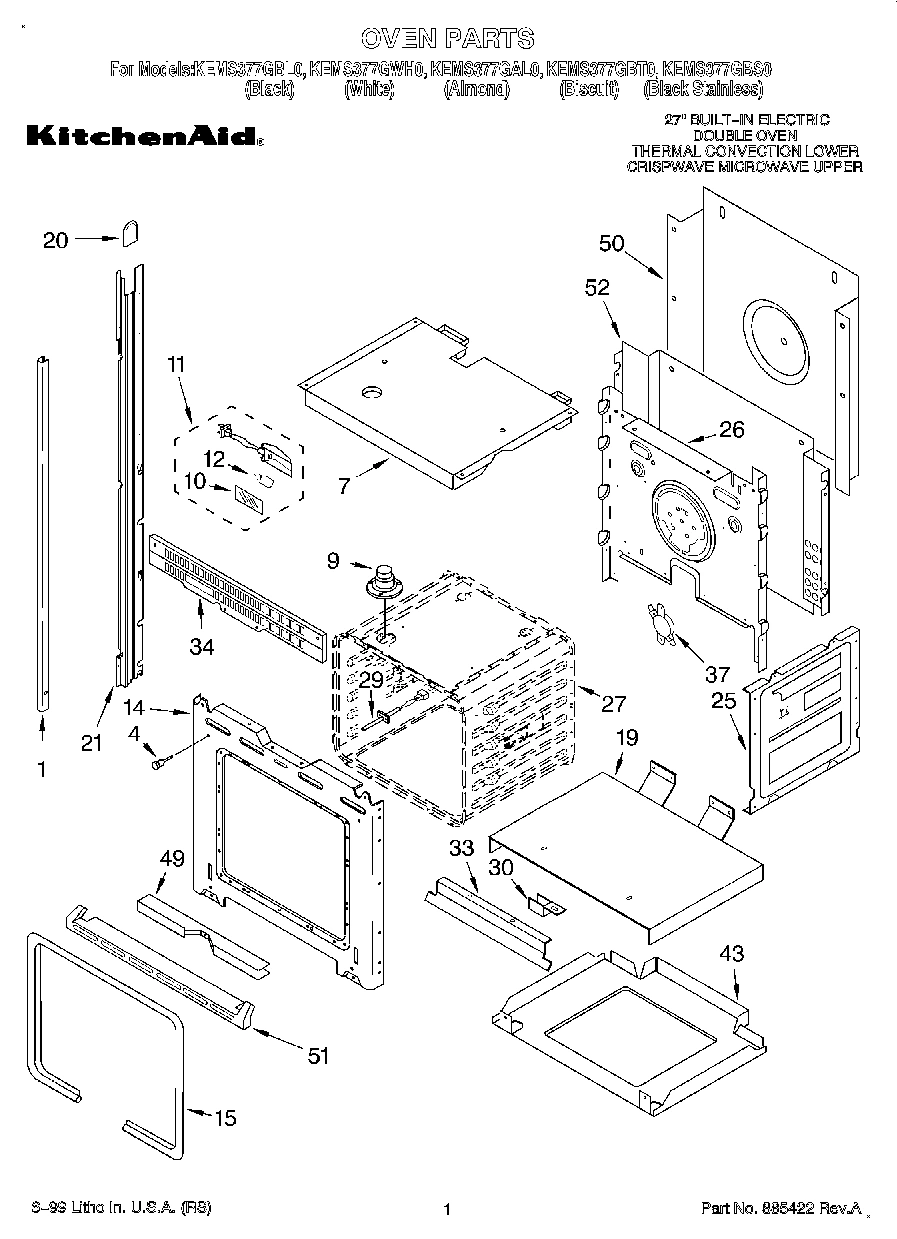

01 - OVEN

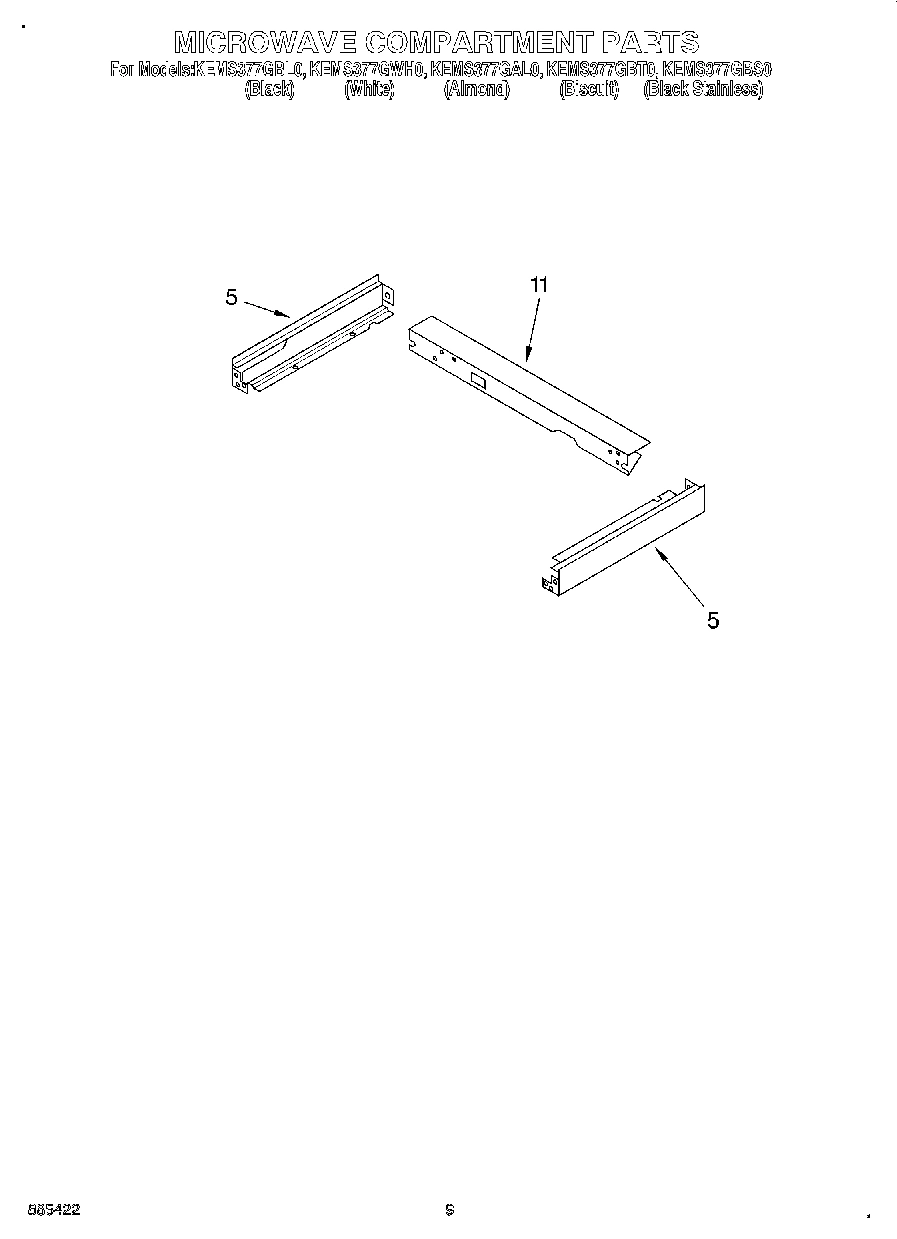

07 - MICROWAVE COMPARTMENT

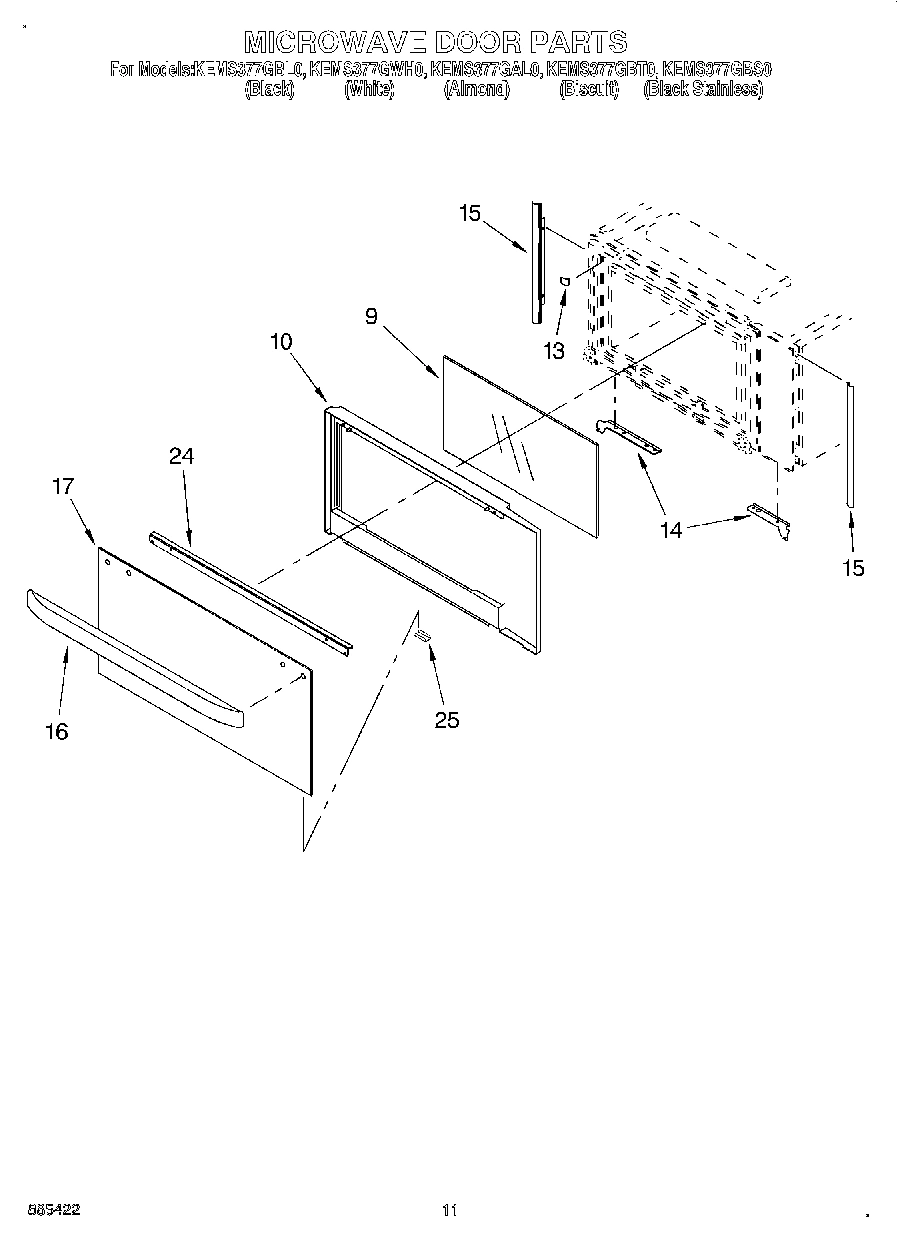

09 - MICROWAVE DOOR, OPTIONAL

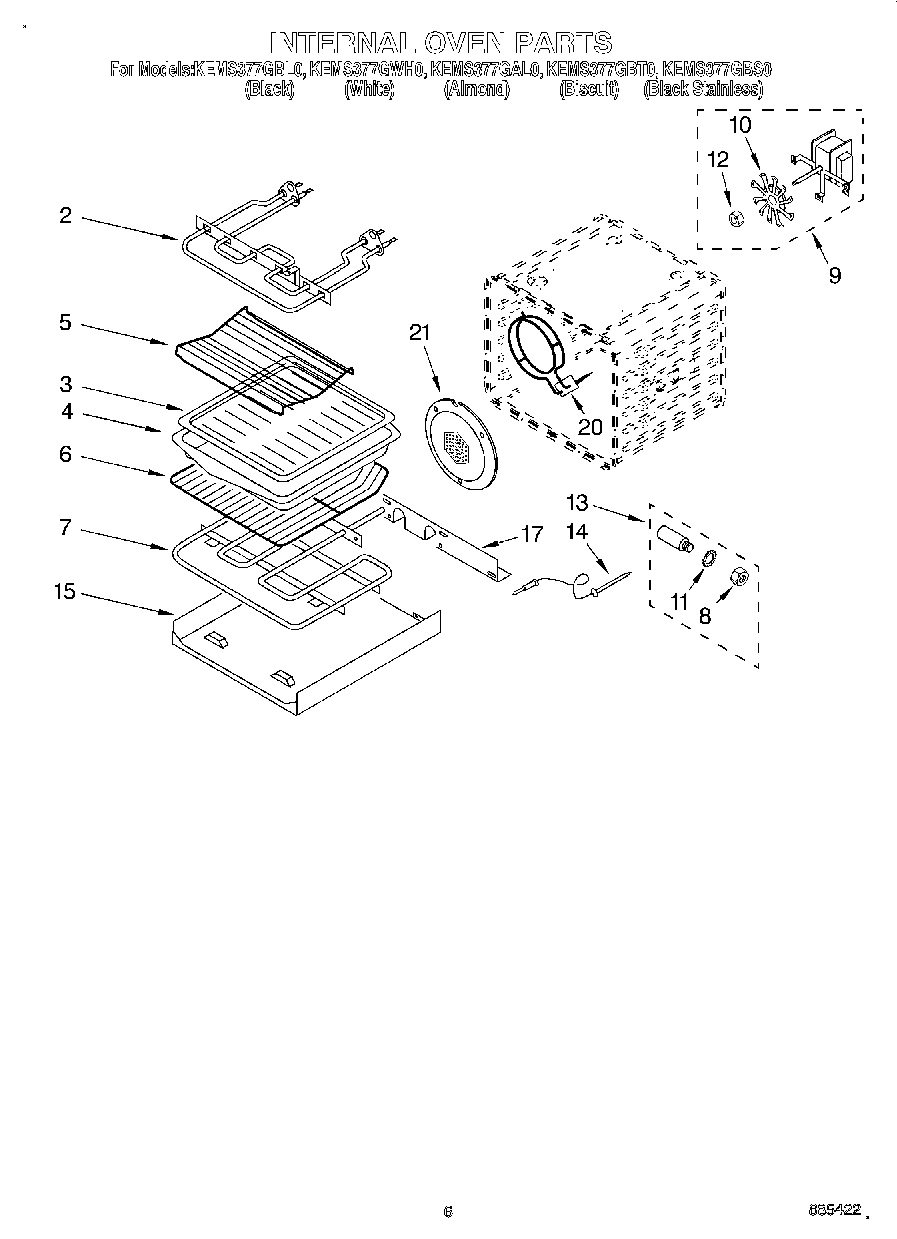

05 - INTERNAL OVEN

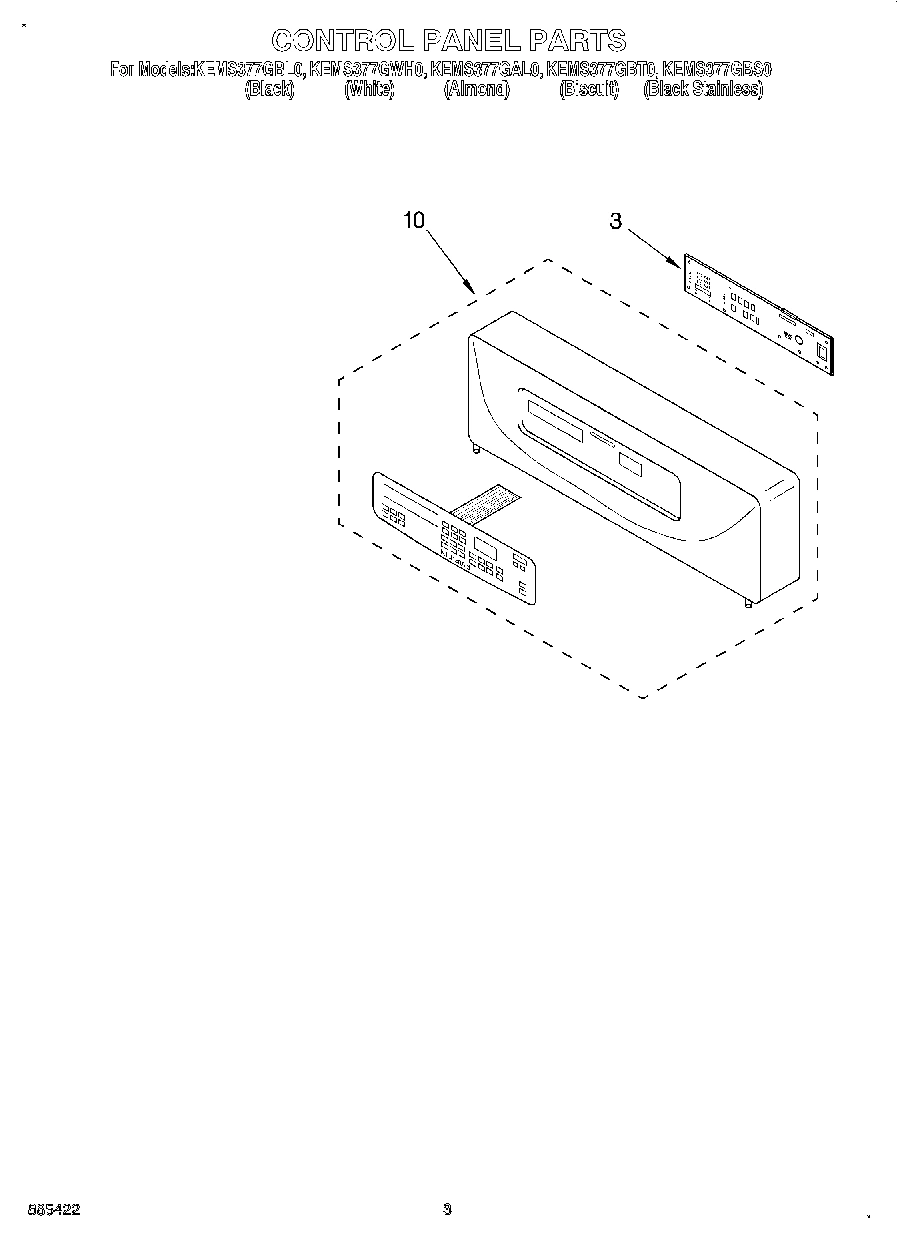

02 - CONTROL PANEL, LITERATURE

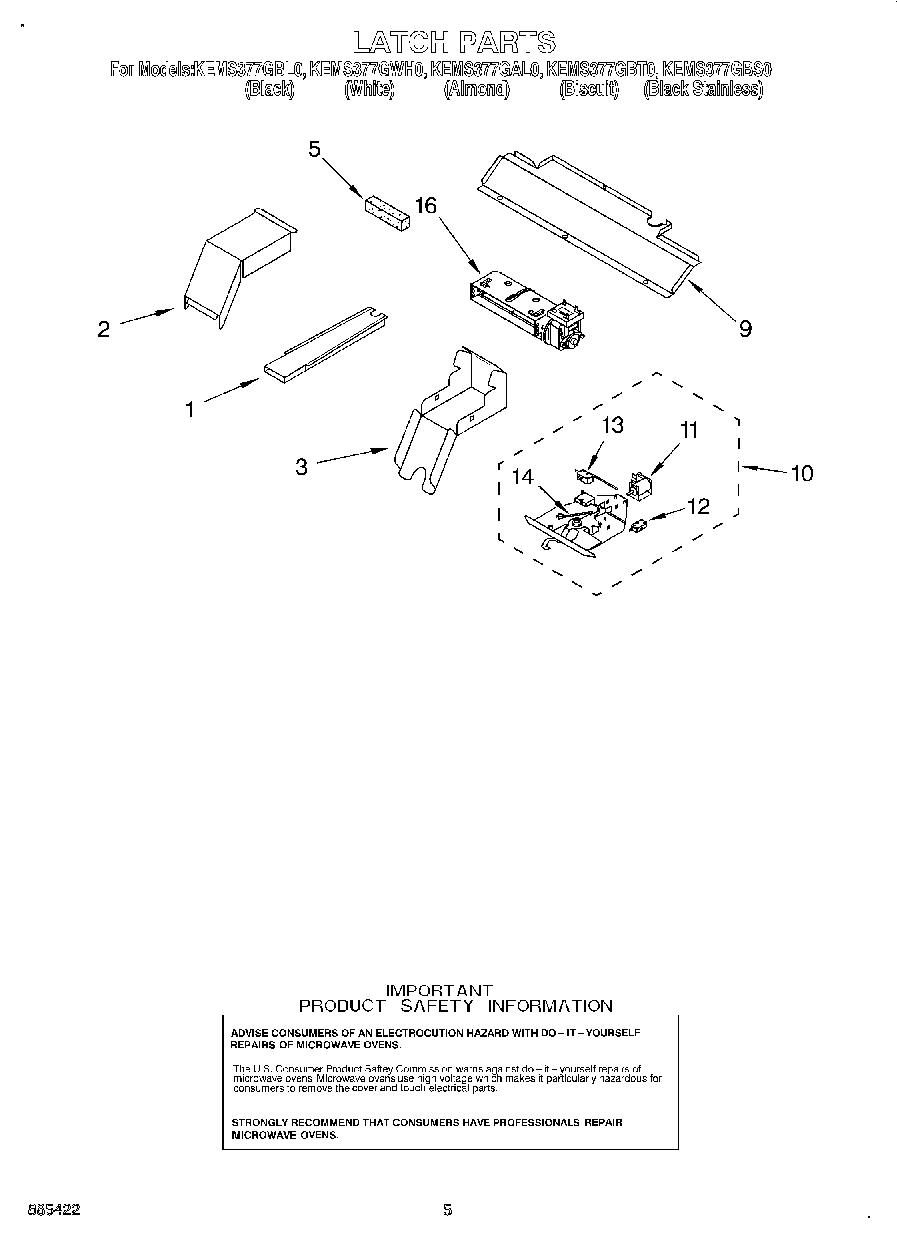

04 - LATCH
Common parts from model Whirlpool KEMS377GBT0
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide (Oven) WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450786 Contact Us For Availability
Guide, Easy Use (Microwave) WPL LIT4451052 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452295 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4452300 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4452301 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (RH Almond) WPL 4450858 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Trim, Side (LH Almond) WPL 4450861 Contact Us For Availability
1
Trim, Side (RH Biscuit) WPL 4452124 Contact Us For Availability
1
Trim, Side (LH Biscuit) WPL 4452125 Contact Us For Availability
3
Microcomputer WPL 4452482 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
7
Top, Chassis WPL 4452236 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Baffle, Rear WPL 4450407 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Frame, Door WPL 4450945 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Biscuit WPL 4451781 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Almond) WPL 4451782 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black) WPL 4451783 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White) WPL 4451784 Contact Us For Availability
11
Rear Channel WPL 4451753 Contact Us For Availability
11
Solenoid WPL 4451663 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
12
Micro Switch N.C. WPL 4451422 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Microswitch WPL 4451426 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451739 Contact Us For Availability
14
Spring, Latch WPL 4451537 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
16
Handle, Door (White) WPL 4448412 Contact Us For Availability
16
Handle, Door (Almond) WPL 4448413 Contact Us For Availability
16
Handle, Door (Biscuit) WPL 4452128 Contact Us For Availability
16
Handle, Door (Black) WPL 4448411 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4449133 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4449134 Contact Us For Availability
17
Glass, Outer (Almond Model) WPL 4449135 Contact Us For Availability
17
Glass, Outer (Biscuit) WPL 4452148 Contact Us For Availability
17
Glass, Outer (Black-Stainless) WPL 4452466 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
21
Seal, Door Top WPL 4451673 Contact Us For Availability
24
Bracket, Handle (Black, White, Almond, Biscui WPL 4452330 Contact Us For Availability
24
Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability
24
Bracket, Handle (Black Stainless Model) WPL 4450960 Contact Us For Availability
25
WPL 4450863 WPL 4450863 Contact Us For Availability
25
WPL 4450864 WPL 4450864 Contact Us For Availability
25
WPL 4450865 WPL 4450865 Contact Us For Availability
25
WPL 4452119 WPL 4452119 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
25
Filler Kit (BL) WPL 4378950 Contact Us For Availability
25
Filler Kit (WH) WPL 4378951 Contact Us For Availability
25
Filler Kit (AL) WPL 4378952 Contact Us For Availability
25
WPL 4450831 WPL 4450831 Contact Us For Availability
25
WPL 4452222 WPL 4452222 Contact Us For Availability
25
WPL 4452239 WPL 4452239 Contact Us For Availability
25
WPL 4454929 WPL 4454929 Contact Us For Availability
25
WPL 591014 WPL 591014 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI86180A5 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
43
Base, Chassis WPL 4451397 Contact Us For Availability
48
Cover Plate (Lower) WPL 4375338 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
51
Trim, Bottom (Almond) WPL 4448861 Contact Us For Availability
51
Trim, Bottom (Biscuit Model) WPL 4452414 Contact Us For Availability
52
Insulation, Wrap WPL 4449315 Contact Us For Availability
52
Insulation, Back WPL 4450364 Contact Us For Availability
52
Chassis, Back WPL 4451755 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
× ![]()
