Model Whirlpool KEMS377DBS4 – Common Parts & Diagrams
06 - CABINET AND STIRRER
01 - OVEN

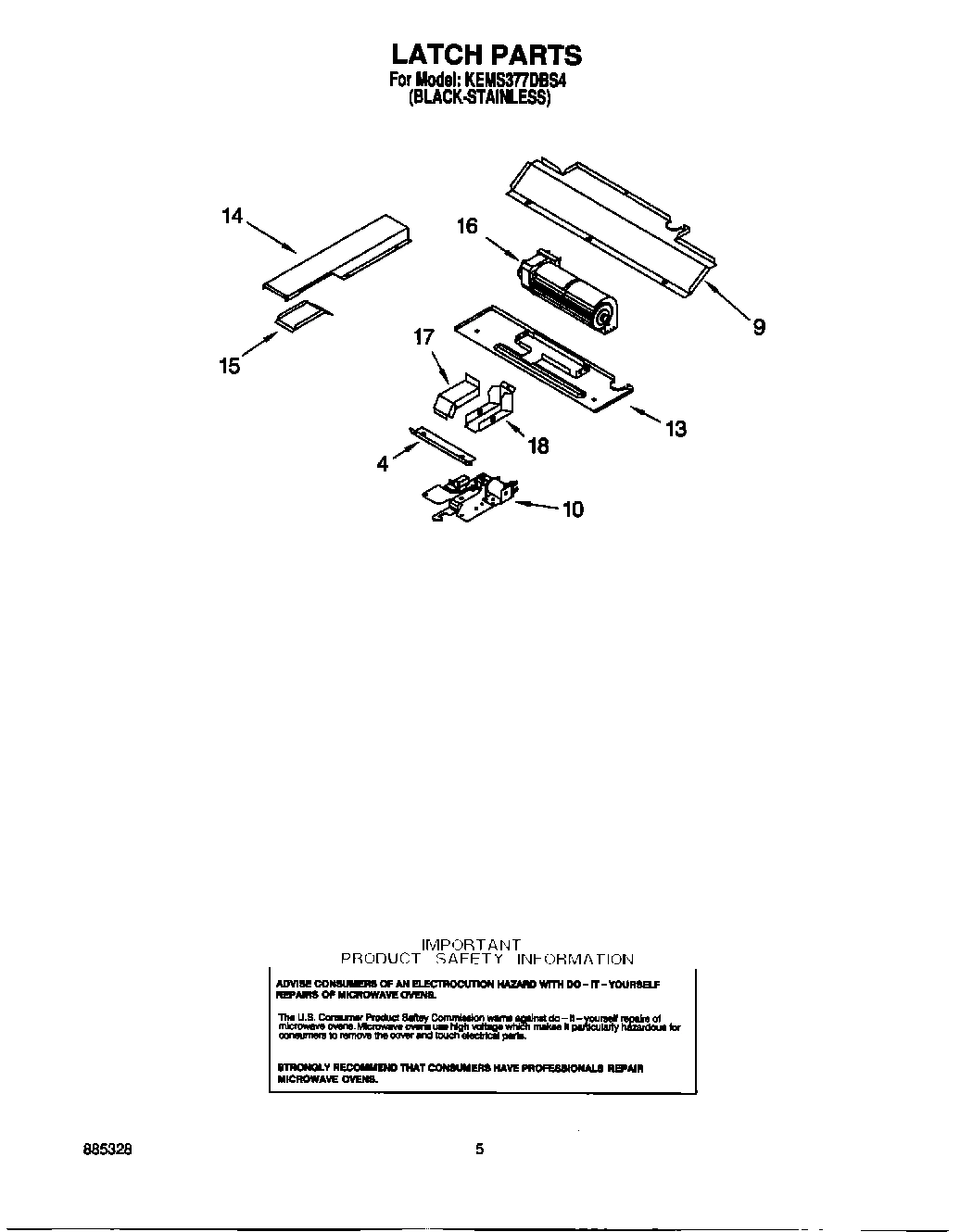

04 - LATCH
08 - TOP VENTING

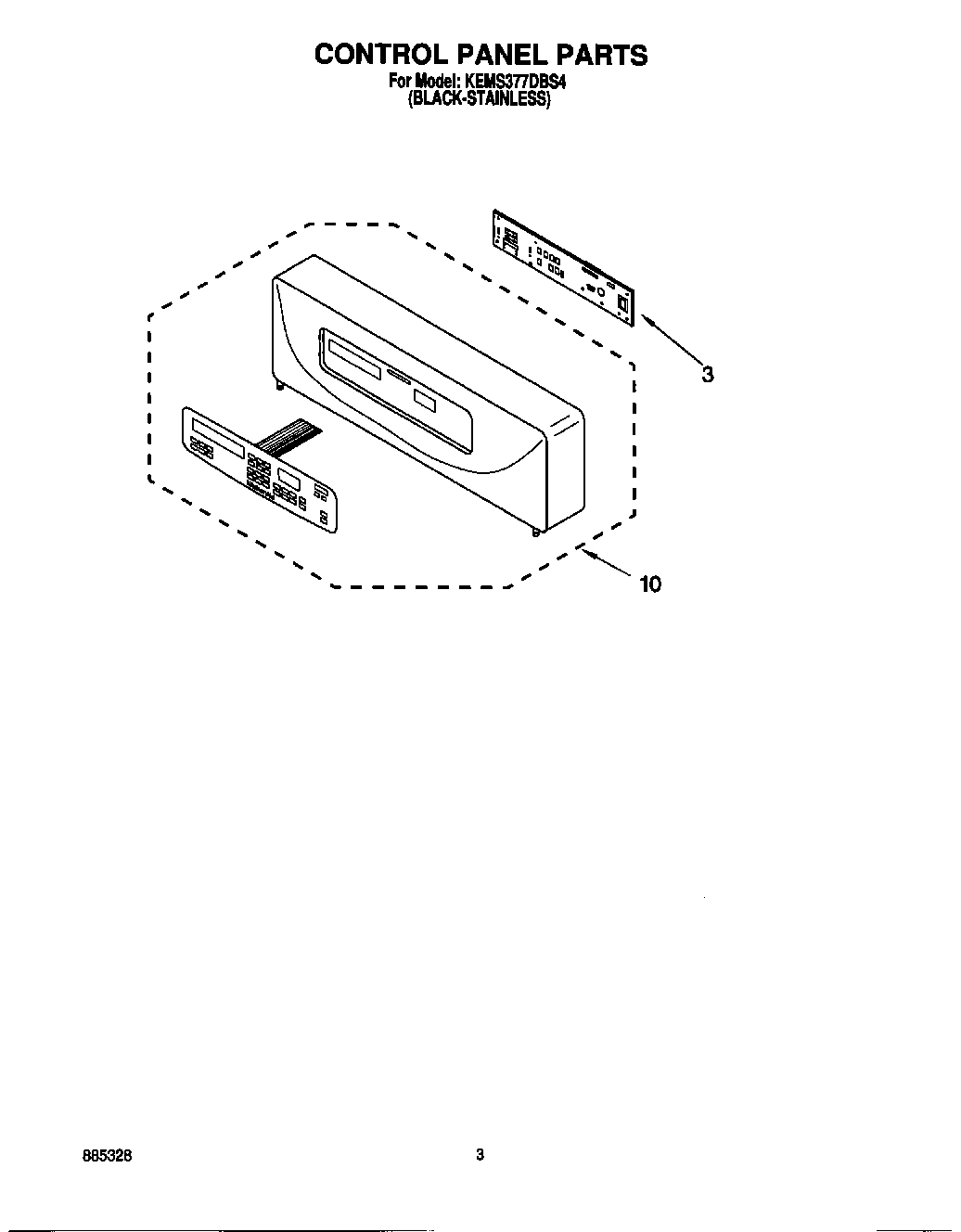

02 - CONTROL PANEL, LITERATURE
03 - OVEN DOOR

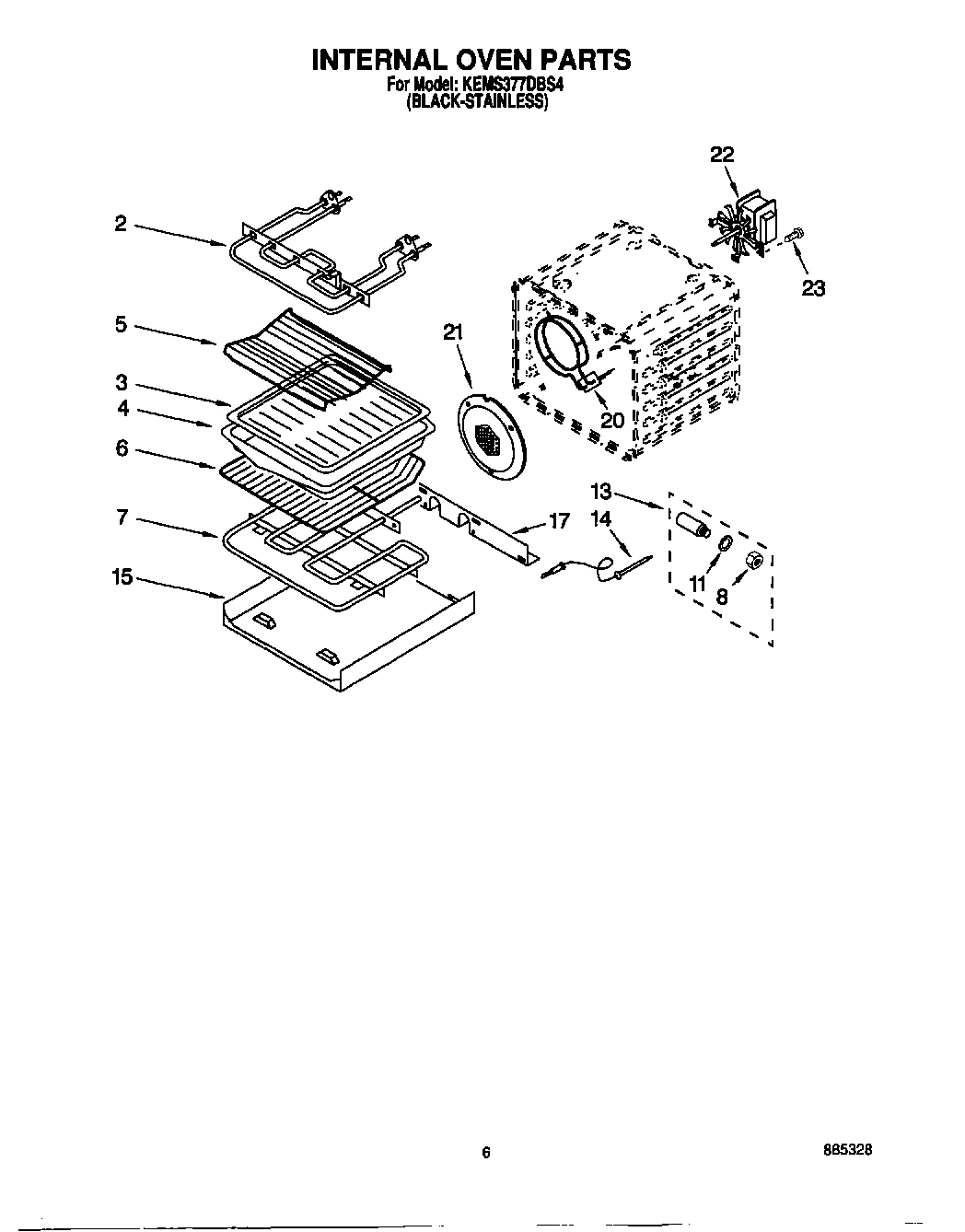

05 - INTERNAL OVEN

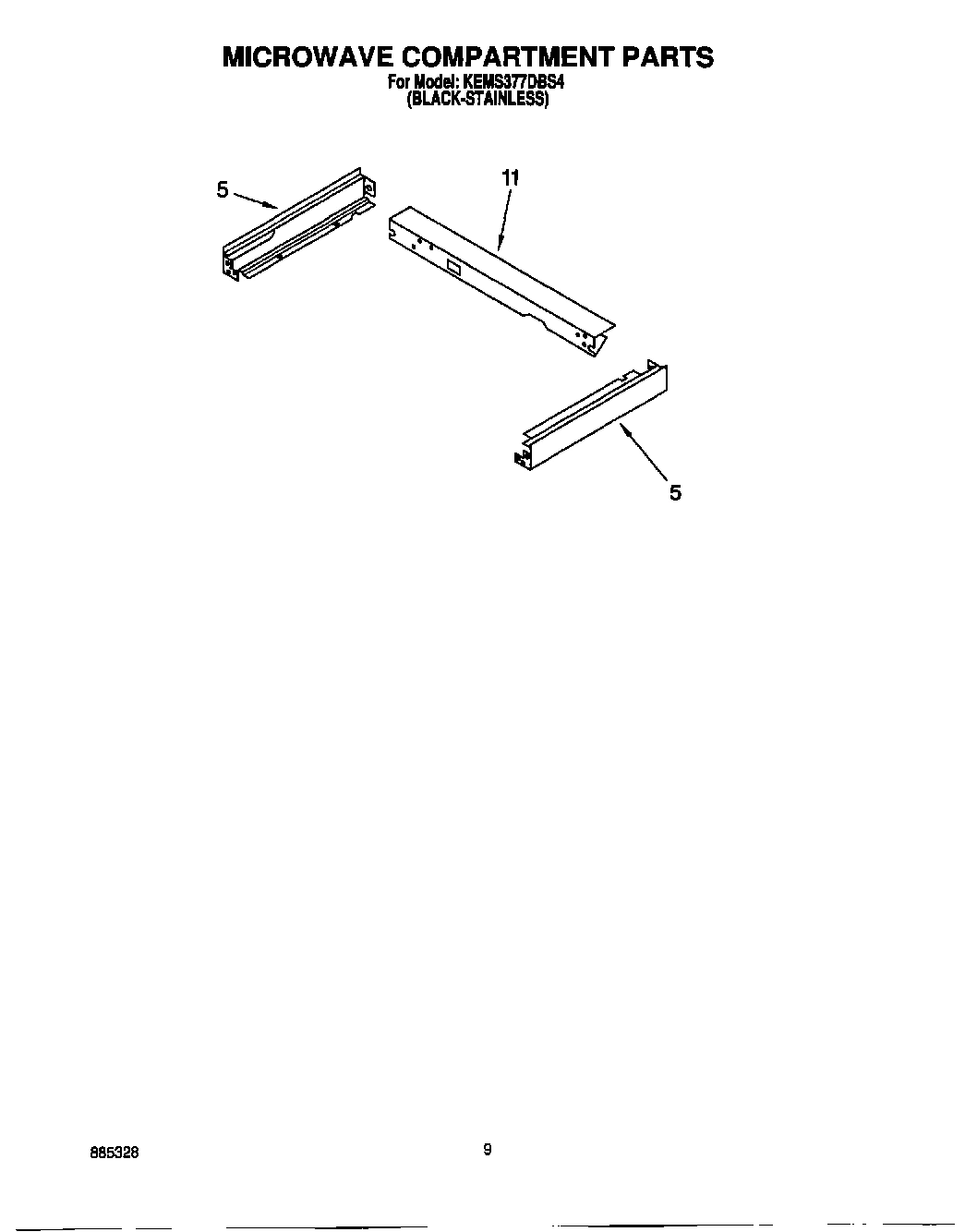

07 - MICROWAVE COMPARTMENT

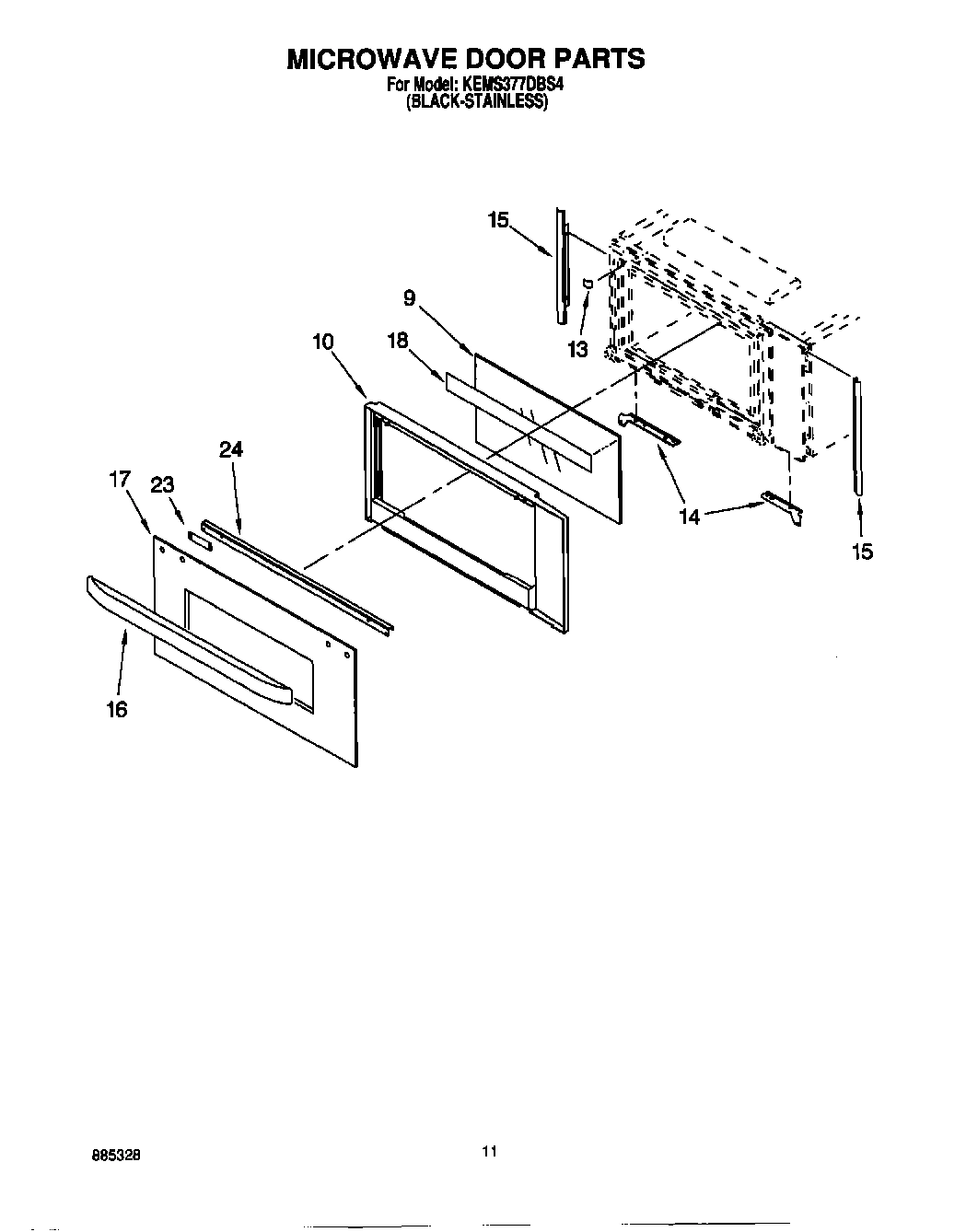

09 - MICROWAVE DOOR, OPTIONAL
Common parts from model Whirlpool KEMS377DBS4
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450786 Contact Us For Availability
Easy Use Guide M/W WPL LIT4451052 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4451399 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4451400 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454773 Contact Us For Availability
1
Cover, Top WPL 4450377 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Baffle, Rear WPL 4450407 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
10
Latch Assy WPL 4454710 Contact Us For Availability
10
Panel, Control W/Membrane Switch WPL 4451060 Contact Us For Availability
10
Frame, Door WPL 4450945 Contact Us For Availability
11
Rear Channel WPL 4449702 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Side, Combo WPL 4450401 Contact Us For Availability
12
Door Glass & Panel Assy. WPL 4451376 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
13
Vent, (Control Panel) WPL 4449764 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
16
Blower WPL 4450919 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
16
Handle, Door WPL 4448411 Contact Us For Availability
17
Vent, Top WPL 4449883 Contact Us For Availability
17
Glass, Outer & Panel Assy. WPL 4451378 Contact Us For Availability
18
Vent, Bottom WPL 4450406 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Tape, Foil WPL 4451386 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Convection Motor WPL 4448952 Contact Us For Availability
23
Retainer, Clip WPL 4450863 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
24
Screw WPL 4451040 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
24
Filler Kit (BL) WPL 4378950 Contact Us For Availability
24
Harness, Transformer WPL 4450291 Contact Us For Availability
24
Ground (M/W) WPL 4450831 Contact Us For Availability
24
Bracket, Handle WPL 4450960 Contact Us For Availability
24
Harness, Latch WPL 4454709 Contact Us For Availability
24
Oven, Main (Also, order Door Switch Harness) WPL 4454859 Contact Us For Availability
24
Harness, Door Switch (Also, Order Main Harnes WPL 4454871 Contact Us For Availability
24
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
48
Cover Plate (Lower) WPL 4375338 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Screw WPL 4159465 Contact Us For Availability
51
Trim, Bottom WPL 4448458 Contact Us For Availability
52
Insulation, Wrap WPL 4449315 Contact Us For Availability
52
Insulation, Bottom WPL 4450127 Contact Us For Availability
52
Insulation, Back WPL 4450364 Contact Us For Availability
52
Chassis, Back WPL 4450402 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
× ![]()
