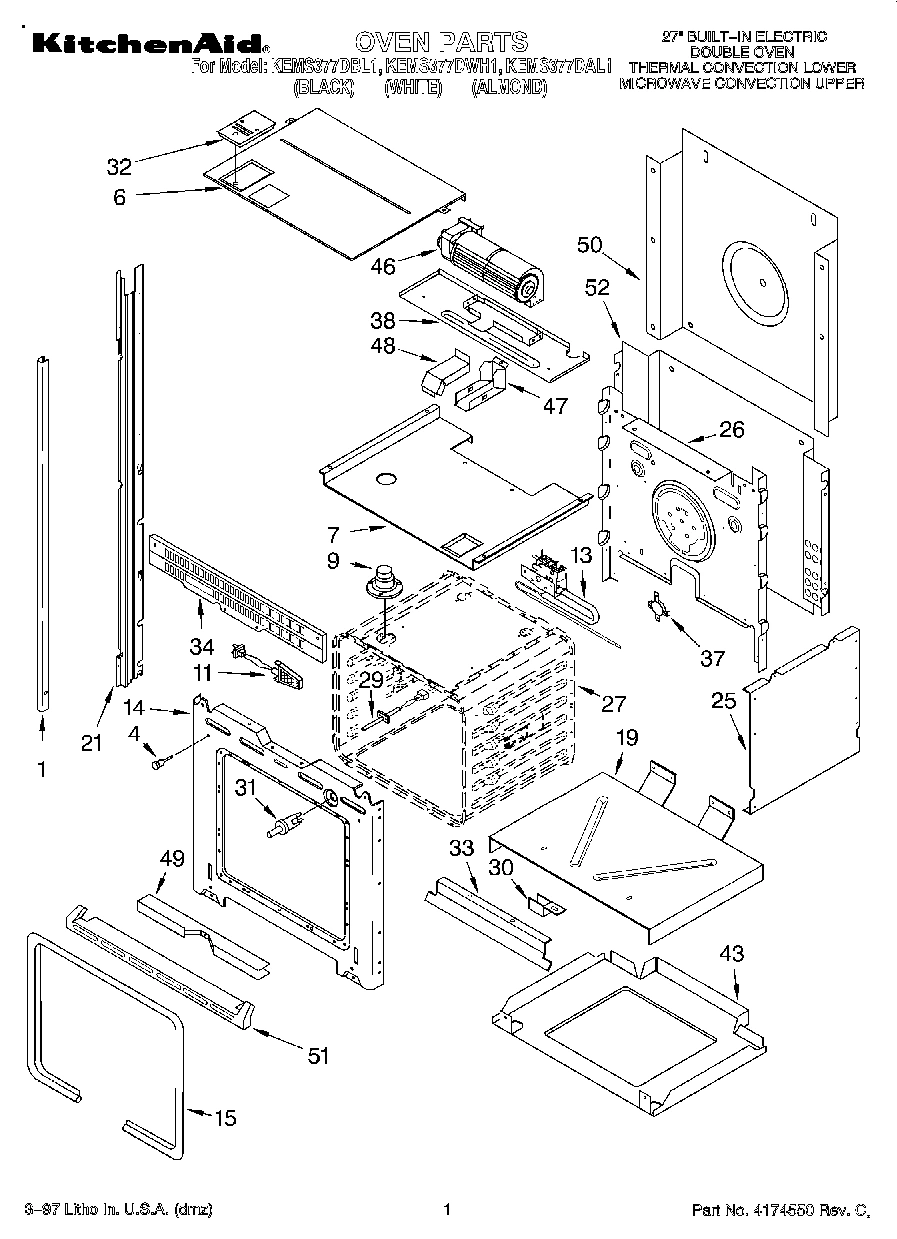

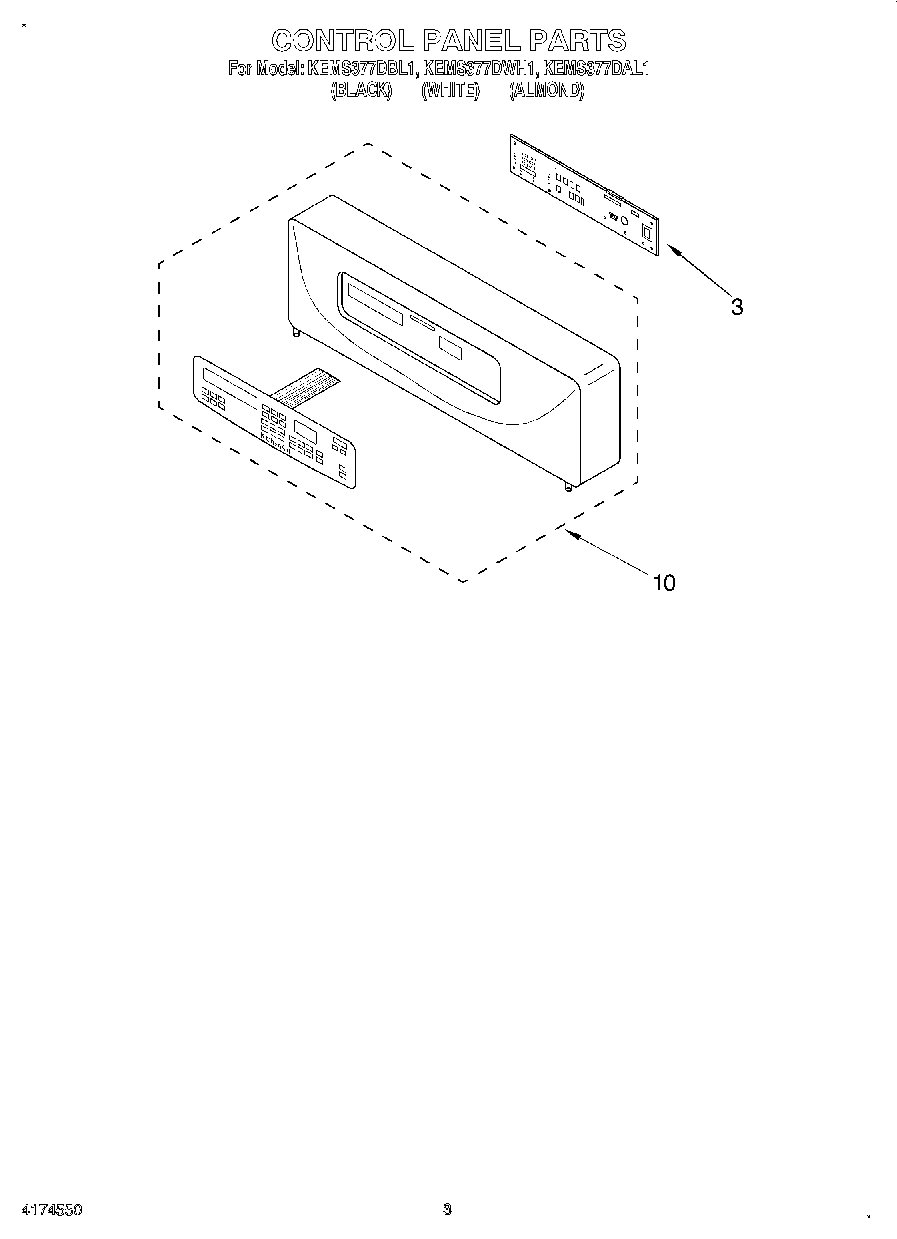

Model Whirlpool KEMS377DBL1 – Common Parts &amp; Diagrams

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

1

Cover, Top WPL 4450377 Contact Us For Availability

1

Door Liner WPL 4450428 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $39.05

2

Screw WPL 4375313 Contact Us For Availability

2

Baffle, Blower WPL 4448935 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $74.43

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Microcomputer WPL 4448869 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

3

Blower WPL 4450920 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

Deflector, Latch WPL 4450051 Contact Us For Availability

4

Screw WPL 4375038 Contact Us For Availability

4

Bracket, Transformer WPL 4450066 Contact Us For Availability

4

Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $95.80

5

Support Rails (Left Side) WPL 4450405 Contact Us For Availability

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

5

Retainer, Glass WPL 4450422 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Support, Tube WPL 4375253 Contact Us For Availability

6

Exhaust Duct WPL 4450366 Contact Us For Availability

7

Plug, Ceramic WPL 4375254 Contact Us For Availability

7

Bracket, Duct WPL 4450027 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

Bushing WPL 4375255 Contact Us For Availability

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $30.25

9

Glass, Middle WPL 4448937 Contact Us For Availability

9

Baffle, Rear WPL 4450407 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

9

Retainer, Glass WPL 4450470 Contact Us For Availability

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $96.15

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Latch, Assy WPL 4450332 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

Frame, Door WPL 4450945 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

Rear Channel WPL 4449702 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

Duct, Inlet WPL 4375260 Contact Us For Availability

Side, Combo WPL 4450401 Contact Us For Availability

Door Glass (Black Model) WPL 4450696 Contact Us For Availability

Door Glass (White Model) WPL 4450697 Contact Us For Availability

Door Glass (Almond Model) WPL 4450698 Contact Us For Availability

Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability

Plate, Adapter WPL 4450522 Contact Us For Availability

Insulation, Switch WPL 4375316 Contact Us For Availability

Vent, (Control Panel) WPL 4449764 Contact Us For Availability

Tape, Foam WPL 4450265 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Vent, Top WPL 4449124 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

Filler, Side WPL 4449083 Contact Us For Availability

Vent, Bottom WPL 4449959 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

Back, Control WPL 4450658 Contact Us For Availability

Block, Slide WPL 4375264 Contact Us For Availability

Cover, Top Rear WPL 4450550 Contact Us For Availability

Handle, Door (Black Model) WPL 4448411 Contact Us For Availability

Handle, Door (White Model) WPL 4448412 Contact Us For Availability

Handle, Door (Almond Model) WPL 4448413 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

Cover Plate, Upper WPL 4375248 Contact Us For Availability

Glass, Outer (Black Model) WPL 4449133 Contact Us For Availability

Glass, Outer (White Model) WPL 4449134 Contact Us For Availability

Glass, Outer (Almond Model) WPL 4449135 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

18

W11688413 Whirlpool Insulation Backorder WPL W11688413 $9.10

18

Cover, Top Front WPL 4450553 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $38.50

20

Retainer, Glass WPL 4449031 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

21

Seal, Door Top WPL 4450836 Contact Us For Availability

22

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

22

Seal, Side WPL 4450838 Contact Us For Availability

Rack WPL 4375276 Contact Us For Availability

Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

Retainer, Clip (Almond Model) WPL 4450865 Contact Us For Availability

Spacer WPL 4451055 Contact Us For Availability

24

COOKWARE In Stock WPL W11512490 $45.75

24

Screw WPL 4451040 Contact Us For Availability

24

Bracket, Handle WPL 4450960 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $114.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $98.72

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (BL) WPL 4378950 Contact Us For Availability

Filler Kit (WH) WPL 4378951 Contact Us For Availability

Filler Kit (AL) WPL 4378952 Contact Us For Availability

Clip, Glass (Black Model) WPL 4450021 Contact Us For Availability

Clip, Glass (White Model) WPL 4450022 Contact Us For Availability

Clip, Glass (Almond Model) WPL 4450023 Contact Us For Availability

Harness, Transformer WPL 4450291 Contact Us For Availability

Harness, Latch WPL 4450753 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

Harness, Door WPL 4450951 Contact Us For Availability

O WPL 4450990 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $142.35

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $35.04

32

Thermostat WPL 4375281 Contact Us For Availability

33

Q Tube Assembly WPL 4375282 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $159.20

34

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

35

Ring Assembly WPL 4375344 Contact Us For Availability

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $54.90

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $54.73

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

Cabinet Parts WPL ARI86139A3 Contact Us For Availability

38

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $50.89

39

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

39

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

40

Inlet WPL 4375329 Contact Us For Availability

41

Strap, Door WPL 4375330 Contact Us For Availability

42

Grill Plate WPL 4375331 Contact Us For Availability

43

Bracket, Thermostat WPL 4375332 Contact Us For Availability

44

Fan Cap WPL 4375333 Contact Us For Availability

45

Fan Cap Bottom WPL 4375334 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $95.69

47

Isolation Plate WPL 4375337 Contact Us For Availability

48

Cover Plate (Lower) WPL 4375338 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

49

Plate, Door WPL 4375339 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

50

Inner Frame WPL 4375340 Contact Us For Availability

51

Plate, Side (Right) WPL 4375341 Contact Us For Availability

51

Plate, Side (Left) WPL 4375342 Contact Us For Availability

52

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

53

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

54

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $79.94

55

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $13.58

56

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $14.45

57

Cable WPL 4375350 Contact Us For Availability

58

Holder, Lamp WPL 4375351 Contact Us For Availability
