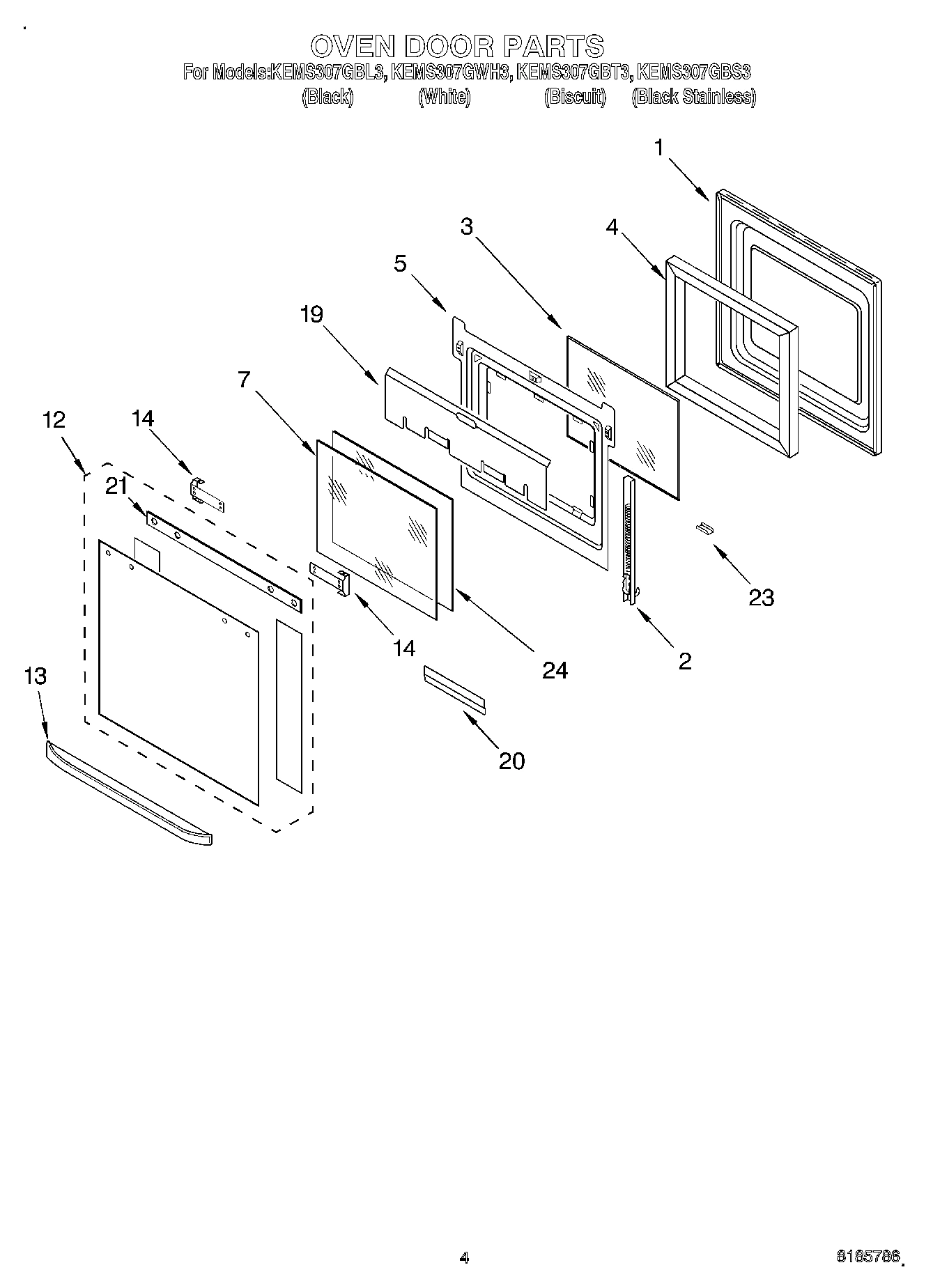

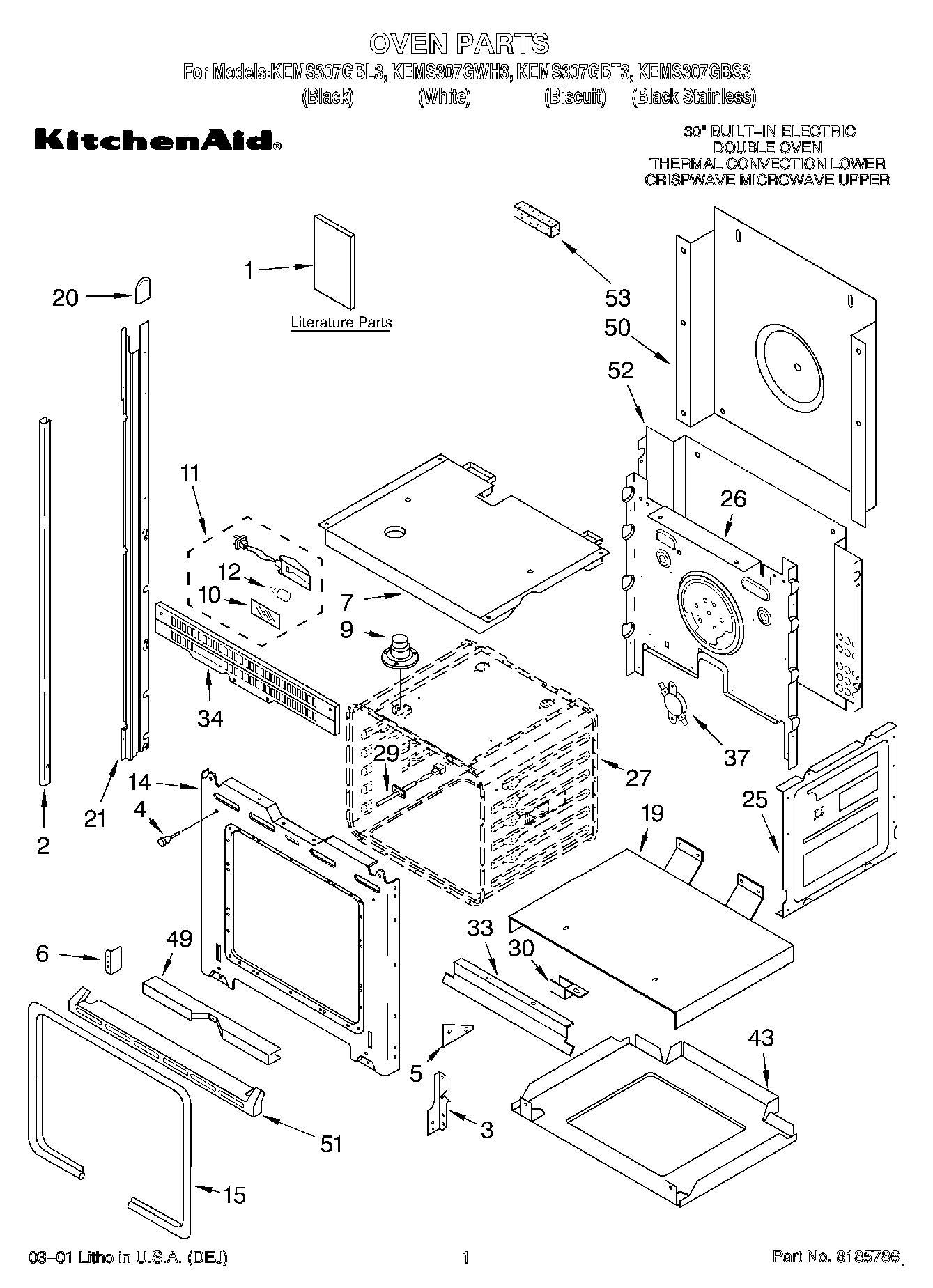

Model Whirlpool KEMS307GWH3 COOKTOP – Common Parts &amp; Diagrams

1

Bracket, Capacitor WPL 4375299 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $41.25

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $49.56

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

2

Screw WPL 4375313 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Microcomputer WPL 4453377 Contact Us For Availability

3

Rubber Ring WPL 4375037 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Screw WPL 4375038 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

Air Duct, Magnetron WPL 4375314 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Support, Tube WPL 4375253 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Plug, Ceramic WPL 4375254 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

8

Bushing WPL 4375255 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

Convection Motor WPL 4451583 Contact Us For Availability

9

Glass, Middle WPL 4448937 Contact Us For Availability

9

Reflector WPL 4375256 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $114.92

Latch Assembly WPL 4451424 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

Control Panel Assy W/Membrane Switch (White) WPL 8300467 Contact Us For Availability

Control Panel Assy W/Membrane Switch (Black) WPL 8300468 Contact Us For Availability

Control Panel Assy W/Membrane Switch (Biscuit WPL 8300469 Contact Us For Availability

Chamber, Reflector WPL 4375257 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

Damper WPL 4375315 Contact Us For Availability

Rear Channel WPL 4452548 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Microswitch N.C. WPL 4452312 Contact Us For Availability

Duct, Inlet WPL 4375260 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

13

Insulation, Switch WPL 4375316 Contact Us For Availability

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Fan Wheel WPL 4375322 Contact Us For Availability

Tray, Bake WPL 4455037 Contact Us For Availability

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

Filler, Side (Left) WPL 4449086 Contact Us For Availability

Duct, Air WPL 4375317 Contact Us For Availability

Handle, Door (Black) WPL 4448414 Contact Us For Availability

Handle, Door (White Model) WPL 4448415 Contact Us For Availability

Handle, Door (Biscuit) WPL 4452129 Contact Us For Availability

Block, Slide WPL 4375264 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

Glass, Outer (Black Model) WPL 4449136 Contact Us For Availability

Glass, Outer (White) WPL 4451218 Contact Us For Availability

Glass, Outer (Biscuit) WPL 4452149 Contact Us For Availability

Glass, Outer (Black-Stainless) WPL 4452467 Contact Us For Availability

Cover Plate, Upper WPL 4375248 Contact Us For Availability

18

8206180 Whirlpool Microwave Screw Backorder WPL 8206180 $9.59

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Transformer, Control Panel WPL 4455038 Contact Us For Availability

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

Retainer, Glass WPL 4451668 Contact Us For Availability

Plate, Cover WPL 4452247 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

21

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

21

Suppressor WPL 4451934 Contact Us For Availability

22

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

23

Rack WPL 4375276 Contact Us For Availability

WPW10120480 Whirlpool Crisper Pan Backorder WPL WPW10120480 $41.30

Glass, Inner WPL 4455257 Contact Us For Availability

Bracket, Handle WPL 4452331 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (Bl) WPL 4378944 Contact Us For Availability

Filler Kit (Wh) WPL 4378945 Contact Us For Availability

Filler Kit (Al) WPL 4378946 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability

RETAINER,GLASS C WPL 4450864 Contact Us For Availability

WPL 4452119 WPL 4452119 Contact Us For Availability

WPL 4452222 WPL 4452222 Contact Us For Availability

WPL 4452239 WPL 4452239 Contact Us For Availability

WPL 4455732 WPL 4455732 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

32

Thermostat WPL 4375281 Contact Us For Availability

33

Q Tube Assembly WPL 4375282 Contact Us For Availability

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

35

Ring, Turntable WPL 4375344 Contact Us For Availability

36

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $17.33

37

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

37

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

38

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $47.54

39

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

39

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

40

Inlet WPL 4375329 Contact Us For Availability

41

Strap, Door WPL 4375330 Contact Us For Availability

42

Plate, Grill WPL 4375331 Contact Us For Availability

43

Bracket WPL 4375332 Contact Us For Availability

44

Fan Cap WPL 4375333 Contact Us For Availability

45

Fan Cap Bottom WPL 4375334 Contact Us For Availability

46

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

47

Isolation Plate WPL 4375337 Contact Us For Availability

48

Cover Plate WPL 4375338 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

49

Plate, Door WPL 4375339 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

50

Inner Frame WPL 4375340 Contact Us For Availability

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WPL 4448477 WPL 4448477 Contact Us For Availability

Side Plate (Left) WPL 4375341 Contact Us For Availability

Side Plate (Right) WPL 4375342 Contact Us For Availability

52

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

53

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

54

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

55

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $12.94

56

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $11.69

57

Cable WPL 4375350 Contact Us For Availability

58

Holder, Lamp WPL 4375351 Contact Us For Availability
