Model Whirlpool KEMS307DBS2 – Common Parts & Diagrams

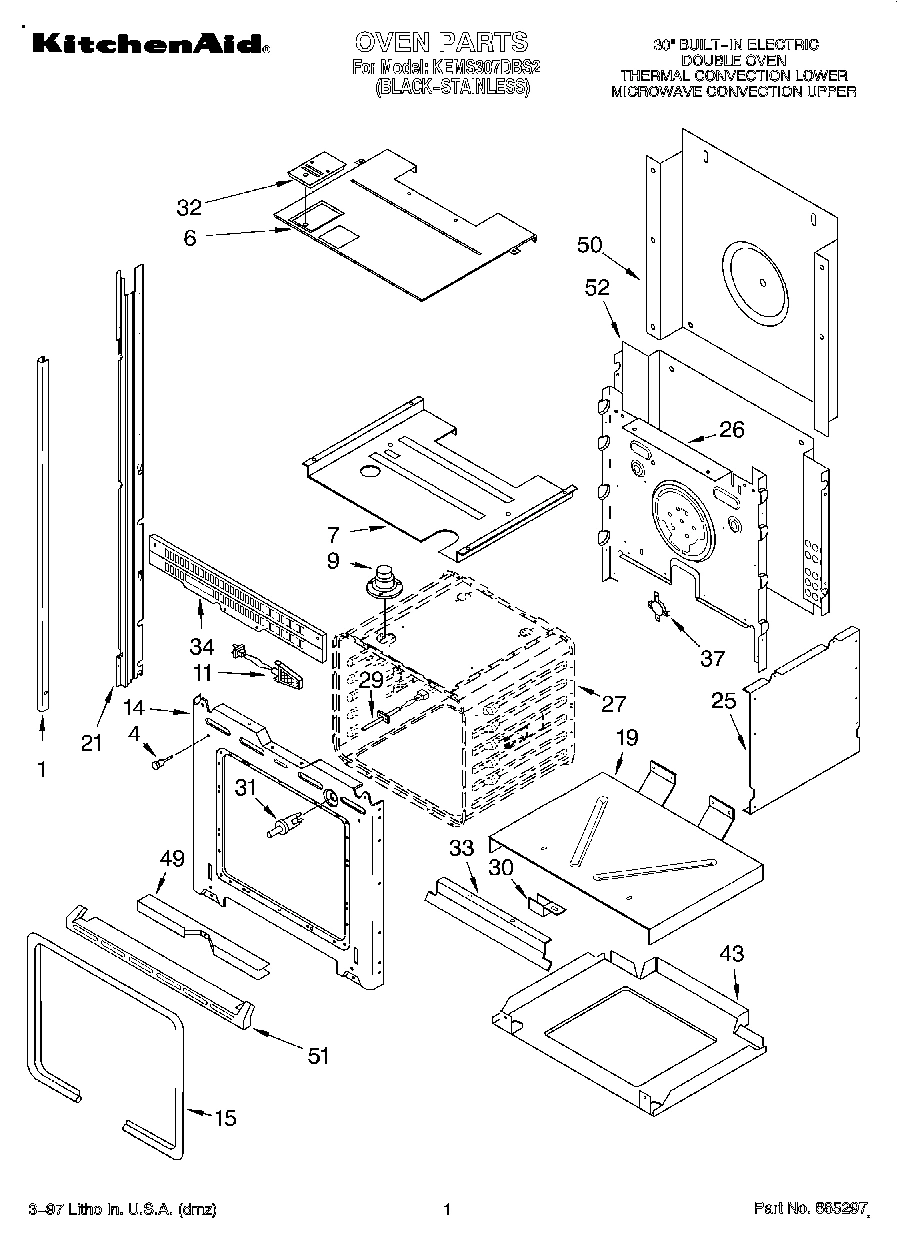

01 - OVEN

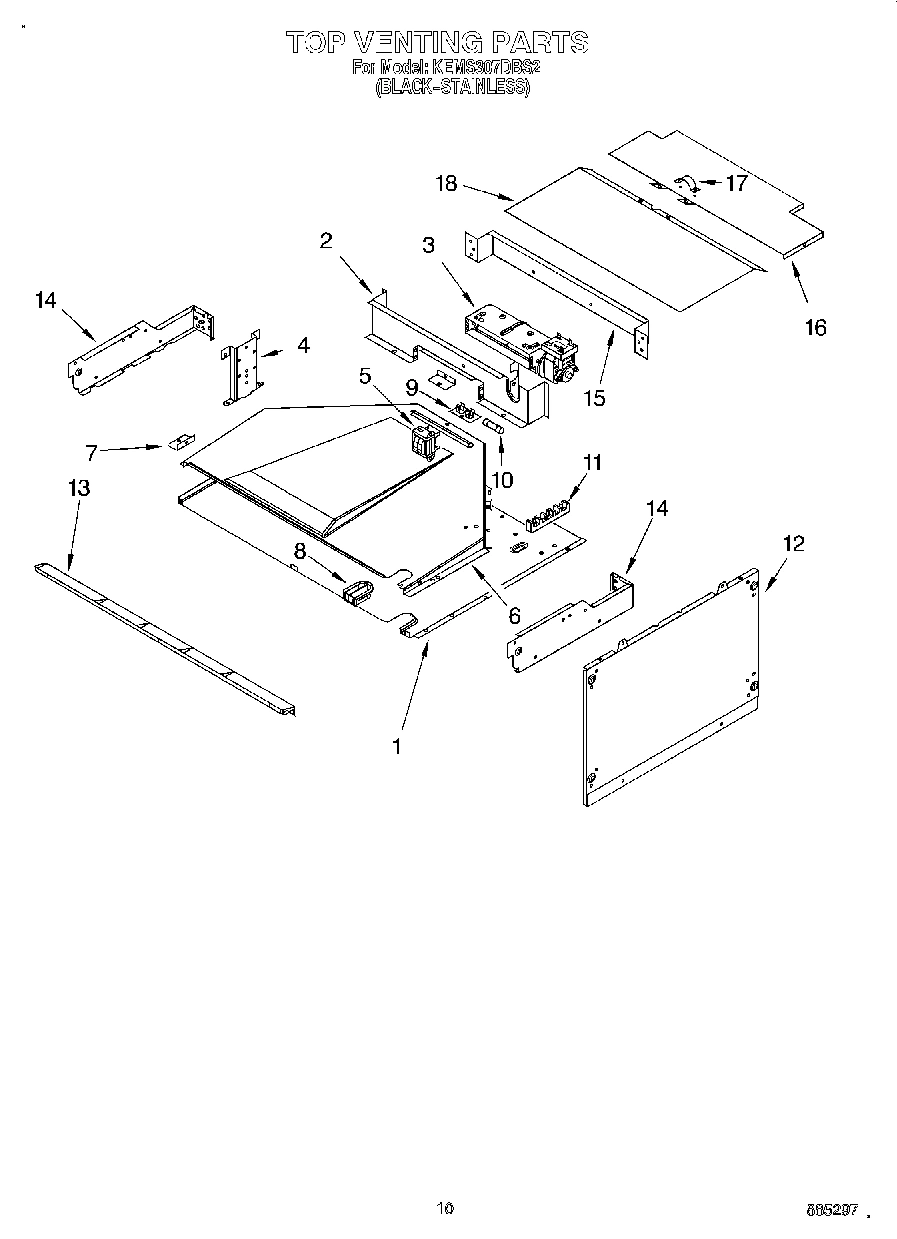

08 - TOP VENTING

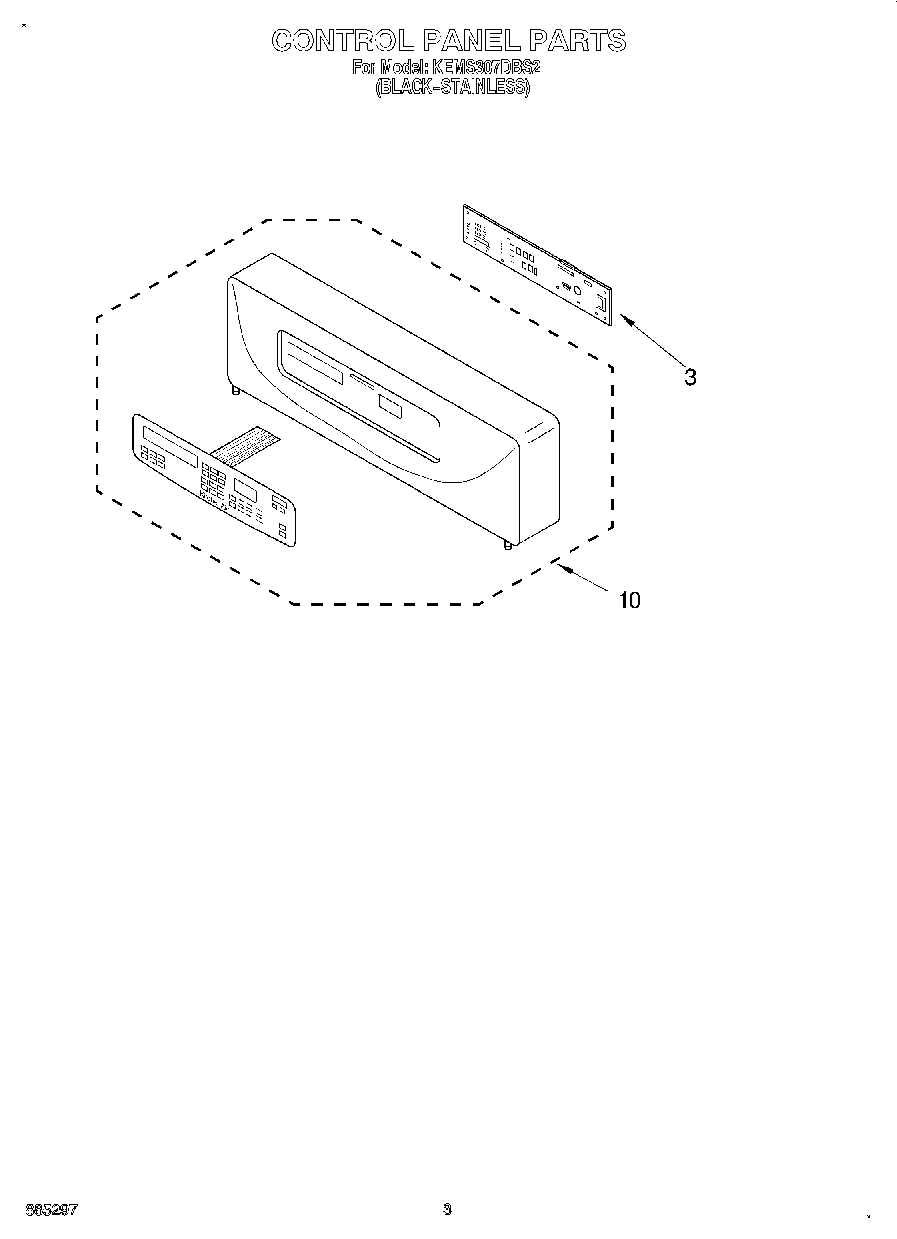

02 - CONTROL PANEL, LITERATURE

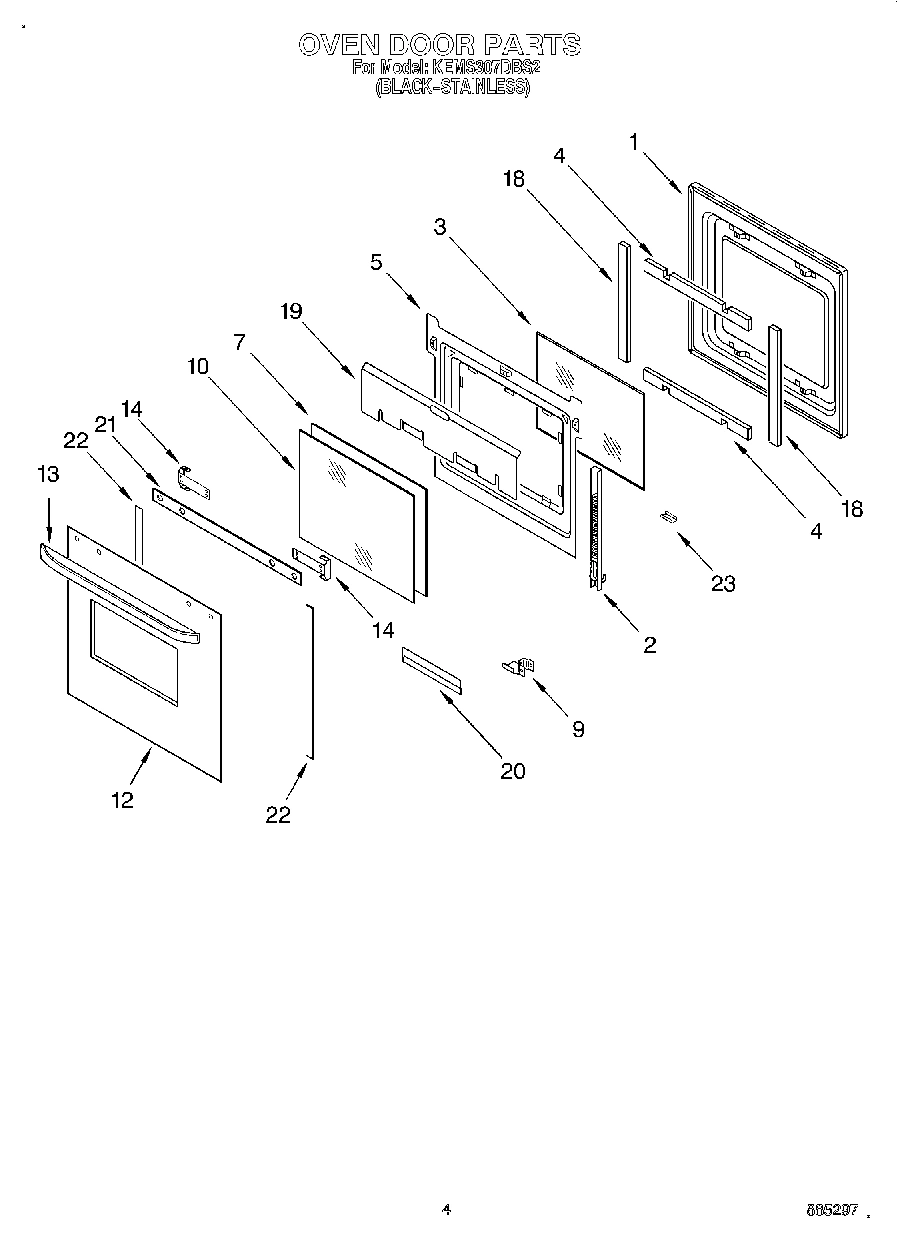

03 - OVEN DOOR

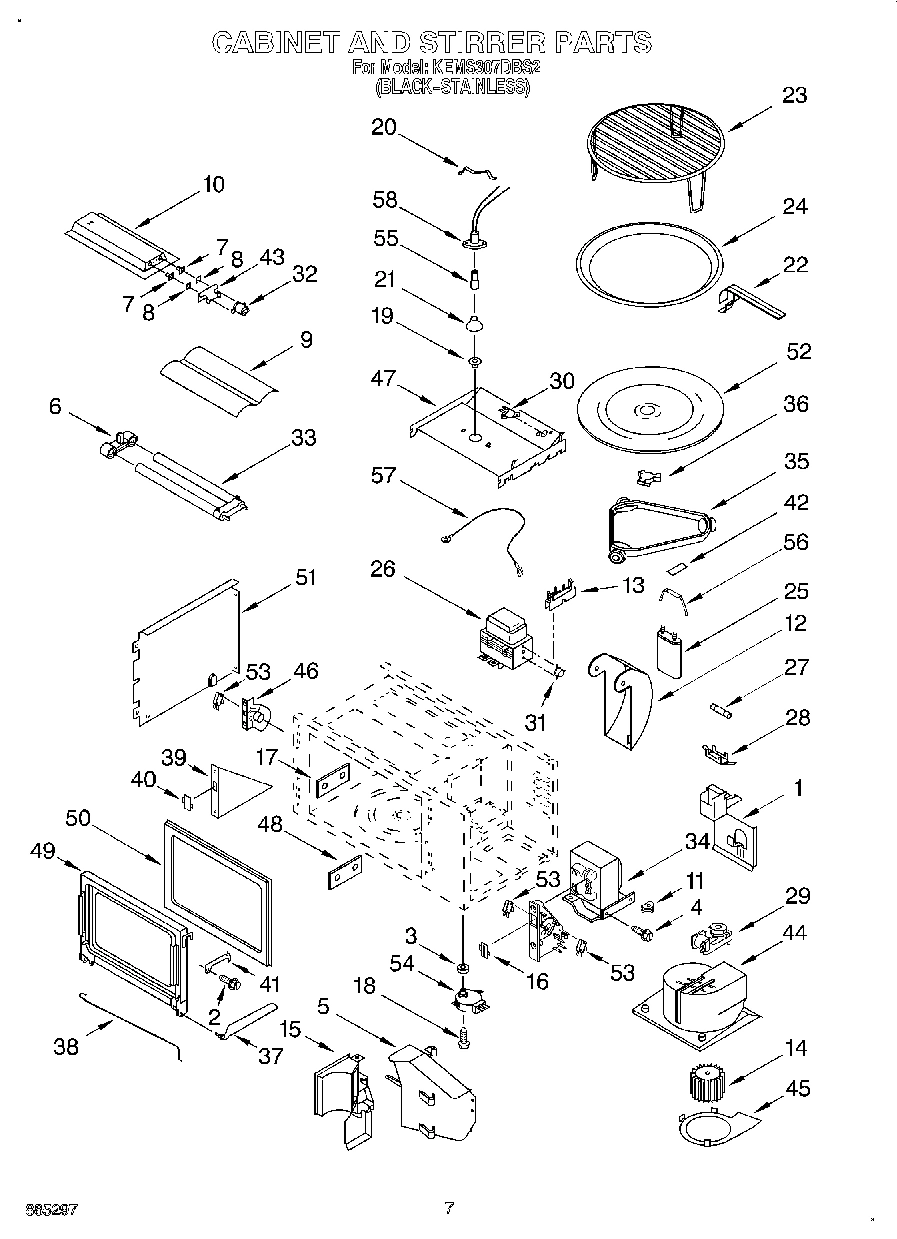

06 - CABINET AND STIRRER

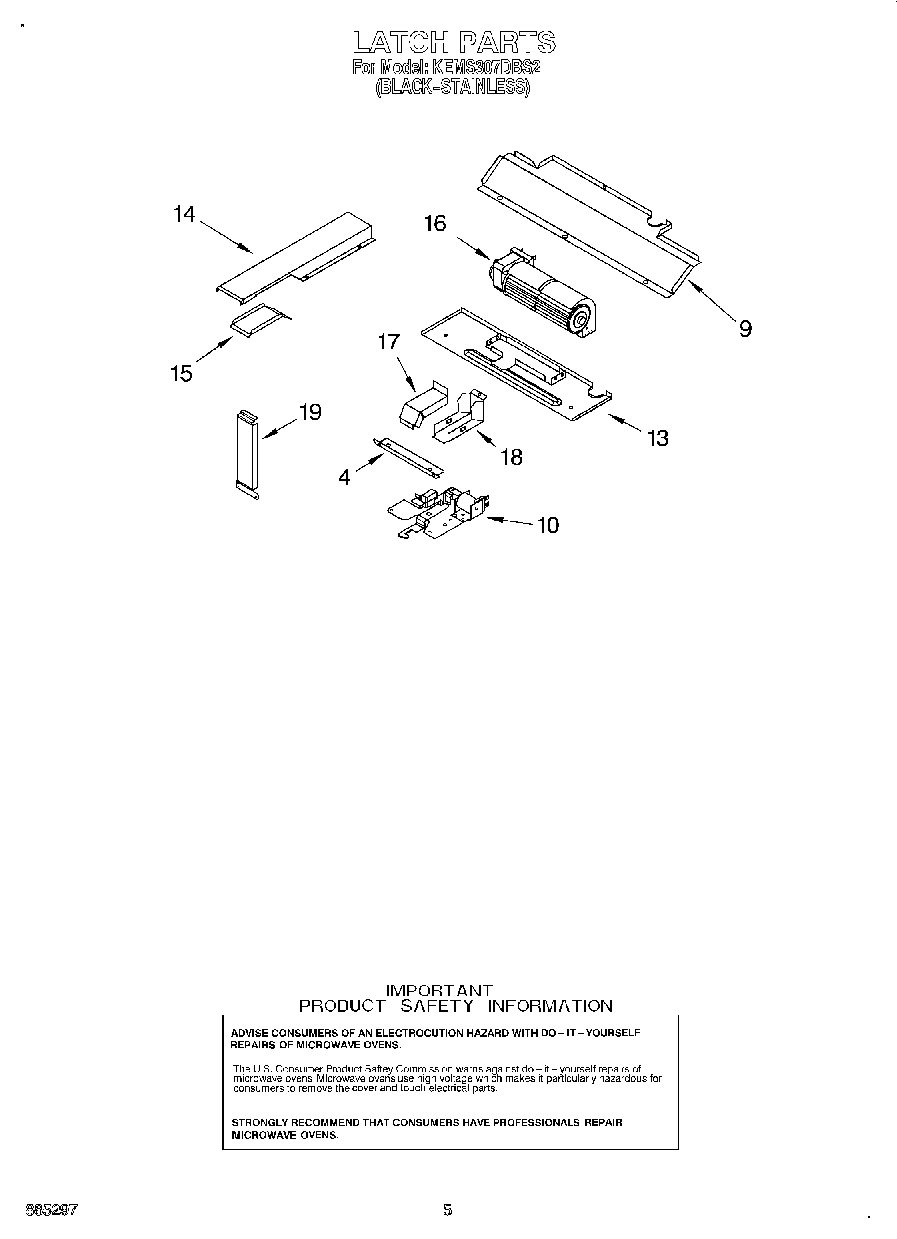

04 - LATCH

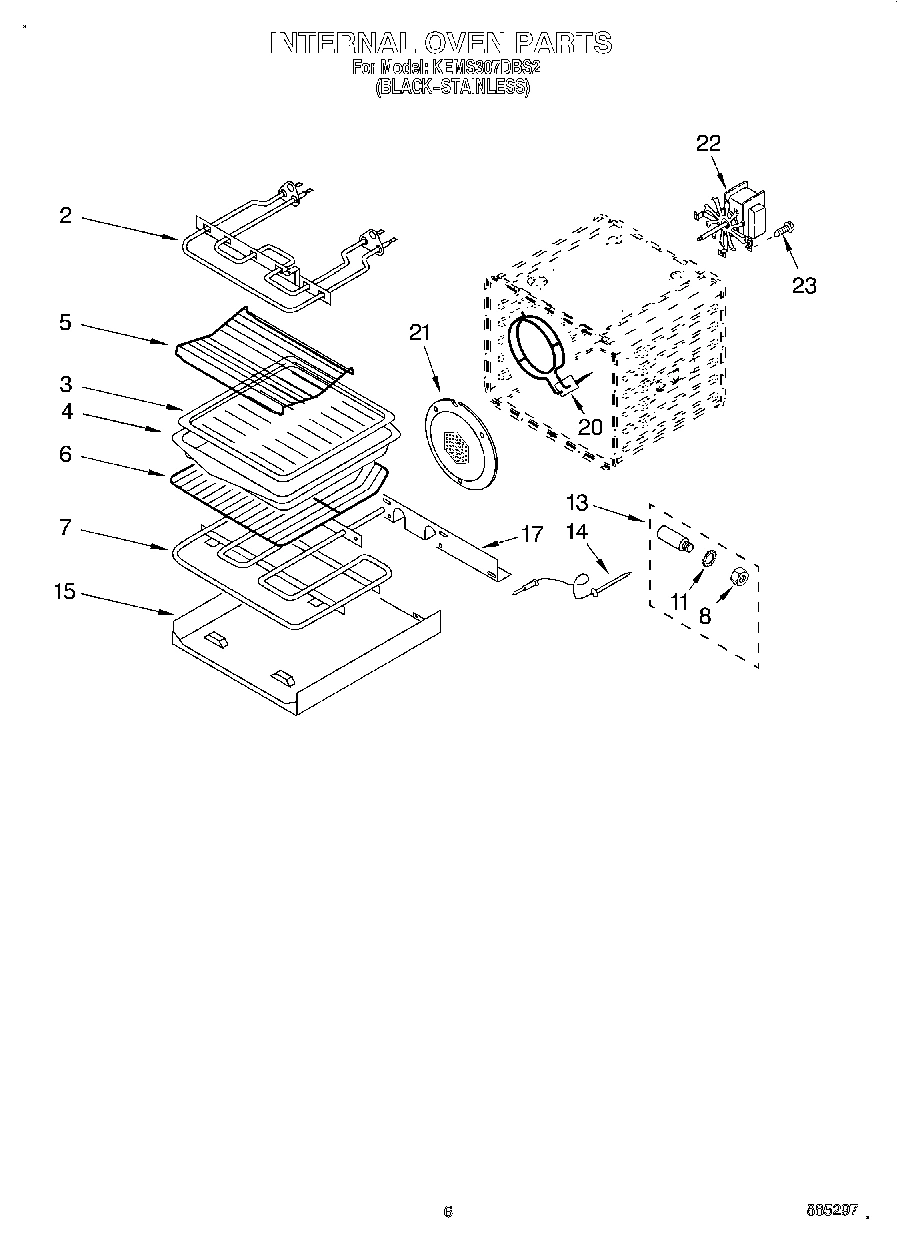

05 - INTERNAL OVEN

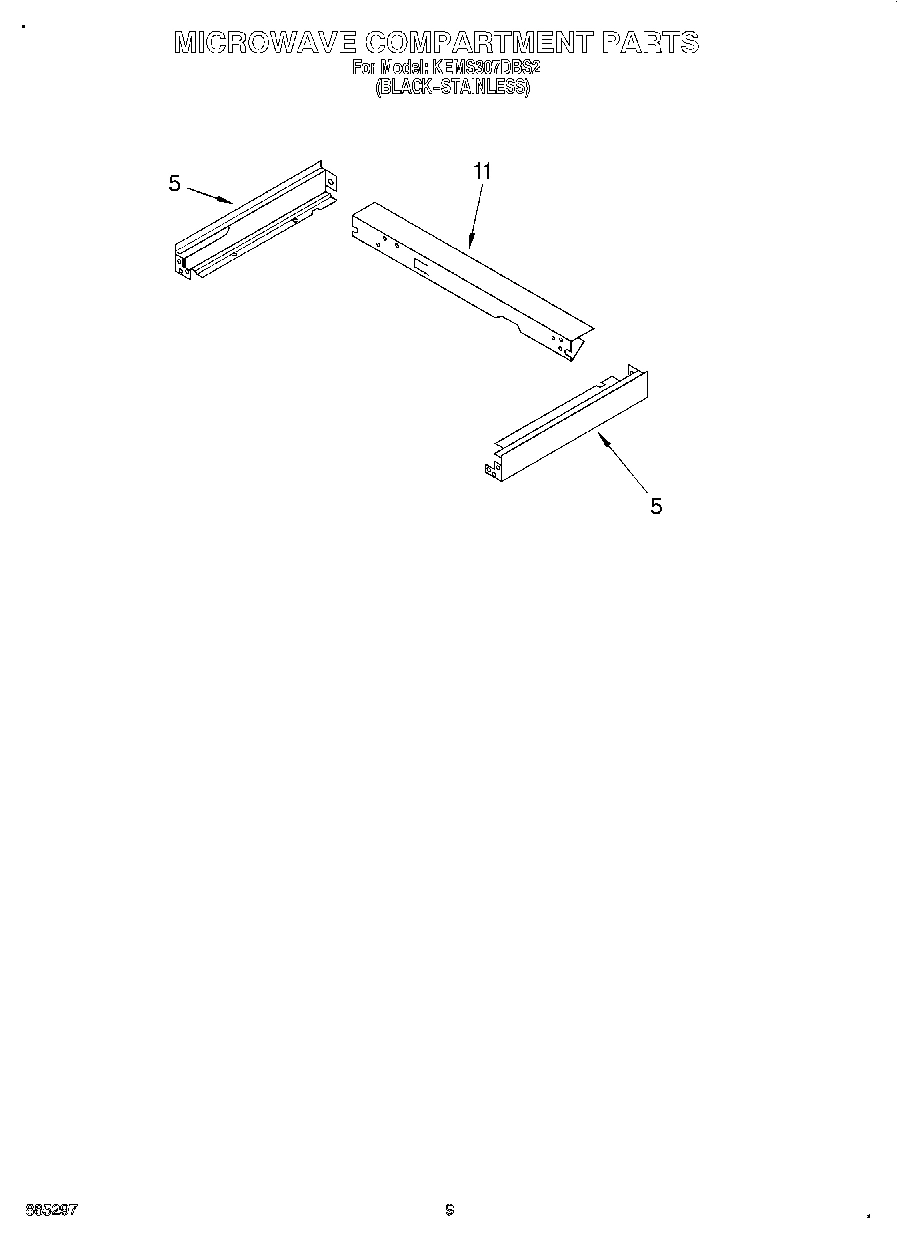

07 - MICROWAVE COMPARTMENT

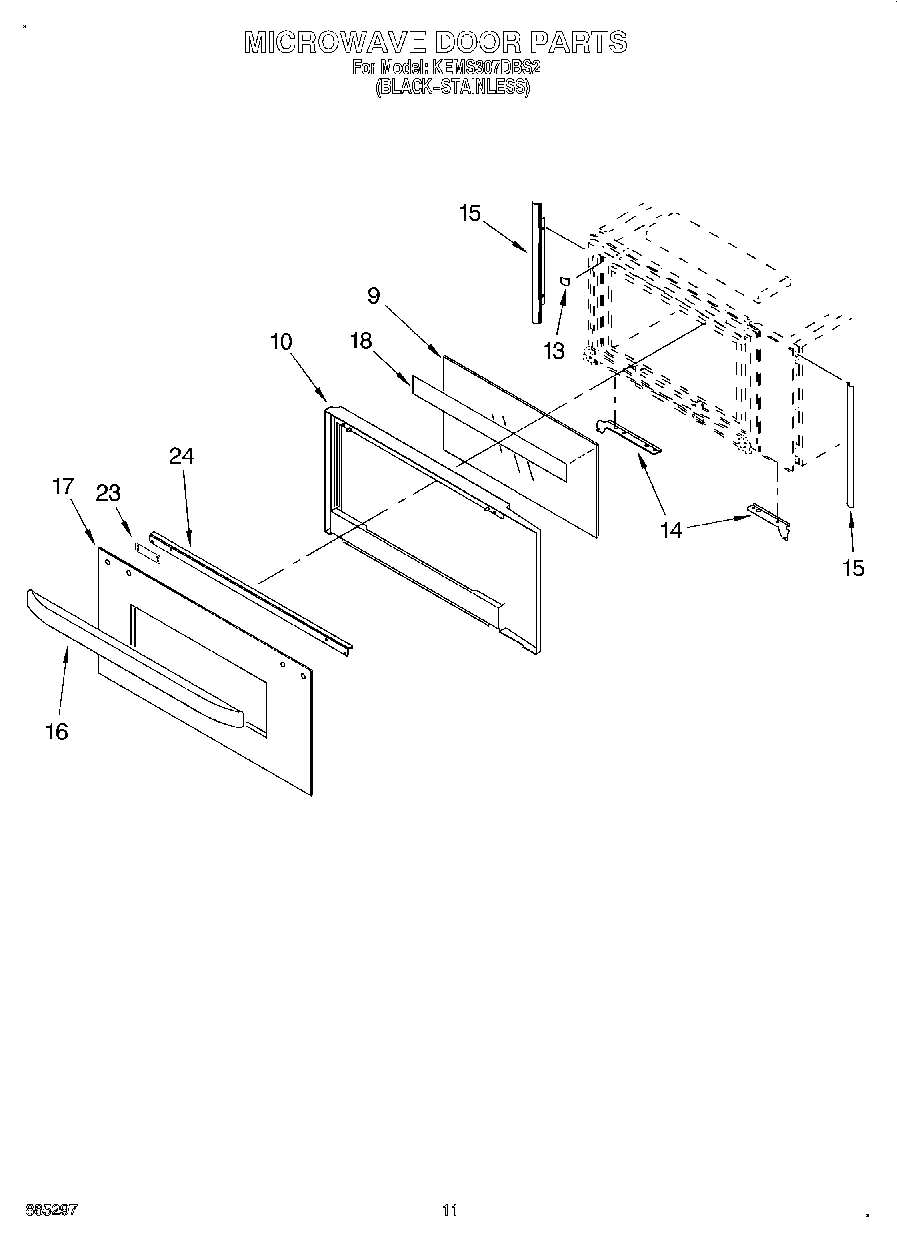

09 - MICROWAVE DOOR, OPTIONAL
Common parts from model Whirlpool KEMS307DBS2
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448680 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
5
Retainer, Glass WPL 4450423 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
10
Latch Assy WPL 4454710 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
11
Rear Channel WPL 4449703 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass & Panel Assy. WPL 4451377 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
15
Filler, Side (Right) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
16
Handle, Door WPL 4448414 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
16
Blower WPL 4450919 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
17
Vent, Top WPL 4449883 Contact Us For Availability
17
Glass, Outer & Panel Assy. WPL 4451379 Contact Us For Availability
18
Vent, Bottom WPL 4450406 Contact Us For Availability
18
Tape, Foil WPL 4451386 Contact Us For Availability
19
Shield, Heat WPL 4450362 Contact Us For Availability
19
Extension Filler WPL 4449906 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450837 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
22
Convection Motor WPL 4448952 Contact Us For Availability
23
Retainer, Clip WPL 4450863 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
24
Screw WPL 4451040 Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
24
Filler Kit (BL) WPL 4378950 Contact Us For Availability
24
Harness, Transformer WPL 4450291 Contact Us For Availability
24
Ground (M/W) WPL 4450831 Contact Us For Availability
24
Harness, Door WPL 4450951 Contact Us For Availability
24
Bracket, Handle WPL 4450961 Contact Us For Availability
24
Oven, Main WPL 4454708 Contact Us For Availability
24
Harness, Latch WPL 4454709 Contact Us For Availability
24
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
35
Ring Assembly WPL 4375344 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Grill Plate WPL 4375331 Contact Us For Availability
43
Bracket, Thermostat WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate (Lower) WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
51
Plate, Side (Right) WPL 4375341 Contact Us For Availability
51
Plate, Side (Left) WPL 4375342 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
