Model Whirlpool KEMS307DAL2 – Common Parts & Diagrams
08 - TOP VENTING
03 - OVEN DOOR

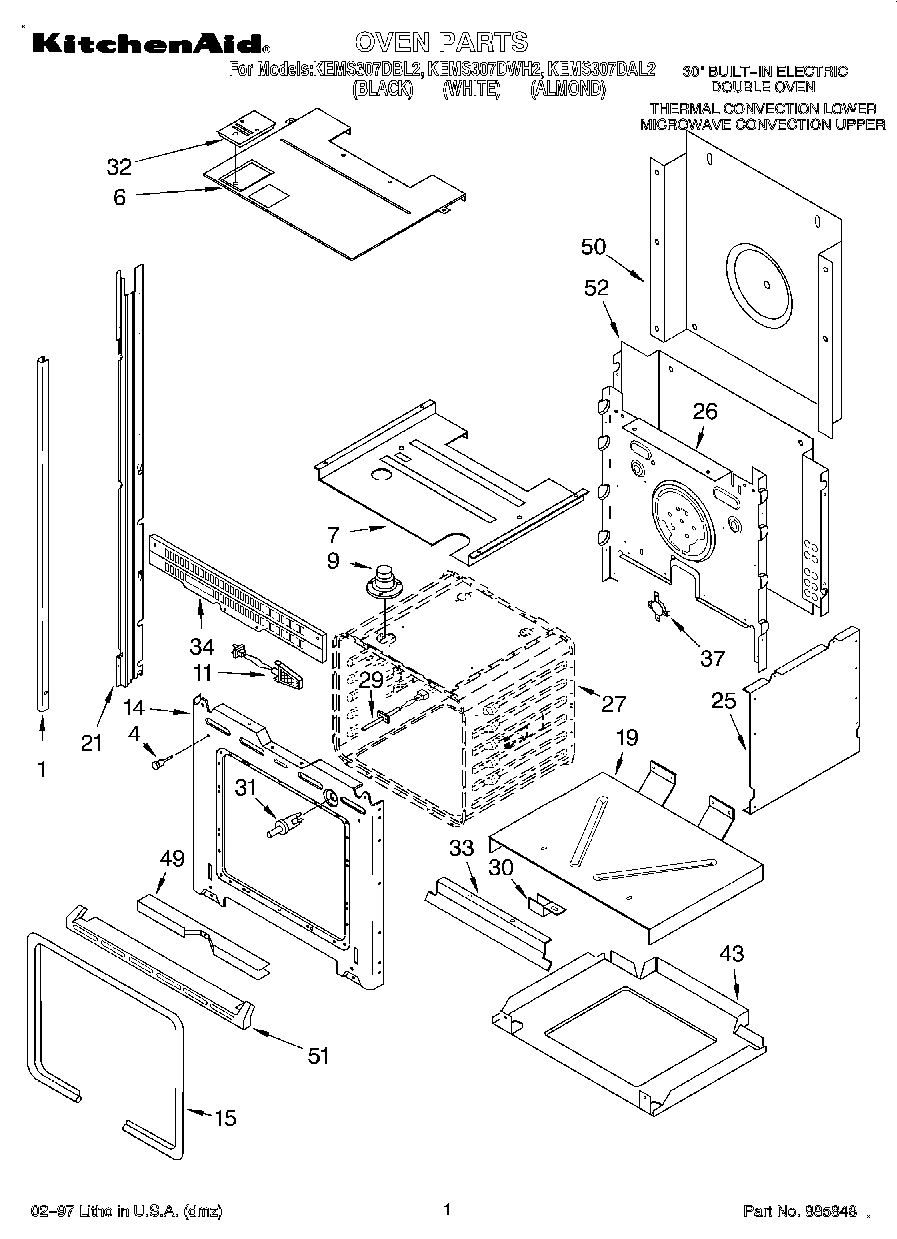

01 - OVEN

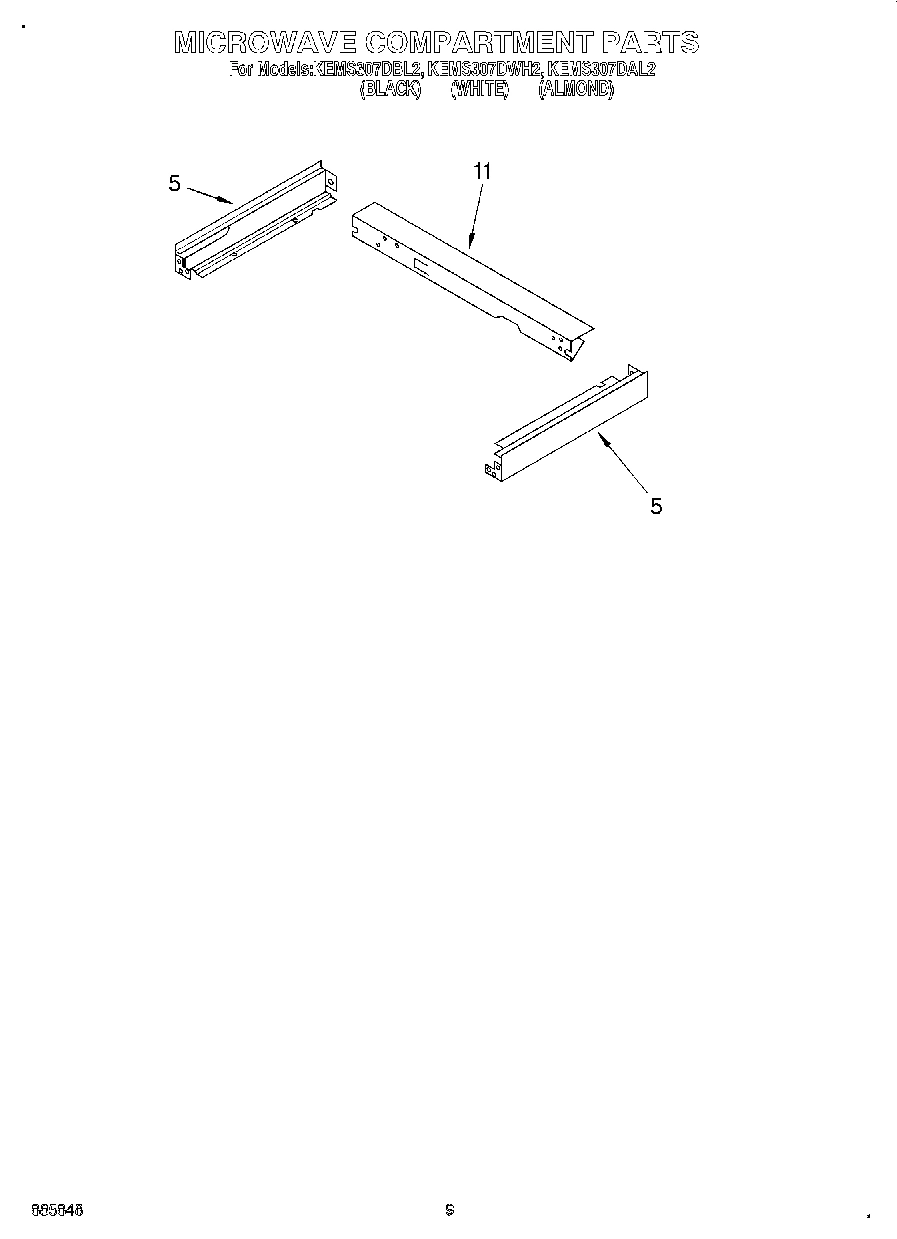

07 - MICROWAVE COMPARTMENT

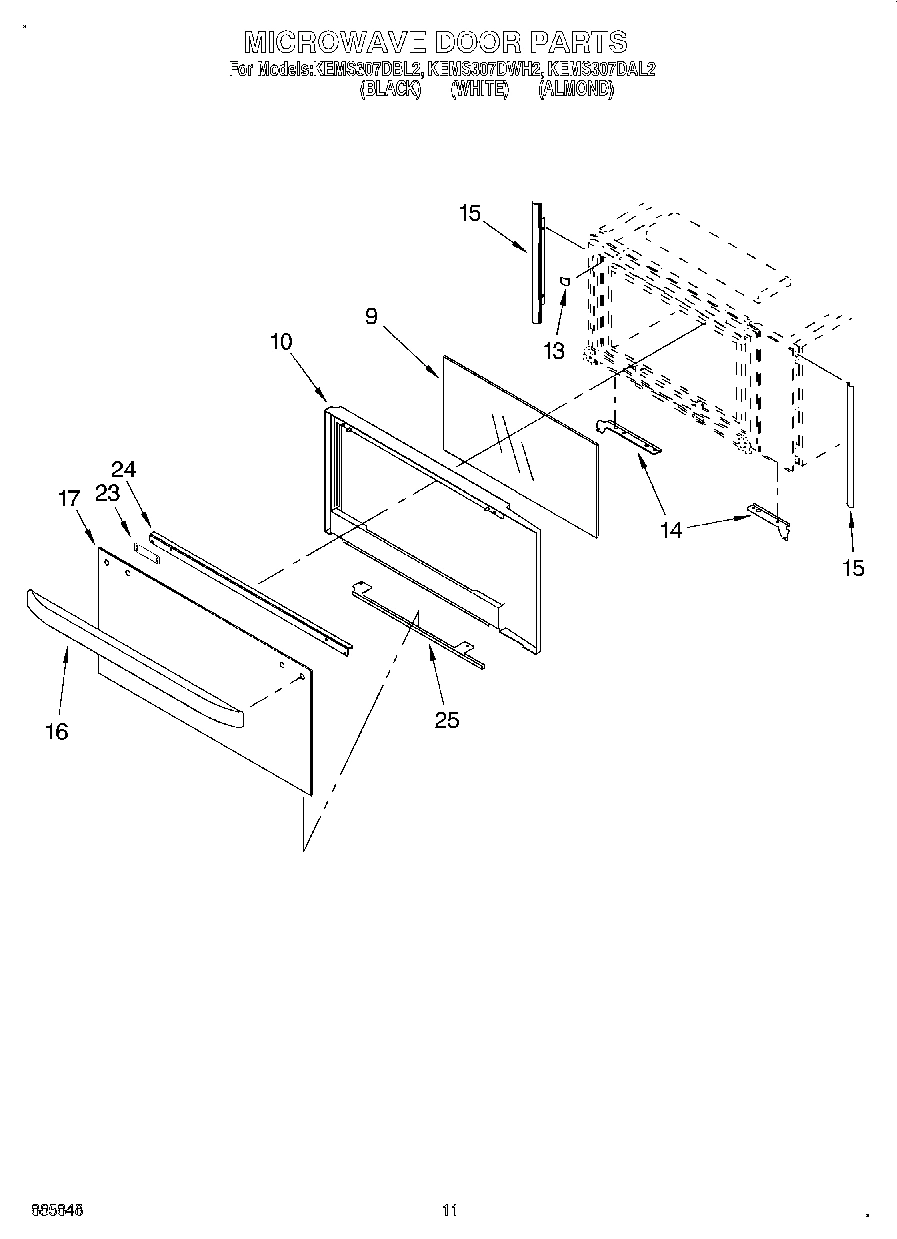

09 - MICROWAVE DOOR, OPTIONAL
05 - INTERNAL OVEN

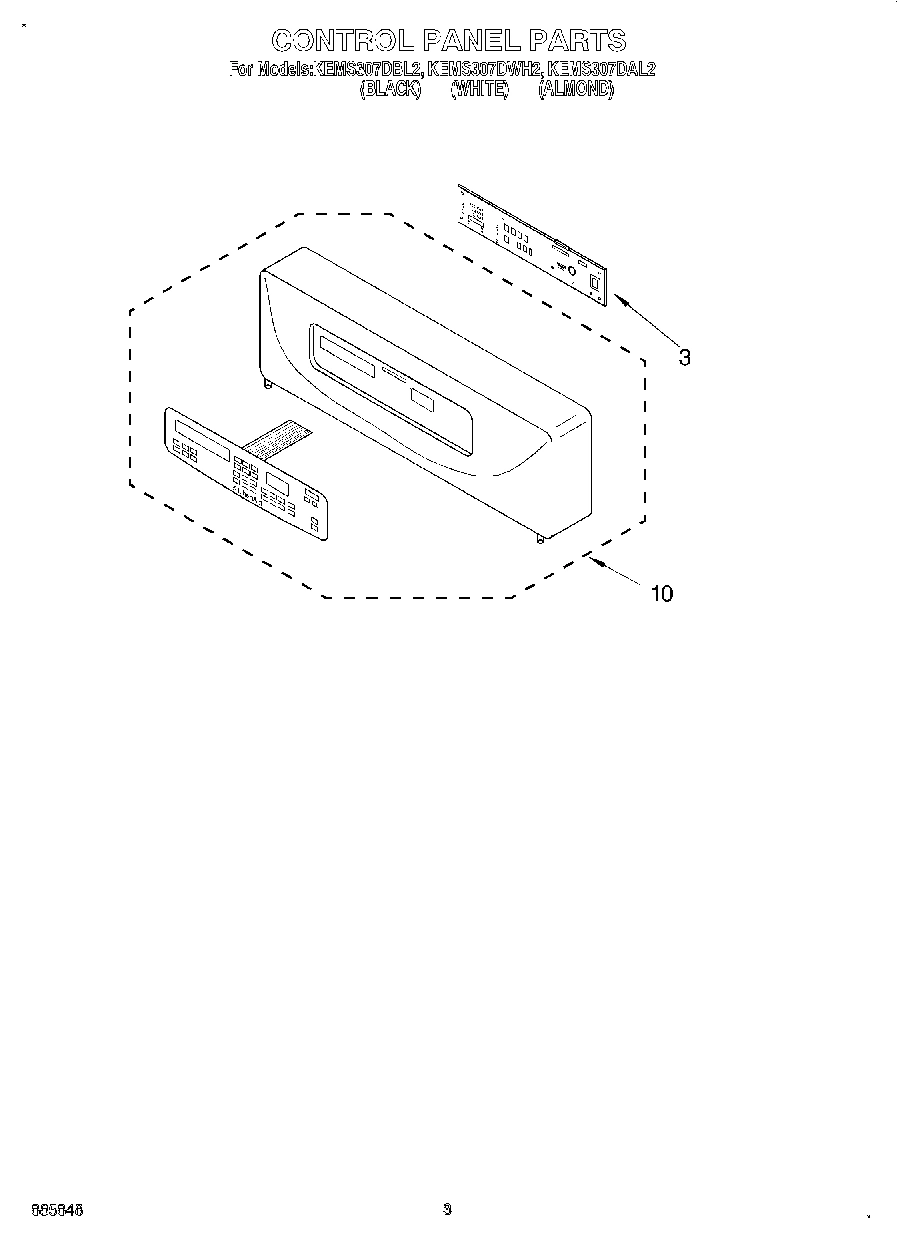

02 - CONTROL PANEL, LITERATURE
04 - LATCH
06 - CABINET AND STIRRER
Common parts from model Whirlpool KEMS307DAL2
Use & Care Guide (Oven) WPL LIT4448979 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT4449870 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide WPL LIT4450786 Contact Us For Availability
Tech Sheet (Oven) WPL LIT445773 Contact Us For Availability
Cabinet Parts WPL ARI85956A6 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
2
Screw WPL 4375313 Contact Us For Availability
3
Microcomputer WPL 4448869 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
4
Deflector, Latch WPL 4450051 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
5
Support Rails (Right Side) WPL 4450404 Contact Us For Availability
5
Support Rails (Left Side) WPL 4450405 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
7
Plug, Ceramic WPL 4375254 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
9
Glass, Middle WPL 4448937 Contact Us For Availability
9
Baffle, Rear WPL 4450408 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4451063 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451064 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Almond WPL 4451065 Contact Us For Availability
10
Latch Assy WPL 4454710 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Rear Channel WPL 4449703 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
13
Plate, Adapter WPL 4450522 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Vent, Top WPL 4449124 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Filler, Side (Right Side) WPL 4449083 Contact Us For Availability
15
Filler, Side (Left) WPL 4449086 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
15
Vent, Bottom WPL 4449959 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Handle, Door (Black Model) WPL 4448414 Contact Us For Availability
16
Handle, Door (White Model) WPL 4448415 Contact Us For Availability
16
Handle, Door (Almond Model) WPL 4448416 Contact Us For Availability
16
Blower WPL 4450919 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4449136 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4449137 Contact Us For Availability
17
Glass, Outer (Almond Model) WPL 4449138 Contact Us For Availability
17
Vent, Top WPL 4449883 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
18
Vent, Bottom WPL 4450406 Contact Us For Availability
19
Extension Filler WPL 4449906 Contact Us For Availability
22
Convection Motor WPL 4448952 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
23
Rack WPL 4375276 Contact Us For Availability
24
Bracket, Handle WPL 4450961 Contact Us For Availability
24
Screw WPL 4451040 Contact Us For Availability
25
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
25
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
25
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
25
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
25
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
25
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
25
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
25
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
25
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
25
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
25
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
25
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
25
Filler Kit (Bl) WPL 4378944 Contact Us For Availability
25
Filler Kit (Wh) WPL 4378945 Contact Us For Availability
25
Filler Kit (Al) WPL 4378946 Contact Us For Availability
25
Clip, Glass (Black Model) WPL 4450031 Contact Us For Availability
25
Clip, Glass (White Model) WPL 4450032 Contact Us For Availability
25
Clip, Glass (Almond Model) WPL 4450033 Contact Us For Availability
25
Harness, Transformer WPL 4450291 Contact Us For Availability
25
Ground (M WPL 4450831 Contact Us For Availability
25
WPL 4450951 WPL 4450951 Contact Us For Availability
25
WPL 4454708 WPL 4454708 Contact Us For Availability
25
WPL 4454709 WPL 4454709 Contact Us For Availability
25
WPL 591014 WPL 591014 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
33
Q Tube Assembly WPL 4375282 Contact Us For Availability
34
Vent, Center WPL 4449074 Contact Us For Availability
35
Ring, Turntable WPL 4375344 Contact Us For Availability
37
Thermostat (TOD) (Temp.) SPST WPL 4450334 Contact Us For Availability
39
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
39
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
40
Inlet WPL 4375329 Contact Us For Availability
41
Strap, Door WPL 4375330 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
Base, Chassis WPL 4450527 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Fan Cap WPL 4375333 Contact Us For Availability
45
Fan Cap Bottom WPL 4375334 Contact Us For Availability
47
Isolation Plate WPL 4375337 Contact Us For Availability
48
Cover Plate WPL 4375338 Contact Us For Availability
49
Plate, Door WPL 4375339 Contact Us For Availability
50
Inner Frame WPL 4375340 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448461 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448462 Contact Us For Availability
51
Trim, Bottom (Almond Model) WPL 4448463 Contact Us For Availability
51
Side Plate (Left) WPL 4375341 Contact Us For Availability
51
Side Plate (Right) WPL 4375342 Contact Us For Availability
52
Insulation, Bottom WPL 4450128 Contact Us For Availability
52
Insulation, Back WPL 4450365 Contact Us For Availability
52
Chassis, Back WPL 4450403 Contact Us For Availability
57
Cable WPL 4375350 Contact Us For Availability
58
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
