Model Whirlpool KEMC378HBL3 COOKTOP – Common Parts & Diagrams

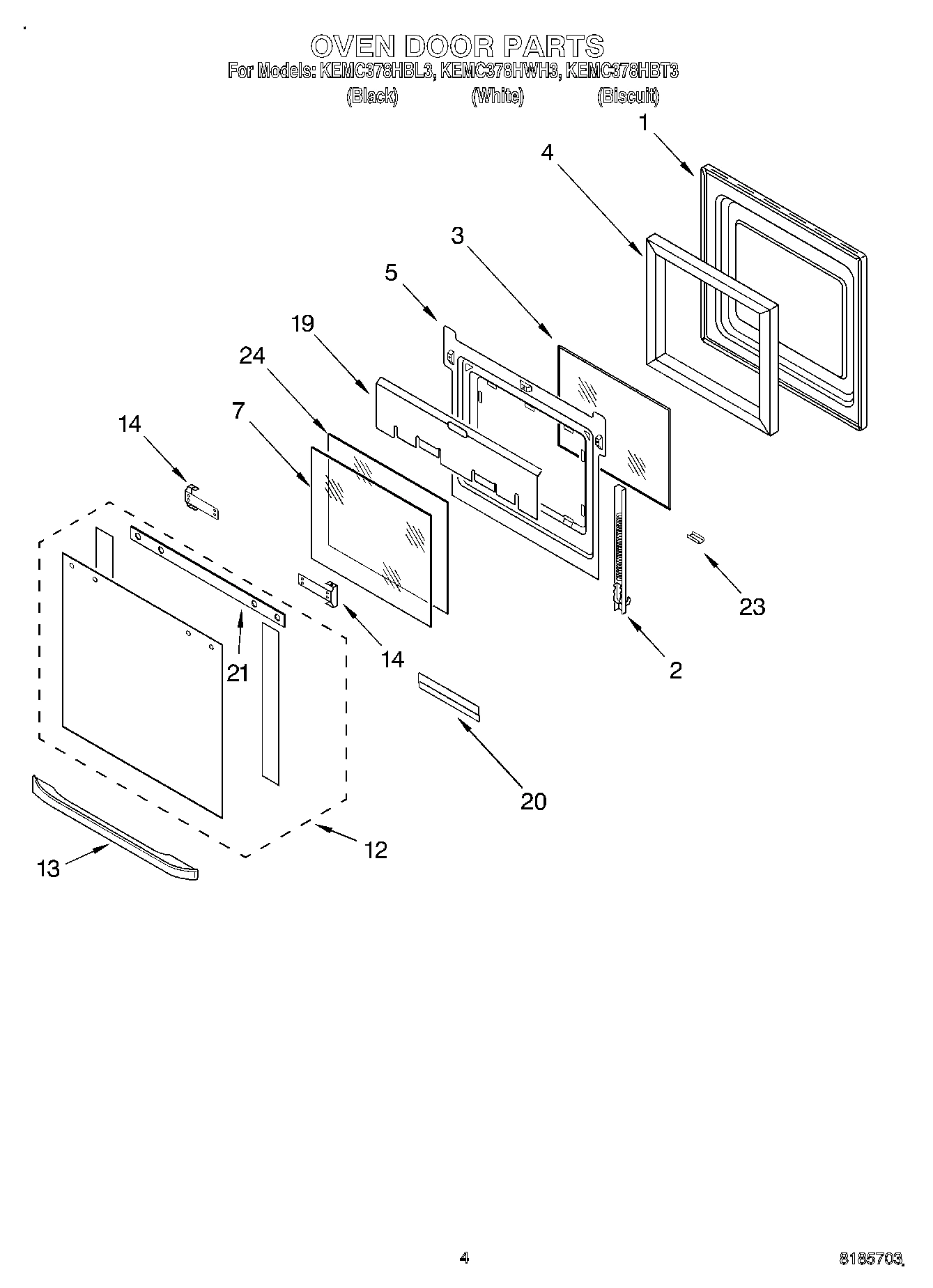

03 - OVEN DOOR

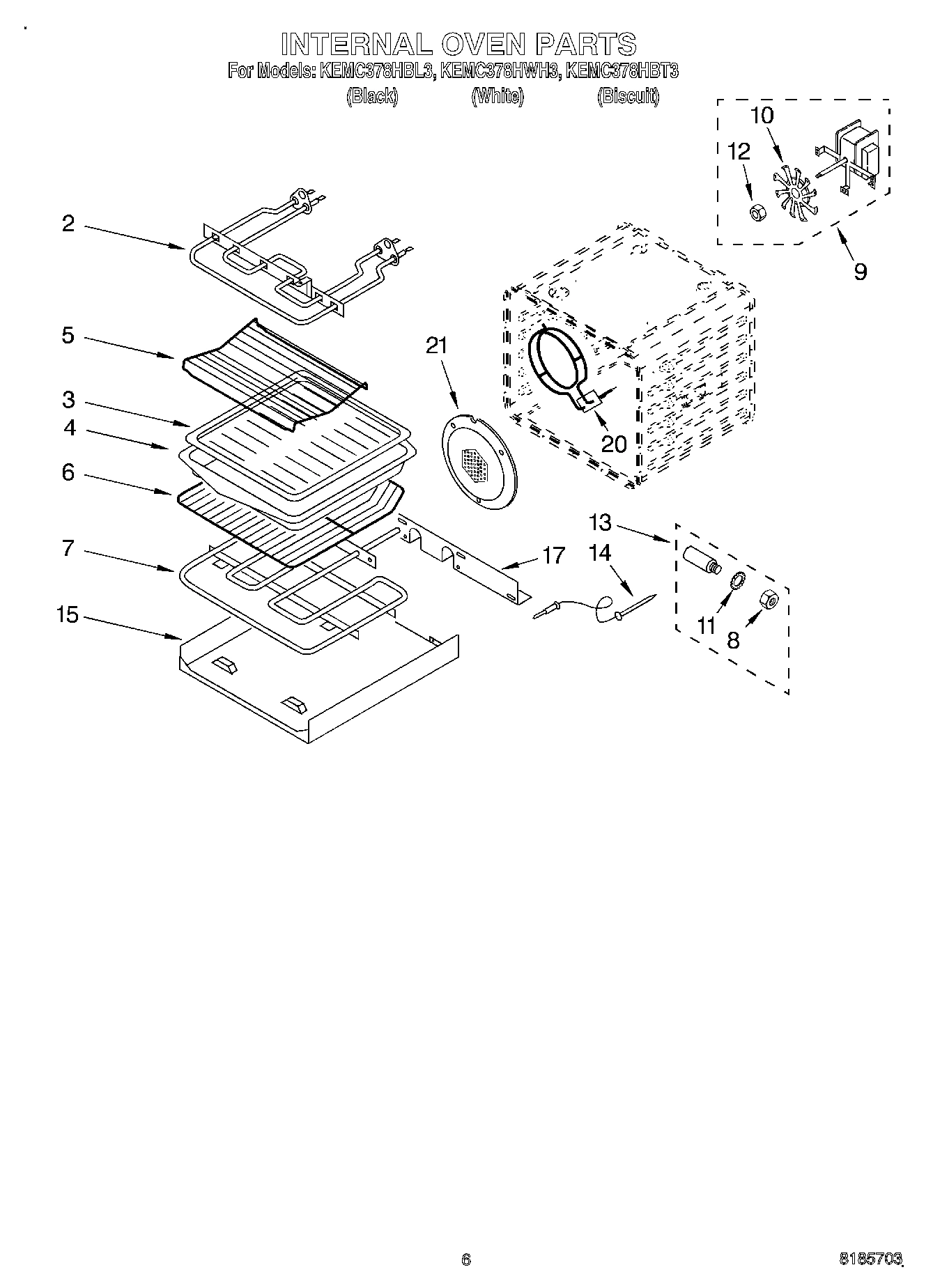

05 - INTERNAL OVEN
09 - MICROWAVE DOOR, OPTIONAL
04 - LATCH
01 - OVEN, LITERATURE
02 - CONTROL PANEL
06 - CABINET AND STIRRER
07 - MICROWAVE COMPARTMENT
08 - TOP VENTING
Common parts from model Whirlpool KEMC378HBL3 COOKTOP
1
Glass, Middle WPL 4448937 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide (Oven)) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450412 Contact Us For Availability
1
Literature Parts (Cooking Guide (Lable)) WPL LIT4450786 Contact Us For Availability
1
Literature Parts (Guide, Easy Use (Microwave) WPL LIT4451052 Contact Us For Availability
1
Literature Parts (Tech Sheet (Oven)) WPL LIT4452295 Contact Us For Availability
1
Literature Parts (Use & Care Guide (Oven)) WPL LIT4452300 Contact Us For Availability
1
Literature Parts (Use & Care Guide (Microwave WPL LIT4452614 Contact Us For Availability
1
Switch, Membrane (Black) WPL 4455480 Contact Us For Availability
1
Switch, Membrane (Biscuit) WPL 4455482 Contact Us For Availability
1
Switch, Membrane (White) WPL 4455484 Contact Us For Availability
1
Cover, Top WPL 4450377 Contact Us For Availability
2
Trim, Side (LH Black) WPL 4455431 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black) WPL 4455430 Contact Us For Availability
2
Trim, Side (RH White) WPL 4455432 Contact Us For Availability
2
Trim, Side (LH White) WPL 4455433 Contact Us For Availability
2
Trim, Side (RH Biscuit) WPL 4455434 Contact Us For Availability
2
Trim, Side (LH Biscuit) WPL 4455435 Contact Us For Availability
2
Panel, Control (Black) WPL 4452602 Contact Us For Availability
2
Panel, Control (White) WPL 4452603 Contact Us For Availability
2
Panel, Control (Biscuit) WPL 4452973 Contact Us For Availability
2
Baffle, Blower WPL 4448935 Contact Us For Availability
3
Ring, Rubber WPL 4375252 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability
3
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability
3
Insulation, Board WPL 4452248 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
4
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Insulation, Board Support WPL 4452249 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Plate, Mounting Transformer WPL 4451789 Contact Us For Availability
5
Filler, Side WPL 4449083 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Support Rails (Right Side) WPL 4452551 Contact Us For Availability
5
Support Rails (Left Side) WPL 4452552 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Bracket, Support WPL 4455510 Contact Us For Availability
6
Insulator, Dialectric WPL 4452345 Contact Us For Availability
6
Support, Tube WPL 4375253 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
7
Glass, Outer (Black) WPL 4452210 Contact Us For Availability
7
Top, Chassis WPL 4455285 Contact Us For Availability
7
Screw WPL 3400406 Contact Us For Availability
7
Microcomputer WPL 4453377 Contact Us For Availability
7
Plug, Ceramic WPL 4375421 Contact Us For Availability
7
Bracket, Duct WPL 4450027 Contact Us For Availability
8
Bushing WPL 4375255 Contact Us For Availability
8
Grommet WPL 4449964 Contact Us For Availability
9
Convection Motor WPL 4451583 Contact Us For Availability
9
Holder, Fuse WPL 4454949 Contact Us For Availability
9
Bracket, Handle WPL 4452330 Contact Us For Availability
9
Baffle, Rear WPL 4450407 Contact Us For Availability
9
Reflector WPL 4375256 Contact Us For Availability
10
Latch Assembly WPL 4451424 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Chamber, Reflector WPL 4375257 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
11
Screw WPL 4449748 Contact Us For Availability
11
Solenoid WPL 4451663 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
11
Rear Channel WPL 4452547 Contact Us For Availability
12
Microswitch N.C. WPL 4452312 Contact Us For Availability
12
Duct, Inlet WPL 4375450 Contact Us For Availability
12
Side, Combo WPL 4452559 Contact Us For Availability
13
Microswitch WPL 4451426 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Vent, Control Panel WPL 4450787 Contact Us For Availability
14
Bracket, Handle (Right Hand) WPL 4455803 Contact Us For Availability
14
Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Spring, Latch WPL 4451537 Contact Us For Availability
14
Frame, Front WPL 4455611 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
16
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
16
Citrine White WPL 261900 Contact Us For Availability
16
WPL 814381 WPL 814381 Contact Us For Availability
16
Conduit, Combo WPL 4450950 Contact Us For Availability
16
WPL 4452400 WPL 4452400 Contact Us For Availability
16
Filler Kit (WH) WPL 4378951 Contact Us For Availability
16
Filler Kit (AL) WPL 4378952 Contact Us For Availability
16
Screw WPL 4450800 Contact Us For Availability
16
Ground (M/W) WPL 4450831 Contact Us For Availability
16
Spacer, WPL 4452222 Contact Us For Availability
16
WPL 4452239 WPL 4452239 Contact Us For Availability
16
WPL 4455732 WPL 4455732 Contact Us For Availability
16
WPL 591014 WPL 591014 Contact Us For Availability
16
Plate, Service WPL 4455191 Contact Us For Availability
16
Block, Slide WPL 4375415 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
17
Clamp WPL 4448664 Contact Us For Availability
18
Cover, Top Front WPL 4452366 Contact Us For Availability
19
Support, Insulation WPL 4451477 Contact Us For Availability
19
Transformer, Control Panel WPL 4455038 Contact Us For Availability
20
Retainer, Glass WPL 4451668 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
20
Plate, Cover WPL 4452247 Contact Us For Availability
21
Suppressor WPL 4451934 Contact Us For Availability
21
Seal, Door Top WPL 4452325 Contact Us For Availability
21
Spacer, Foam WPL 4452260 Contact Us For Availability
22
Handle, Pan WPL 4393900 Contact Us For Availability
23
Rack WPL 4452220 Contact Us For Availability
26
Back, Chassis WPL 4452233 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI85705A7 Contact Us For Availability
29
Motor, Blower WPL 4375278 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
32
Thermostat WPL 4375281 Contact Us For Availability
33
Deflector, Vent WPL 4452495 Contact Us For Availability
33
Q Tube Assembly WPL 4375408 Contact Us For Availability
35
Ring, Turntable WPL 4375406 Contact Us For Availability
42
Plate, Grill WPL 4375331 Contact Us For Availability
43
WPL 4455529 WPL 4455529 Contact Us For Availability
43
Bracket WPL 4375332 Contact Us For Availability
44
Cap, Fan WPL 4375441 Contact Us For Availability
47
Nut WPL 4375258 Contact Us For Availability
48
Insulation (Left Side) WPL 4375409 Contact Us For Availability
48
Insulation (Right Side) WPL 4375410 Contact Us For Availability
49
Plate, Side - Bottom WPL 4375411 Contact Us For Availability
50
Valve WPL 4375425 Contact Us For Availability
51
WPL 4452152 WPL 4452152 Contact Us For Availability
51
WPL 4159465 WPL 4159465 Contact Us For Availability
51
WPL 4455442 WPL 4455442 Contact Us For Availability
51
WPL 4455444 WPL 4455444 Contact Us For Availability
51
WPL 4455446 WPL 4455446 Contact Us For Availability
51
Screw To Valve WPL 4375428 Contact Us For Availability
52
WPL 4451755 WPL 4451755 Contact Us For Availability
53
WPL 4452492 WPL 4452492 Contact Us For Availability
53
Air Bleed WPL 4375426 Contact Us For Availability
54
WPL 4449315 WPL 4449315 Contact Us For Availability
54
WPL 4450364 WPL 4450364 Contact Us For Availability
54
WPL 4452491 WPL 4452491 Contact Us For Availability
54
Shield, Heat Right WPL 4375439 Contact Us For Availability
55
Sensor, Temp. WPL 4375422 Contact Us For Availability
56
Insulation WPL 4375420 Contact Us For Availability
57
Duct, Heater WPL 4375419 Contact Us For Availability
58
Washer WPL 4375416 Contact Us For Availability
59
Element, Heater WPL 4375417 Contact Us For Availability
61
Motor, Fan WPL 4375429 Contact Us For Availability
62
Left-Threaded Nut (Serviced With Motor Item 6 WPL ARI85706A7 Contact Us For Availability
64
Shield, Heat WPL 4375431 Contact Us For Availability
65
Insulation WPL 4375432 Contact Us For Availability
66
Chamber, Heat Cabinet WPL 4375433 Contact Us For Availability
67
Isolation Plate WPL 4375437 Contact Us For Availability
68
Cover Plate WPL 4375338 Contact Us For Availability
71
Side Plate (Left) WPL 4375341 Contact Us For Availability
71
Side Plate (Right) WPL 4375342 Contact Us For Availability
× ![]()
