Model Alliance KEM377*-1709 Dryer – Common Parts & Diagrams

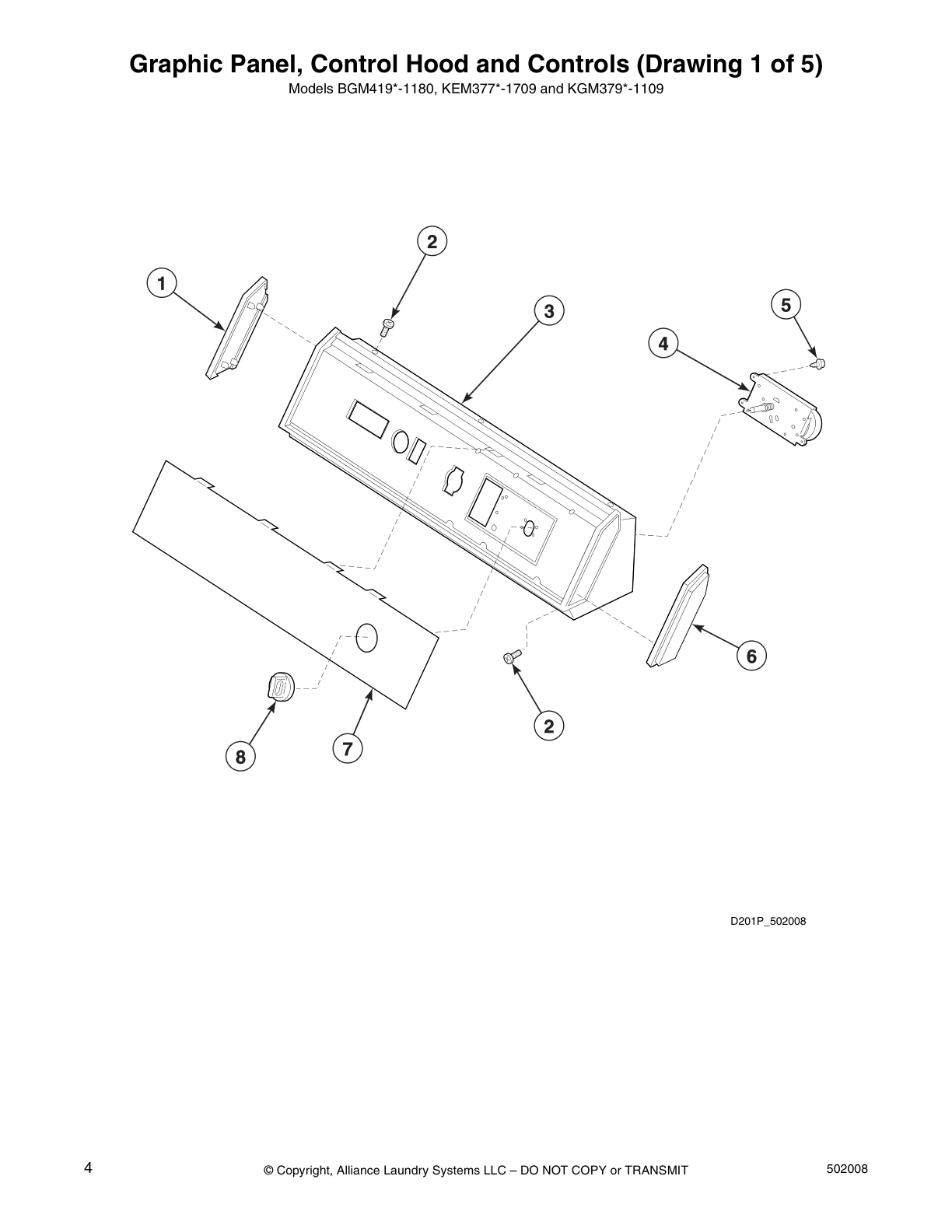

Graphic Panel, Control Hood and Controls (Drawing 1 of 5)

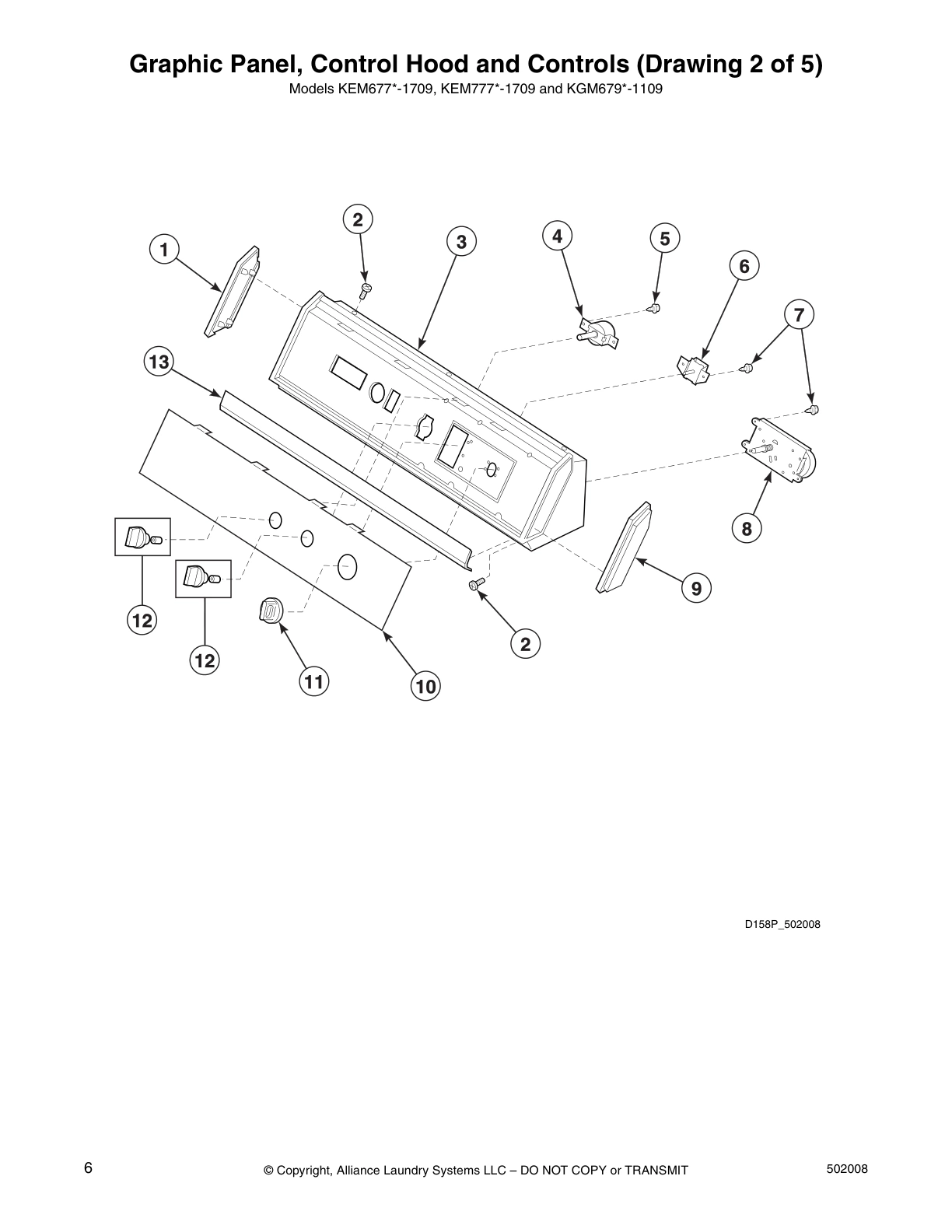

Graphic Panel, Control Hood and Controls (Drawing 2 of 5)

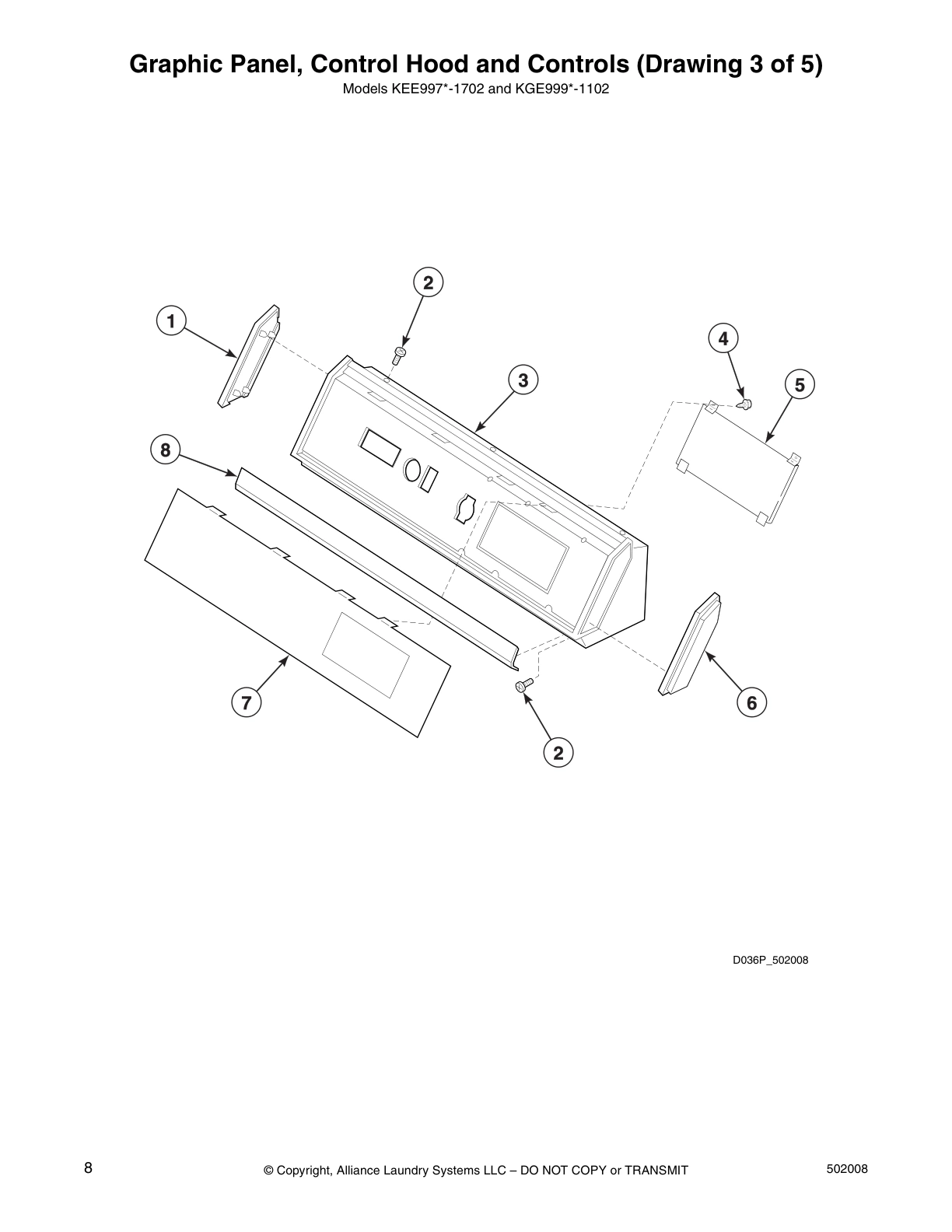

Graphic Panel, Control Hood and Controls (Drawing 3 of 5)

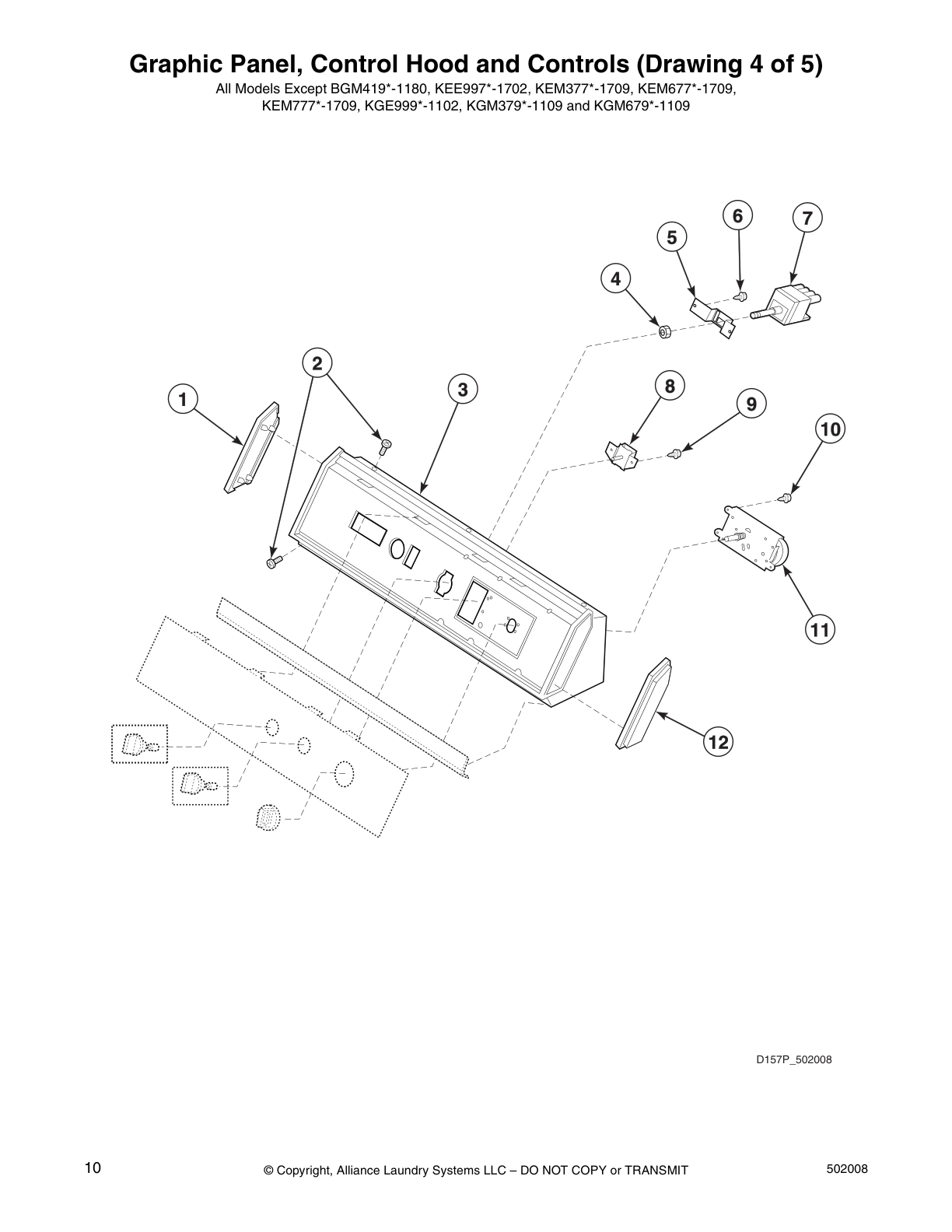

Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

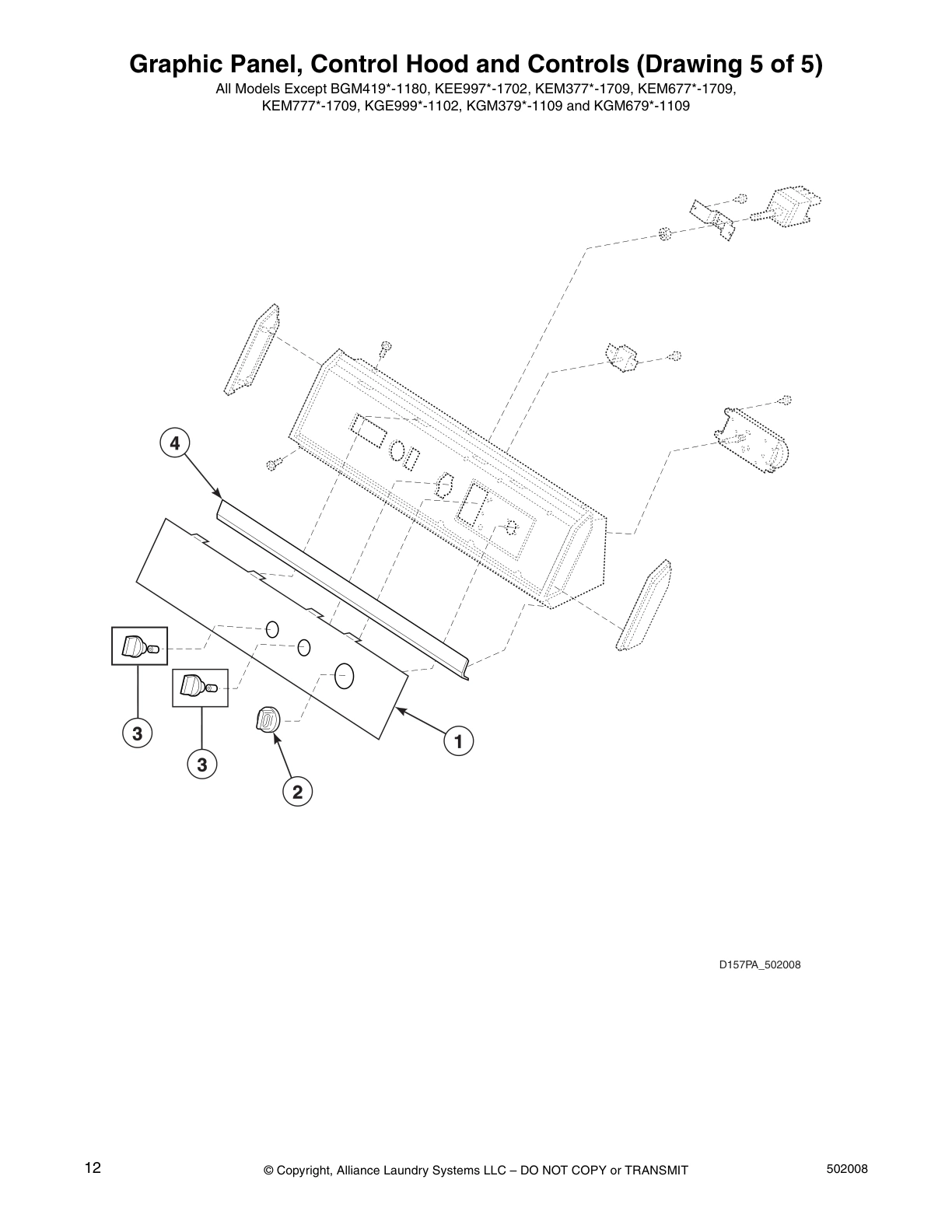

Graphic Panel, Control Hood and Controls (Drawing 5 of 5)

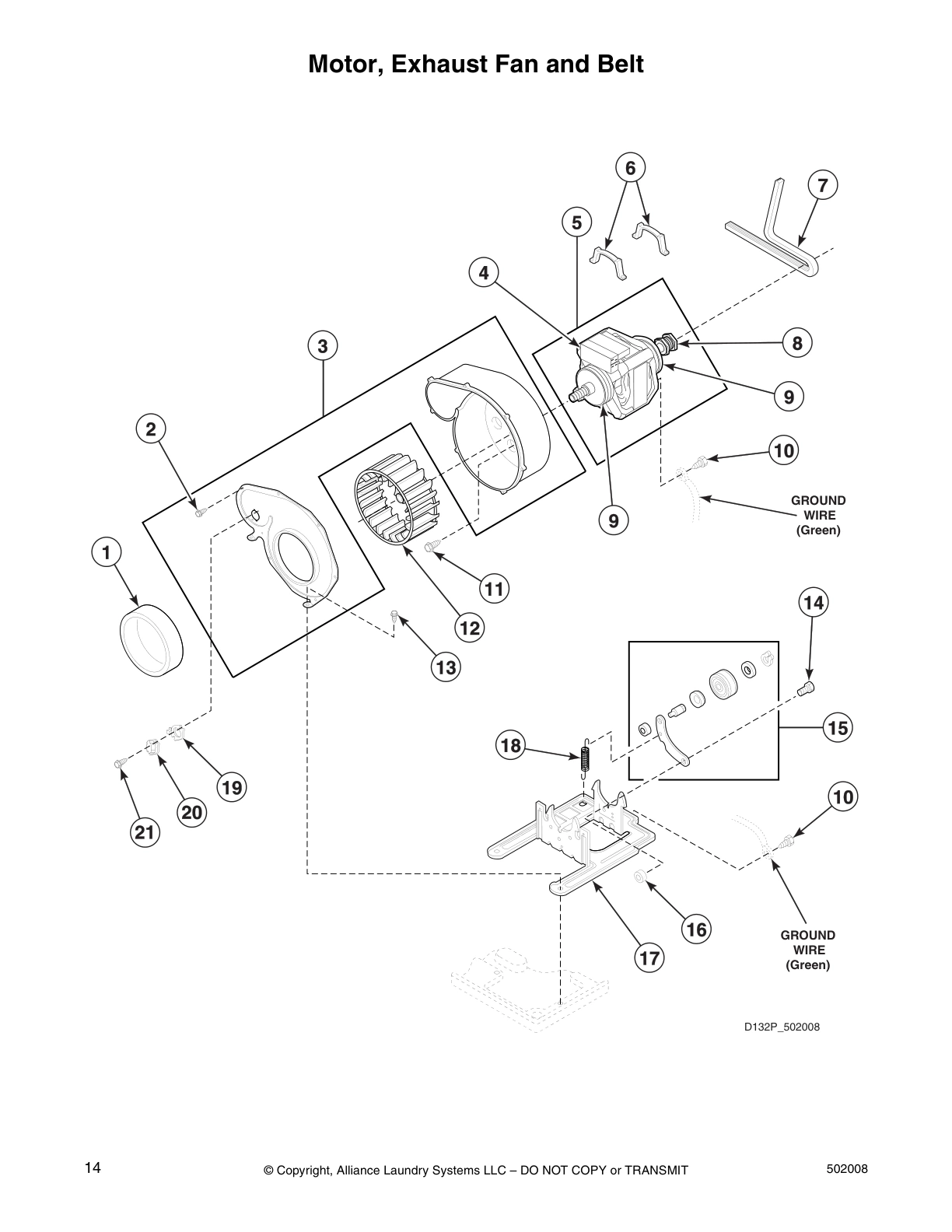

Motor, Exhaust Fan and Belt

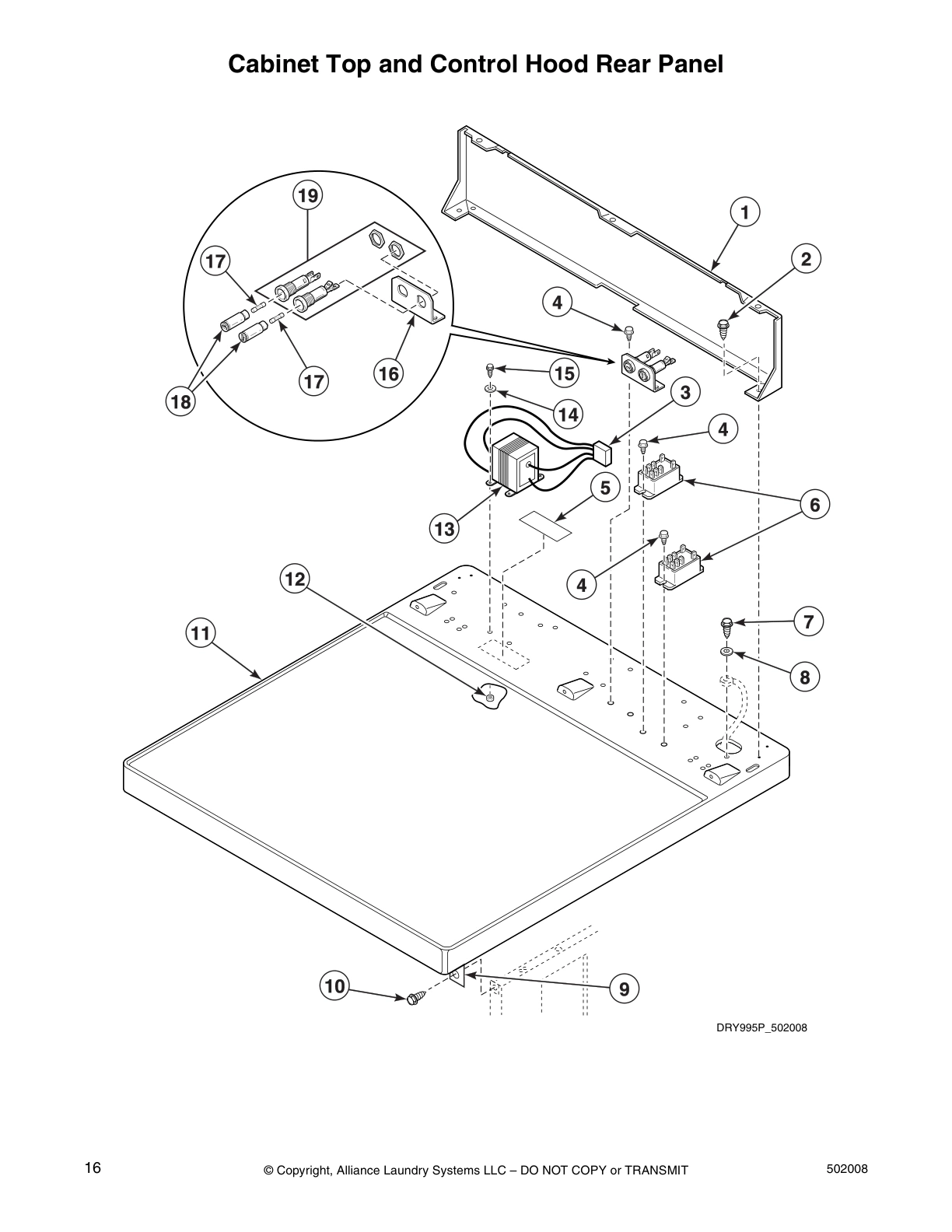

Cabinet Top and Control Hood Rear Panel

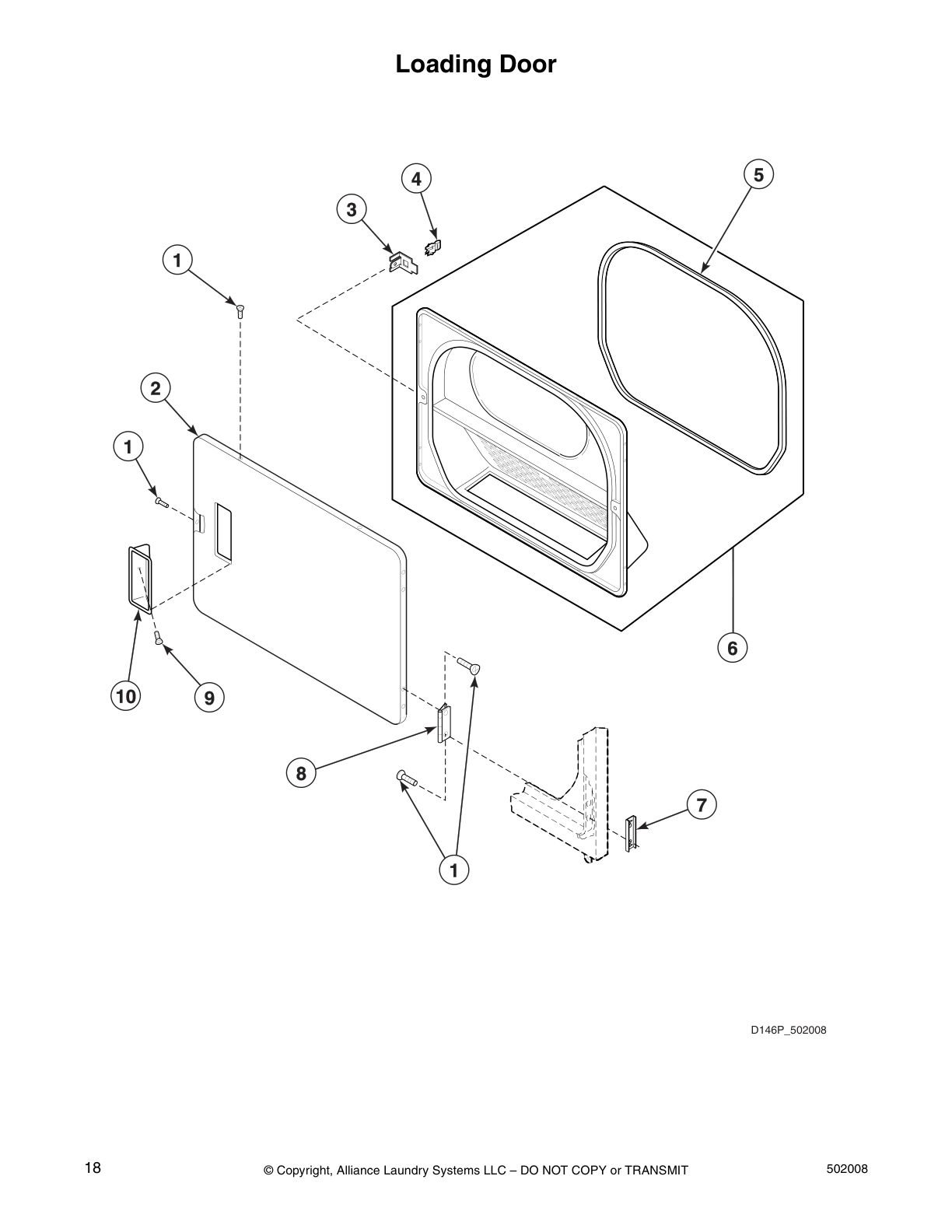

Loading Door

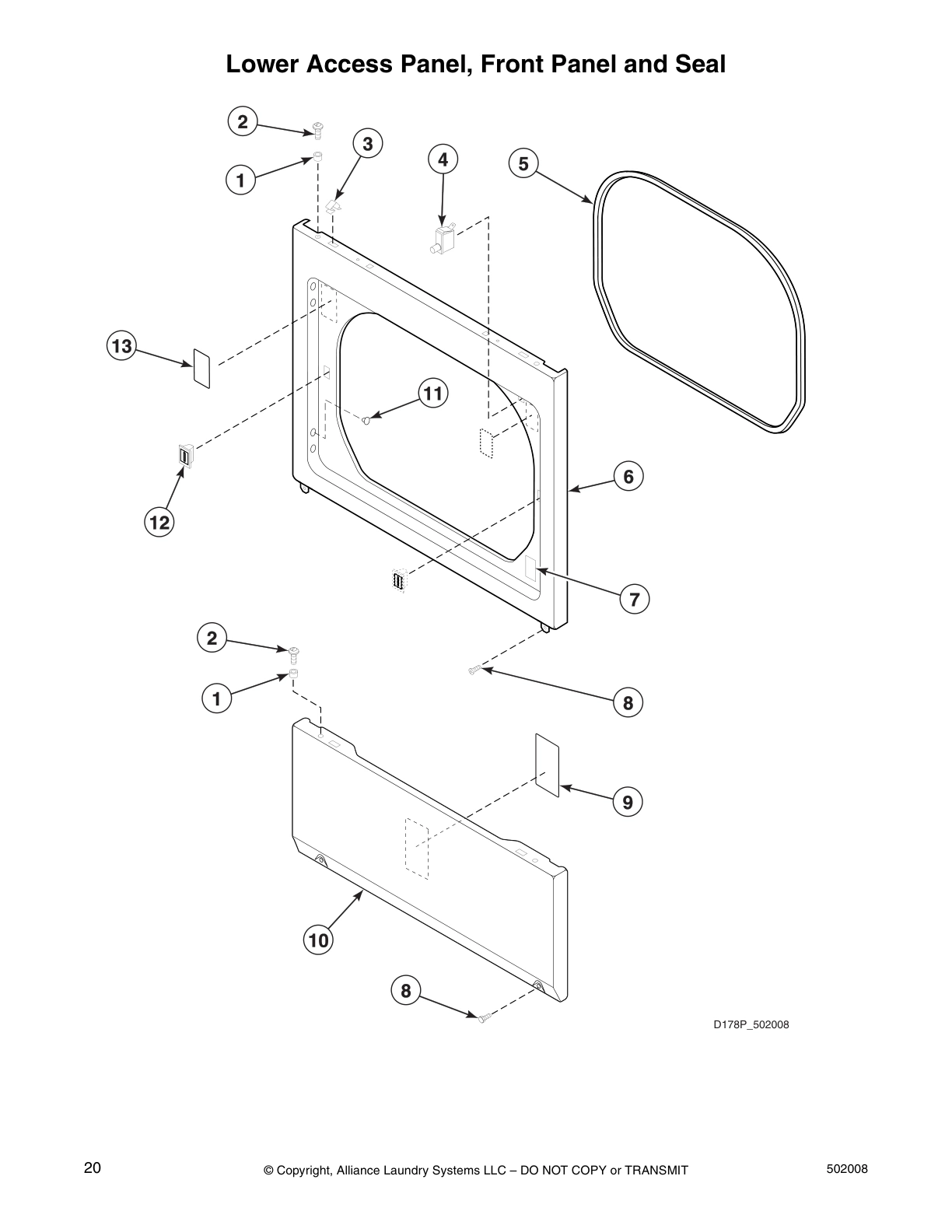

Lower Access Panel, Front Panel and Seal

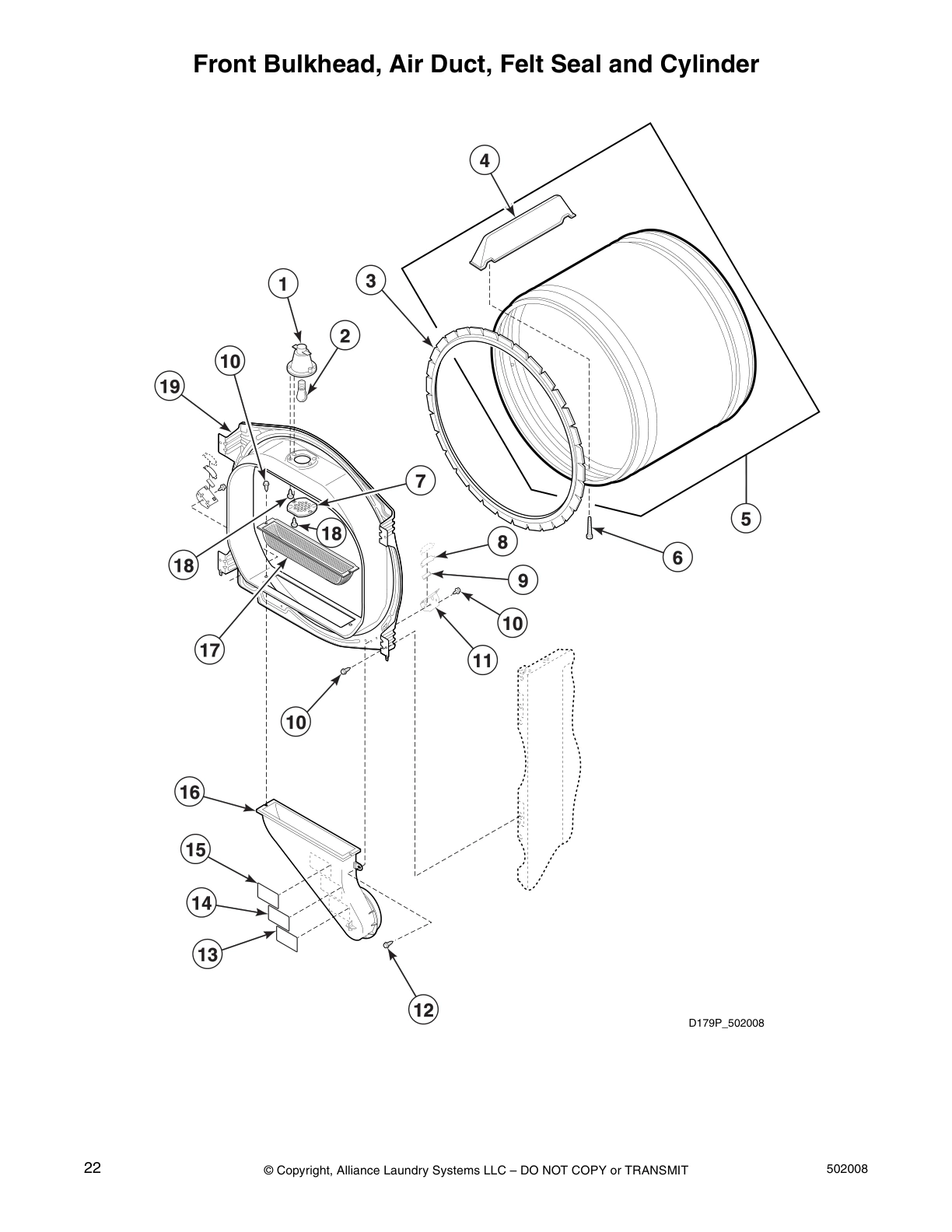

Front Bulkhead, Air Duct, Felt Seal and Cylinder

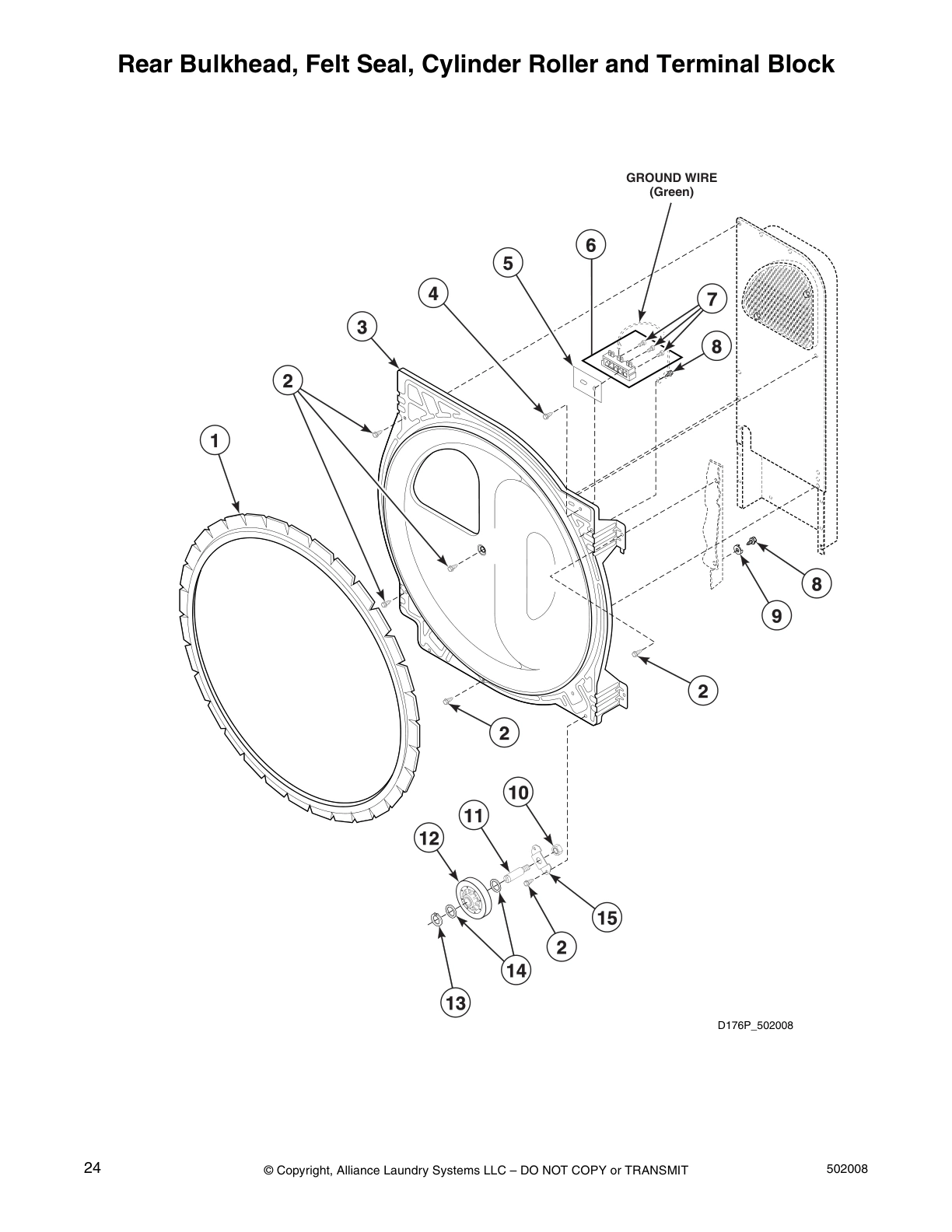

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

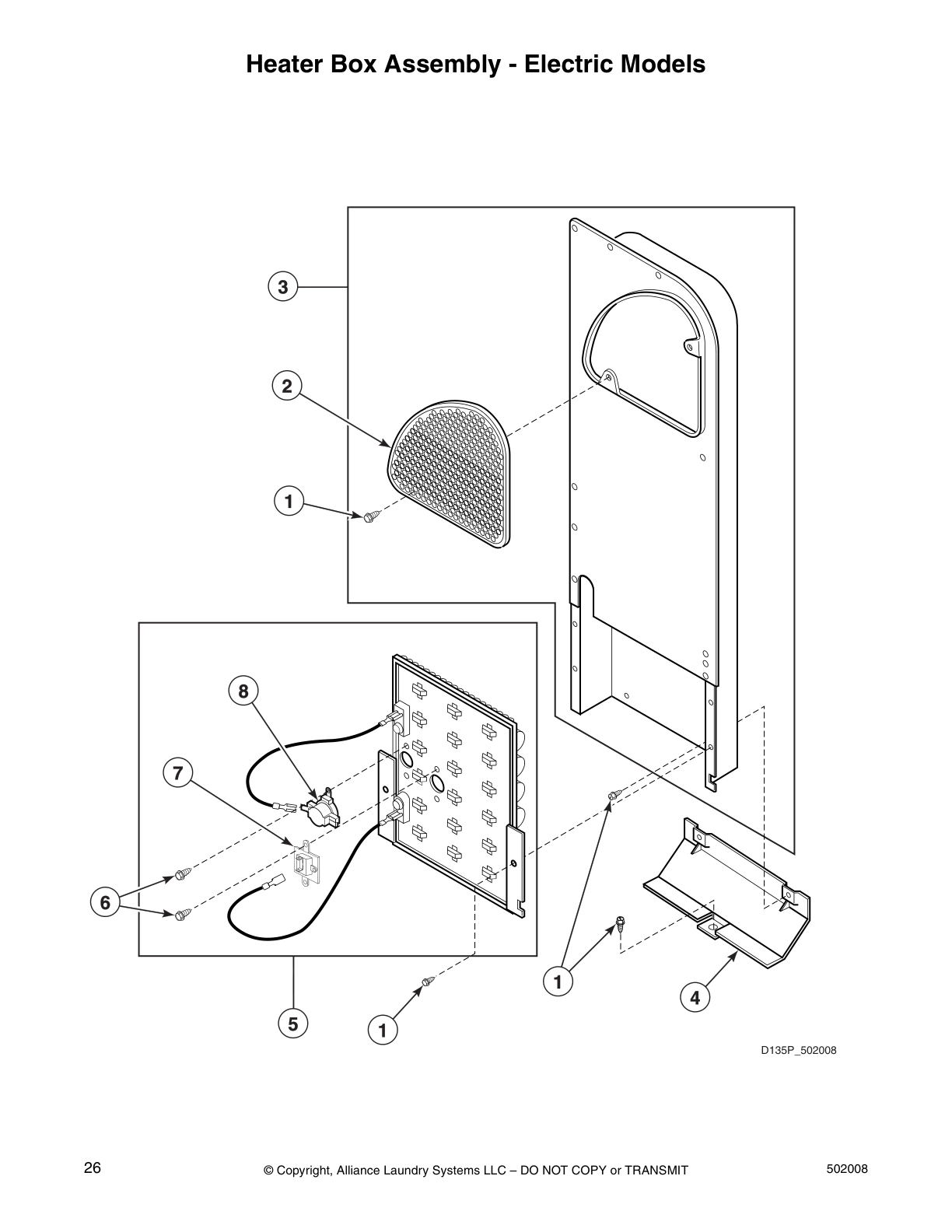

Heater Box Assembly - Electric Models

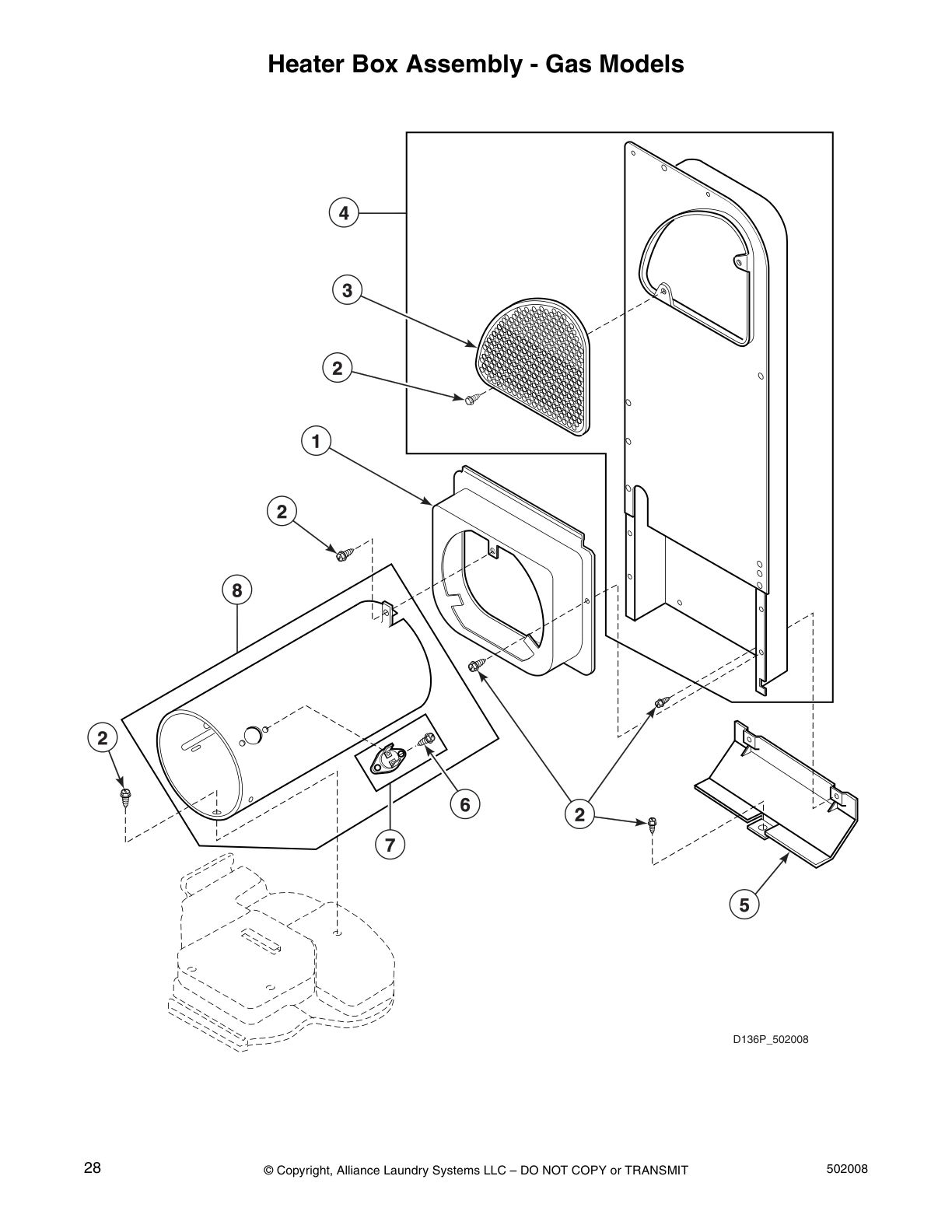

Heater Box Assembly - Gas Models

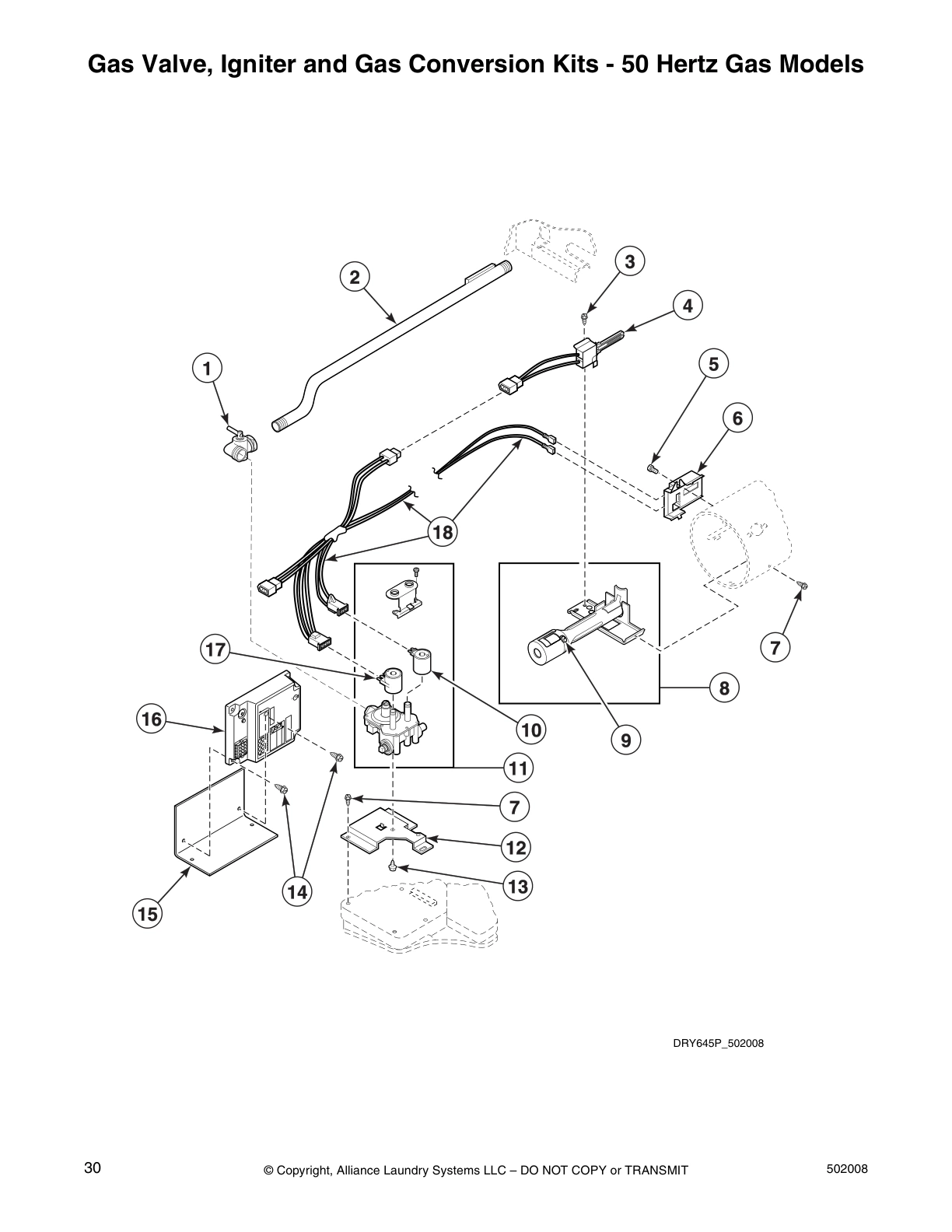

Gas Valve, Igniter and Gas Conversion Kits - 50 Hertz Gas Models

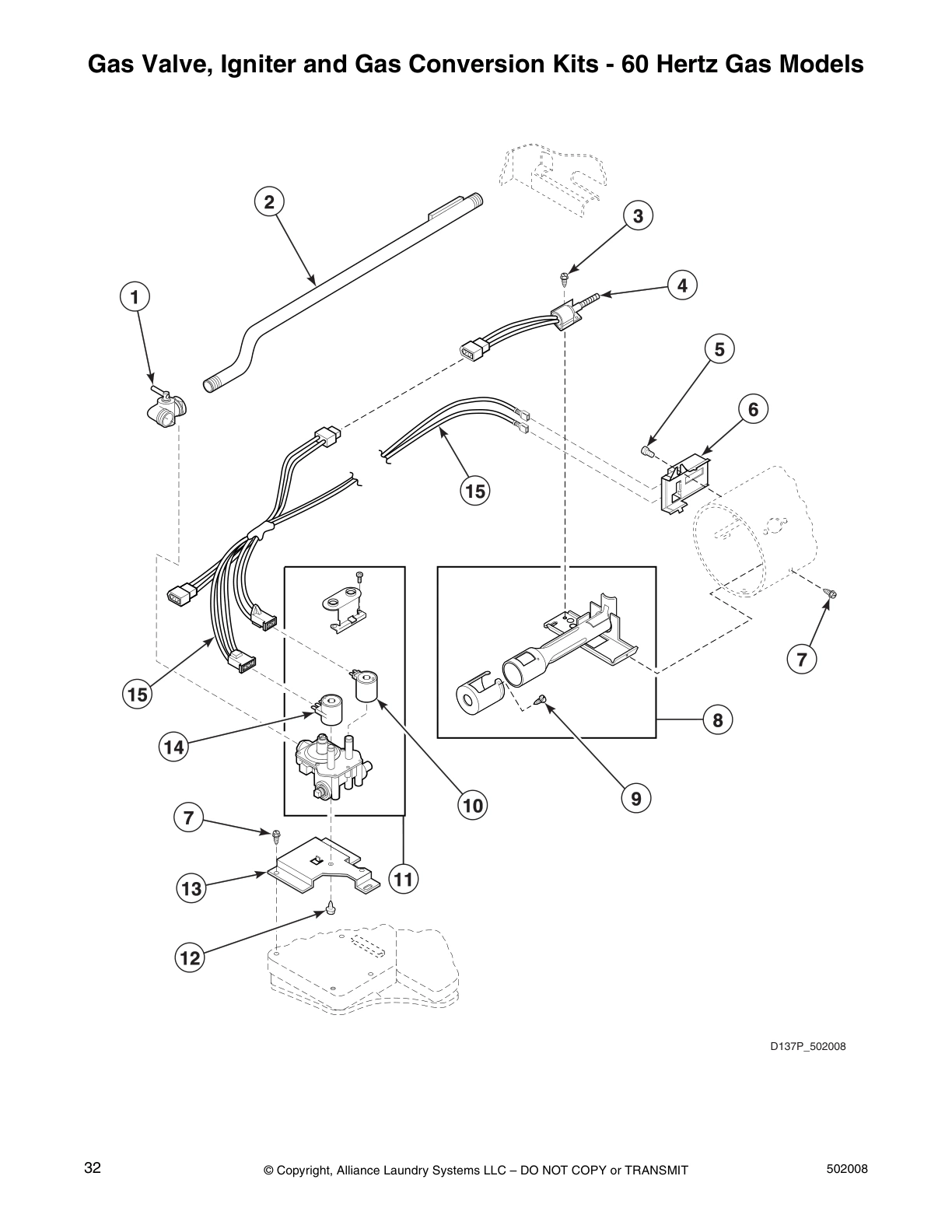

Gas Valve, Igniter and Gas Conversion Kits - 60 Hertz Gas Models

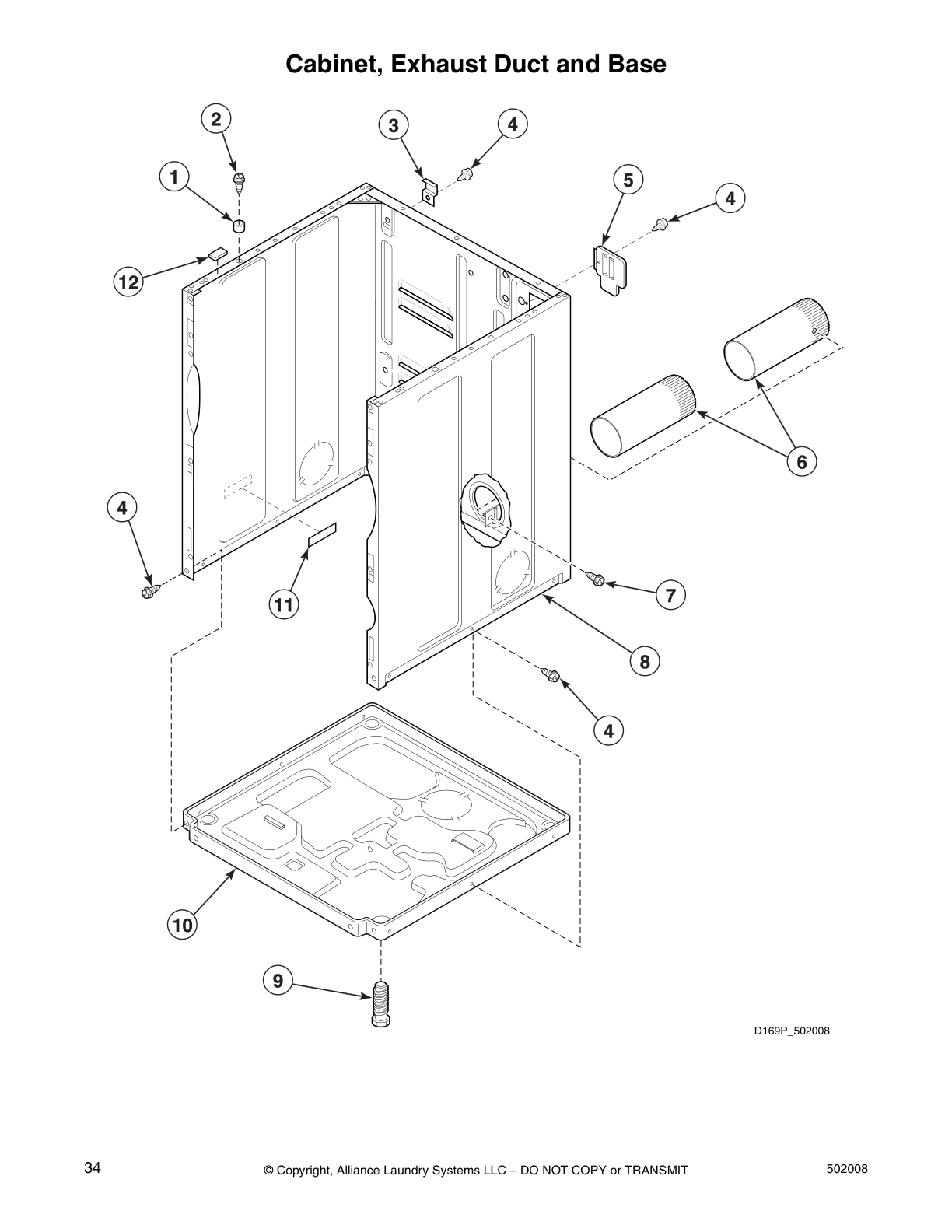

Cabinet, Exhaust Duct and Base

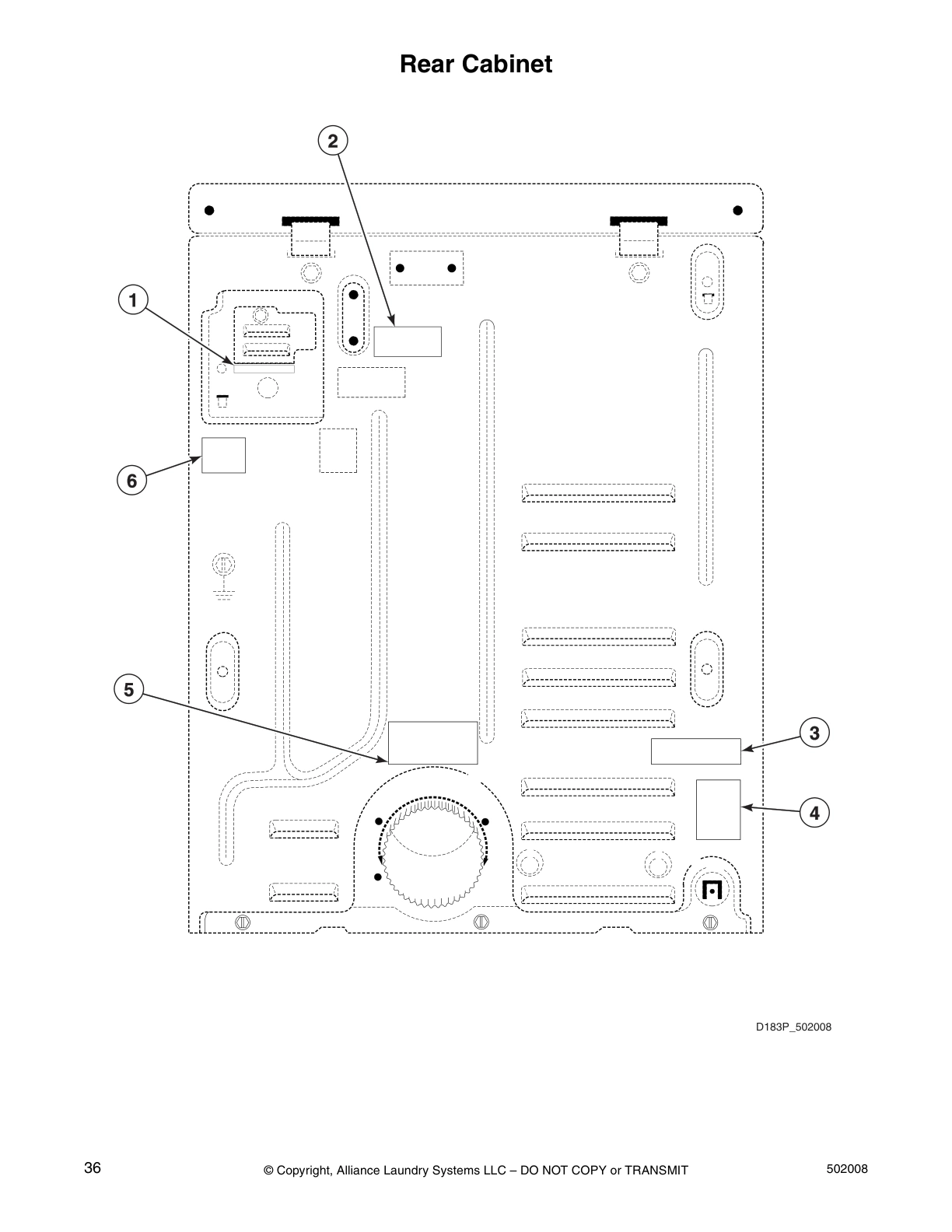

Rear Cabinet

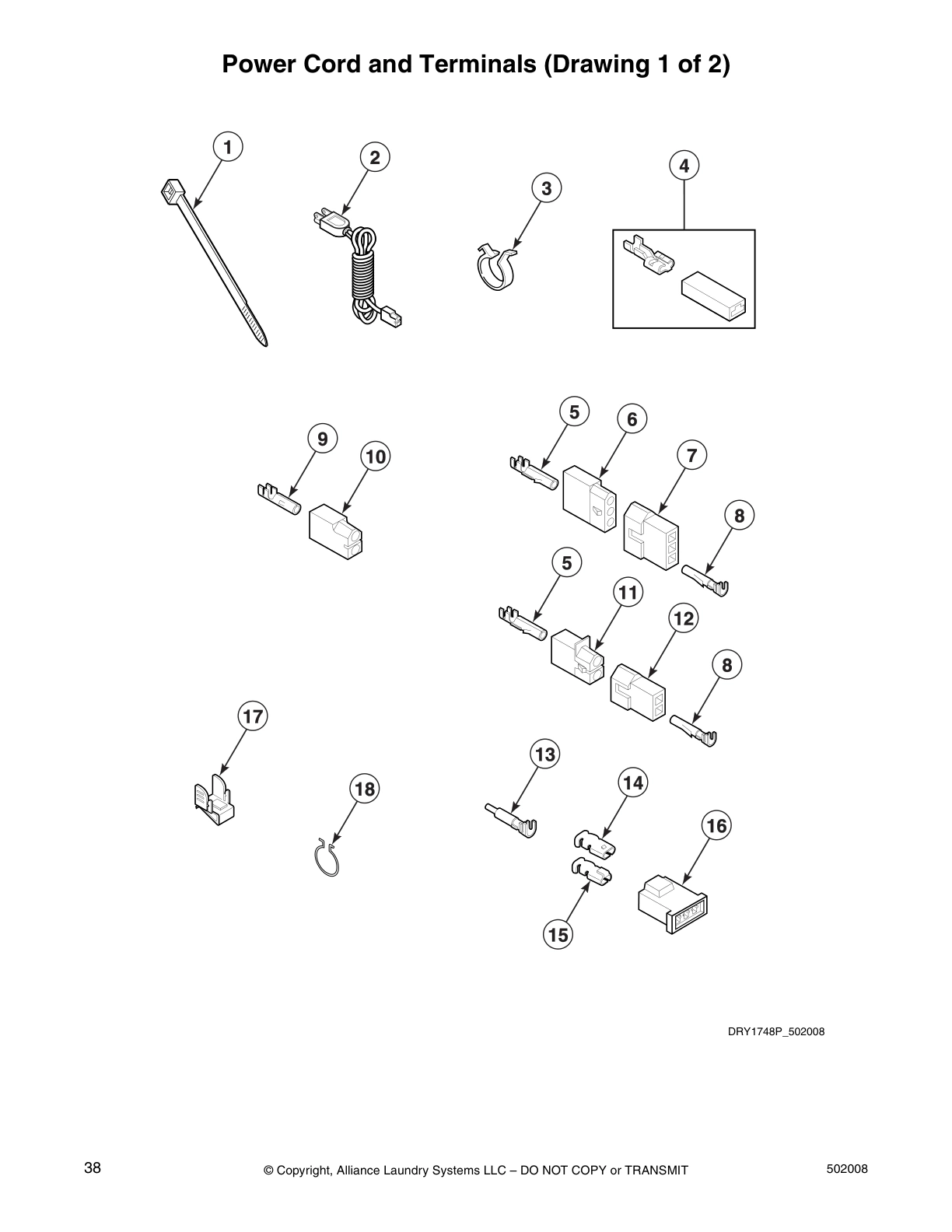

Power Cord and Terminals (Drawing 1 of 2)

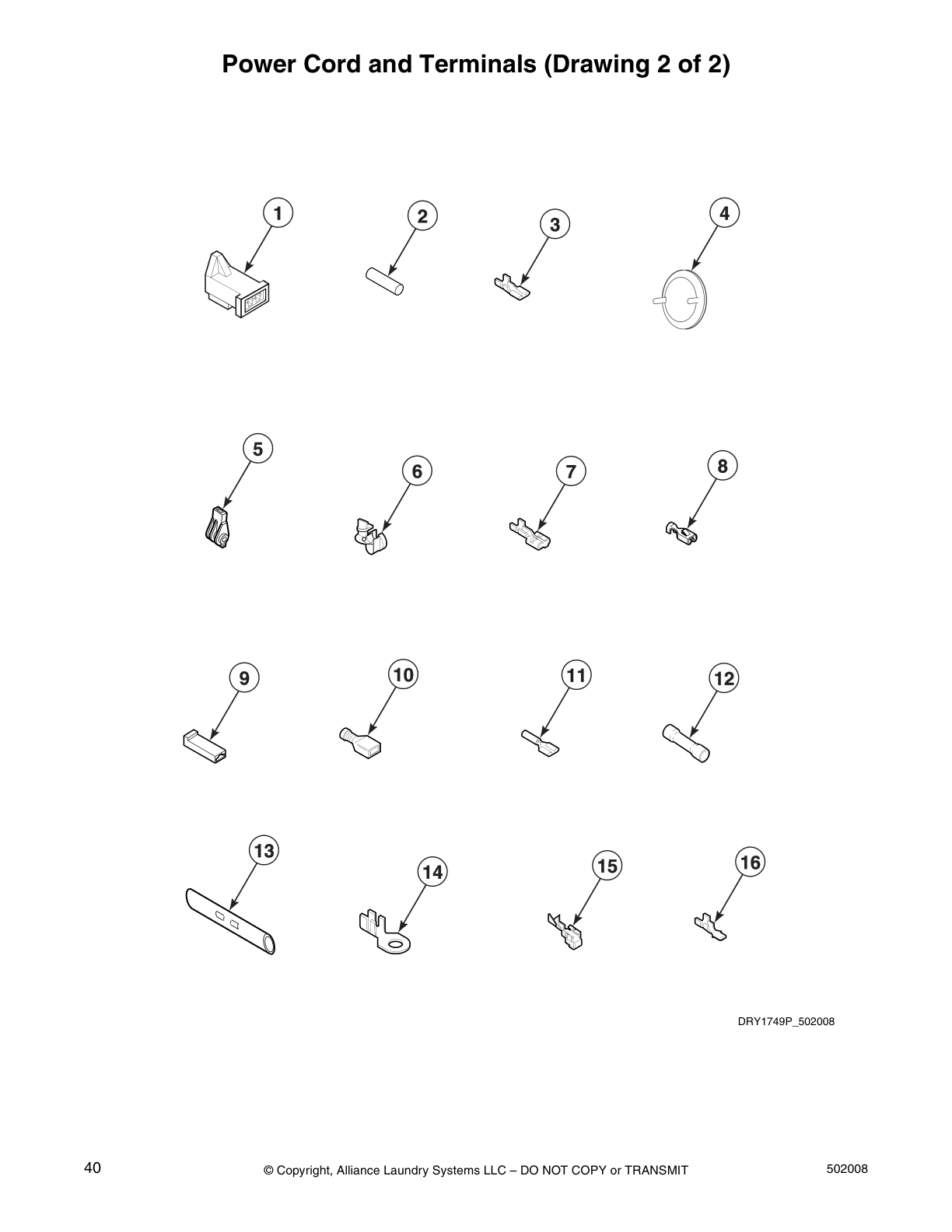

Power Cord and Terminals (Drawing 2 of 2)

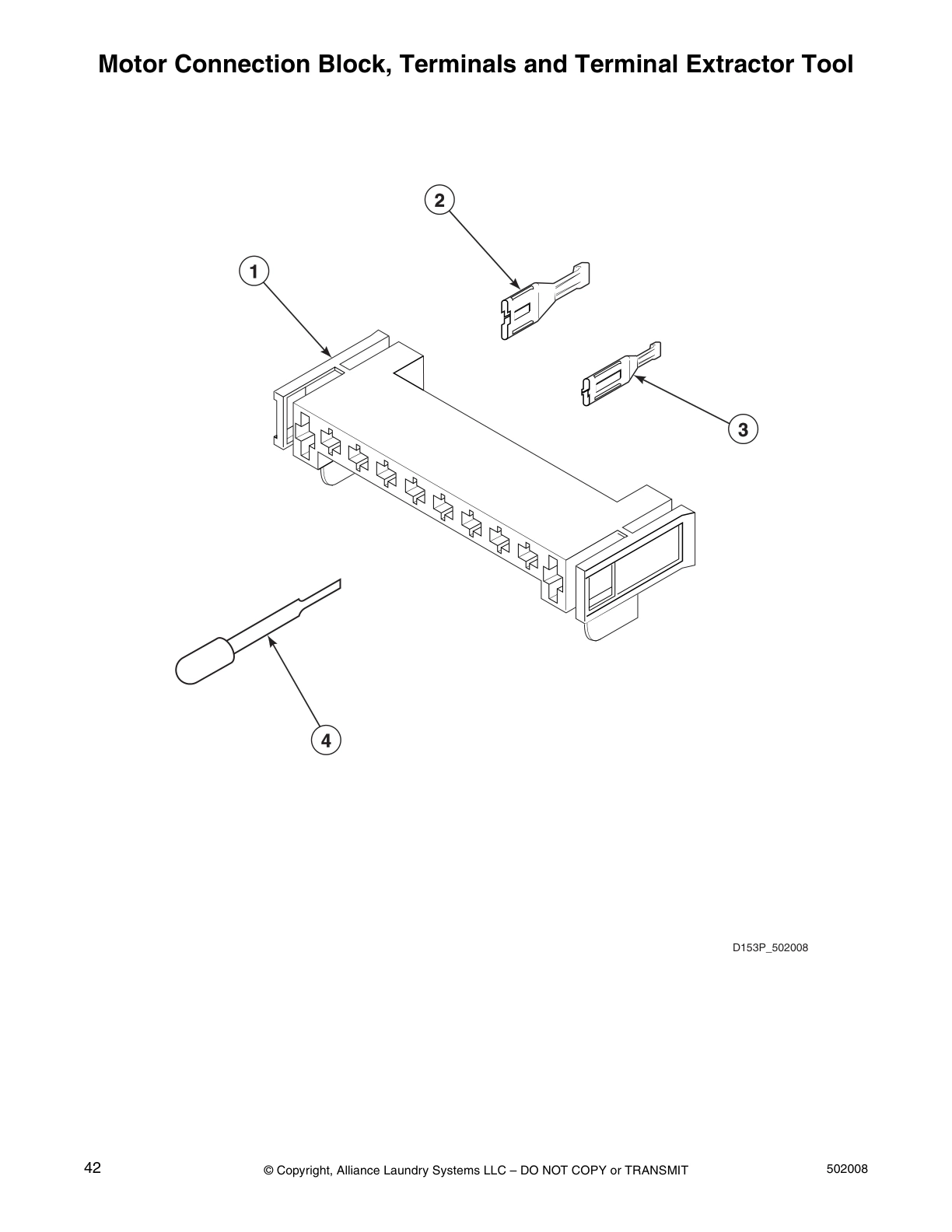

Motor Connection Block, Terminals and Terminal Extractor Tool
Common parts from model Alliance KEM377*-1709 Dryer
1
10 Position Housing SPQ 500338 Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
SPQ 00188 SPQ 00188 Contact Us For Availability
15
Ring Terminal SPQ 00111 Contact Us For Availability
16
Female Spade Terminal SPQ 00110 Contact Us For Availability
17
Thermostat SPQ 510060 Contact Us For Availability
18
Drum Light Lamp SPQ 502140P Contact Us For Availability
NI
SPQ 90789 SPQ 90789 Contact Us For Availability
× ![]()
