Model Whirlpool KEDC205YBL0 – Common Parts &amp; Diagrams

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WPL 242820 WPL 242820 Contact Us For Availability

WPL 242821 WPL 242821 Contact Us For Availability

WPL 242822 WPL 242822 Contact Us For Availability

WPL 242823 WPL 242823 Contact Us For Availability

WPL 242824 WPL 242824 Contact Us For Availability

WPL 242826 WPL 242826 Contact Us For Availability

WPL 242827 WPL 242827 Contact Us For Availability

WPL 242828 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 3183638 WPL 3183638 Contact Us For Availability

WPL 3183639 WPL 3183639 Contact Us For Availability

WPL 3185260 WPL 3185260 Contact Us For Availability

WPL 814128 WPL 814128 Contact Us For Availability

WPL LIT3183603 WPL LIT3183603 Contact Us For Availability

WPL LIT3185219 WPL LIT3185219 Contact Us For Availability

WPL LIT3185221 WPL LIT3185221 Contact Us For Availability

WPL LIT4174217 WPL LIT4174217 Contact Us For Availability

1

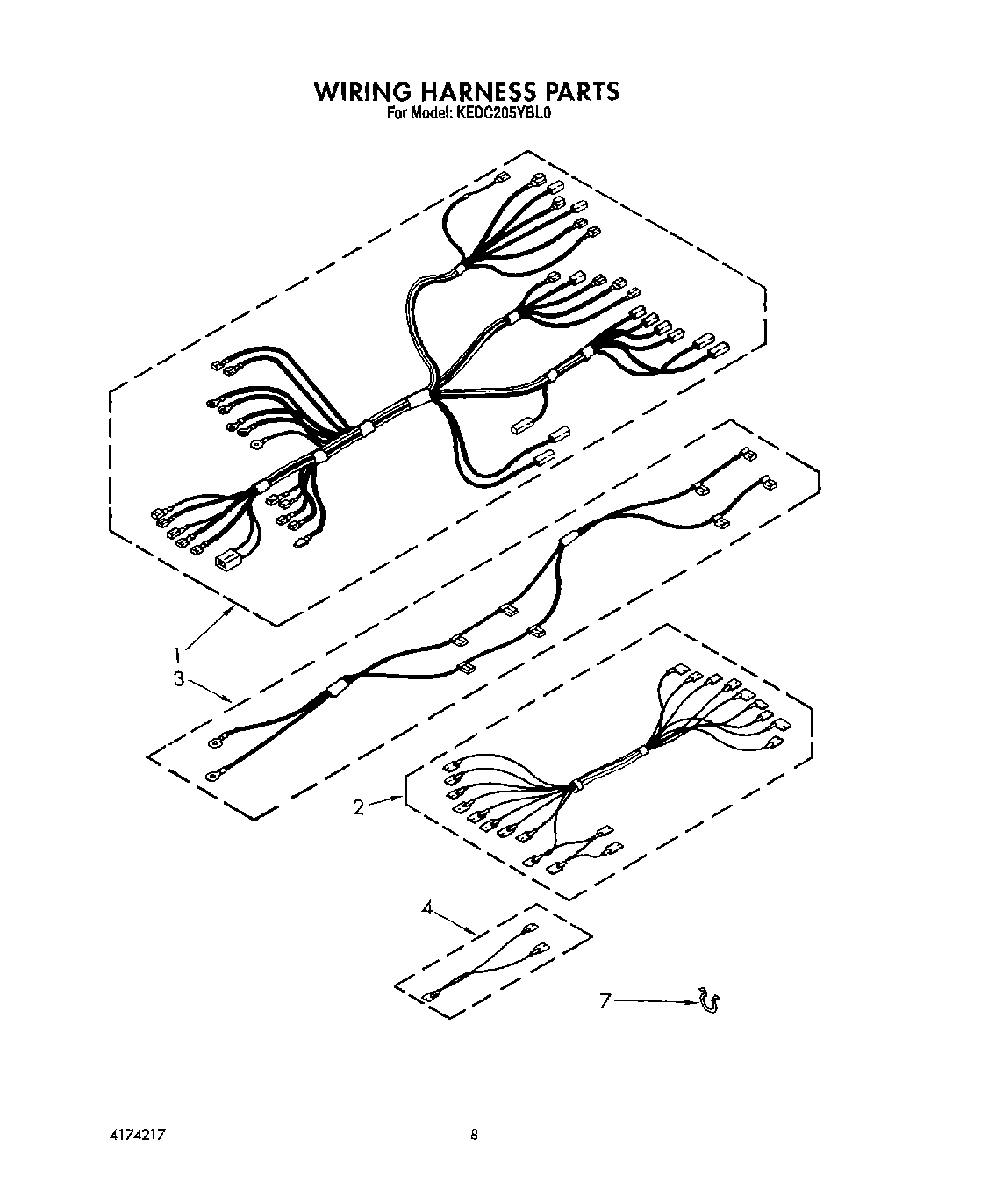

Harness, Wire (Main) WPL 3185257 Contact Us For Availability

1

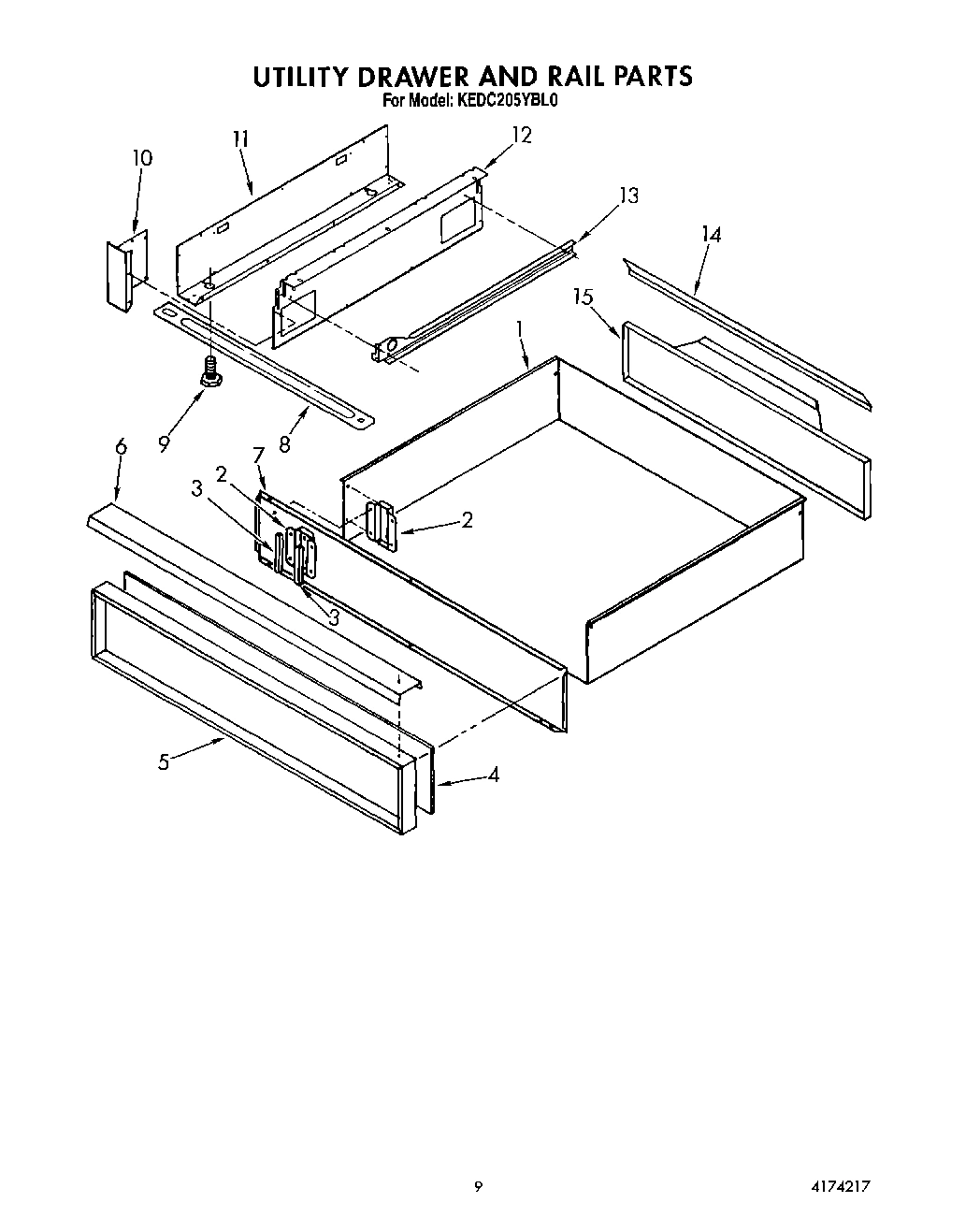

Drawer, Utility WPL 3183571 Contact Us For Availability

1

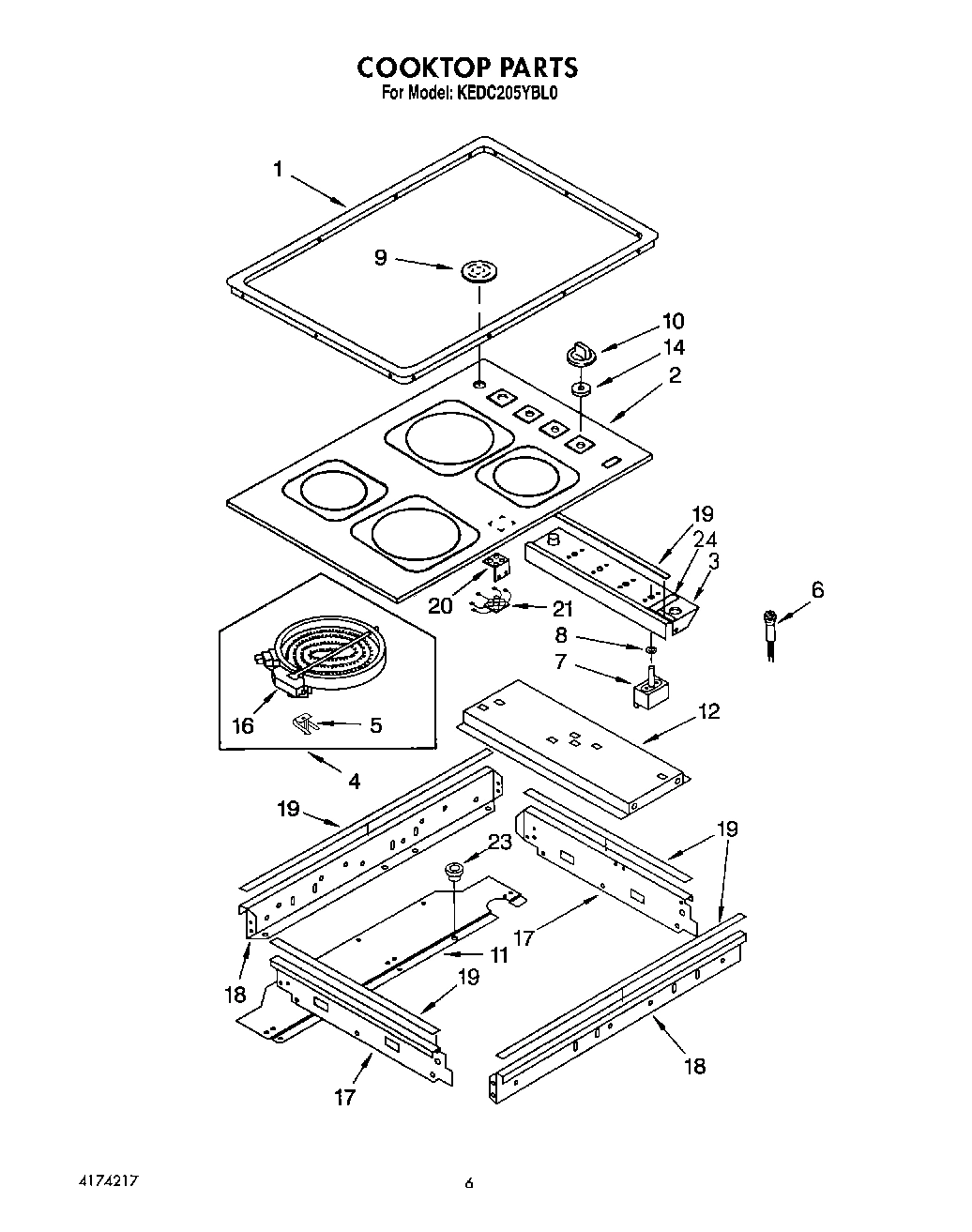

Trim Ring, Cooktop (Black) WPL 3150305 Contact Us For Availability

1

Trim Ring, Cooktop (White) WPL 3150306 Contact Us For Availability

1

Frame, Front WPL 3172194 Contact Us For Availability

1

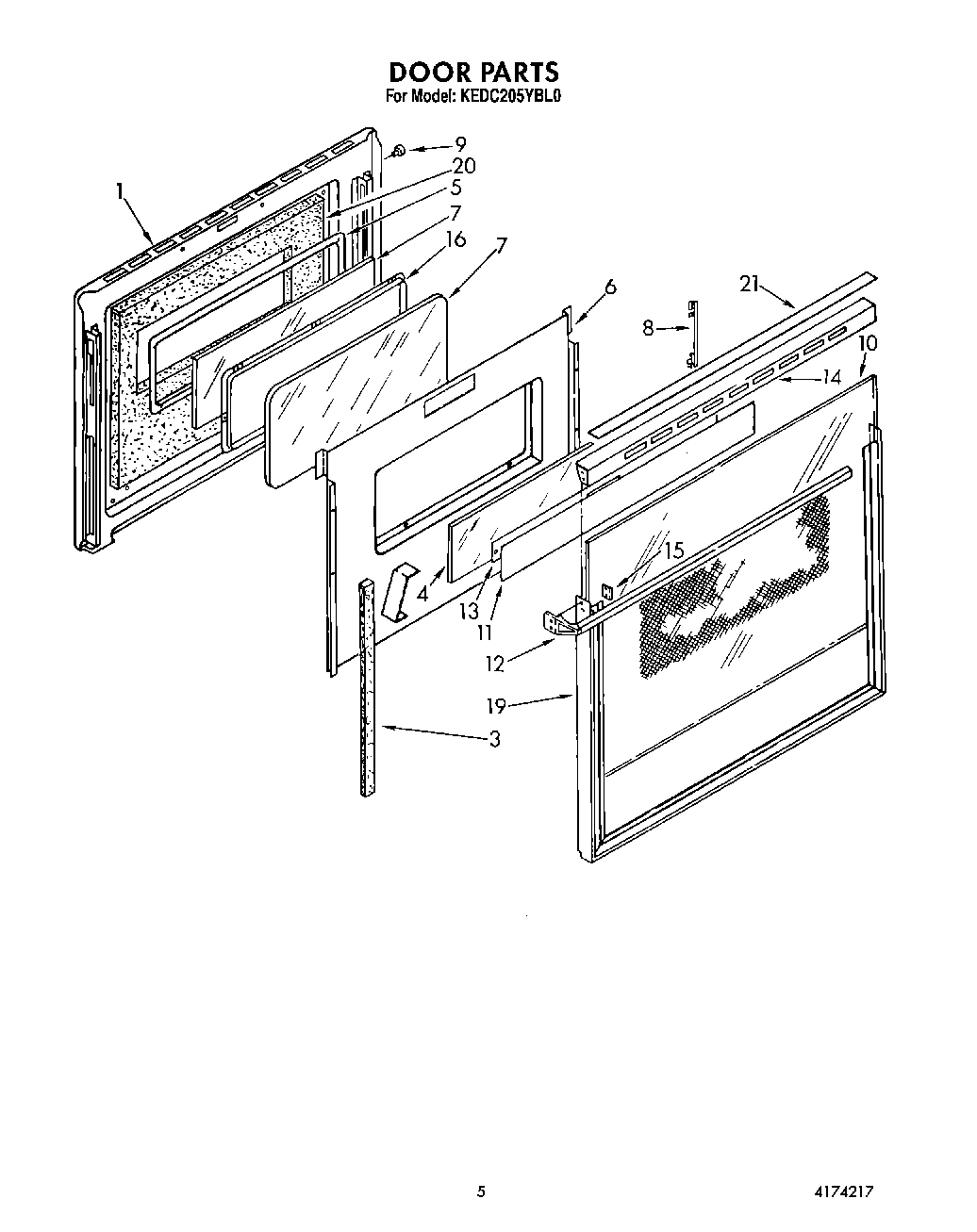

Liner, Door WPL 3172218 Contact Us For Availability

2

Harness, Wire (Surface Elements) WPL 3181503 Contact Us For Availability

2

Bracket, Mounting WPL 3185163 Contact Us For Availability

2

Cooktop, Glass (Black) WPL 3181660 Contact Us For Availability

2

Cooktop, Glass (White) WPL 3181661 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 3181496 Contact Us For Availability

3

Seal, Foam (4) WPL 3147603 Contact Us For Availability

3

Bracket, Switch Mounting WPL 3184324 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

4

WP8185663 Whirlpool Surface Element Backorder WPL WP8185663 $73.20

4

Jumper, Infinite Switch WPL 3149964 Contact Us For Availability

4

Glass, Drawer Front (Black) WPL 3185226 Contact Us For Availability

4

Glass, Drawer Front (White) WPL 3185228 Contact Us For Availability

4

Element, Surface (1700W Right Front) WPL 3183200 Contact Us For Availability

4

Element, Surface (2100W Right Rear) WPL 3183201 Contact Us For Availability

4

Element, Surface (1400W Left Rear) WPL 3183584 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

4

Glass, Clear WPL 3169202 Contact Us For Availability

5

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Spring Locator (8) WPL 3149191 Contact Us For Availability

5

Trim, Vent Door Left Hand (Brite Aluminum) WPL 3148472 Contact Us For Availability

5

Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability

5

Trim, Vent Door Left Hand (Black) WPL 3148698 Contact Us For Availability

5

Frame, Outer WPL 3185131 Contact Us For Availability

5

Insulation Tray WPL 3185146 Contact Us For Availability

6

Door, Vent (Screw (2)) WPL 342043 Contact Us For Availability

6

Door, Vent (Black) WPL 314190 Contact Us For Availability

6

Door, Vent (Semi-Bright Aluminum) WPL 3149676 Contact Us For Availability

6

Handle, Drawer (Screw, Black (3)) WPL 308504 Contact Us For Availability

6

Handle, Drawer (White) WPL 3185206 Contact Us For Availability

6

Handle, Drawer (Black) WPL 3185207 Contact Us For Availability

6

Light, Indicator WPL 3149978 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

6

Retainer, Insulation WPL 3148159 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $11.62

7

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

7

Switch, Infinite (Use W/1400W Left Rear Burne WPL 3148949 Contact Us For Availability

7

Trim, Bottom WPL 314184 Contact Us For Availability

7

Screw (2) WPL 307748 Contact Us For Availability

7

Panel, Back WPL 3185162 Contact Us For Availability

7

Switch, Infinite (Use W/2400W Left Front Burn WPL 3148958 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Shield, Air WPL 3149142 Contact Us For Availability

8

Bracket WPL 3183441 Contact Us For Availability

8

Seal, Switch Cover WPL 309839 Contact Us For Availability

8

Gasket, Door WPL 3148284 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

9

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

9

Retainer, Glass (4) WPL 3149882 Contact Us For Availability

9

Cover, Vent (Black) WPL 3182496 Contact Us For Availability

9

Cover, Vent (White) WPL 3182497 Contact Us For Availability

9

Baffle, Top WPL 3183796 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

Knob, Control (4) (Black) WPL 3150100 Contact Us For Availability

Support, Circuit Board WPL 3181558 Contact Us For Availability

Cap, Front (Right Hand) WPL 3185141 Contact Us For Availability

Cap, Front (Left Hand) WPL 3185142 Contact Us For Availability

Knob, Control (4) (White) WPL 3150096 Contact Us For Availability

Side Trim (Left Hand) WPL 310685 Contact Us For Availability

Side Trim (Right Hand) WPL 310689 Contact Us For Availability

Glass, Panel (Black) WPL 3148185 Contact Us For Availability

Glass, Panel (White) WPL 3150348 Contact Us For Availability

Support, Outer Drawer WPL 3185144 Contact Us For Availability

Cover, Top Rear WPL 3147566 Contact Us For Availability

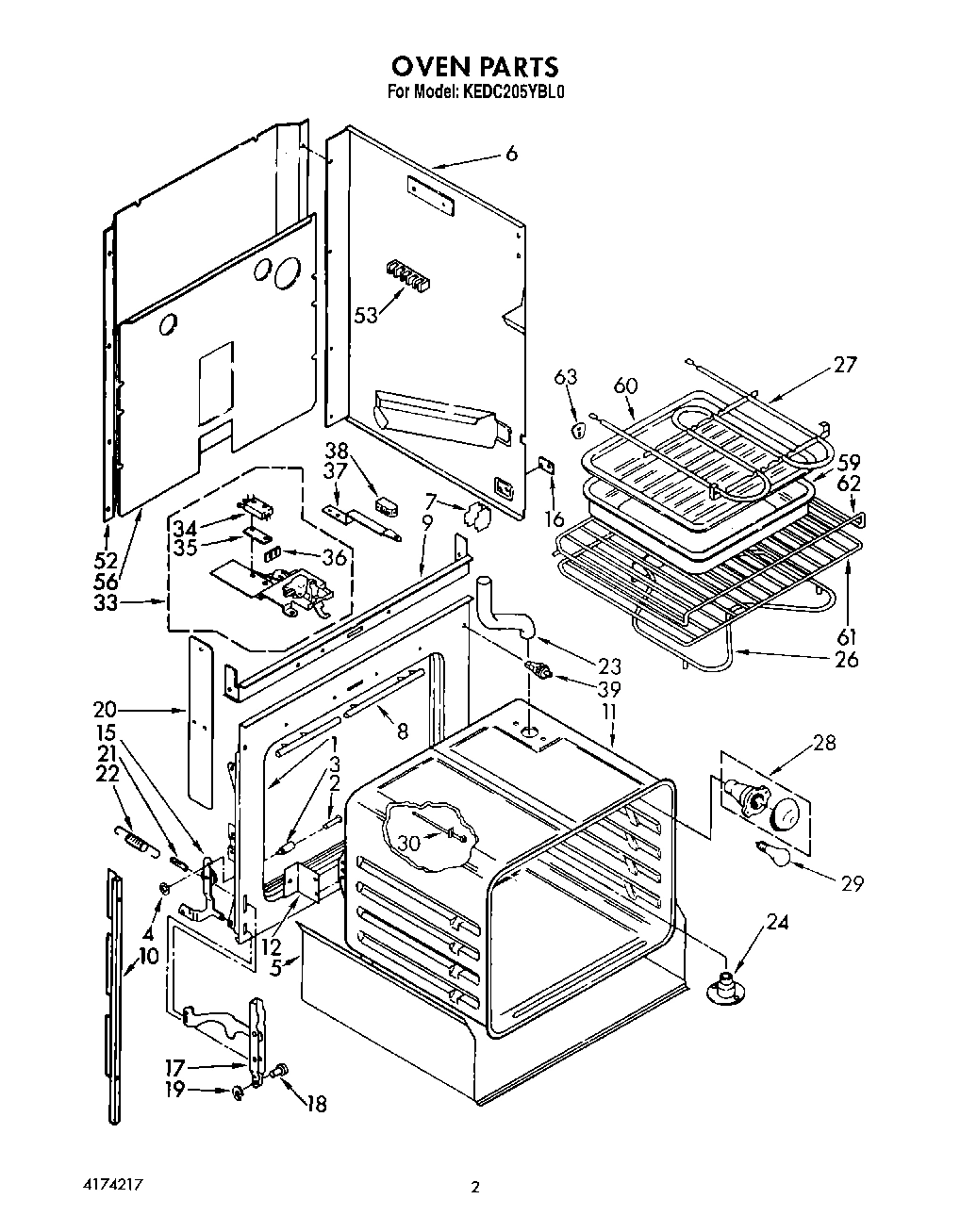

Oven (30`` Pyro) WPL 3182032 Contact Us For Availability

Foil, Door WPL 3148184 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Bracket, Control WPL 3148647 Contact Us For Availability

Support, Inner Drawer WPL 3185147 Contact Us For Availability

Support, Element WPL 3150316 Contact Us For Availability

Bracket, Oven WPL 310713 Contact Us For Availability

Handle, Door (Black) WPL 3183402 Contact Us For Availability

Handle, Door (White) WPL 3183403 Contact Us For Availability

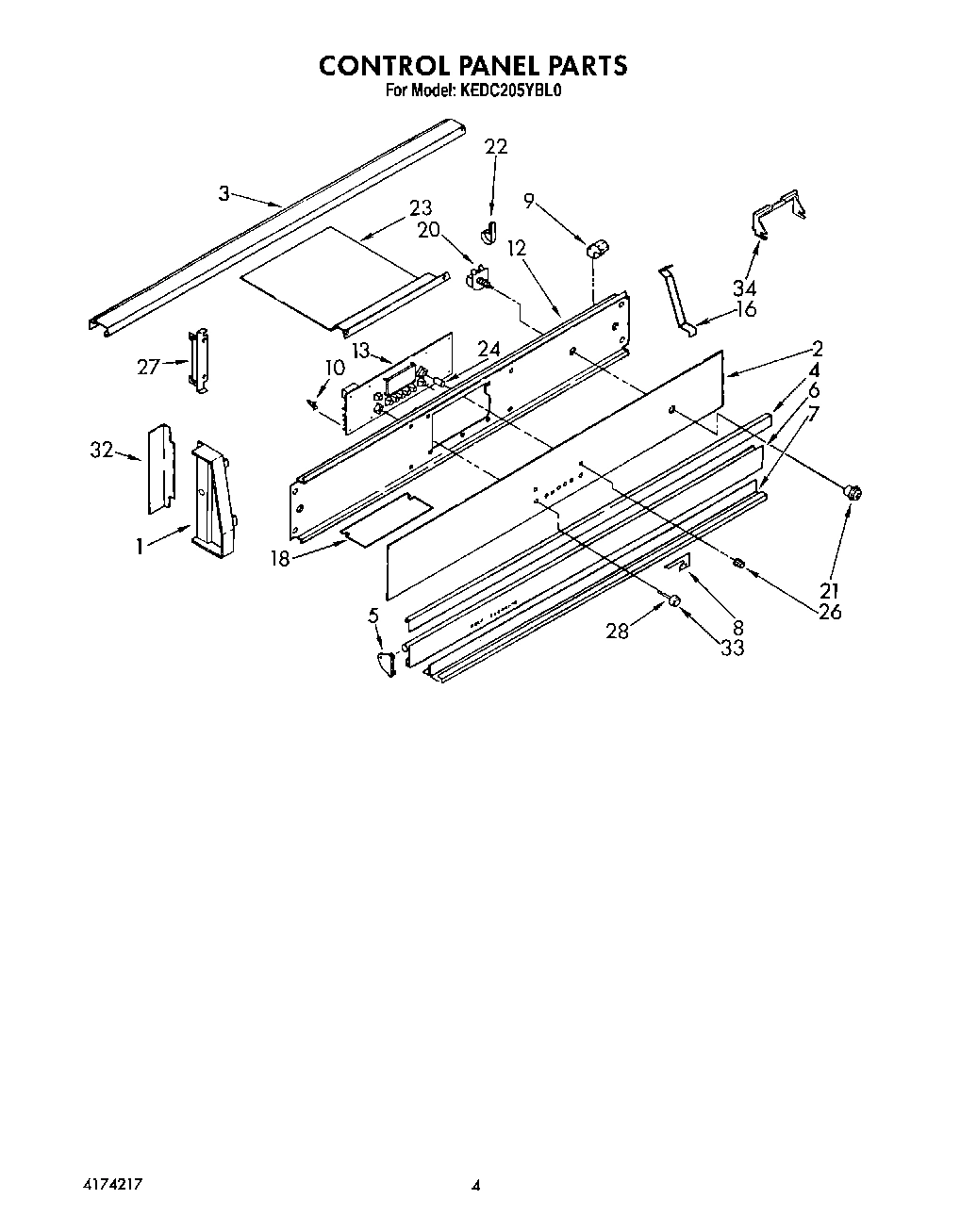

Electronic Range Control WPL 3149459 Contact Us For Availability

Track, Drawer (Left Hand) WPL 3185210 Contact Us For Availability

Track, Drawer (Right Hand) WPL 3185211 Contact Us For Availability

screw (2) WPL 254225 Contact Us For Availability

Shield, Door WPL 3148680 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Seal, Switch (4) WPL 3182435 Contact Us For Availability

Baffle, Drip WPL 3185225 Contact Us For Availability

Top, Door (Black Model) WPL 3148223 Contact Us For Availability

Top, Door (White Model) WPL 3149355 Contact Us For Availability

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Panel, Back WPL 3185154 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

Bracket, Control WPL 3148102 Contact Us For Availability

Switch, Limit (Use W/3183201 Element) WPL 3149123 Contact Us For Availability

Switch, Limit (Use W/3183632 Element) WPL 3149124 Contact Us For Availability

Switch, Limit (Use W/3183584 Element) WPL 3149129 Contact Us For Availability

Switch, Limit (Use W/3183200 Element) WPL 3183972 Contact Us For Availability

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

screw (6) WPL 3148443 Contact Us For Availability

Frame, Glass WPL 3148234 Contact Us For Availability

17

Rail, Side (Right Hand) WPL 3150323 Contact Us For Availability

17

Rail, Side (Left Hand) WPL 3150324 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

18

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

18

Clip, ``U Nut`` WPL 3181646 Contact Us For Availability

18

Rail, Front & Rear WPL 3183380 Contact Us For Availability

Seal, Silicone (Large (2)) WPL 3181644 Contact Us For Availability

Seal, WPL 3181645 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

Frame, Glass Panel WPL 3148235 Contact Us For Availability

Switch, Oven Light WPL 312581 Contact Us For Availability

Washer WPL 312796 Contact Us For Availability

WPL 3150321 WPL 3150321 Contact Us For Availability

Baffle, Insulation WPL 311256 Contact Us For Availability

Screw (2) WPL 3148442 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

Bezel, Switch (Black) WPL 313030 Contact Us For Availability

Bezel, Switch (White) WPL 3149170 Contact Us For Availability

WPL 3150304 WPL 3150304 Contact Us For Availability

Cap, Top Door WPL 3181363 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

23

Shield, Heat WPL 3149419 Contact Us For Availability

23

WPL 258109 WPL 258109 Contact Us For Availability

23

Tube, Vent WPL 3184323 Contact Us For Availability

24

Shaft, Bit Generator WPL 3149321 Contact Us For Availability

24

WPL 3184325 WPL 3184325 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

26

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

26

Knob, Bit Generator (Black) WPL 3149784 Contact Us For Availability

26

Knob, Bit Generator (White) WPL 3149785 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

27

Screw (4) WPL 98520 Contact Us For Availability

27

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

28

Stem, Button (8) WPL 3183242 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

Sensor, Heat WPL 3148440 Contact Us For Availability

30

Screw (2) WPL 3179117 Contact Us For Availability

32

Trim, End Cap (Black WPL 3149900 Contact Us For Availability

32

WPL 3149901 WPL 3149901 Contact Us For Availability

WPL 3183243 WPL 3183243 Contact Us For Availability

WPL 3183244 WPL 3183244 Contact Us For Availability

Screw (2) WPL 311056 Contact Us For Availability

Latch Assembly WPL 3184230 Contact Us For Availability

34

WPL 3183368 WPL 3183368 Contact Us For Availability

34

Safety Switch WPL 3183784 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

35

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw (2) WPL 309258 Contact Us For Availability

36

Shield, Terminal WPL 313035 Contact Us For Availability

37

Screw (4) WPL 308422 Contact Us For Availability

37

Latch, Handle WPL 310825 Contact Us For Availability

38

Knob, Latch WPL 3183293 Contact Us For Availability

38

Screw WPL 3183294 Contact Us For Availability

39

Switch, Door WPL 310345 Contact Us For Availability

39

Screw WPL 4159372 Contact Us For Availability

52

Cover, Rear WPL 311012 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

53

Screw (2) WPL 308043 Contact Us For Availability

56

Panel, Back WPL 3182052 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

61

Rack, Oven WPL 308173 Contact Us For Availability

62

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Scr WPL 3150532 Contact Us For Availability

Insulation, Wrap WPL 310433 Contact Us For Availability

Insulation, Oven WPL 310435 Contact Us For Availability

Insulation, Top WPL 3149328 Contact Us For Availability

WPL 3183005 WPL 3183005 Contact Us For Availability
