  • Whirlpool KECX160SWH0

Model Whirlpool KECX160SWH0 – Common Parts & Diagrams

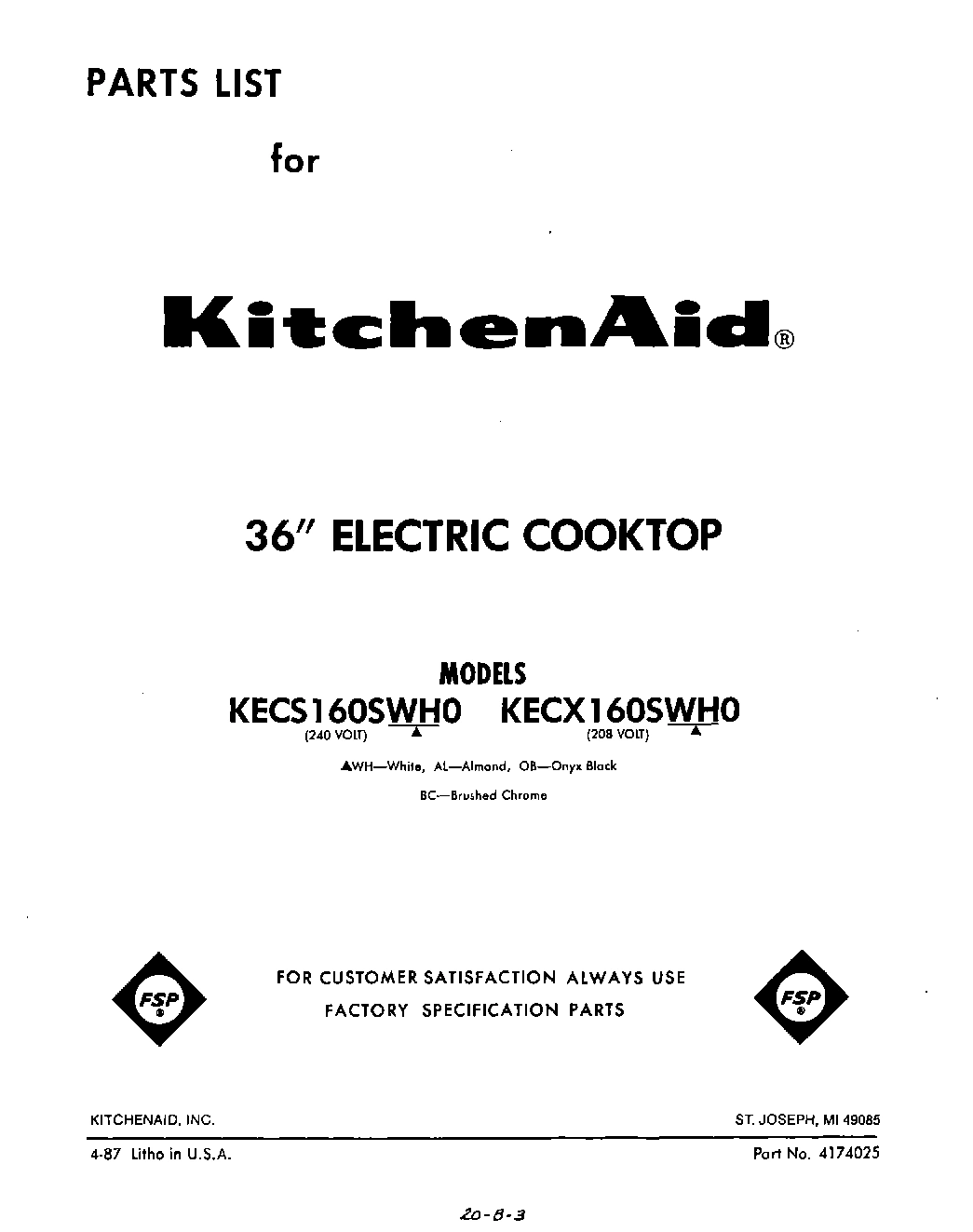

Repair Parts List
Repair Parts List WPL LIT4174025 Contact Us For Availability
View on Model
Installation Instructions
Installation Instructions WPL LIT4174026 Contact Us For Availability
View on Model
Guide, Use & Ca
Guide, Use & Ca WPL LIT4177813 Contact Us For Availability
View on Model

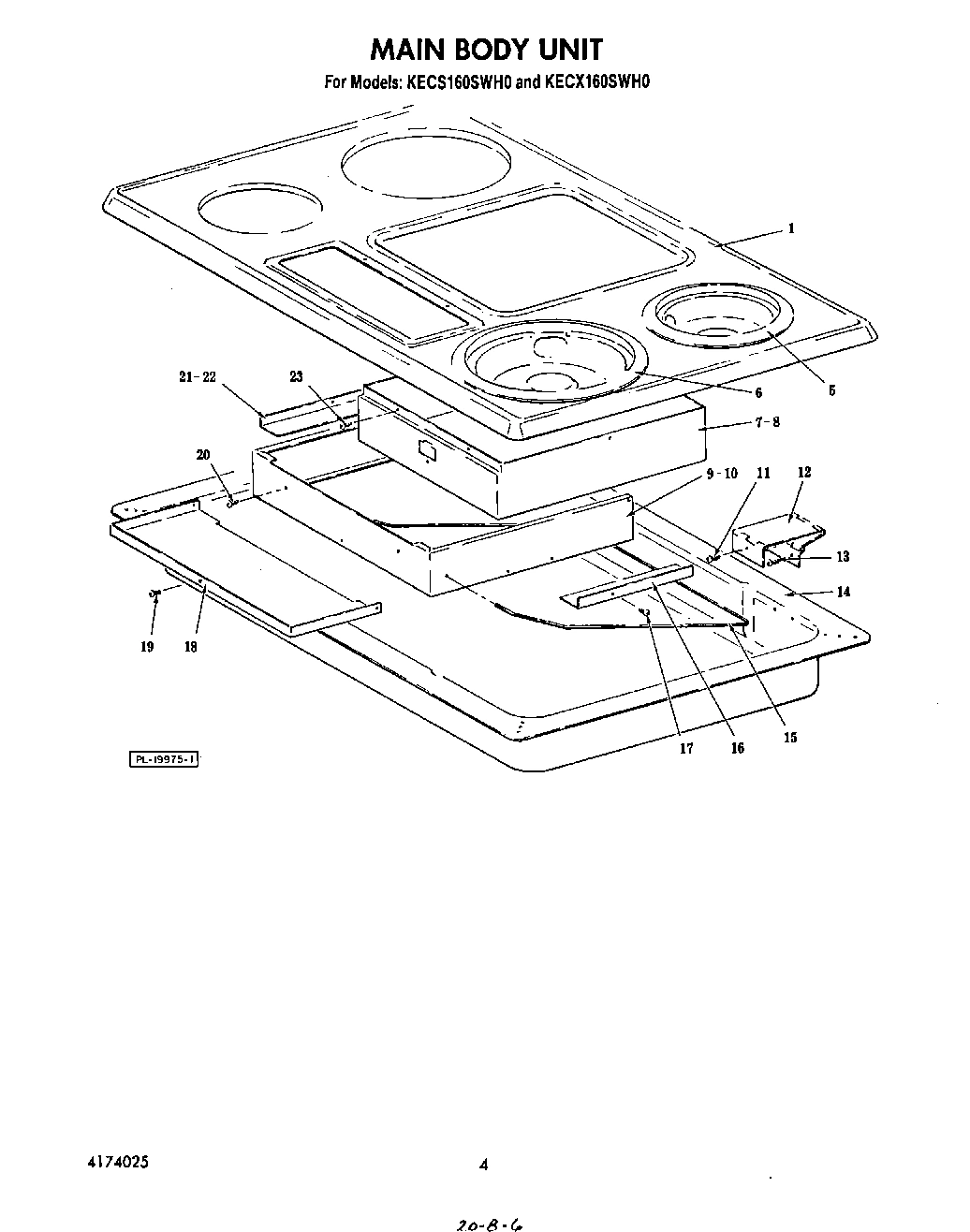

1
Cooktop (Almond)
Cooktop (Almond) WPL 4170028 Contact Us For Availability
View on Model
1
Cooktop (Brushed Chrome)
Cooktop (Brushed Chrome) WPL 4170030 Contact Us For Availability
View on Model
1
Cooktop (White)
Cooktop (White) WPL 4170031 Contact Us For Availability
View on Model
1
Cooktop (Onyx Black)
Cooktop (Onyx Black) WPL 4173024 Contact Us For Availability
View on Model
5
Glass, Control Panel
Glass, Control Panel WPL 3178499 Contact Us For Availability
View on Model
6
Control Knob
Control Knob WPL 4164307 Contact Us For Availability
View on Model
7
Frame, Glass Mounting
Frame, Glass Mounting WPL 4173206 Contact Us For Availability
View on Model
7
Pan, Heat Shield
Pan, Heat Shield WPL 4173123 Contact Us For Availability
View on Model
8
Bracket, Switch Mounting
Bracket, Switch Mounting WPL 4173207 Contact Us For Availability
View on Model
9
Indicator Light Assembly
Indicator Light Assembly WPL 4164333 Contact Us For Availability
View on Model
9
Frame, Outer Substructure
Frame, Outer Substructure WPL 4173214 Contact Us For Availability
View on Model
10
Screw, Self Tapping 8-18 X 3/8 Phil. Truss Hd
Screw, Self Tapping 8-18 X 3/8 Phil. Truss Hd WPL 4159386 Contact Us For Availability
View on Model
11
Switch, Infinite
Switch, Infinite WPL 4164331 Contact Us For Availability
View on Model
11
Screw, Machine 8-32 X 3/8 Phil. Pan Head
Screw, Machine 8-32 X 3/8 Phil. Pan Head WPL 4159320 Contact Us For Availability
View on Model
12
Screw, Self Tapping (10-16 X 7/8) Phil. Pan H
Screw, Self Tapping (10-16 X 7/8) Phil. Pan H WPL 4173208 Contact Us For Availability
View on Model
13
Block, Terminal
Block, Terminal WPL 4164332 Contact Us For Availability
View on Model
13
Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd
Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd WPL 4159442 Contact Us For Availability
View on Model
14
Box, Burner (porcelained)
Box, Burner (porcelained) WPL 4164298 Contact Us For Availability
View on Model
15
Rod, Top Support
Rod, Top Support WPL 4164329 Contact Us For Availability
View on Model
16
Cover, Control (Right)
Cover, Control (Right) WPL 4173215 Contact Us For Availability
View on Model
17
Connector, 1/2 Straight
Connector, 1/2 Straight WPL 4159043 Contact Us For Availability
View on Model
18
Conduit, Extra Flexible
Conduit, Extra Flexible WPL 4173218 Contact Us For Availability
View on Model
18
Cover, Control (Front)
Cover, Control (Front) WPL 4173216 Contact Us For Availability
View on Model
19
Connector, 1/2 Straight (Flex. Cond.)
Connector, 1/2 Straight (Flex. Cond.) WPL 4159044 Contact Us For Availability
View on Model
20
Connector, 1/2 X 90o (Flex Cond.)
Connector, 1/2 X 90o (Flex Cond.) WPL 4173211 Contact Us For Availability
View on Model
21
Bushing, 1/2 Fiber
Bushing, 1/2 Fiber WPL 4159005 Contact Us For Availability
View on Model
21
Cover, Control (Left)
Cover, Control (Left) WPL 4173217 Contact Us For Availability
View on Model
22
Conduit
Conduit WPL 4167898 Contact Us For Availability
View on Model
23
Coupling, 1/2 Pipe
Coupling, 1/2 Pipe WPL 4173219 Contact Us For Availability
View on Model
23
Screw, Self Tapping 8- 18 X 5/16 Phil. Pan Hd
Screw, Self Tapping 8- 18 X 5/16 Phil. Pan Hd WPL 4164319 Contact Us For Availability
View on Model
24
Washer, Reducing
Washer, Reducing WPL 4164405 Contact Us For Availability
View on Model
25
Bushing, Conduit
Bushing, Conduit WPL 4164364 Contact Us For Availability
View on Model
26
Connector, 3/8 X 45o
Connector, 3/8 X 45o WPL 4173212 Contact Us For Availability
View on Model
27
Jam Nut 3/8-24 Hex
Jam Nut 3/8-24 Hex WPL 4159114 Contact Us For Availability
View on Model

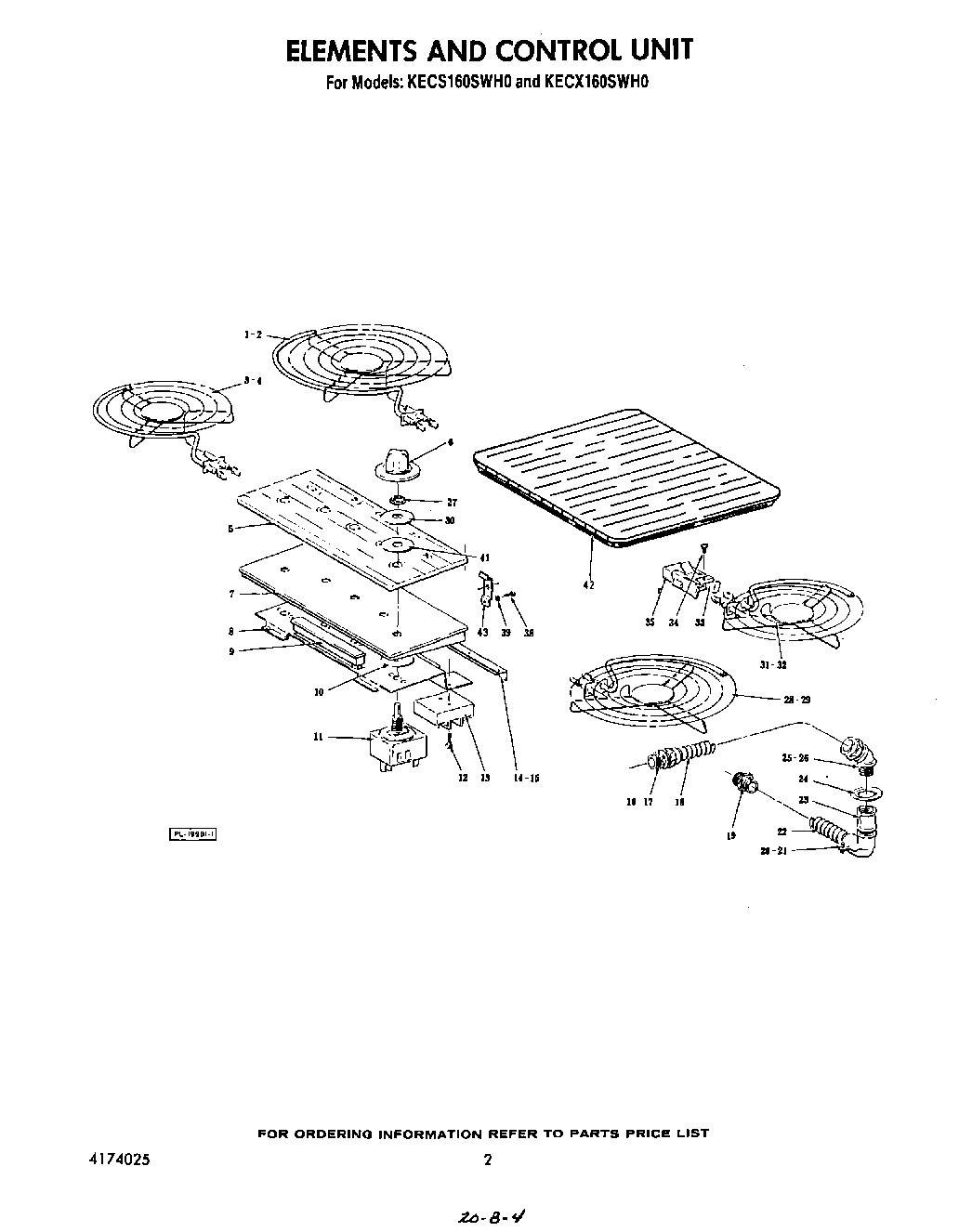

29
Element 8`` (2250W 208V.)
Element 8`` (2250W 208V.) WPL 4173204 Contact Us For Availability
View on Model
30
Washer
Washer WPL 4159607 Contact Us For Availability
View on Model
32
Element 6`` (1080 W 208 V)
Element 6`` (1080 W 208 V) WPL 4173202 Contact Us For Availability
View on Model
33
Clip, Receptacle Mounting
Clip, Receptacle Mounting WPL 4164316 Contact Us For Availability
View on Model
34
Screw, Self Tapping 8-18 X 1/4 Phil. Bind Hd.
Screw, Self Tapping 8-18 X 1/4 Phil. Bind Hd. WPL 4159448 Contact Us For Availability
View on Model
39
Lockwasher, 8 Int. Shake- proof
Lockwasher, 8 Int. Shake- proof WPL 4173213 Contact Us For Availability
View on Model
42
Cutting Board
Cutting Board WPL 4173040 Contact Us For Availability
View on Model
43
Grill Receptacle Cover
Grill Receptacle Cover WPL 4173220 Contact Us For Availability
View on Model
