Model Whirlpool KECT365VBL0 – Common Parts & Diagrams
01 - SECTION
02 - SECTION

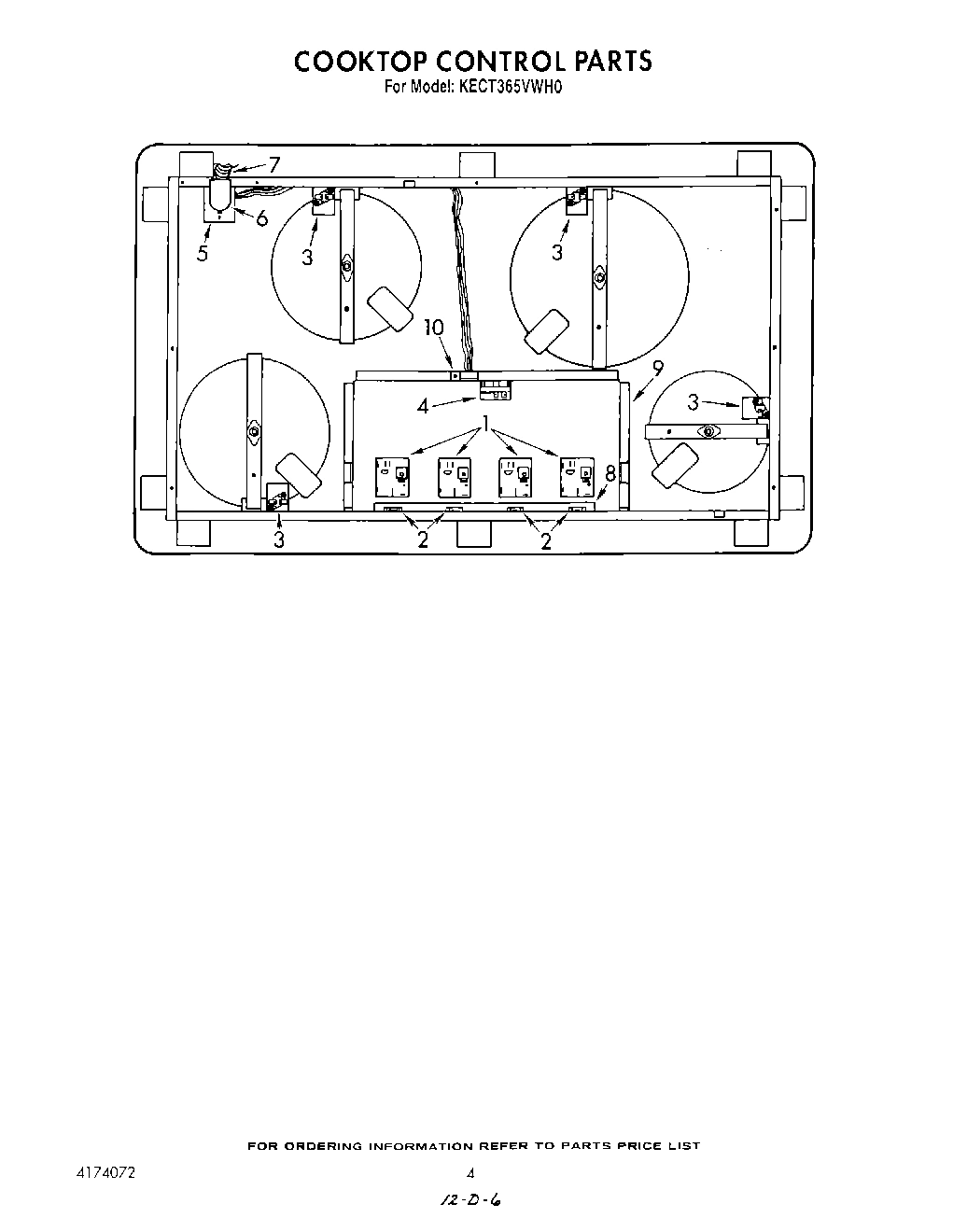

04 - SECTION

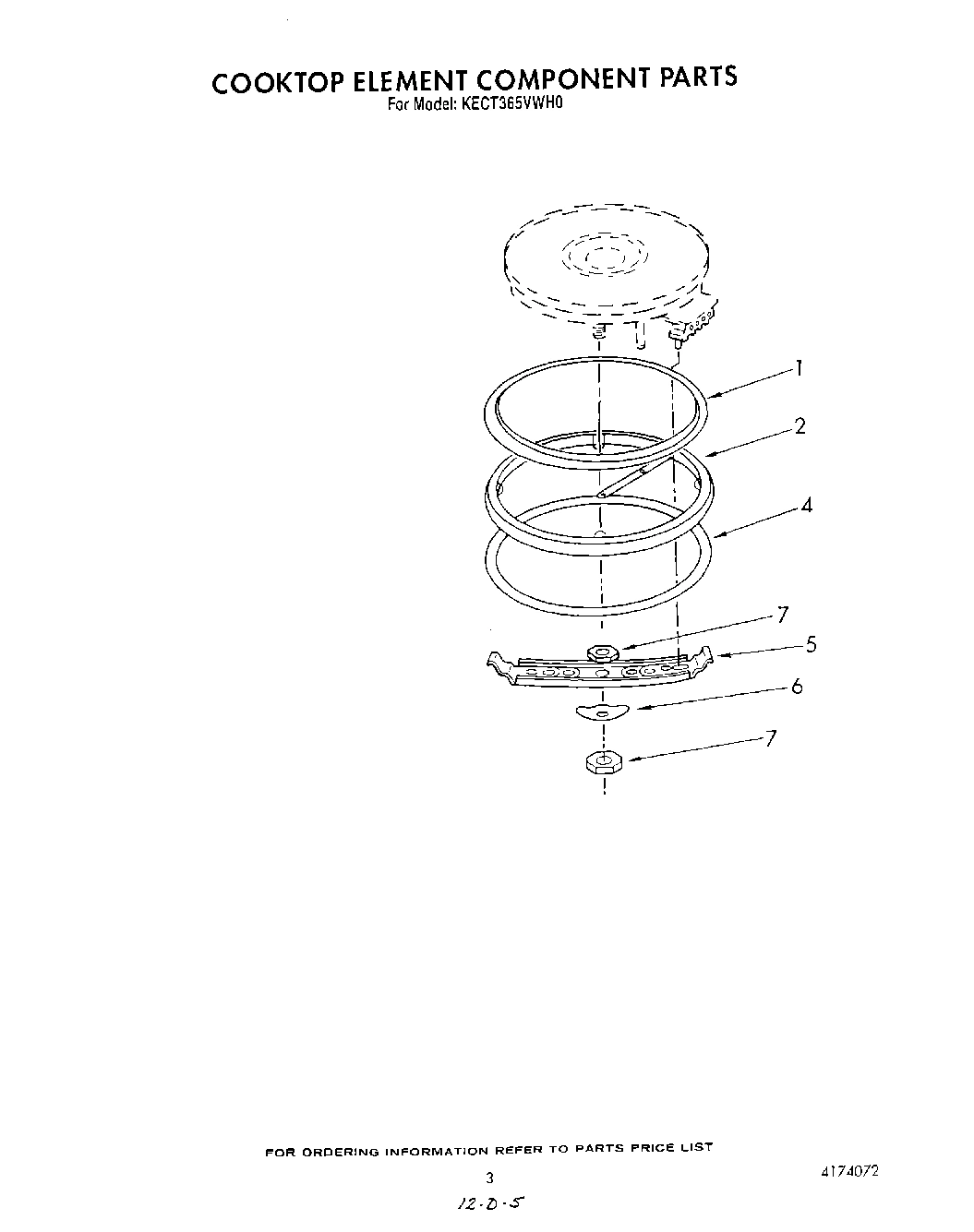

03 - SECTION
Common parts from model Whirlpool KECT365VBL0
Guide, Use & Care WPL LIT3177087 Contact Us For Availability
Installation Instructions WPL LIT3177149 Contact Us For Availability
Repair Parts List WPL LIT4174072 Contact Us For Availability
1
ring, intermediate (1.5 KW-white) WPL 3179148 Contact Us For Availability
1
ring, intermediate (1.5 KW-almond) WPL 3179149 Contact Us For Availability
1
ring, intermediate (1.5 KW-black) WPL 3179150 Contact Us For Availability
1
ring, intermediate (2.0 KW-white) WPL 3179151 Contact Us For Availability
1
ring, intermediate (2.0 KW-almond) WPL 3179152 Contact Us For Availability
1
ring, intermediate (2.0 KW-black) WPL 3179153 Contact Us For Availability
1
Ring, Intermediate (2.6 KW - White) WPL 3179154 Contact Us For Availability
1
Ring, Intermediate (2.6 KW - Almond) WPL 3179155 Contact Us For Availability
1
Ring, Intermediate (2.6 KW - Black) WPL 3179156 Contact Us For Availability
2
Light, Indicator (4) WPL 3179236 Contact Us For Availability
2
Collar, Element (1.5 KW) WPL 3147187 Contact Us For Availability
2
Collar, Element (2.0 KW) WPL 3147188 Contact Us For Availability
2
Collar, Element (2.6 KW) WPL 3179147 Contact Us For Availability
3
Limiter, Thermal (4) WPL 3179158 Contact Us For Availability
4
Block, Terminal WPL 4164332 Contact Us For Availability
4
Gasket, Burner (1.5 KW) WPL 3179361 Contact Us For Availability
4
Gasket, Burner (2.0 KW) WPL 3179362 Contact Us For Availability
4
Gasket, Burner (2.6 KW) WPL 3179363 Contact Us For Availability
5
Knob, Control (4) WPL 3179203 Contact Us For Availability
5
bracket, conduit mounting WPL 3179160 Contact Us For Availability
5
bracket, element (1.5 KW) WPL 3147703 Contact Us For Availability
5
bracket, element (2.0 KW) WPL 3147704 Contact Us For Availability
5
Bracket, Element (2.6 KW) WPL 3179157 Contact Us For Availability
6
Cooktop, Glass (White) WPL 3179144 Contact Us For Availability
6
Cooktop, Glass (Almond) WPL 3179145 Contact Us For Availability
6
Cooktop, Glass (Black) WPL 3179146 Contact Us For Availability
6
Conduit Harness Assy. (Includes No.5 & No.7) WPL 3179958 Contact Us For Availability
6
Spring, Leaf WPL 3147191 Contact Us For Availability
7
seal (4) control switch grommet WPL 3179128 Contact Us For Availability
7
Conduit, Flex WPL 4167898 Contact Us For Availability
7
Hex Nut (8) MM WPL 3147189 Contact Us For Availability
8
Burner Box WPL 3179130 Contact Us For Availability
8
Cover, Burner Box WPL 3179162 Contact Us For Availability
8
Seal, Glass Foam Tape WPL 3179164 Contact Us For Availability
8
Hardware, Mounting WPL 3179804 Contact Us For Availability
8
Sealant, Adhesive WPL 3179828 Contact Us For Availability
8
Bracket, Indicator Light Mounting WPL 3179139 Contact Us For Availability
9
Enclosure, Wiring WPL 3179135 Contact Us For Availability
10
speed nut (3) WPL 3179168 Contact Us For Availability
10
Limiter-Rt Front Burner WPL 3179336 Contact Us For Availability
10
Terminal Blk-Lt Front & Rt Front Infinite Swi WPL 3179337 Contact Us For Availability
10
Terminal Blk-Rt Front Inf Switch WPL 3179338 Contact Us For Availability
10
Limiter-Rt Front Inf Switch WPL 3179340 Contact Us For Availability
10
Limiter-Lt Front Burner WPL 3179341 Contact Us For Availability
10
Limiter-Rt Rear Burner WPL 3179342 Contact Us For Availability
10
Limiter-Lt Front Inf Switch WPL 3179343 Contact Us For Availability
10
Limiter-Lt Rear Burner WPL 3179344 Contact Us For Availability
10
Limiter-Lt Rear & Rt Rear Inf Switch WPL 3179346 Contact Us For Availability
10
Indicator Light-Inf Switch (4) WPL 3179348 Contact Us For Availability
10
Terminal Block-Lt Front Inf Switch WPL 3179351 Contact Us For Availability
10
Terminal Block-Rt Rear & Lt Rear Inf Switch ( WPL 3179352 Contact Us For Availability
10
Rt Front Inf Switch-Rt Front Burner WPL 3179353 Contact Us For Availability
10
Lt Front Inf Switch-Lt Front Burner WPL 3179354 Contact Us For Availability
10
Terminal Block-Rt Front Inf Switch WPL 3179355 Contact Us For Availability
10
Rt Rear Inf Switch-Rt Rear Burner & Lt Rear I WPL 3179357 Contact Us For Availability
10
pilot light assy WPL 3179367 Contact Us For Availability
× ![]()
