Model Whirlpool KECT305SWH0 – Common Parts & Diagrams
02 - SECTION
03 - SECTION
04 - SECTION
01 - SECTION

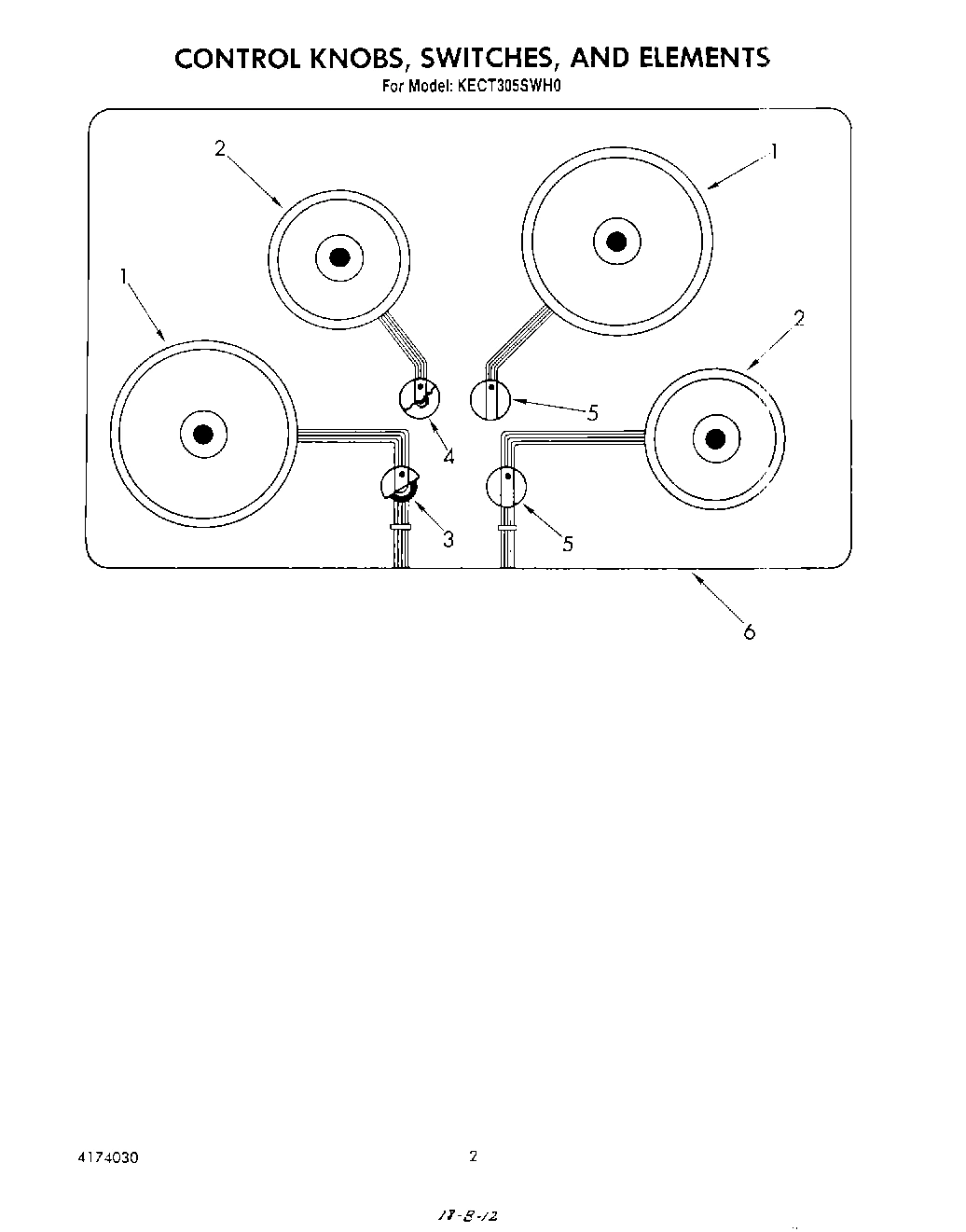

Common parts from model Whirlpool KECT305SWH0
Repair Parts List WPL LIT4174030 Contact Us For Availability
Guide, Use & Care WPL LIT4174031 Contact Us For Availability
Installation Instructions WPL LIT4174032 Contact Us For Availability
1
Element, Complete (Includes Ring And Collar) WPL 4173245 Contact Us For Availability
1
Element, Complete (Includes Ring And Collar) WPL 4173246 Contact Us For Availability
1
Element, Complete (Includes Ring And Collar) WPL 4173247 Contact Us For Availability
1
Element (2.0 KW EGO) WPL 4164413 Contact Us For Availability
1
Element (1.5 KW EGO) WPL 4164414 Contact Us For Availability
2
Element, Complete (Include Ring And Collar 1. WPL 4173248 Contact Us For Availability
2
Element, Complete (Include Ring And Collar 1. WPL 4173249 Contact Us For Availability
2
Element, Complete (Include Ring And Collar 1. WPL 4173250 Contact Us For Availability
2
Ring, Intermediate (2.0 KW (Black)) WPL 4170019 Contact Us For Availability
2
Ring, Intermediate (1.5 KW (Black)) WPL 4170020 Contact Us For Availability
2
Ring, Intermediate (2.0 KW (Almond)) WPL 4173253 Contact Us For Availability
2
Ring, Intermediate (1.5 KW (Almond)) WPL 4173254 Contact Us For Availability
2
Ring, Intermediate (2.0 KW (White)) WPL 4173255 Contact Us For Availability
2
Ring, Intermediate (1.5 KW (White)) WPL 4173256 Contact Us For Availability
2
Light, Neon WPL 4164411 Contact Us For Availability
3
Seal, Switch Control WPL 4164427 Contact Us For Availability
3
Collar, Element (2.0 KW) WPL 4164420 Contact Us For Availability
3
Collar, Element (1.5 KW) WPL 4164421 Contact Us For Availability
3
Thermal Cutout, 1.5 KW & 2.0 KW Element WPL 4164409 Contact Us For Availability
4
Nut, Infinite Switch (4) WPL 4159114 Contact Us For Availability
4
Seal, Element WPL 4164415 Contact Us For Availability
4
Block, Terminal WPL 4164332 Contact Us For Availability
5
Knob, Control (4) WPL 4173233 Contact Us For Availability
5
Bracket, Element (2.0 KW) WPL 4164423 Contact Us For Availability
5
Bracket, Element (1.5 KW) WPL 4164424 Contact Us For Availability
5
Bracket, Conduit Mounting WPL 4173251 Contact Us For Availability
6
Seal, Glass Cooktop Silicon WPL 4164429 Contact Us For Availability
6
Cooktop, Glass (Includes Silicone Seal) (Blac WPL 4173226 Contact Us For Availability
6
Cooktop, Glass (Includes Silicone Seal) (Almo WPL 4173227 Contact Us For Availability
6
Cooktop, Glass (Includes Silicone Seal) (Whit WPL 4173228 Contact Us For Availability
6
Wiring Harness WPL 4173265 Contact Us For Availability
6
Spring, Element Leaf WPL 4164425 Contact Us For Availability
6
Elbow, 90o Fitting WPL 4173211 Contact Us For Availability
7
Nut, MM, Hex, Halfnut WPL 4164426 Contact Us For Availability
7
Base Cover Screws WPL 4159460 Contact Us For Availability
7
Conduit, Flex WPL 4167898 Contact Us For Availability
7
Base Cover WPL 4173252 Contact Us For Availability
8
Lockwasher WPL 4173264 Contact Us For Availability
9
Nut, MM6, Hex WPL 4173263 Contact Us For Availability
× ![]()
