Model Whirlpool KECM860TBC1 – Common Parts & Diagrams

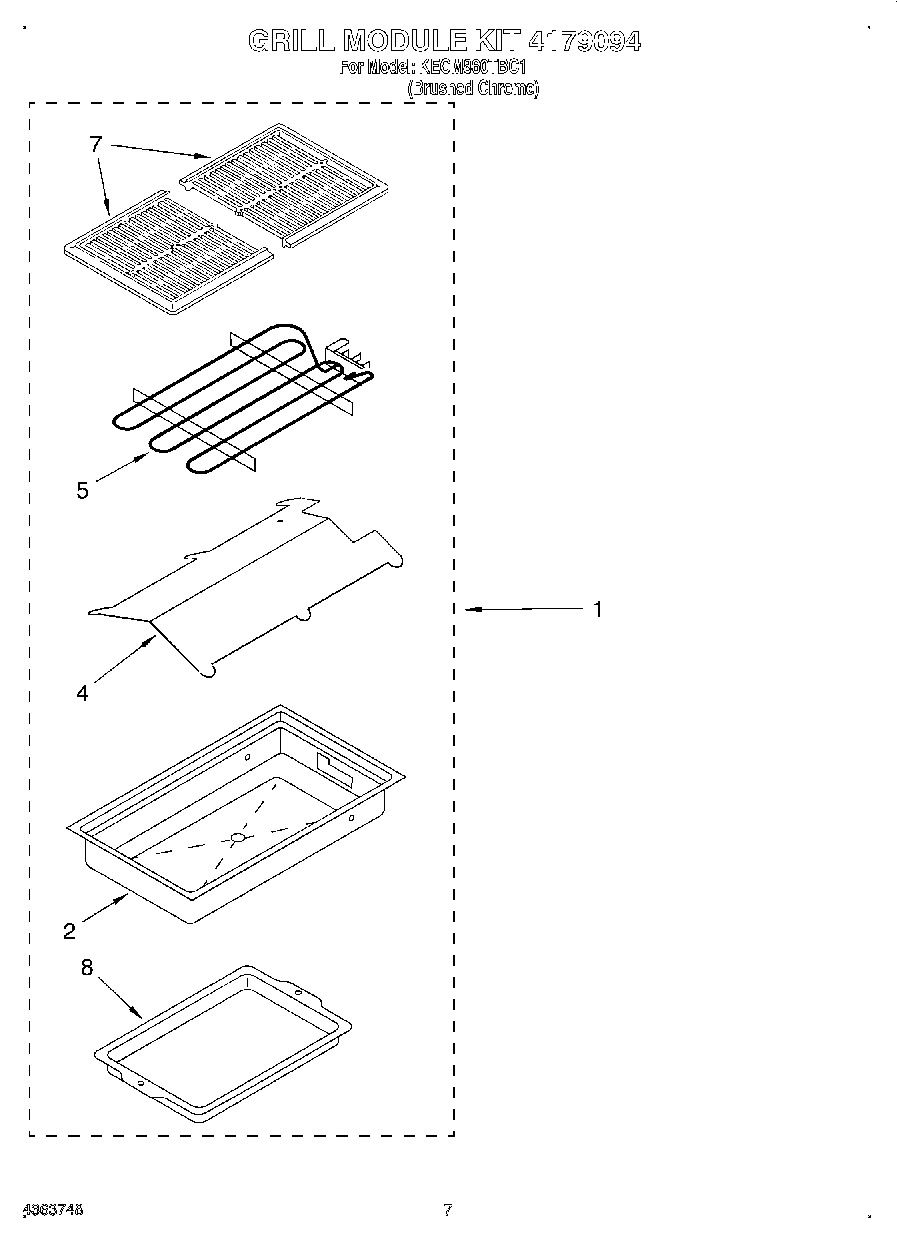

05 - GRILL MODULE KIT 4179094, LIT/OPTIONAL

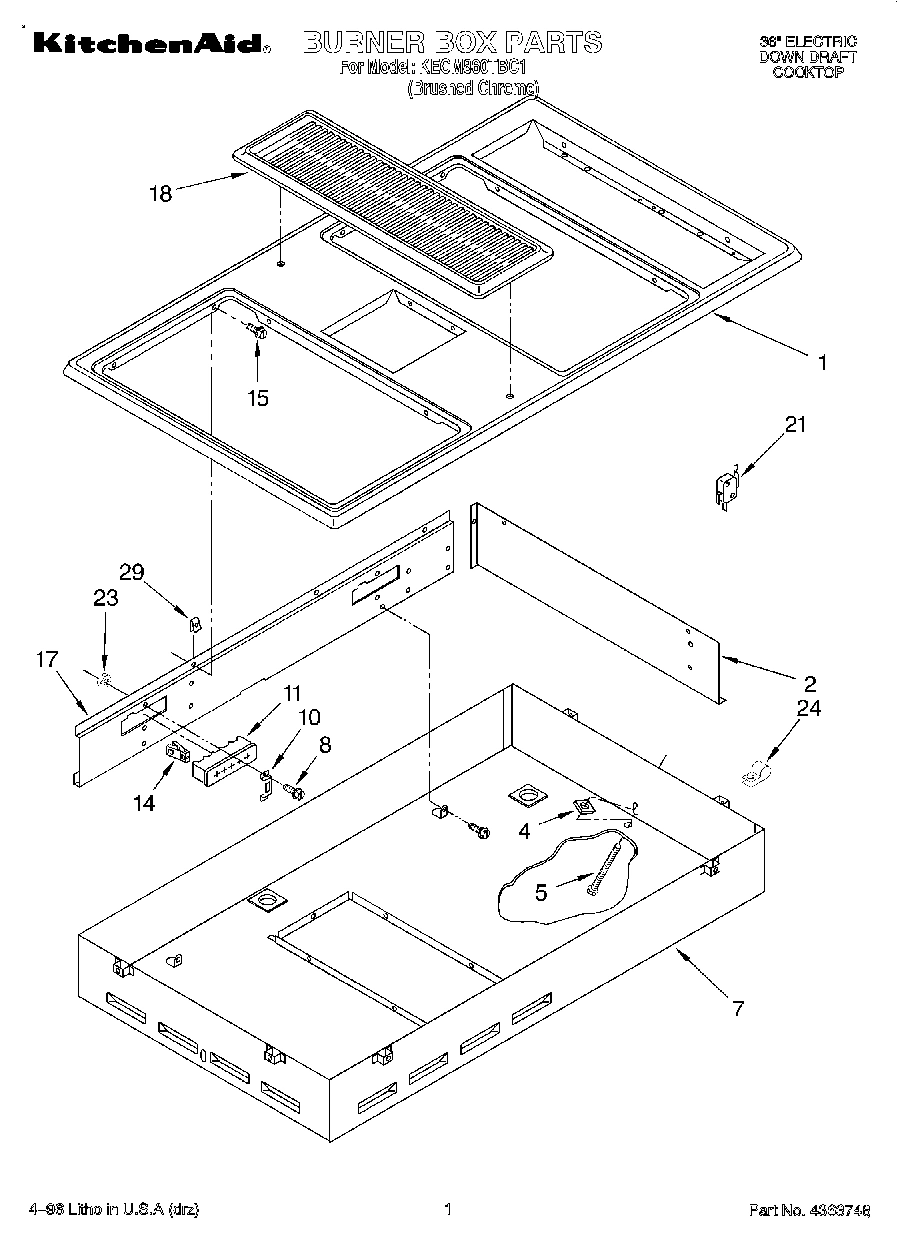

01 - BURNER BOX
03 - OPTIONAL WALL CAP ACCESSORIES
02 - VENTILATION
04 - CONTROL PANEL
Common parts from model Whirlpool KECM860TBC1
Installation Instructions WPL LIT4314900 Contact Us For Availability
Vent Installation Instructions WPL LIT786203 Contact Us For Availability
1
Top, Main WPL 4315220 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Knob (4) WPL 4315289 Contact Us For Availability
2
Pan, Grille WPL 4320992 Contact Us For Availability
2
Sheild, Switch WPL 786137 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
Trim, Control Panel WPL 4315287 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
4
Grid, Insert WPL 4179156 Contact Us For Availability
4
Nut WPL 786222 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Glass, Control Panel WPL 4315454 Contact Us For Availability
5
Element, Grille (240V) WPL 786170 Contact Us For Availability
5
Screw, Hold Down WPL 786211 Contact Us For Availability
5
Scroll, Fan WPL 4321055 Contact Us For Availability
5
Bracket, Switch Mounting WPL 4315284 Contact Us For Availability
7
Grille (2) WPL 4315283 Contact Us For Availability
7
Box, Burner WPL 786193 Contact Us For Availability
7
Nut, Locking WPL 786239 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
8
Grille Kit WPL 4314994 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
8
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
8
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
8
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
8
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
8
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
8
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
8
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
8
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
8
11 Oz. Cooktop Cleaner WPL 261961 Contact Us For Availability
8
Griddle Kit (RCK 980) WPL 786100 Contact Us For Availability
8
Rotisserie Kit (RCK 982) WPL 786102 Contact Us For Availability
8
Smooth Top (RCK 988) WPL 786107 Contact Us For Availability
8
Pan, Grease WPL 786265 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
10
Bracket, Plug Block Mounting WPL 786194 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Gasket, Switch (4) WPL 786189 Contact Us For Availability
11
Plug Block WPL 786196 Contact Us For Availability
11
Grommet, Motor Mounting WPL 786234 Contact Us For Availability
14
Contact, Element (10) WPL 786214 Contact Us For Availability
14
Light, Indicator WPL 786195 Contact Us For Availability
15
Switch, Fan WPL 4315285 Contact Us For Availability
16
Barrier, Switch (2) WPL 4315286 Contact Us For Availability
17
Baffle, Plug Block WPL 786197 Contact Us For Availability
18
Cover, Vent WPL 4315290 Contact Us For Availability
18
Motor, 60 Hz. WPL 4315281 Contact Us For Availability
20
Cover, Motor WPL 4314924 Contact Us For Availability
21
Switch, Interlock (2) WPL 4179158 Contact Us For Availability
21
Screw, 8-32 x 3/16 Phillips Pan Head WPL 786231 Contact Us For Availability
23
Nut (2) WPL 786260 Contact Us For Availability
24
Clip, Wire WPL 786216 Contact Us For Availability
24
Orifice WPL 4179324 Contact Us For Availability
25
Connector, Conduit WPL 4363102 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
29
``U``Clip WPL 786264 Contact Us For Availability
29
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
31
Nut, 10-24 (3) WPL 786439 Contact Us For Availability
32
Washer (3) WPL 4314923 Contact Us For Availability
33
Bolt, 10-24 X 3/4 WPL 4321170 Contact Us For Availability
× ![]()
