Model Whirlpool KECG260SOB1 – Common Parts & Diagrams
01 - SECTION
03 - SECTION
02 - SECTION
04 - SECTION
Common parts from model Whirlpool KECG260SOB1

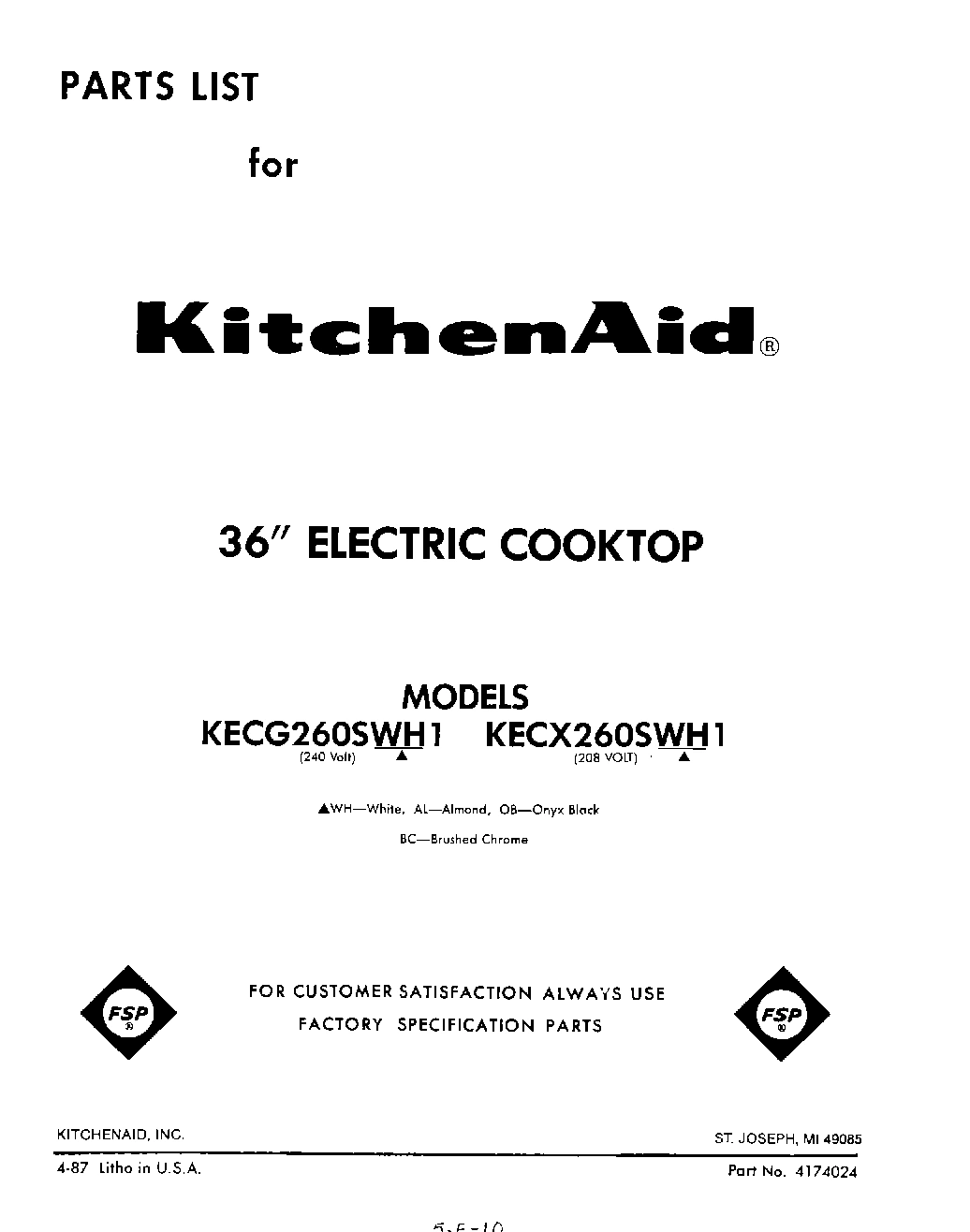

WPL LIT4174024 WPL LIT4174024 Contact Us For Availability
WPL LIT4174026 WPL LIT4174026 Contact Us For Availability
WPL LIT4177642 WPL LIT4177642 Contact Us For Availability
WPL LIT4177678 WPL LIT4177678 Contact Us For Availability
1

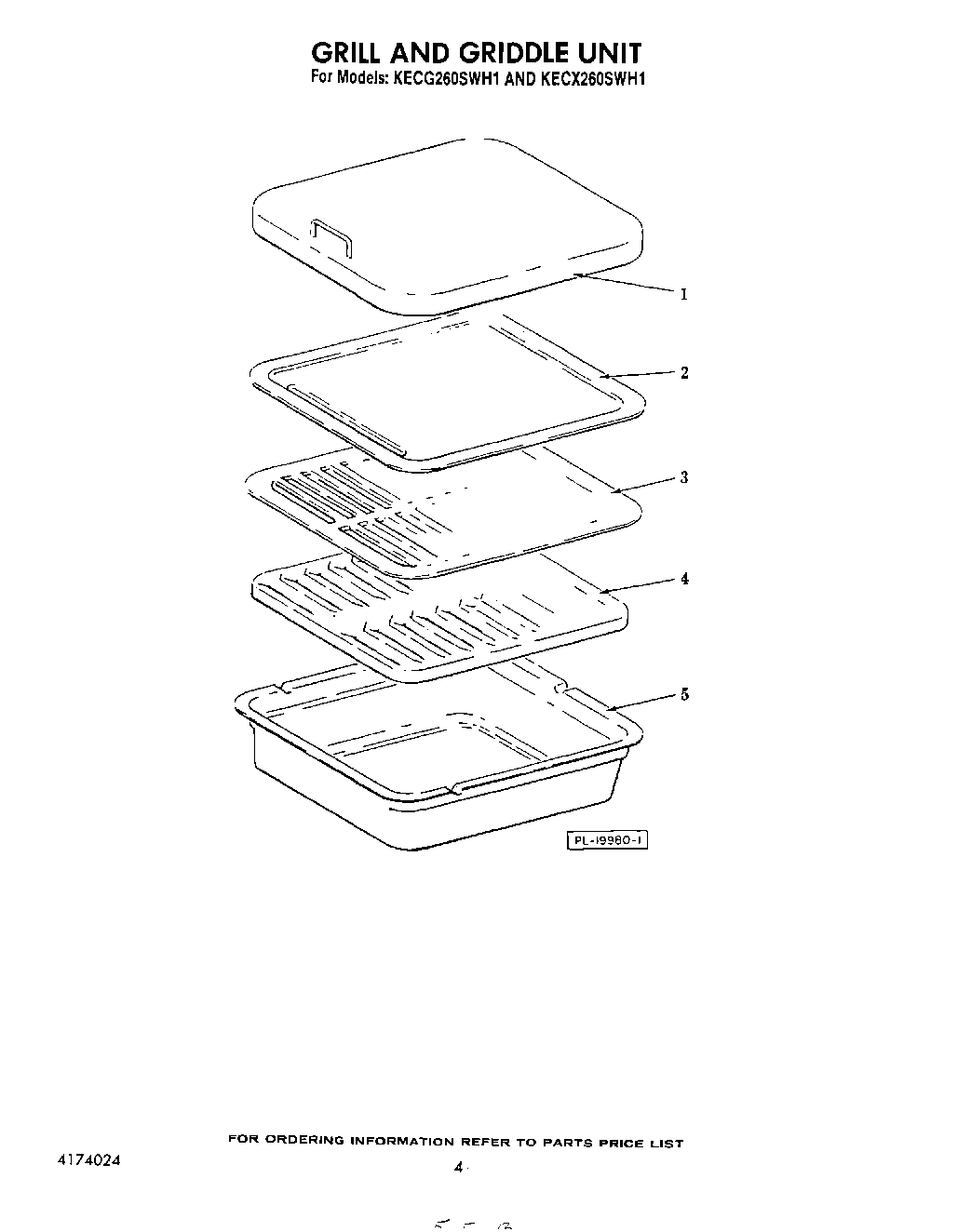

Grill Cover Assembly WPL 4164377 Contact Us For Availability
1
Cooktop (Brushed Chrome) WPL 4170030 Contact Us For Availability
2
Griddle, Grill WPL 4164342 Contact Us For Availability
2
Element 8`` (1820 W 208 V) WPL 4173201 Contact Us For Availability
2
Cooktop (White) WPL 4170031 Contact Us For Availability
3
Grate, Grill WPL 4164334 Contact Us For Availability
3
Cooktop (Almond) WPL 4170028 Contact Us For Availability
4
Pan, Carmelizing WPL 4164306 Contact Us For Availability
4
Cooktop (Onyx Black) WPL 4173024 Contact Us For Availability
5
Pan, Grill WPL 4164305 Contact Us For Availability
5
Glass, Control Panel WPL 4173002 Contact Us For Availability
6
Knob, Control WPL 4164307 Contact Us For Availability
7
Frame, Glass Mounting WPL 4173206 Contact Us For Availability
7
Pan, Heat Shield WPL 4173123 Contact Us For Availability
8
Bracket, Switch Mounting WPL 4173207 Contact Us For Availability
9
Indicator Light Assembly WPL 4164333 Contact Us For Availability
9
Frame, Outer Substructure WPL 4173214 Contact Us For Availability
10
Screw, Self Tapping 8-18 X 3/8 Phil. Truss Hd WPL 4159386 Contact Us For Availability
11
Switch, Infinite WPL 4164331 Contact Us For Availability
12
Screw, Self Tapping (10-16 X 7/8) Phil. Pan H WPL 4173208 Contact Us For Availability
12
Hinge, Muli-Leaf WPL 4164319 Contact Us For Availability
13
Block, Terminal WPL 4164332 Contact Us For Availability
14
Bracket, Support WPL 4173209 Contact Us For Availability
14
Box, Burner (porcelained) WPL 4164298 Contact Us For Availability
15
Rod, Top Support WPL 4164329 Contact Us For Availability
16
Cover, Control (Right) WPL 4173215 Contact Us For Availability
17
Connector, 1/2 Straight WPL 4159043 Contact Us For Availability
18
Conduit, Extra Flexible WPL 4173210 Contact Us For Availability
18
Cover, Control (Front) WPL 4173216 Contact Us For Availability
19
Connector, 1/2 Straight (Flex. Cond.) WPL 4159044 Contact Us For Availability
20
Connector, 1/2 X 90 (Flex Cond) WPL 4173211 Contact Us For Availability
21
Bushing, 1/2 Fiber WPL 4159005 Contact Us For Availability
21
Cover, Control (Left) WPL 4173217 Contact Us For Availability
22
Conduit WPL 4167898 Contact Us For Availability
23
Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd WPL 4159442 Contact Us For Availability
24
Washer, Reducing WPL 4164405 Contact Us For Availability
25
Bushing, Conduit WPL 4164364 Contact Us For Availability
26
Connector, 3/8 X 45o WPL 4173212 Contact Us For Availability
27
Jam Nut 3/8-24 Hex WPL 4159114 Contact Us For Availability
29
Element 8`` (2250W 208V.) WPL 4173204 Contact Us For Availability
30
Washer WPL 4159607 Contact Us For Availability
32
Element 6`` (1080 W 208 V) WPL 4173202 Contact Us For Availability
33
Clip, Receptacle WPL 4164316 Contact Us For Availability
34
Screw, Self Tapping 8-18 X 1/4 Phil. Bind Hd. WPL 4159448 Contact Us For Availability
36
Element, Grill (1800 W 240 V.) WPL 4164326 Contact Us For Availability
37
Element, Grill (1800W. 208V.) WPL 4164327 Contact Us For Availability
39
Lockwasher, 8 Int. Shake- proof WPL 4173213 Contact Us For Availability
40
Receptacle, Grill Element WPL 4173125 Contact Us For Availability
42
Clip, Mou WPL 4173205 Contact Us For Availability
× ![]()
