Model Whirlpool KECG260SBC5 – Common Parts & Diagrams
03 - SECTION
01 - SECTION

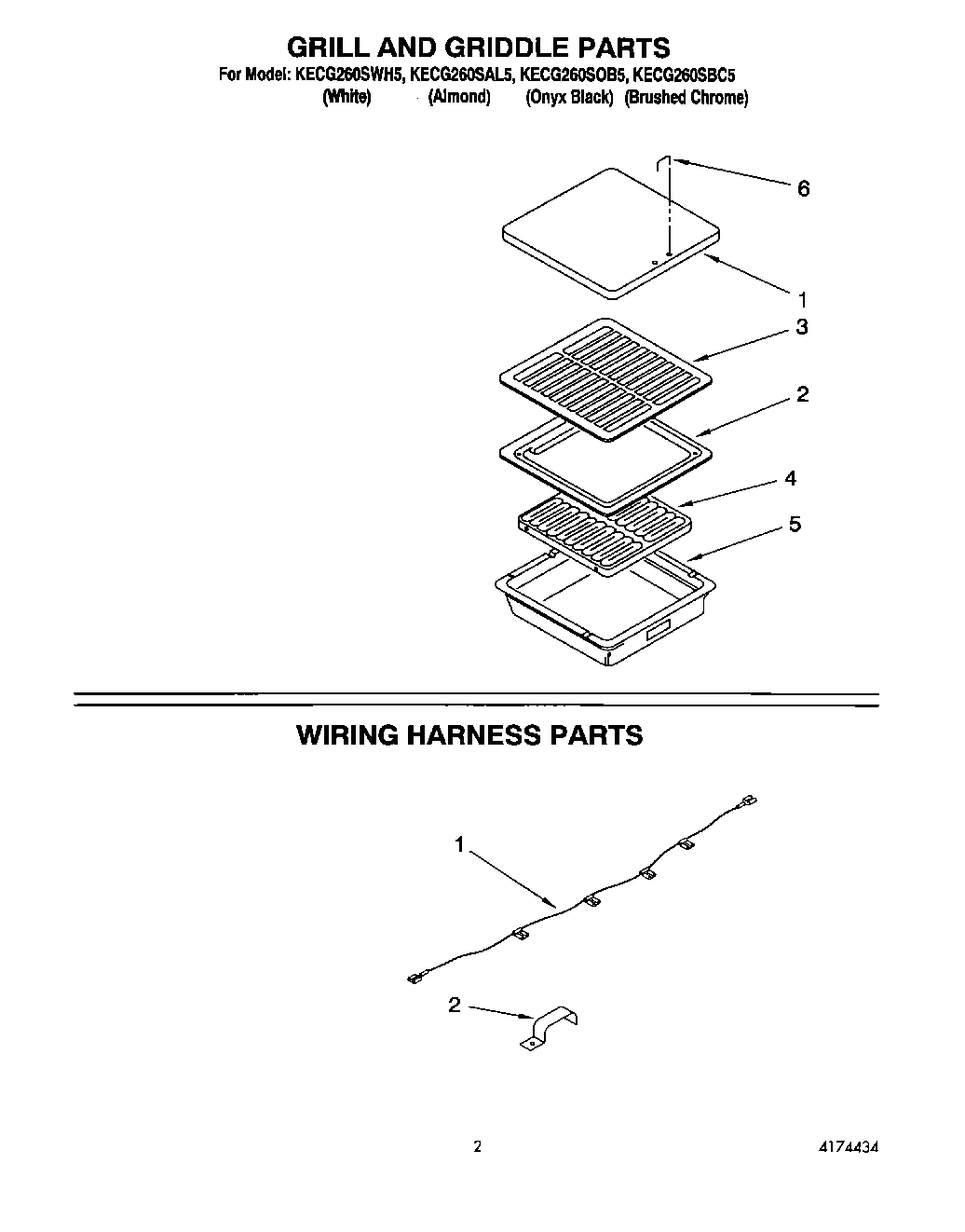

02 - SECTION
Common parts from model Whirlpool KECG260SBC5
Hardware, Mounting WPL 4164344 Contact Us For Availability
Installation Instructions WPL LIT3178230 Contact Us For Availability
Use & Care Guide WPL LIT3186764 Contact Us For Availability
1
Cooktop (White) WPL 3185434 Contact Us For Availability
1
Cooktop (Almond) WPL 3185435 Contact Us For Availability
1
Cooktop (Onyx Black) WPL 3185436 Contact Us For Availability
1
Harness, WPL 3185347 Contact Us For Availability
1
Cover, Grill WPL 4164318 Contact Us For Availability
2
Griddle, Grill WPL 4164342 Contact Us For Availability
3
Grate, Grill WPL 4164334 Contact Us For Availability
4
Pan, Carmelizing WPL 3178708 Contact Us For Availability
5
Glass, Control Panel WPL 4173002 Contact Us For Availability
5
Pan, Grill WPL 3178709 Contact Us For Availability
6
Knob, Control WPL 4164307 Contact Us For Availability
6
Screw (2) WPL 4159201 Contact Us For Availability
6
Handle, Grill Cover WPL 4164376 Contact Us For Availability
7
Pan, Heat Shield WPL 4173123 Contact Us For Availability
7
Frame, Glass Mounting WPL 4173206 Contact Us For Availability
8
Bracket, Switch Mounting WPL 3185349 Contact Us For Availability
9
Frame, Outer Substructure WPL 3185350 Contact Us For Availability
9
Indicator Light Assembly WPL 4164333 Contact Us For Availability
11
Switch, Infinite (6`` (2)) WPL 3185342 Contact Us For Availability
11
Switch, Infinite (Grill) WPL 3185343 Contact Us For Availability
11
Switch, Infinite (8`` (2)) WPL 3185344 Contact Us For Availability
12
Screw (4) WPL 4159442 Contact Us For Availability
12
Hing, Muli-Leaf WPL 4164319 Contact Us For Availability
13
Block, Terminal WPL 4164332 Contact Us For Availability
13
Screw (2) WPL 4173208 Contact Us For Availability
14
Box, Burner WPL 3186730 Contact Us For Availability
14
Screw (3) WPL 4169465 Contact Us For Availability
14
Bracket, Support WPL 4173218 Contact Us For Availability
15
Rod, Top Support WPL 4164329 Contact Us For Availability
16
Cover, Control (Right) WPL 4173215 Contact Us For Availability
16
Cover, Control (Left) WPL 4173217 Contact Us For Availability
18
Screw (3) WPL 254225 Contact Us For Availability
18
Screw WPL 4170323 Contact Us For Availability
18
Cover, Control (Front) WPL 4173216 Contact Us For Availability
27
Nut, Hex (10) WPL 4159114 Contact Us For Availability
30
Washer (5) WPL 4159607 Contact Us For Availability
33
Screw (4) WPL 4159448 Contact Us For Availability
33
Clip, Receptacle WPL 4164316 Contact Us For Availability
36
Screw (4) WPL 4159386 Contact Us For Availability
36
Element, Grill WPL 3177525 Contact Us For Availability
36
Lockwasher WPL 4173213 Contact Us For Availability
40
Receptacle, Grill Element WPL 3178640 Contact Us For Availability
42
Clip, Mounting Ground Pin WPL 4173205 Contact Us For Availability
× ![]()
