Model Whirlpool KECD865HBT05 36`` ELECTRIC BUILT-IN DOWNDRDAFT COOKTOP – Common Parts & Diagrams

Strain Relief
Strain Relief WPL 3190962 Contact Us For Availability
View on Model
Bracket, Support
Bracket, Support WPL 3192408 Contact Us For Availability
View on Model
Jumper, Wire
Jumper, Wire WPL 4456028 Contact Us For Availability
View on Model
Harness, Wire (Ceran Downdraft)
Harness, Wire (Ceran Downdraft) WPL 4456588 Contact Us For Availability
View on Model
Conduit, Downdraft
Conduit, Downdraft WPL 4456618 Contact Us For Availability
View on Model
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE
FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRE WPL ARI84622A5 Contact Us For Availability
View on Model
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI84623A8 Contact Us For Availability
View on Model
WIRING HARNESS PARTS
WIRING HARNESS PARTS WPL ARI84624A8 Contact Us For Availability
View on Model
1
Bracket, Shield
Bracket, Shield WPL 4455355 Contact Us For Availability
View on Model
1

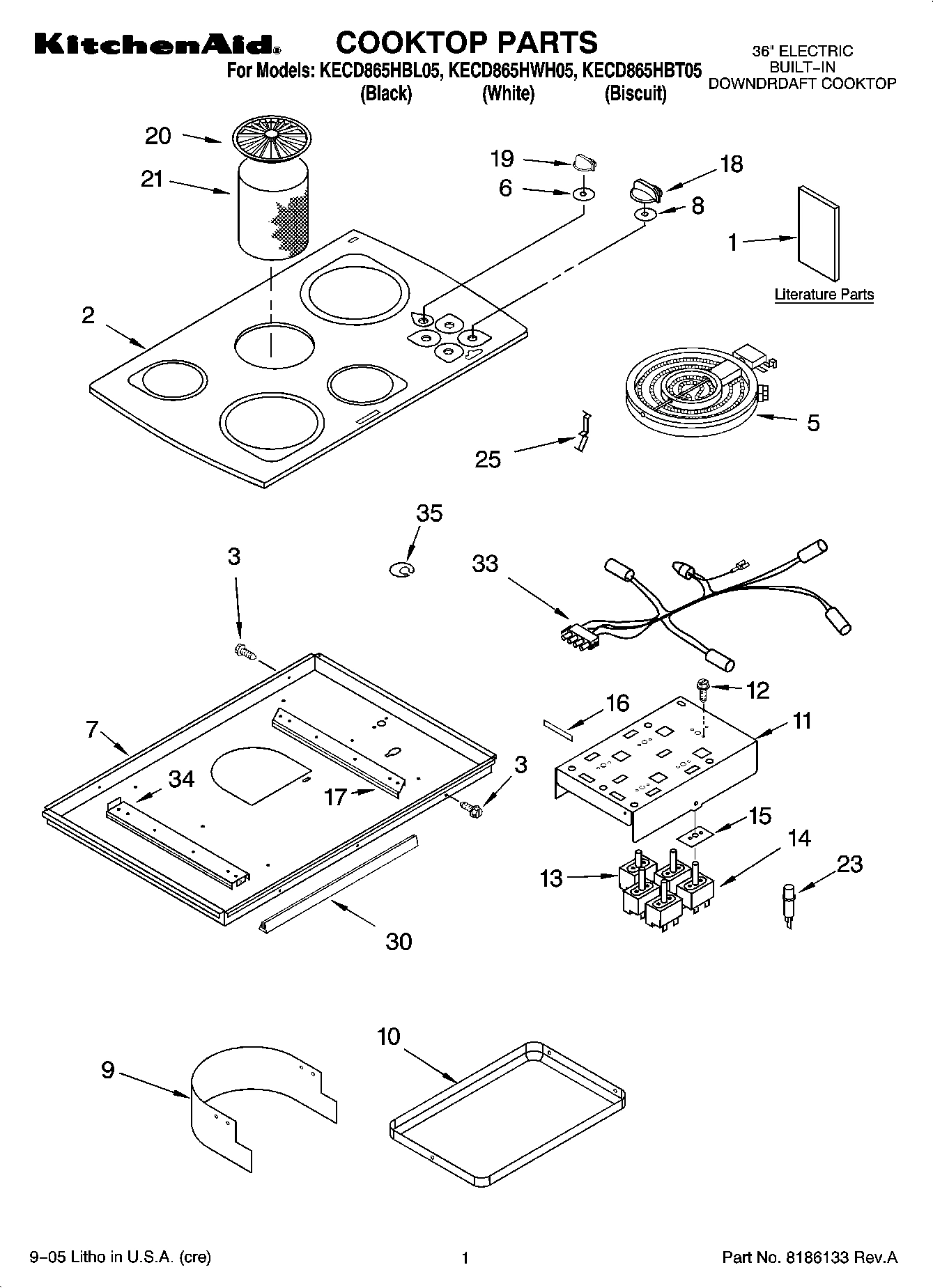

COOKTOP PARTS
COOKTOP PARTS WPL ARI84620A3 Contact Us For Availability
View on Model
1
Safer Cooking Tips
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT3192515 Contact Us For Availability
View on Model
1
Literature Parts (Wiring Diagram)
Literature Parts (Wiring Diagram) WPL LIT4456014 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT8285364 Contact Us For Availability
View on Model
2
Cooktop, Glass & Bracket Assembly (Black)
Cooktop, Glass & Bracket Assembly (Black) WPL 4455589 Contact Us For Availability
View on Model
2
Bracket, Blower Mounting
Bracket, Blower Mounting WPL 3192403 Contact Us For Availability
View on Model
2
Cooktop, Glass & Bracket Assembly (Honeycomb)
Cooktop, Glass & Bracket Assembly (Honeycomb) WPL 4455587 Contact Us For Availability
View on Model
2
Cooktop, Glass & Bracket Assembly (White)
Cooktop, Glass & Bracket Assembly (White) WPL 4455588 Contact Us For Availability
View on Model
4
Ring, Inlet
Ring, Inlet WPL 3190735 Contact Us For Availability
View on Model
5
Screen, Inlet
Screen, Inlet WPL 3190947 Contact Us For Availability
View on Model
6
Adapter, Vent
Adapter, Vent WPL 3190736 Contact Us For Availability
View on Model
7

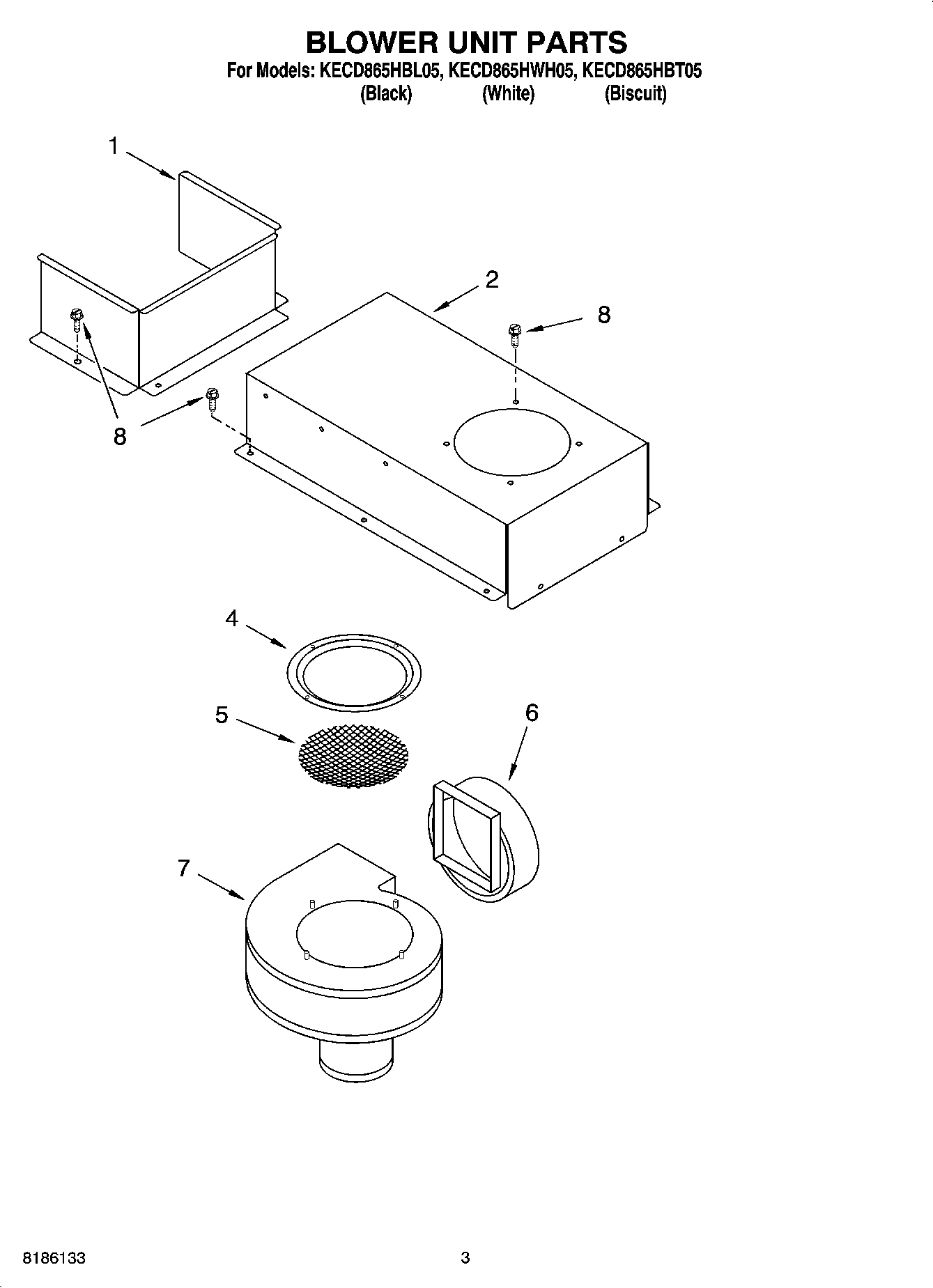

Blower Motor Asm. (Includes Fan Asm)
Blower Motor Asm. (Includes Fan Asm) WPL 3190737 Contact Us For Availability
View on Model
7
Box, Burner
Box, Burner WPL 4456523 Contact Us For Availability
View on Model
9
Shield, Vent
Shield, Vent WPL 4455802 Contact Us For Availability
View on Model
10
Drip Bowl, Grease
Drip Bowl, Grease WPL 3190656 Contact Us For Availability
View on Model
11
Bracket, Control Mounting
Bracket, Control Mounting WPL 4455354 Contact Us For Availability
View on Model
13
Switch, Speed Control
Switch, Speed Control WPL 3190639 Contact Us For Availability
View on Model
17
Rail, Element (Right Hand)
Rail, Element (Right Hand) WPL 3192520 Contact Us For Availability
View on Model
19
Knob, Blower Switch (White)
Knob, Blower Switch (White) WPL 3190724 Contact Us For Availability
View on Model
19
Knob, Blower Switch (Black)
Knob, Blower Switch (Black) WPL 3190723 Contact Us For Availability
View on Model
19
Knob, Blower Switch (Biscuit)
Knob, Blower Switch (Biscuit) WPL 3192502 Contact Us For Availability
View on Model
20
Grille, Air
Grille, Air WPL 3192418 Contact Us For Availability
View on Model
21
Filter, Grease
Filter, Grease WPL 3192530 Contact Us For Availability
View on Model
25
Spring, Locator
Spring, Locator WPL 3191791 Contact Us For Availability
View on Model
30
Gasket, Vent Shield
Gasket, Vent Shield WPL 3193032 Contact Us For Availability
View on Model
33
Light, Hot Surface Indicator
Light, Hot Surface Indicator WPL 3191343 Contact Us For Availability
View on Model
34
Rail, Element (Left Hand)
Rail, Element (Left Hand) WPL 3192521 Contact Us For Availability
View on Model
35
Plate, Cover
Plate, Cover WPL 3193094 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous
FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous WPL ARI84621A6 Contact Us For Availability
View on Model
