Model Whirlpool KECD807XSS01 30`` ELECTRIC BUILT-IN DOWNDRAFT COOKTOP – Common Parts & Diagrams

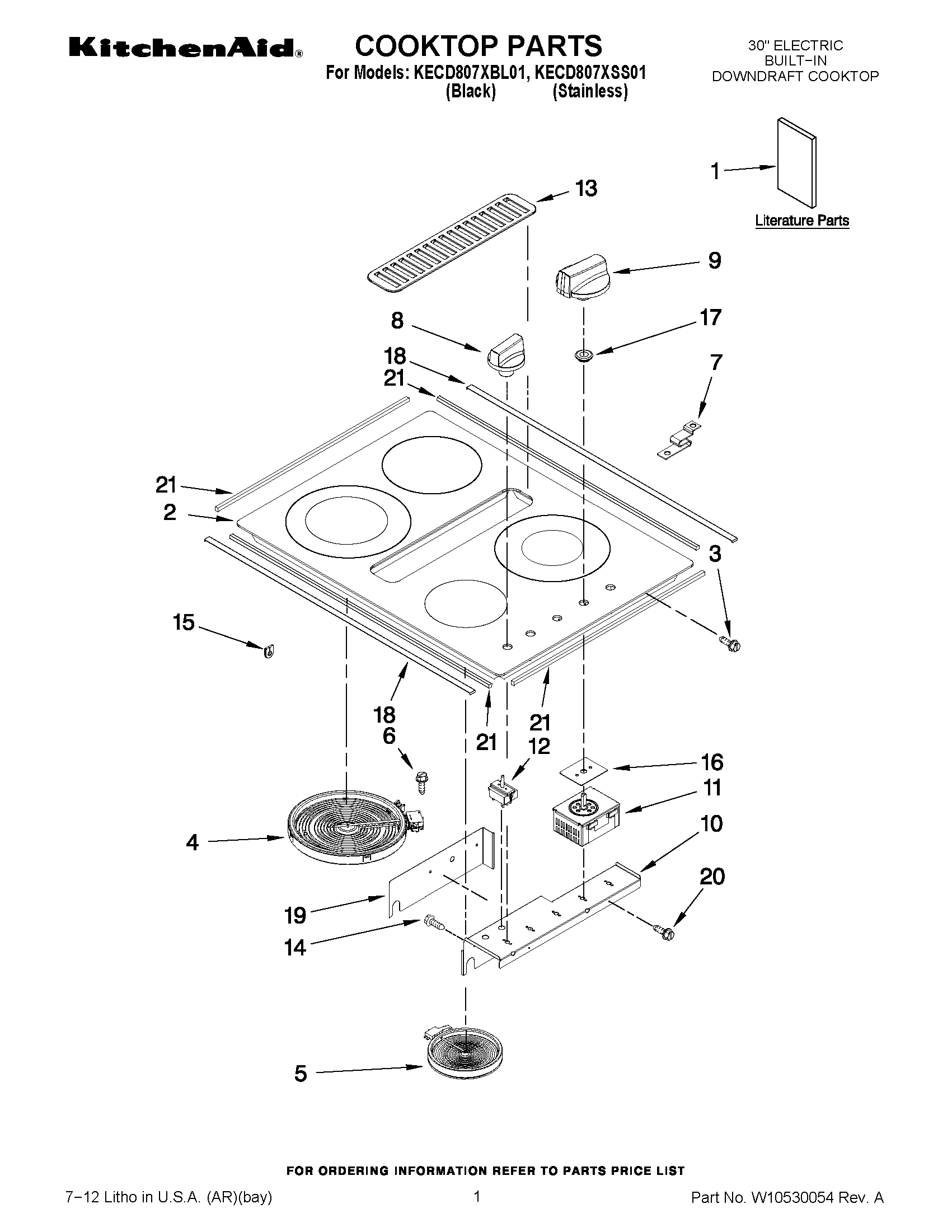

01 - COOKTOP PARTS

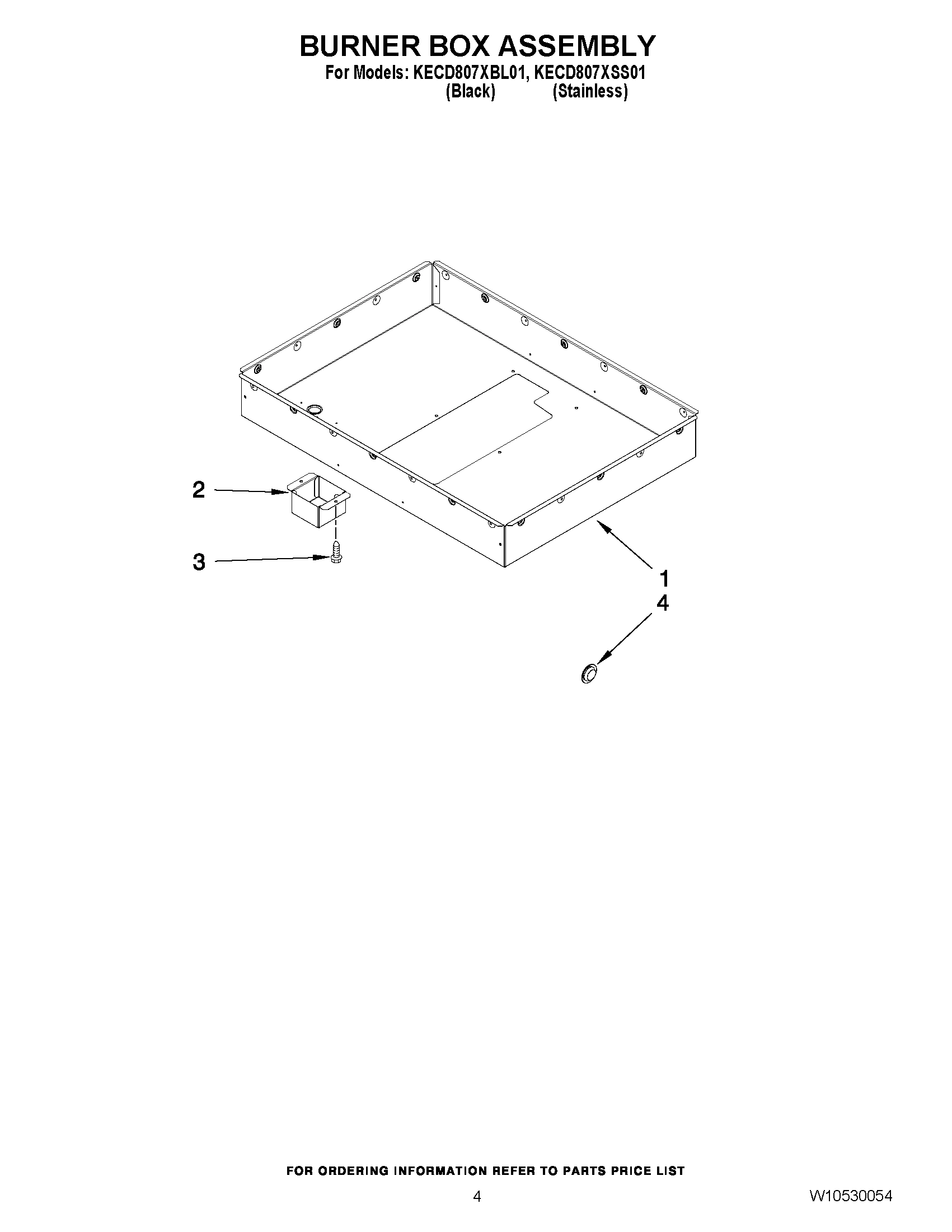

03 - BURNER BOX ASSEMBLY

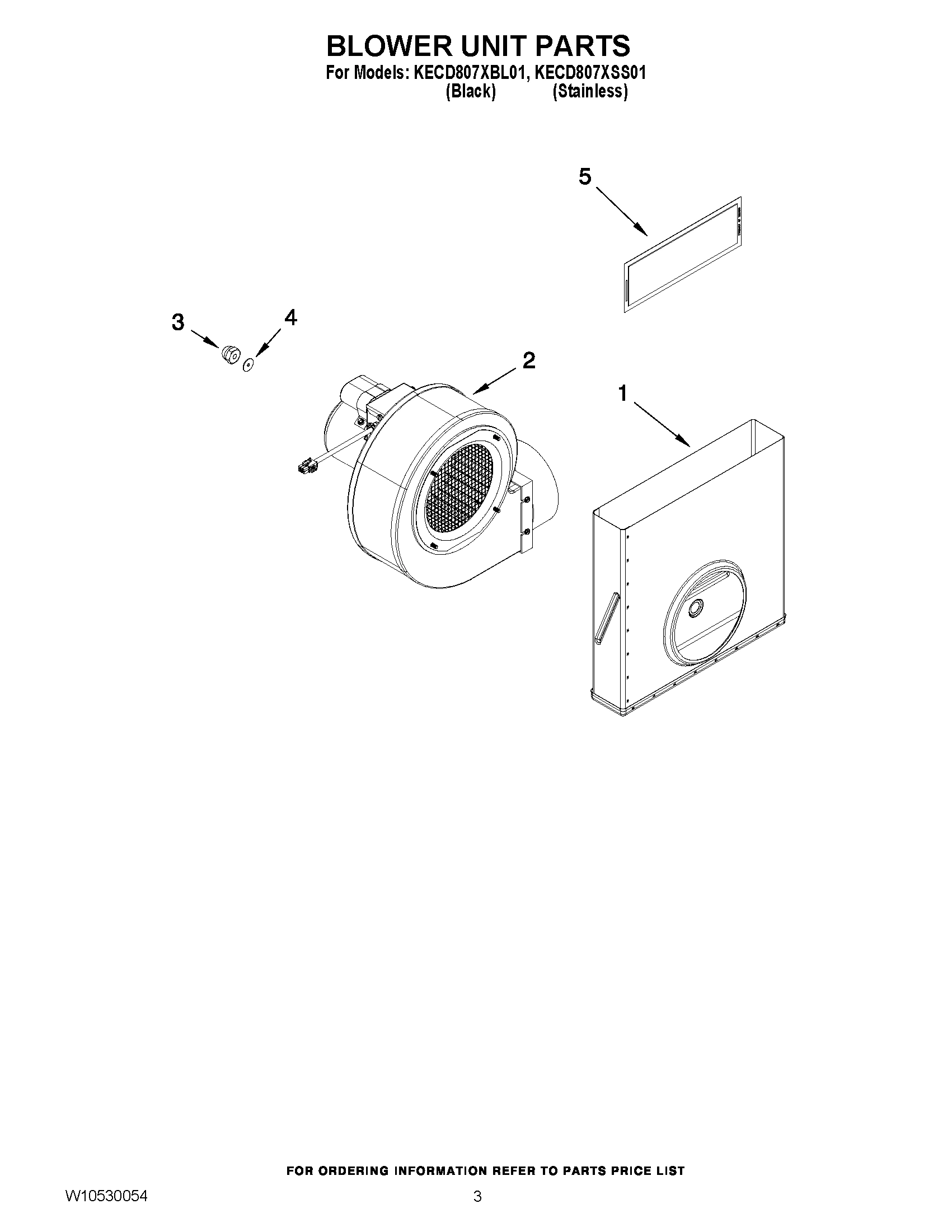

02 - BLOWER UNIT PARTS
04 - OPTIONAL PARTS
Common parts from model Whirlpool KECD807XSS01 30`` ELECTRIC BUILT-IN DOWNDRAFT COOKTOP
1
ASSEMBLY,PLENUM (NOT SERVICED) WPL NP Contact Us For Availability
2
TOP, MAIN (BLACK/STAINLESS) WPL W10296247 Contact Us For Availability
2
COVER, BLOWER MOTOR HARNESS WPL W10258697 Contact Us For Availability
3
SCREW WPL 7101P42660 Contact Us For Availability
3
LOCK-NUT, 10-32 WPL 7103P16260 Contact Us For Availability
4
PLUG, HOLE WPL 7718P02360 Contact Us For Availability
4
WASHER WPL 7109P08660 Contact Us For Availability
5
FILTER, GREASE WPL W10299854 Contact Us For Availability
8
SWITCH, FAN WPL W10298840 Contact Us For Availability
14
SCREW WPL 7101P42760 Contact Us For Availability
15
WIRE, GROMMET WPL 8008P06860 Contact Us For Availability
16
GASKET, SWITCH WPL 7201P07760 Contact Us For Availability
18
TRIM STAINLESS ONLY (REAR TRIM) WPL W10168883 Contact Us For Availability
18
TRIM STAINLESS ONLY (FRONT TRIM) WPL W10294282 Contact Us For Availability
19
BRACKET, SWITCH PLATE SHIELD WPL W10223167 Contact Us For Availability
20
SCREW, 8-32 X7/32 WPL 7101P30960 Contact Us For Availability
21
TAPE, FOAM WPL 8270P18860 Contact Us For Availability
NI
SCRAPER WPL WA906B Contact Us For Availability
NI
CLEANER WPL 31682 Contact Us For Availability
NI
FILTER(DUCTLESS) WPL W10177003 Contact Us For Availability
NI
HARNESS, BLOWER WPL W10192073 Contact Us For Availability
NI
HARNESS, MAIN WPL W10277483 Contact Us For Availability
NI
CLEANER(STAINLESS) WPL 31462 Contact Us For Availability
NI
POLISH WPL 31463 Contact Us For Availability
× ![]()
