Model Whirlpool KECC560BWH1 – Common Parts & Diagrams
02 - SECTION
01 - SECTION

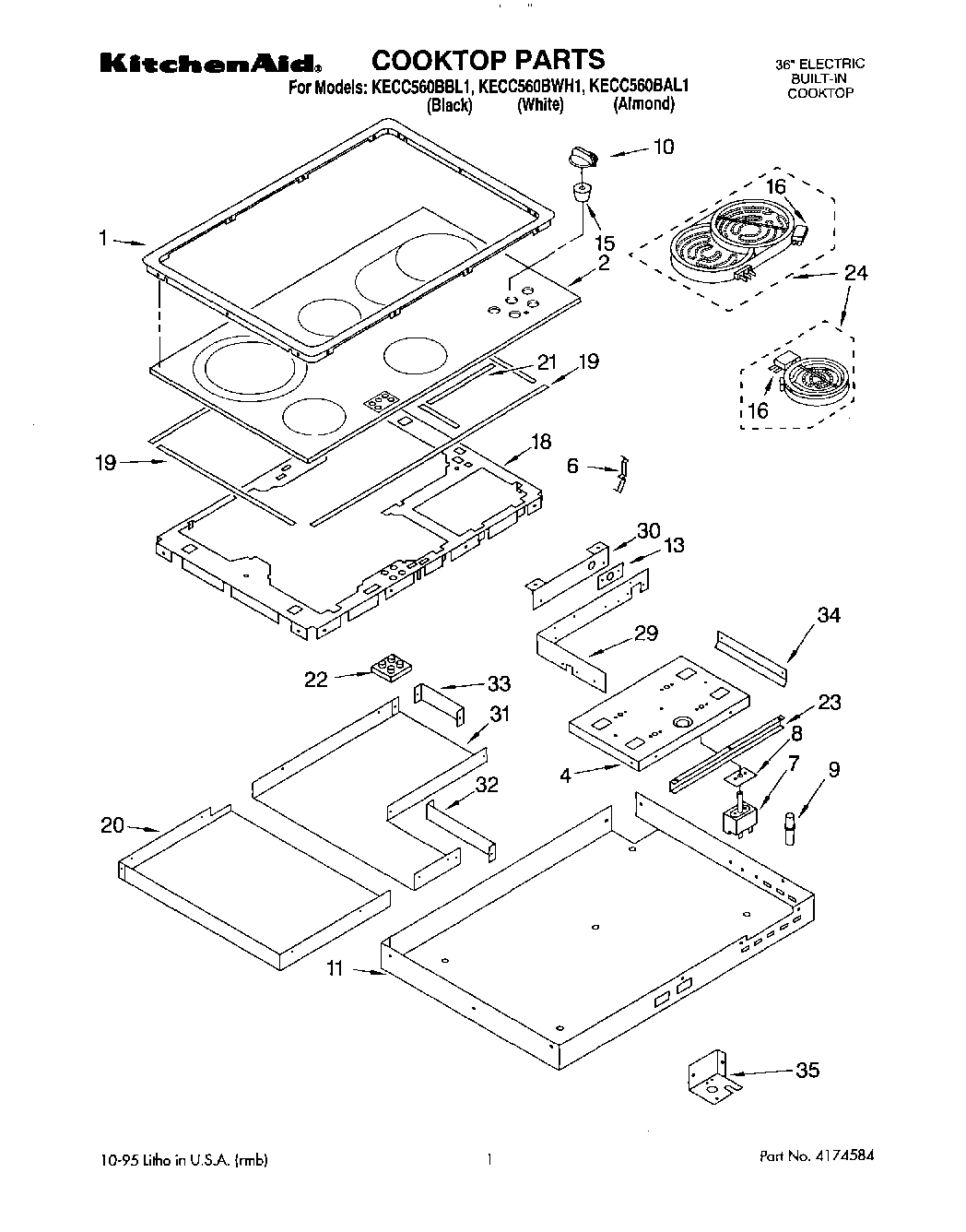

Common parts from model Whirlpool KECC560BWH1
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Mtg. Hardware Kit WPL 3172515 Contact Us For Availability
Installation Instructions WPL LIT3189330 Contact Us For Availability
Wiring Diagram WPL LIT3190376 Contact Us For Availability
Use & Care Guide Miscellaneous WPL LIT4454475 Contact Us For Availability

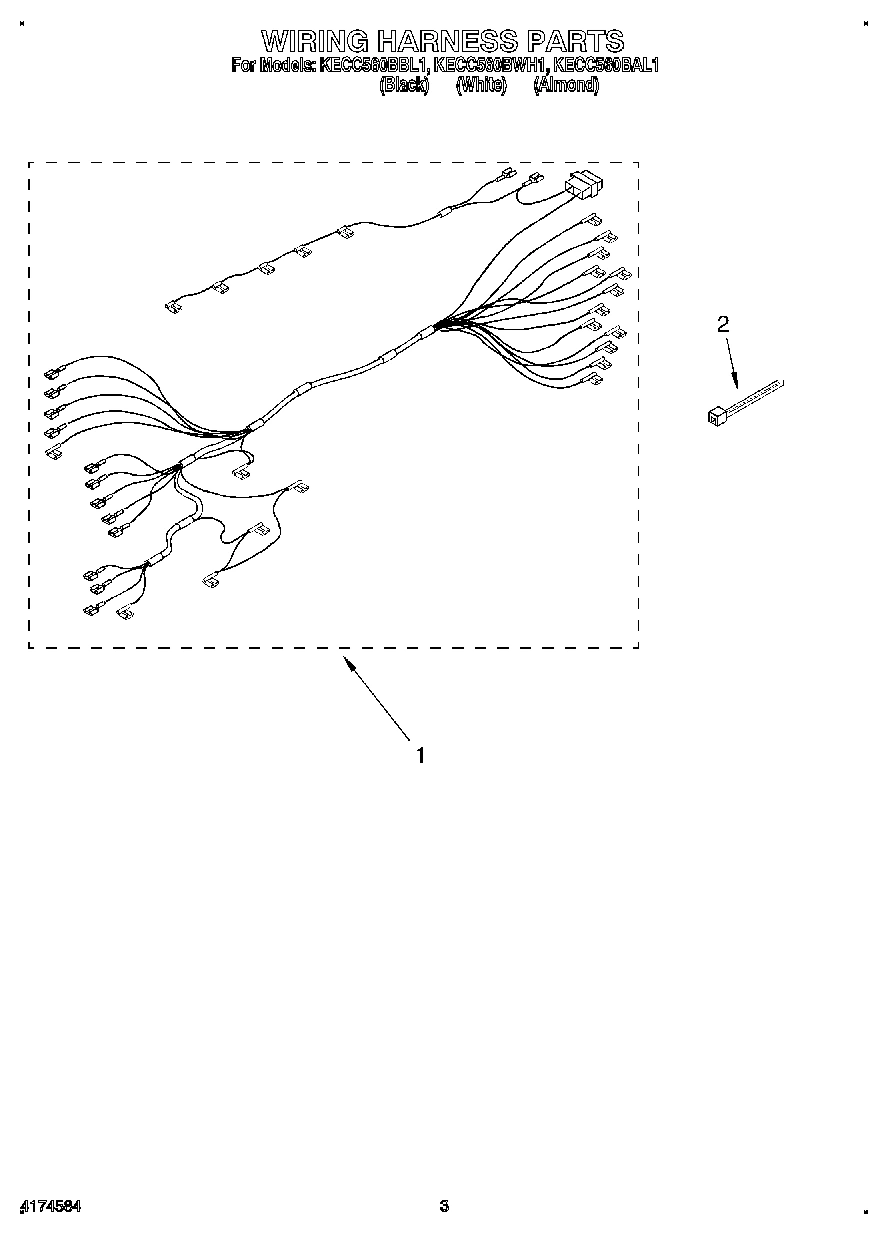

1
Wiring Harness Surface Unit WPL 3189755 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3187820 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3187821 Contact Us For Availability
1
Trim Ring, Cooktop (Almond) WPL 3187822 Contact Us For Availability
2
Wire, Tie WPL 3179589 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3187816 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3187817 Contact Us For Availability
2
Cooktop, Glass (Almond) WPL 3188897 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3188308 Contact Us For Availability
6
Spring, Locator (8) WPL 3189165 Contact Us For Availability
9
Light, Indicator WPL 3187750 Contact Us For Availability
10
Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
11
Box, Burner WPL 3188103 Contact Us For Availability
13
Grommet WPL 3188533 Contact Us For Availability
15
Seal, Switch (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3189901 Element) WPL 3190247 Contact Us For Availability
16
Switch, Limiter (Use W/3189893 Element) WPL 3190248 Contact Us For Availability
16
Switch, Limiter (Use W/3189894 Element) WPL 3190253 Contact Us For Availability
16
Switch, Limiter (Use W/3189899 Element) WPL 3190441 Contact Us For Availability
18
Plate, Backer WPL 3189843 Contact Us For Availability
19
Seal, Silicone (Small (2)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3188854 Contact Us For Availability
20
Shield, Heat (Element) WPL 3187753 Contact Us For Availability
21
Seal, Silicone (8 in.) WPL 3188852 Contact Us For Availability
21
Seal, Silicone (11 in.) WPL 3188853 Contact Us For Availability
22
Lamp, Hot Surface Indicator WPL 3189756 Contact Us For Availability
22
Screw WPL 4168863 Contact Us For Availability
23
Bracket, Stiffening WPL 3189152 Contact Us For Availability
24
Element, Surface (Includ WPL 3189894 Contact Us For Availability
24
WPL 3189901 WPL 3189901 Contact Us For Availability
29
WPL 3188876 WPL 3188876 Contact Us For Availability
30
WPL 3189175 WPL 3189175 Contact Us For Availability
31
WPL 3188309 WPL 3188309 Contact Us For Availability
32
WPL 3188158 WPL 3188158 Contact Us For Availability
33
WPL 3189159 WPL 3189159 Contact Us For Availability
34
WPL 4159456 WPL 4159456 Contact Us For Availability
34
WPL 3189036 WPL 3189036 Contact Us For Availability
35
WPL 3189273 WPL 3189273 Contact Us For Availability
× ![]()
