Model Whirlpool KECC507KBL03 36`` ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool KECC507KBL03 36`` ELECTRIC BUILT-IN COOKTOP

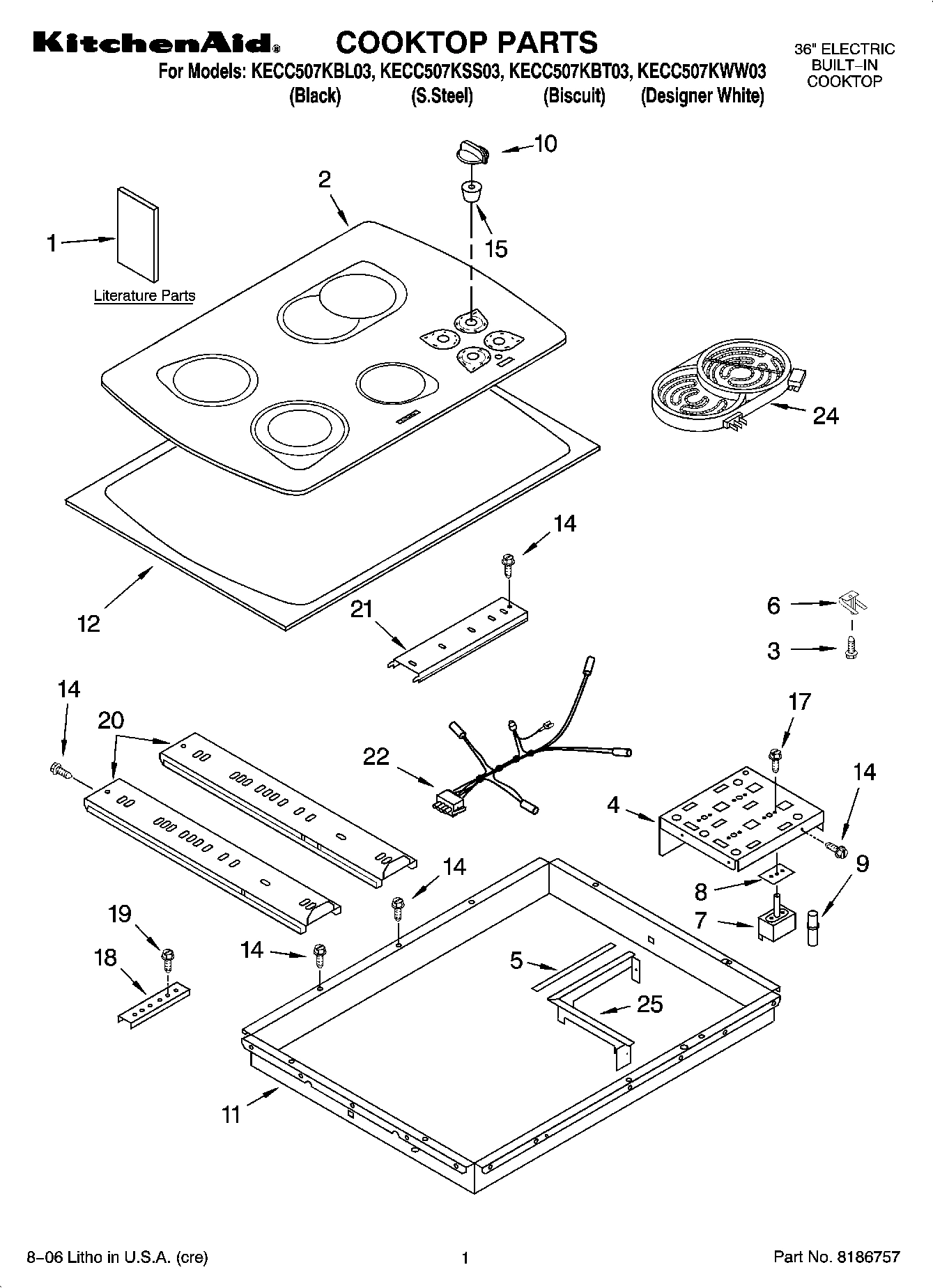

01 - COOKTOP PARTS, OPTIONAL PARTS

Print

• This Diagram
• All Diagrams

Wire, Red WPL 242829 Contact Us For Availability

View on Model

WPL 242830 WPL 242830 Contact Us For Availability

View on Model

WPL 242832 WPL 242832 Contact Us For Availability

View on Model

WPL 3172515 WPL 3172515 Contact Us For Availability

View on Model

WPL 3192408 WPL 3192408 Contact Us For Availability

View on Model

WPL 4456028 WPL 4456028 Contact Us For Availability

View on Model

WPL 4456512 WPL 4456512 Contact Us For Availability

View on Model

WPL 4456761 WPL 4456761 Contact Us For Availability

View on Model

WPL ARI83888A7 WPL ARI83888A7 Contact Us For Availability

View on Model

WPL ARI83889A1 WPL ARI83889A1 Contact Us For Availability

View on Model

WPL ARI83890A6 WPL ARI83890A6 Contact Us For Availability

View on Model

1

Use & Care Guide WPL 8285368 Contact Us For Availability

View on Model

1

Installation Instructions WPL 9759087 Contact Us For Availability

View on Model

1

SAFECOOKING TIPS WPL 9759133 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 9759385 Contact Us For Availability

View on Model

1

COOKTOP PARTS WPL ARI83887A1 Contact Us For Availability

View on Model

2

Cooktop, Glass (Black) WPL 8284887 Contact Us For Availability

View on Model

2

Cooktop, Glass (Designer White) WPL 8284889 Contact Us For Availability

View on Model

2

Cooktop, Glass (Biscuit) WPL 8284890 Contact Us For Availability

View on Model

2

Cooktop, Glass (S.Steel) WPL 8284891 Contact Us For Availability

View on Model

3

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 View Details $2.51

View on Model

4

Bracket, Switch Mounting WPL 4455421 Contact Us For Availability

View on Model

5

Seal, Heat Shield WPL 3191839 Contact Us For Availability

View on Model

6

9759094 Whirlpool Spring Backorder WPL 9759094 View Details $4.85

View on Model

7

WP3191049 Whirlpool Infinite Switch Left Rear In Stock WPL WP3191049 View Details $65.67

View on Model

7

WP4456027 Whirlpool Infinite Switch Right Rea In Stock WPL WP4456027 View Details $66.19

View on Model

8

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 View Details $27.27

View on Model

9

Light, Indicator WPL 3191945 Contact Us For Availability

View on Model

10

WP9750372FC Whirlpool Knob Backorder WPL WP9750372FC View Details $3.70

View on Model

10

WP9750372FF Whirlpool Knob In Stock WPL WP9750372FF View Details $11.02

View on Model

10

WP9750372FW Whirlpool Knob Assembly Backorder WPL WP9750372FW View Details $10.03

View on Model

11

Box, Burner WPL 4456959 Contact Us For Availability

View on Model

12

Frame, Cooktop (S.Steel model only) WPL 8284627 Contact Us For Availability

View on Model

14

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

15

8285469 Whirlpool Oven Seal Switch In Stock WPL 8285469 View Details $29.74

View on Model

17

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 View Details $3.11

View on Model

18

8186533 Whirlpool Hardware Backorder WPL 8186533 View Details $28.80

View on Model

19

WP3400093 Whirlpool Screw Backorder WPL WP3400093 View Details $2.51

View on Model

20

Rail, Element (2) WPL 9763517 Contact Us For Availability

View on Model

21

Rail, Element (1) WPL 3192268 Contact Us For Availability

View on Model

22

Lamp, Hot Surface Indicator WPL 3191343 Contact Us For Availability

View on Model

24

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 View Details $5.00

View on Model

24

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 View Details $117.46

View on Model

24

W10823699 Whirlpool Right Front Surface Eleme In Stock WPL W10823699 View Details $85.49

View on Model

24

W10823730 Whirlpool Surface Element Backorder WPL W10823730 View Details $148.08

View on Model

24

Element, Surface (Seal, Heat) WPL 3192737 Contact Us For Availability

View on Model

24

Element, Surface (1200W - RF) WPL 4452742 Contact Us For Availability

View on Model

25

Shield, Heat WPL 4455468 Contact Us For Availability

View on Model

×
