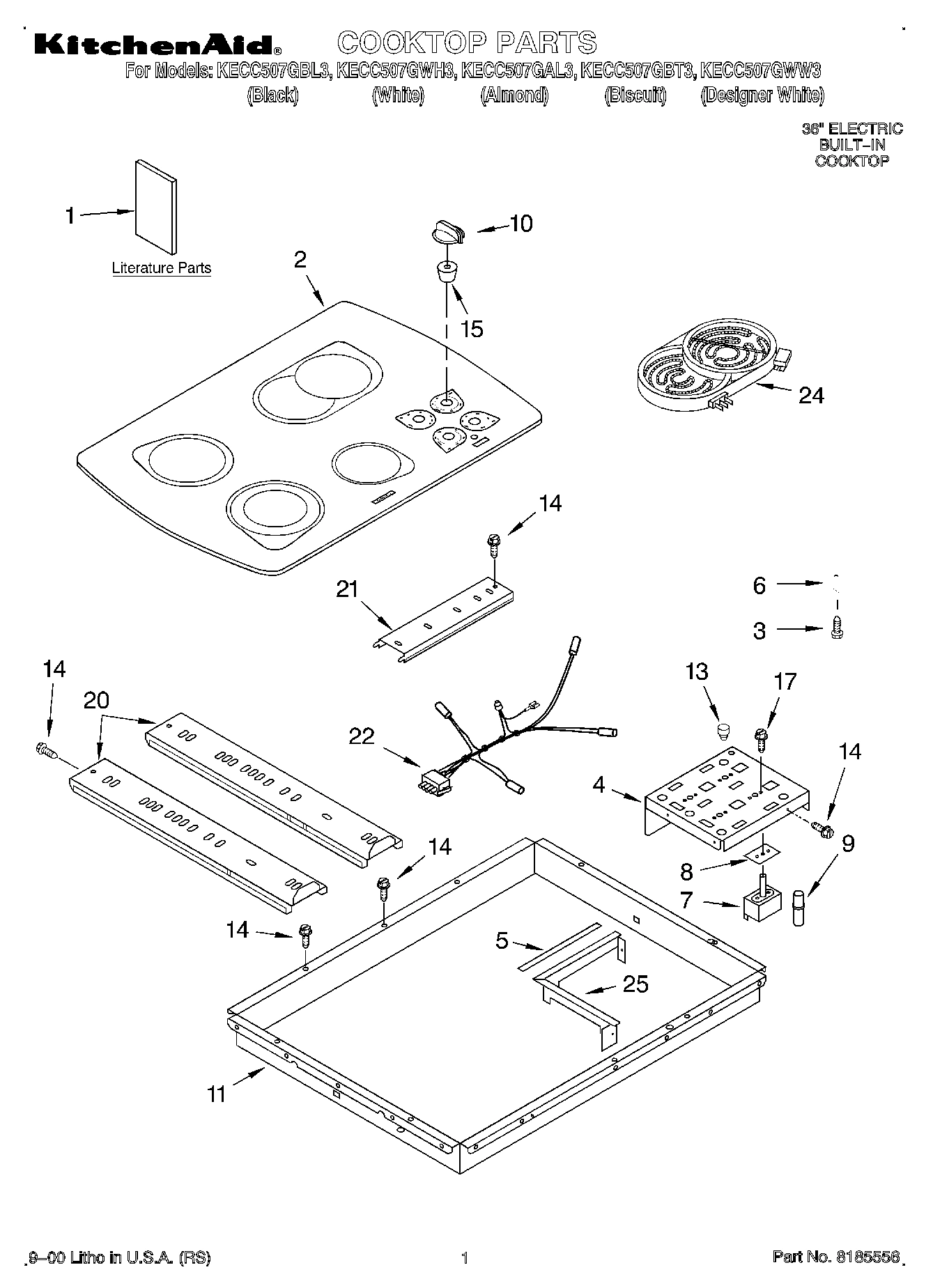

Model Whirlpool KECC507GAL3 COOKTOP – Common Parts & Diagrams

2
Cooktop, Glass (White)
Cooktop, Glass (White) WPL 4455544 Contact Us For Availability
View on Model
2
Cooktop, Glass (Black)
Cooktop, Glass (Black) WPL 4455548 Contact Us For Availability
View on Model
2
Cooktop, Glass (Designer White)
Cooktop, Glass (Designer White) WPL 4455713 Contact Us For Availability
View on Model
4
Bracket, Switch Mounting
Bracket, Switch Mounting WPL 4455421 Contact Us For Availability
View on Model
5
Seal, Heat Shield
Seal, Heat Shield WPL 3191839 Contact Us For Availability
View on Model
6
Spring, Locator (10)
Spring, Locator (10) WPL 3191791 Contact Us For Availability
View on Model
9
Light, Indicator
Light, Indicator WPL 3191945 Contact Us For Availability
View on Model
10
Knob, Control (4) (Almond)
Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
View on Model
11
Box, Burner
Box, Burner WPL 4456401 Contact Us For Availability
View on Model
13
Bumper, Silicone
Bumper, Silicone WPL 3192477 Contact Us For Availability
View on Model
15
Seal, Switch (5)
Seal, Switch (5) WPL 3182435 Contact Us For Availability
View on Model
20
Rail, Element (2)
Rail, Element (2) WPL 3191515 Contact Us For Availability
View on Model
21
Rail, Element (1)
Rail, Element (1) WPL 3192268 Contact Us For Availability
View on Model
22
Lamp, Hot Surface Indicator
Lamp, Hot Surface Indicator WPL 3191343 Contact Us For Availability
View on Model
24
Element, Surface (Seal, Heat)
Element, Surface (Seal, Heat) WPL 3192737 Contact Us For Availability
View on Model
24
Element, Surface (1000/1800W - RR)
Element, Surface (1000/1800W - RR) WPL 4452741 Contact Us For Availability
View on Model
24
Element, Surface (1200W - RF)
Element, Surface (1200W - RF) WPL 4452742 Contact Us For Availability
View on Model
24
Element, Surface (1500W - LR)
Element, Surface (1500W - LR) WPL 4452743 Contact Us For Availability
View on Model
25
WPL W10355051 No Longer Available
View on Model
25
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
25
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
25
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
25
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
25
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
25
Wire, White 14 Ga. 150~c
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
View on Model
25
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
25
Wire (
Wire ( WPL 242828 Contact Us For Availability
View on Model
25
WPL 242829
WPL 242829 WPL 242829 Contact Us For Availability
View on Model
25
WPL 242830
WPL 242830 WPL 242830 Contact Us For Availability
View on Model
25
WPL 242832
WPL 242832 WPL 242832 Contact Us For Availability
View on Model
25
WPL 3172515
WPL 3172515 WPL 3172515 Contact Us For Availability
View on Model
25
WPL 3192220
WPL 3192220 WPL 3192220 Contact Us For Availability
View on Model
25
WPL 3192408
WPL 3192408 WPL 3192408 Contact Us For Availability
View on Model
25
WPL 4455273
WPL 4455273 WPL 4455273 Contact Us For Availability
View on Model
25
WPL 4455468
WPL 4455468 WPL 4455468 Contact Us For Availability
View on Model
