Model Whirlpool KECC507BWH1 – Common Parts & Diagrams

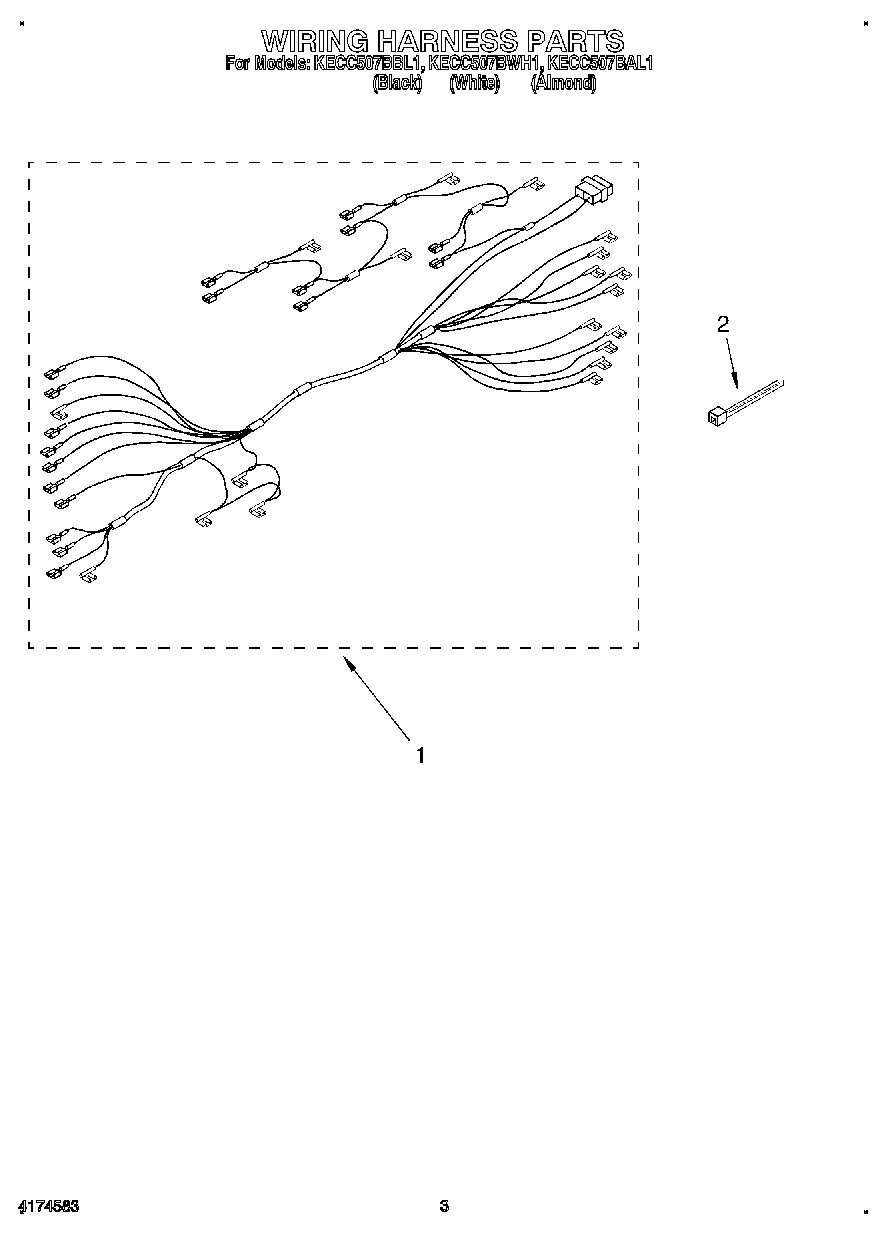

02 - SECTION

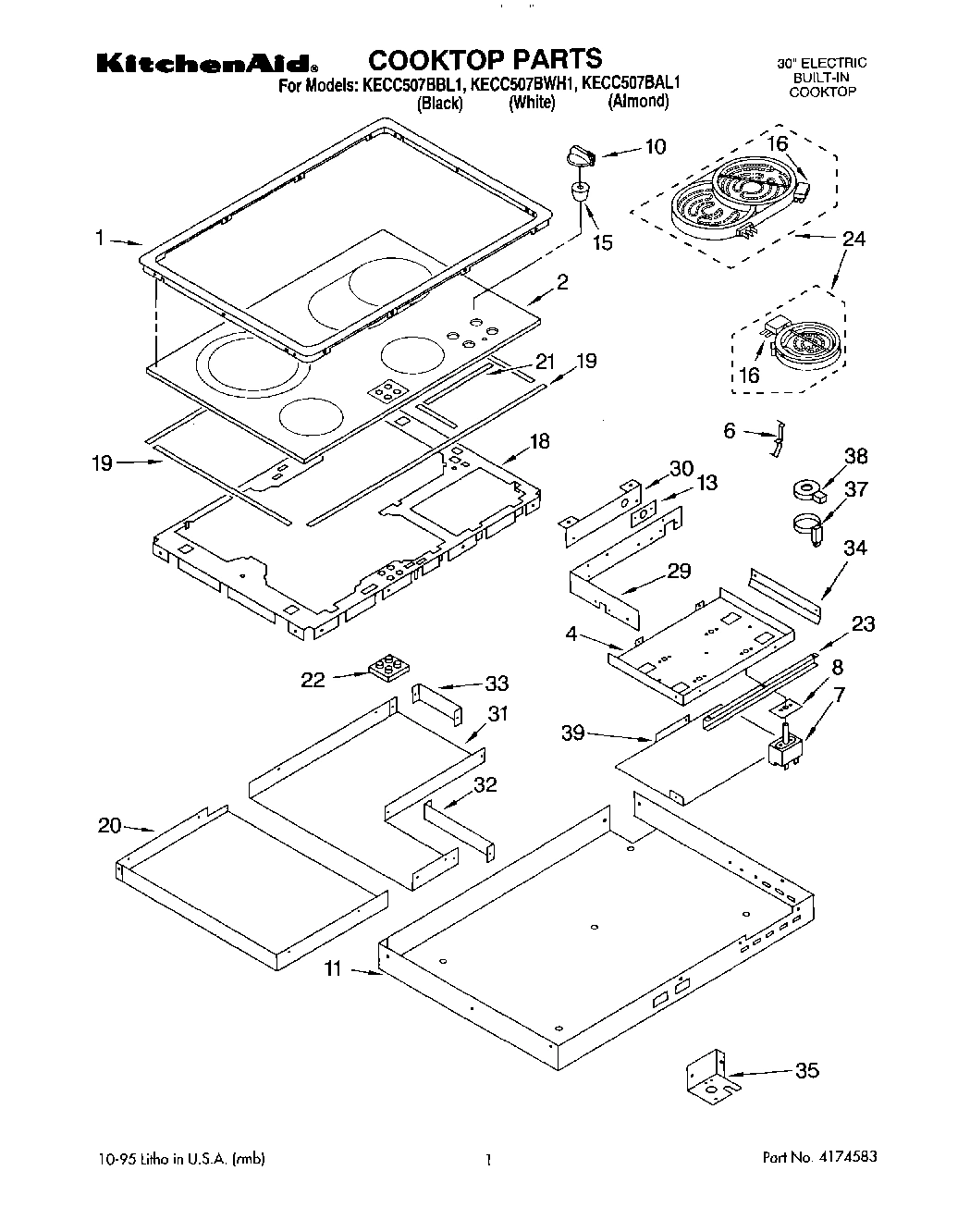

01 - SECTION
Common parts from model Whirlpool KECC507BWH1
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Mtg. Hardware Kit WPL 3172515 Contact Us For Availability
Installation Instructions WPL LIT3189330 Contact Us For Availability
Wiring Diagram WPL LIT3190370 Contact Us For Availability
Use & Care Guide WPL LIT4454475 Contact Us For Availability
1
Wiring Harness Surface Unit WPL 3189754 Contact Us For Availability
1
Trim Ring, Cooktop (Black) WPL 3187744 Contact Us For Availability
1
Trim Ring, Cooktop (White) WPL 3187745 Contact Us For Availability
1
Trim Ring, Cooktop (Almond) WPL 3187746 Contact Us For Availability
2
Tie, Wire WPL 3179589 Contact Us For Availability
2
Cooktop, Glass (Black) WPL 3187814 Contact Us For Availability
2
Cooktop, Glass (White) WPL 3187815 Contact Us For Availability
2
Cooktop, Glass (Almond) WPL 3188895 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3188101 Contact Us For Availability
6
Spring, Locator (8) WPL 3189165 Contact Us For Availability
10
Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
11
Box, Burner WPL 3188754 Contact Us For Availability
13
Grommet WPL 3188533 Contact Us For Availability
15
Seal, Switch (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3189655 L.F. Element) WPL 3189667 Contact Us For Availability
16
Switch, Limiter (Use W/3189656 R.F. Element) WPL 3189668 Contact Us For Availability
16
Switch, Limiter (Use W/3189901 R.R. Element) WPL 3190247 Contact Us For Availability
16
Switch, Limiter (Use W/3189899 L.R. Element) WPL 3190441 Contact Us For Availability
18
Plate, Backer WPL 3189802 Contact Us For Availability
19
Seal, Silicone (Small (2)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
20
Shield, Heat WPL 3187753 Contact Us For Availability
21
Seal, Silicone WPL 3188852 Contact Us For Availability
22
Lamp, Hot Surface Indicator WPL 3189753 Contact Us For Availability
22
Screw WPL 4168863 Contact Us For Availability
23
Bracket, Stiffening WPL 3189152 Contact Us For Availability
24
Element, Surface (Includes No. 16) (1200W Lef WPL 3189655 Contact Us For Availability
24
Element, Surface (Includes No. 16) (1500W Rig WPL 3189656 Contact Us For Availability
24
WPL 3189901 WPL 3189901 Contact Us For Availability
29
WPL 3188844 WPL 3188844 Contact Us For Availability
30
WPL 3189174 WPL 3189174 Contact Us For Availability
31
WPL 3188102 WPL 3188102 Contact Us For Availability
32
WPL 3188158 WPL 3188158 Contact Us For Availability
33
WPL 3189159 WPL 3189159 Contact Us For Availability
34
WPL 3189036 WPL 3189036 Contact Us For Availability
35
WPL 3189273 WPL 3189273 Contact Us For Availability
37
WPL 3188760 WPL 3188760 Contact Us For Availability
38
WPL 3188761 WPL 3188761 Contact Us For Availability
39
WPL 4159456 WPL 4159456 Contact Us For Availability
39
WPL 3188785 WPL 3188785 Contact Us For Availability
× ![]()
