Model Whirlpool KECC507BAL1 – Common Parts &amp; Diagrams

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Mtg. Hardware Kit WPL 3172515 Contact Us For Availability

Installation Instructions WPL LIT3189330 Contact Us For Availability

Wiring Diagram WPL LIT3190370 Contact Us For Availability

Use & Care Guide WPL LIT4454475 Contact Us For Availability

1

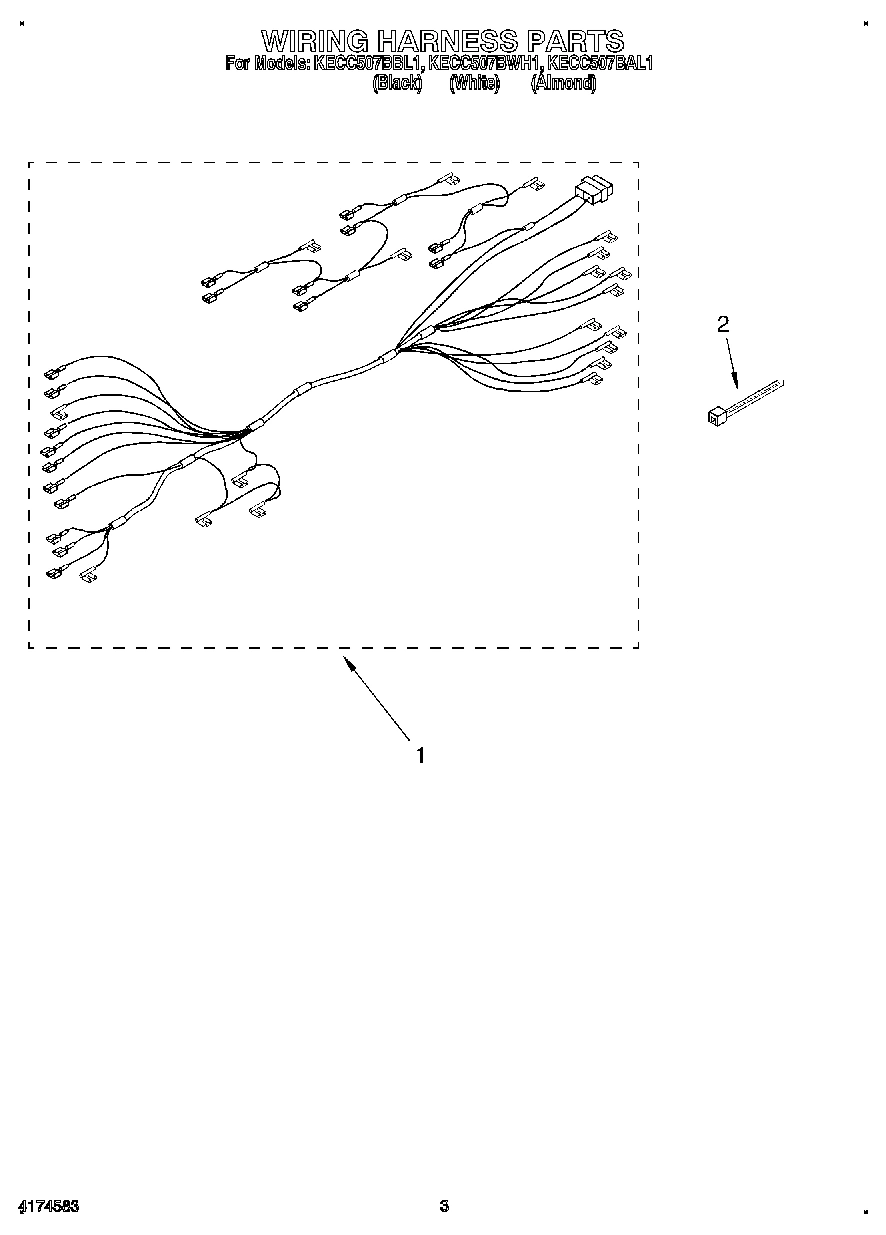

Wiring Harness Surface Unit WPL 3189754 Contact Us For Availability

2

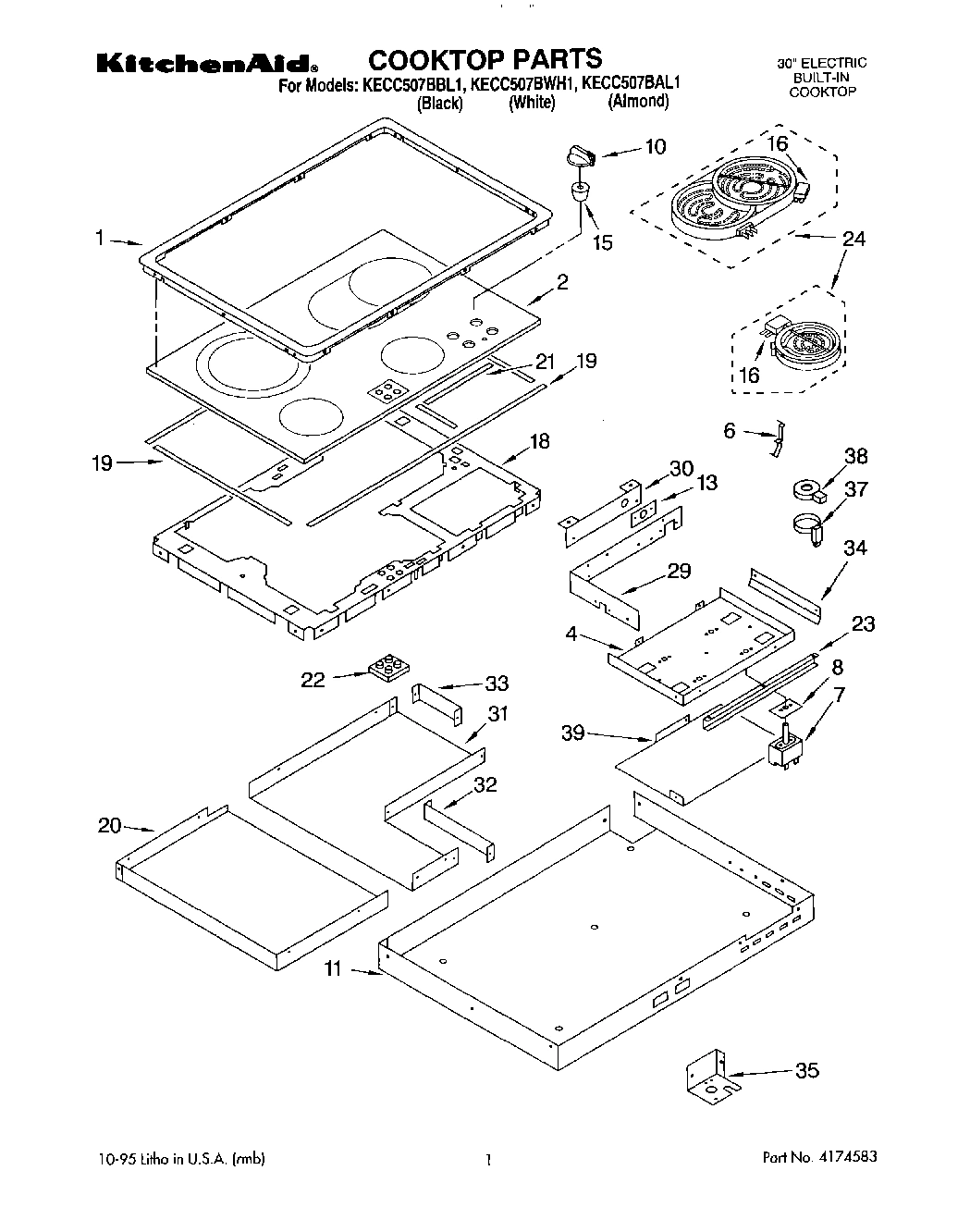

Cooktop, Glass (White) WPL 3187815 Contact Us For Availability

2

Cooktop, Glass (Almond) WPL 3188895 Contact Us For Availability

2

Tie, Wire WPL 3179589 Contact Us For Availability

4

Bracket, Switch Mounting WPL 3188101 Contact Us For Availability

6

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

6

Spring, Locator (8) WPL 3189165 Contact Us For Availability

7

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $28.79

7

WP8203529 Whirlpool Infinite Switch In Stock WPL WP8203529 $79.93

8

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 $27.27

8

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

10

WP9750372FF Whirlpool Knob In Stock WPL WP9750372FF $11.02

10

WP9750372FW Whirlpool Knob Assembly Backorder WPL WP9750372FW $10.03

10

Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability

11

Box, Burner WPL 3188754 Contact Us For Availability

13

Grommet WPL 3188533 Contact Us For Availability

15

Seal, Switch (4) WPL 3182435 Contact Us For Availability

Switch, Limiter (Use W/3189655 L.F. Element) WPL 3189667 Contact Us For Availability

Switch, Limiter (Use W/3189656 R.F. Element) WPL 3189668 Contact Us For Availability

Switch, Limiter (Use W/3189901 R.R. Element) WPL 3190247 Contact Us For Availability

Switch, Limiter (Use W/3189899 L.R. Element) WPL 3190441 Contact Us For Availability

18

Plate, Backer WPL 3189802 Contact Us For Availability

19

Seal, Silicone (Small (2)) WPL 3185589 Contact Us For Availability

19

Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability

20

Shield, Heat WPL 3187753 Contact Us For Availability

21

Seal, Silicone WPL 3188852 Contact Us For Availability

22

Lamp, Hot Surface Indicator WPL 3189753 Contact Us For Availability

22

Screw WPL 4168863 Contact Us For Availability

23

Bracket, Stiffening WPL 3189152 Contact Us For Availability

W10823694 Whirlpool Surface Element Backorder WPL W10823694 $155.70

Element, Surface (Includes No. 16) (1200W Lef WPL 3189655 Contact Us For Availability

Element, Surface (Includes No. 16) (1500W Rig WPL 3189656 Contact Us For Availability

WPL 3189901 WPL 3189901 Contact Us For Availability

29

WPL 3188844 WPL 3188844 Contact Us For Availability

30

WPL 3189174 WPL 3189174 Contact Us For Availability

31

WPL 3188102 WPL 3188102 Contact Us For Availability

32

WPL 3188158 WPL 3188158 Contact Us For Availability

33

WPL 3189159 WPL 3189159 Contact Us For Availability

34

WPL 3189036 WPL 3189036 Contact Us For Availability

35

WPL 3189273 WPL 3189273 Contact Us For Availability

37

WPL 3188760 WPL 3188760 Contact Us For Availability

38

WPL 3188761 WPL 3188761 Contact Us For Availability

39

WPL 4159456 WPL 4159456 Contact Us For Availability

39

WPL 3188785 WPL 3188785 Contact Us For Availability
