Model Whirlpool KECC502BWH1 – Common Parts &amp; Diagrams

Cleaner, Glass WPL W10355051 No Longer Available

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $4.58

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Mtg. Hardware Kit WPL 3172515 Contact Us For Availability

Installation Instructions WPL LIT3189330 Contact Us For Availability

Wiring Diagram WPL LIT3190371 Contact Us For Availability

Use & Care Guide WPL LIT4454475 Contact Us For Availability

1

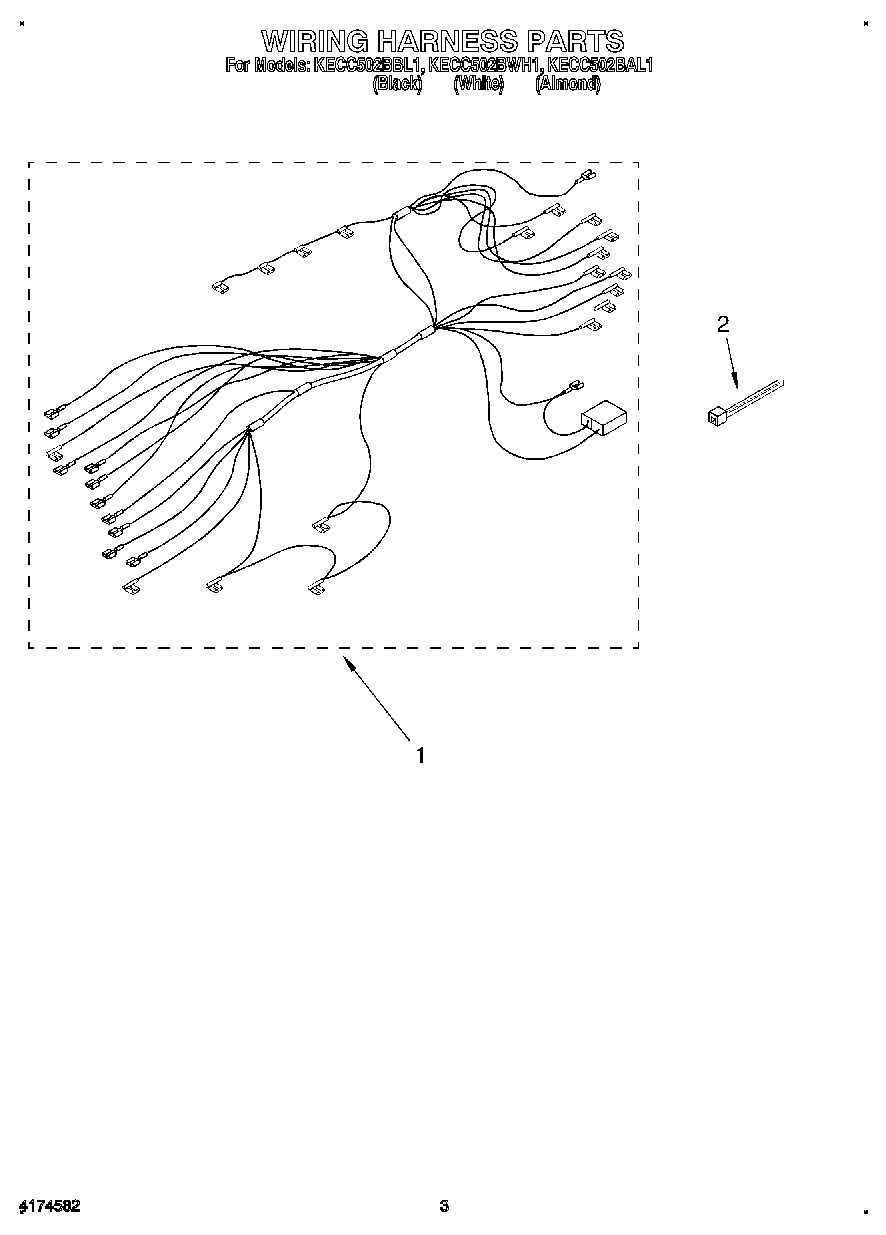

Wiring Harness Surface Unit WPL 3189758 Contact Us For Availability

2

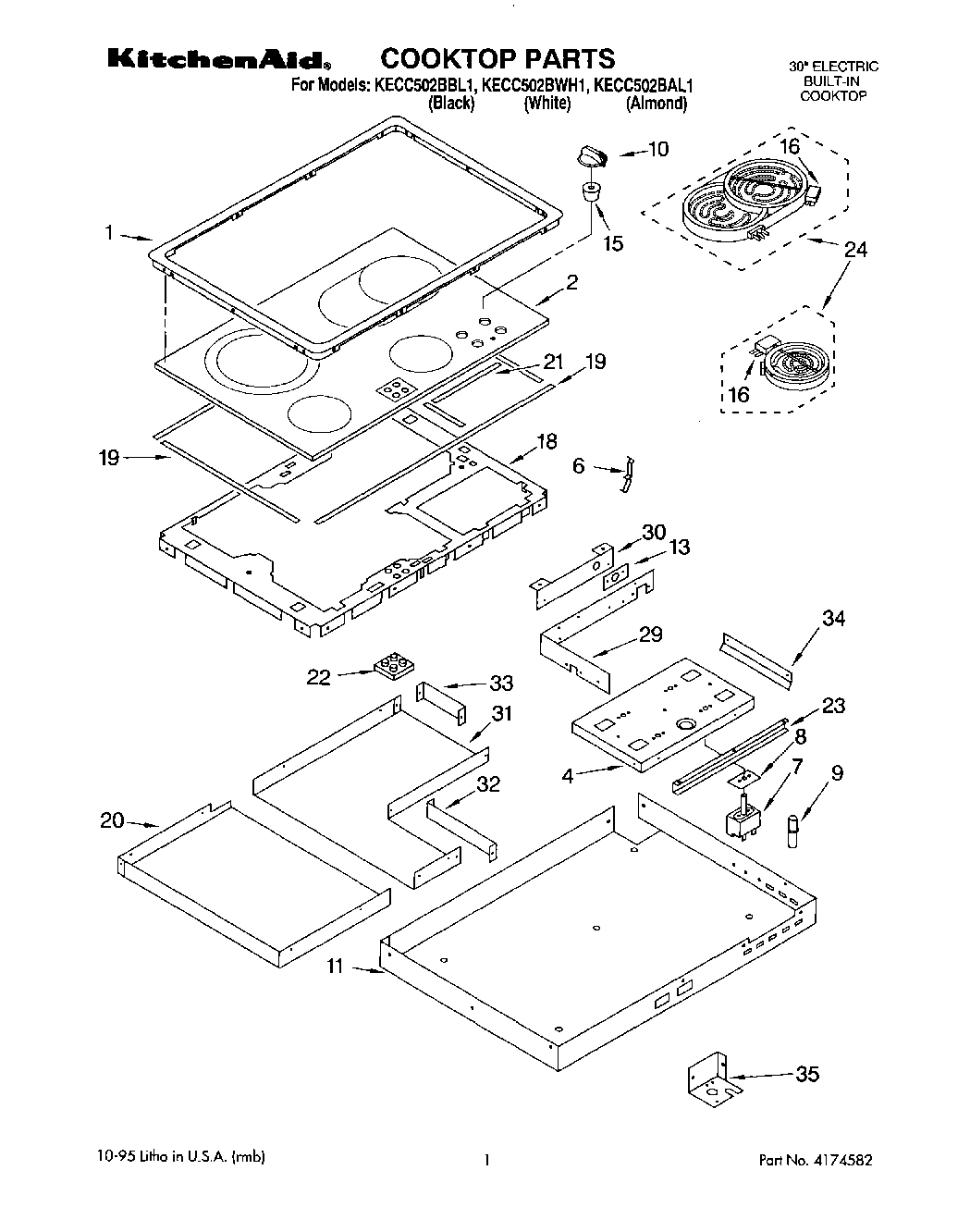

Cooktop, Glass (White) WPL 3187813 Contact Us For Availability

2

Cooktop, Glass (Almond) WPL 3188894 Contact Us For Availability

2

Tie, Wire WPL 3179589 Contact Us For Availability

4

Bracket, Switch Mounting WPL 3188101 Contact Us For Availability

6

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

6

Spring, Locator (8) WPL 3189165 Contact Us For Availability

7

8203534 Whirlpool Oven Top Burner Infinite Sw In Stock WPL 8203534 $62.12

7

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $30.23

7

Switch, Infinite (Use W/1400W Right Front Bur WPL 3189169 Contact Us For Availability

8

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 $28.64

8

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

9

Light, Indicator WPL 3187750 Contact Us For Availability

10

WP9750372FF Whirlpool Knob In Stock WPL WP9750372FF $26.51

10

WP9750372FW Whirlpool Knob Assembly In Stock WPL WP9750372FW $10.03

10

Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability

11

Box, Burner WPL 3188754 Contact Us For Availability

13

Grommet WPL 3188533 Contact Us For Availability

15

Seal, Switch (4) WPL 3182435 Contact Us For Availability

Switch, Limiter (Use W/3189901 Element) WPL 3190247 Contact Us For Availability

Switch, Limiter (Use W/3189893 Element) WPL 3190248 Contact Us For Availability

Switch, Limiter (Use W/3189894 Element) WPL 3190253 Contact Us For Availability

Switch, Limiter (Use W/3189899 Element) WPL 3190441 Contact Us For Availability

18

Plate, Backer WPL 3189802 Contact Us For Availability

19

Seal, Silicone (Small (2)) WPL 3185589 Contact Us For Availability

19

Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability

20

Shield, Heat WPL 3187753 Contact Us For Availability

21

Seal, Silicone WPL 3188852 Contact Us For Availability

22

Lamp, Hot Surface Indicator WPL 3189753 Contact Us For Availability

22

Screw WPL 4168863 Contact Us For Availability

23

Bracket, Stiffening WPL 3189152 Contact Us For Availability

W10823694 Whirlpool Surface Element Backorder WPL W10823694 $155.70

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $104.98

Element, Surface (Includes No. 16) (1400W Rig WPL 3189894 Contact Us For Availability

WPL 3189901 WPL 3189901 Contact Us For Availability

29

WPL 3188844 WPL 3188844 Contact Us For Availability

30

WPL 3189174 WPL 3189174 Contact Us For Availability

31

WPL 3188102 WPL 3188102 Contact Us For Availability

32

WPL 3188158 WPL 3188158 Contact Us For Availability

33

WPL 3189159 WPL 3189159 Contact Us For Availability

34

WPL 4159456 WPL 4159456 Contact Us For Availability

34

WPL 3189036 WPL 3189036 Contact Us For Availability

35

WPL 3189273 WPL 3189273 Contact Us For Availability
