Model Whirlpool KECC502BAL0 – Common Parts & Diagrams
01 - SECTION
02 - SECTION
Common parts from model Whirlpool KECC502BAL0
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Mounting Screws (10A X 2 (2)) WPL 258644 Contact Us For Availability
Clamp (2) WPL 3150320 Contact Us For Availability
Use & Care Guide WPL LIT3188107 Contact Us For Availability
Wiring Diagram WPL LIT3188259 Contact Us For Availability
Installation Instructions WPL LIT3189330 Contact Us For Availability
1

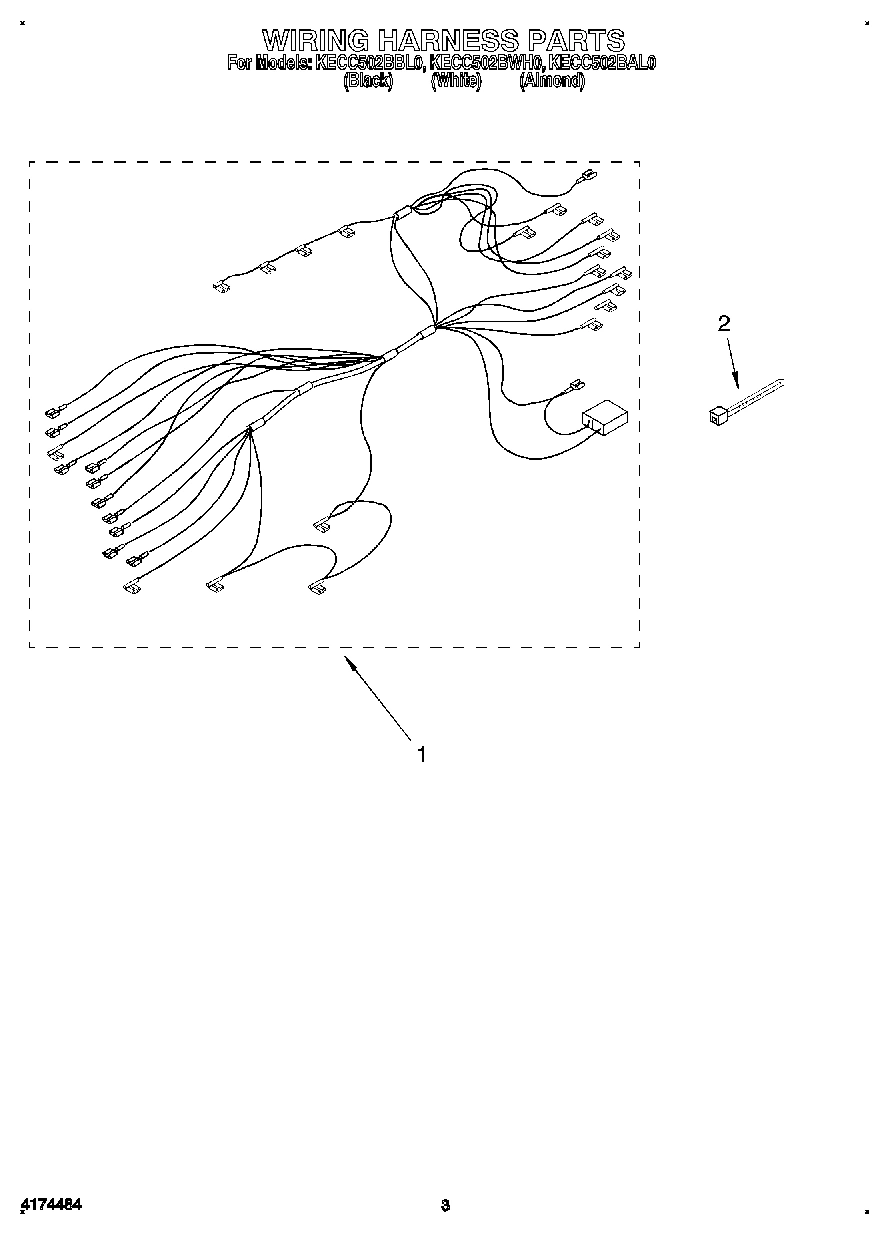

Wiring Harness Surface Unit WPL 3189125 Contact Us For Availability
2

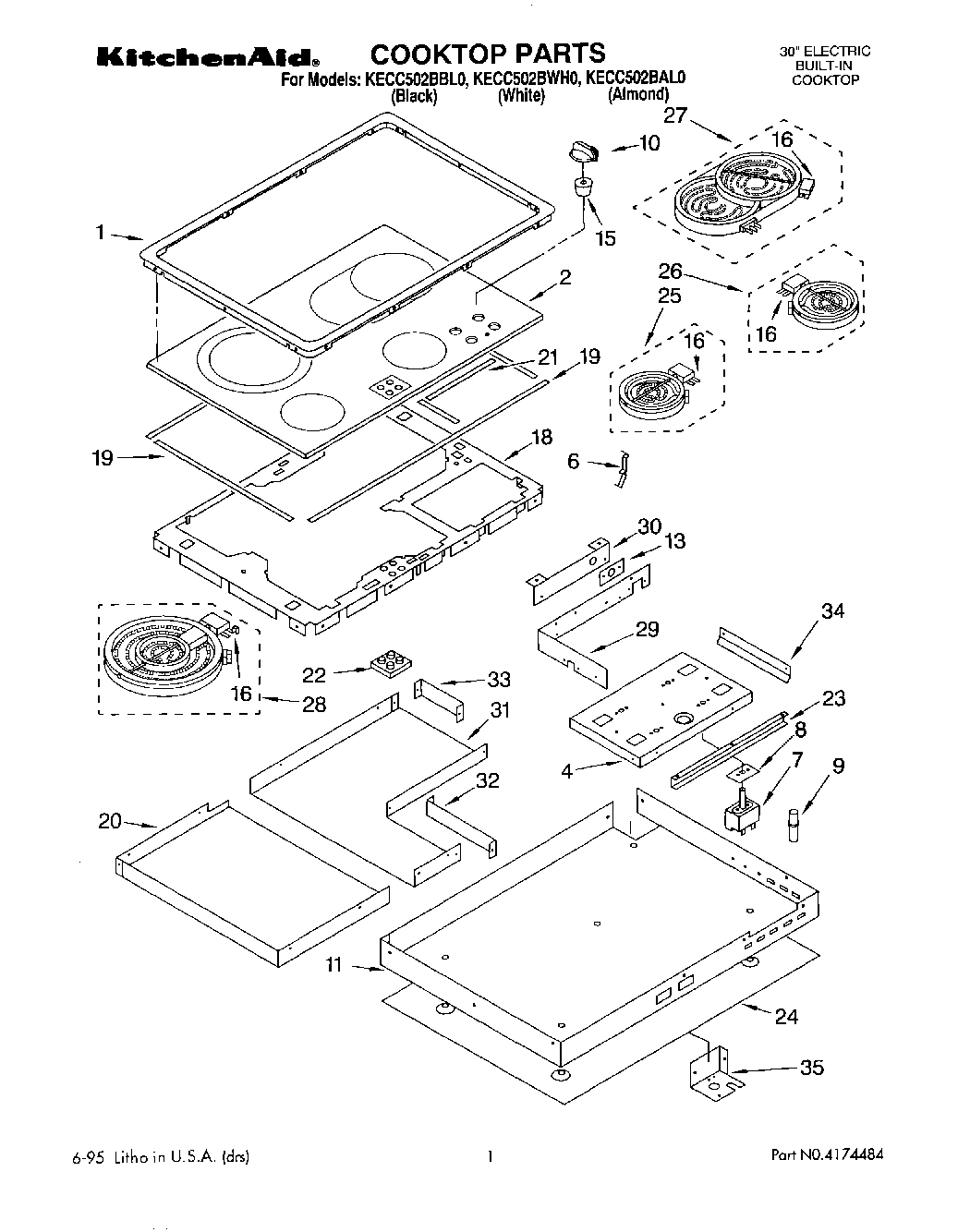

Cooktop, Glass (White) WPL 3187813 Contact Us For Availability
2
Cooktop, Glass (Almond) WPL 3188894 Contact Us For Availability
2
Tie, Wire WPL 3179589 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3188101 Contact Us For Availability
6
Spring Locator (8) WPL 3187707 Contact Us For Availability
7
Switch, Infinite (Use W/1400W Right Front Bur WPL 3189169 Contact Us For Availability
9
Light, Indicator WPL 3187750 Contact Us For Availability
10
Knob, Control (4) (Almond) WPL 9750372FT Contact Us For Availability
11
Box, Burner WPL 3188754 Contact Us For Availability
13
Grommet WPL 3188533 Contact Us For Availability
15
Seal, Switch (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3184952 Element) WPL 3187528 Contact Us For Availability
16
Switch, Limiter (Use W/3187188 Element) WPL 3187536 Contact Us For Availability
16
Switch, Limiter (Use W/3187119 Element) WPL 3187537 Contact Us For Availability
16
Switch, Limiter (Use W/3188156 Element) WPL 3188783 Contact Us For Availability
18
Plate, Backer WPL 3188100 Contact Us For Availability
19
Seal, Silicone (Small (2)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
20
Shield, Heat WPL 3187753 Contact Us For Availability
21
Seal, Silicone WPL 3188852 Contact Us For Availability
22
Lamp, Hot Surface Indicator WPL 3188879 Contact Us For Availability
22
Screw WPL 4168863 Contact Us For Availability
23
Bracket, Stiffening WPL 3189152 Contact Us For Availability
24
Shield, Heat WPL 3188437 Contact Us For Availability
25
1200W Left Front WPL 3188156 Contact Us For Availability
26
1400W Right Front WPL 3184952 Contact Us For Availability
27
2200/1400W Right Rear WPL 3187119 Contact Us For Availability
29
Shield, Heat WPL 3188844 Contact Us For Availability
30
Bracket WPL 3189174 Contact Us For Availability
31
WPL 3188102 WPL 3188102 Contact Us For Availability
32
WPL 3188158 WPL 3188158 Contact Us For Availability
33
WPL 3189159 WPL 3189159 Contact Us For Availability
34
WPL 4159456 WPL 4159456 Contact Us For Availability
34
WPL 3189036 WPL 3189036 Contact Us For Availability
35
WPL 3189273 WPL 3189273 Contact Us For Availability
× ![]()
