Model Electrolux KEC457NSAA RANGE – Common Parts & Diagrams

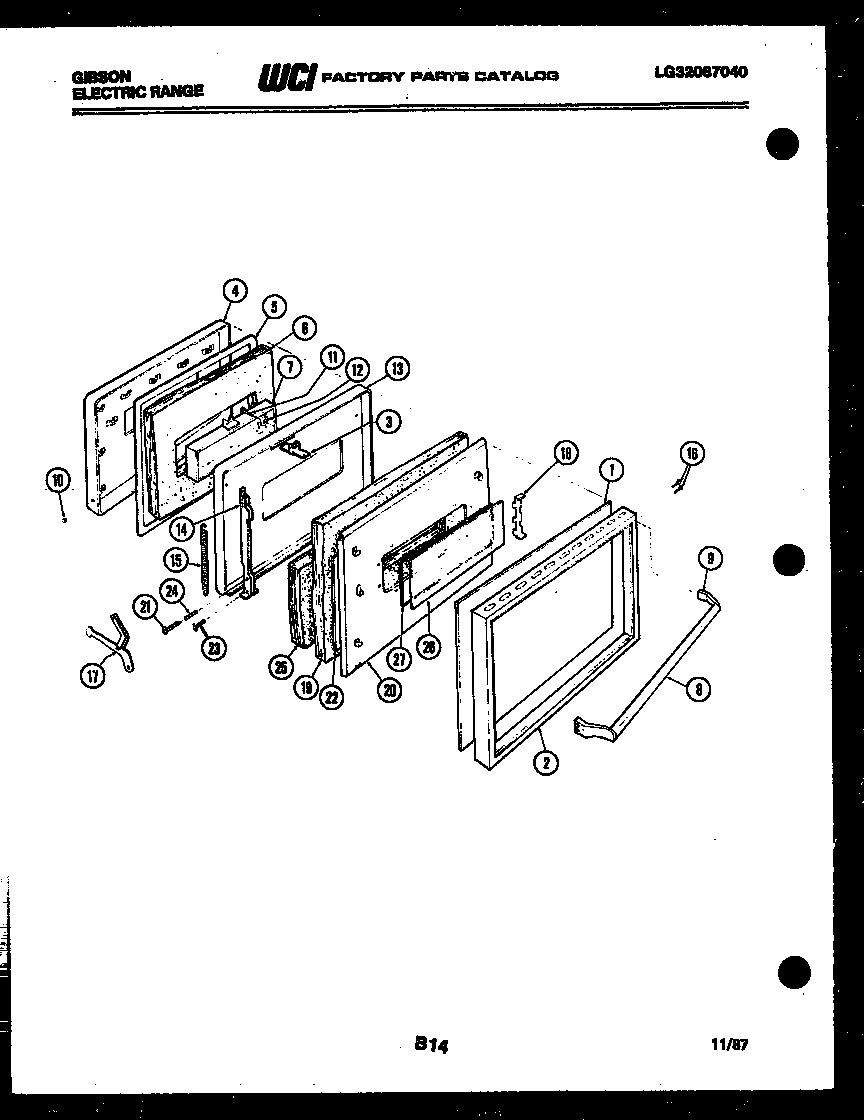

02 - DOOR PARTS

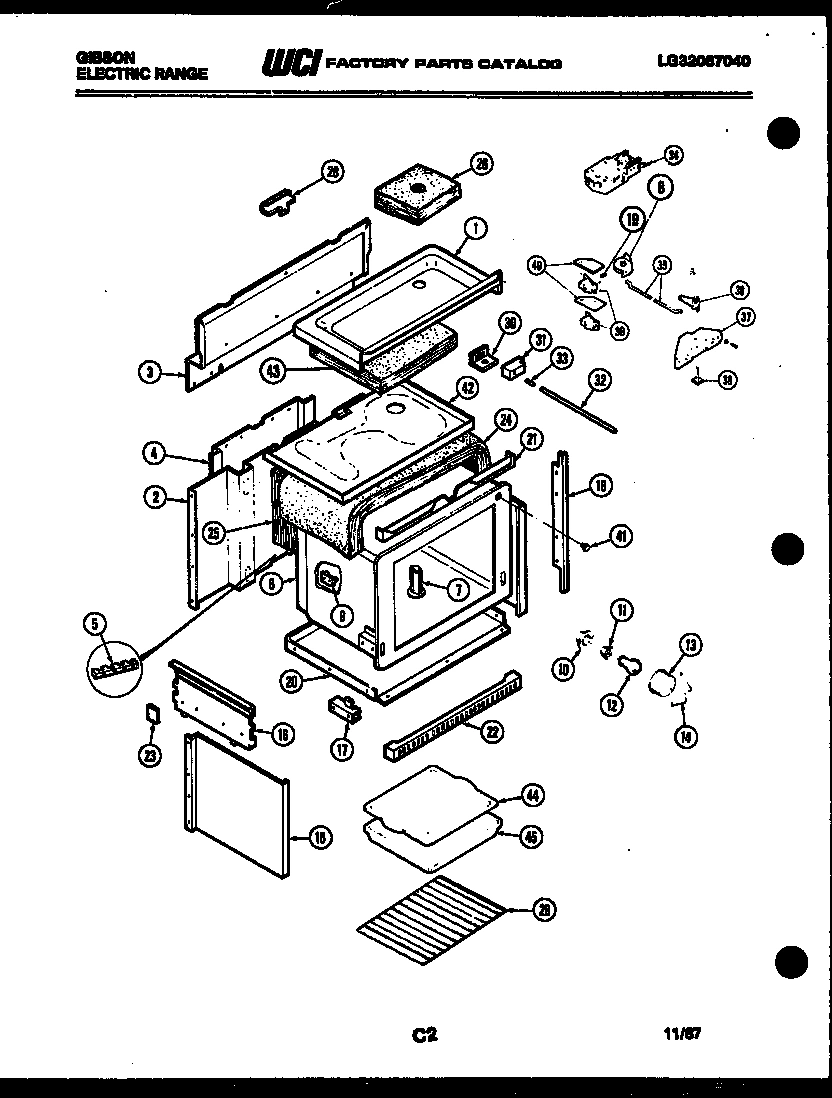

03 - BODY PARTS
04 - BROILER PARTS
05 - COOKTOP PARTS
06 - BACKGUARD
Common parts from model Electrolux KEC457NSAA RANGE
1
GLASS, OUTER WCI K5027201 Contact Us For Availability
1
WCI K5113301 WCI K5113301 Contact Us For Availability
1
WCI K1167931 WCI K1167931 Contact Us For Availability
1
WCI K5137401 WCI K5137401 Contact Us For Availability
2
FRAME-DOOR WCI K5027101 Contact Us For Availability
2
WCI K1324754 WCI K1324754 Contact Us For Availability
2
HINGE ASSEMBLY (2) WCI K1317482 Contact Us For Availability
2
RAIL-TOP WCI K1316506 Contact Us For Availability
3
STRIKE-DOOR WCI K1167830 Contact Us For Availability
3
BACK-RANGE UPPER WCI K5113701 Contact Us For Availability
3
WCI K1315232 WCI K1315232 Contact Us For Availability
3
RAIL-BOTTOM WCI K1319752 Contact Us For Availability
4
WCI K1323751 WCI K1323751 Contact Us For Availability
4
COVER, WIRE WCI K1315110 Contact Us For Availability
4
CAP-END (RH) WCI K1316502 Contact Us For Availability
4
CAP-END (LH) WCI K5156602 Contact Us For Availability
5
WCI K1323811 WCI K1323811 Contact Us For Availability
5
BRACKET-UPPER CONTROL PANEL WCI K1316744 Contact Us For Availability
5
BRACKET-LOWER CONTROL PANEL WCI K1317218 Contact Us For Availability
6
WCI K1322622 WCI K1322622 Contact Us For Availability
6
SUPPORT-BROIL ELEMENT WCI K1314456 Contact Us For Availability
6
DEFLECTOR, HEAT WCI K1324928 Contact Us For Availability
7
WCI K1322068 WCI K1322068 Contact Us For Availability
7
TUBE-VENT ASSEMBLY WCI K5055102 Contact Us For Availability
7
WCI K1167857 WCI K1167857 Contact Us For Availability
7
LIGHT-SIGNAL OVEN (2) WCI K5046102 Contact Us For Availability
8
HANDLE WCI K5026807 Contact Us For Availability
8
CAM-DOOR LATCH WCI K1325071 Contact Us For Availability
8
LENS-SIGNAL (3) WCI K1322678 Contact Us For Availability
9
STANCHION-HANDLE (2) WCI K5132701 Contact Us For Availability
9
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
9
WCI K5109102 WCI K5109102 Contact Us For Availability
10
BUTTON-PLUG (2) WCI KGM142001 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10
WCI K5109105 WCI K5109105 Contact Us For Availability
11
WCI K1164550 WCI K1164550 Contact Us For Availability
11
WCI K5109106 WCI K5109106 Contact Us For Availability
12
WASHER, PADDED (2) WCI K1313226 Contact Us For Availability
12
SWITCH-SURFACE UNIT-SMALL (4) WCI K1311753 Contact Us For Availability
13
DOOR LINER WCI K1324720 Contact Us For Availability
13
WCI K1324563 WCI K1324563 Contact Us For Availability
14
WCI K1311432 WCI K1311432 Contact Us For Availability
14
WCI K1325529 WCI K1325529 Contact Us For Availability
14
WCI K5041801 WCI K5041801 Contact Us For Availability
15
SPRING, DOOR (2) WCI K1302501 Contact Us For Availability
15
RETAINER-INSULATION (2) WCI K1324080 Contact Us For Availability
15
BRACKET-MOUNTING WCI K5267104 Contact Us For Availability
16
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
16
PANEL, SIDE (2) WCI K5151702 Contact Us For Availability
16
WCI K5144701 WCI K5144701 Contact Us For Availability
17
DOOR-HINGE ARM (2) WCI K1310065 Contact Us For Availability
17
BRACKET-SUPPORT RH (2) WCI K1325641 Contact Us For Availability
17
BRACKET-SUPPORT LH (2) WCI K1325642 Contact Us For Availability
17
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
18
RETAINER-GLASS WCI K1317628 Contact Us For Availability
18
TRIM-OVEN FRONT (2) WCI K1314447 Contact Us For Availability
18
WCI K5051801 WCI K5051801 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
19
WCI KGM455105 WCI KGM455105 Contact Us For Availability
19
NUT-SWITCH MOUNTING WCI K1186512 Contact Us For Availability
20
WCI K1323173 WCI K1323173 Contact Us For Availability
21
WCI K1100773 WCI K1100773 Contact Us For Availability
21
WCI K1324216 WCI K1324216 Contact Us For Availability
22
WCI K1318825 WCI K1318825 Contact Us For Availability
22
GRILL-BOTTOM WCI K5005901 Contact Us For Availability
23
PLATE-FILLER (2) WCI K1324691 Contact Us For Availability
24
ROLLER (2) WCI K1167752 Contact Us For Availability
24
INSULATION, WRAP WCI K1311331 Contact Us For Availability
25
WCI K1322651 WCI K1322651 Contact Us For Availability
25
INSULATION, BACK WCI K5056901 Contact Us For Availability
26
WCI K1317924 WCI K1317924 Contact Us For Availability
26
WCI K1314863 WCI K1314863 Contact Us For Availability
27
WCI K1322069 WCI K1322069 Contact Us For Availability
28
WCI K5122501 WCI K5122501 Contact Us For Availability
29
RACK-OVEN WCI K1311570 Contact Us For Availability
29A
RACK-OFFSET OVEN (NON-ILLUSTRATED) WCI K5133501 Contact Us For Availability
30
BRACKET-DOOR SWITCH WCI K1311371 Contact Us For Availability
31
SWITCH-DOOR CATCH WCI K1310199 Contact Us For Availability
32
PUSH ROD, SWITCH WCI K1322683 Contact Us For Availability
33
WCI K1322682 WCI K1322682 Contact Us For Availability
34
LATCH MOTOR WCI K5096701 Contact Us For Availability
35
WCI K1317813 WCI K1317813 Contact Us For Availability
36
WCI K5260201 WCI K5260201 Contact Us For Availability
37
HOUSING, DOOR LATCH WCI K1324830 Contact Us For Availability
38
AXLE WCI K5038501 Contact Us For Availability
39
SWITCH DOOR LATCH LOWER WCI K1167190 Contact Us For Availability
39
SWITCH DOOR LATCH UPPER WCI K1315370 Contact Us For Availability
40
INSULATION-DOOR LATCH (2) WCI K1308690 Contact Us For Availability
41
PLUG BUTTON WCI KGM142025 Contact Us For Availability
42
RETAINER-INSULATION TOP WCI K1324096 Contact Us For Availability
43
INSULATION-TOP WCI K1325719 Contact Us For Availability
44
GRILL - BROILER WCI K1313049 Contact Us For Availability
× ![]()
