Model Whirlpool KEBS278DSS6 – Common Parts & Diagrams

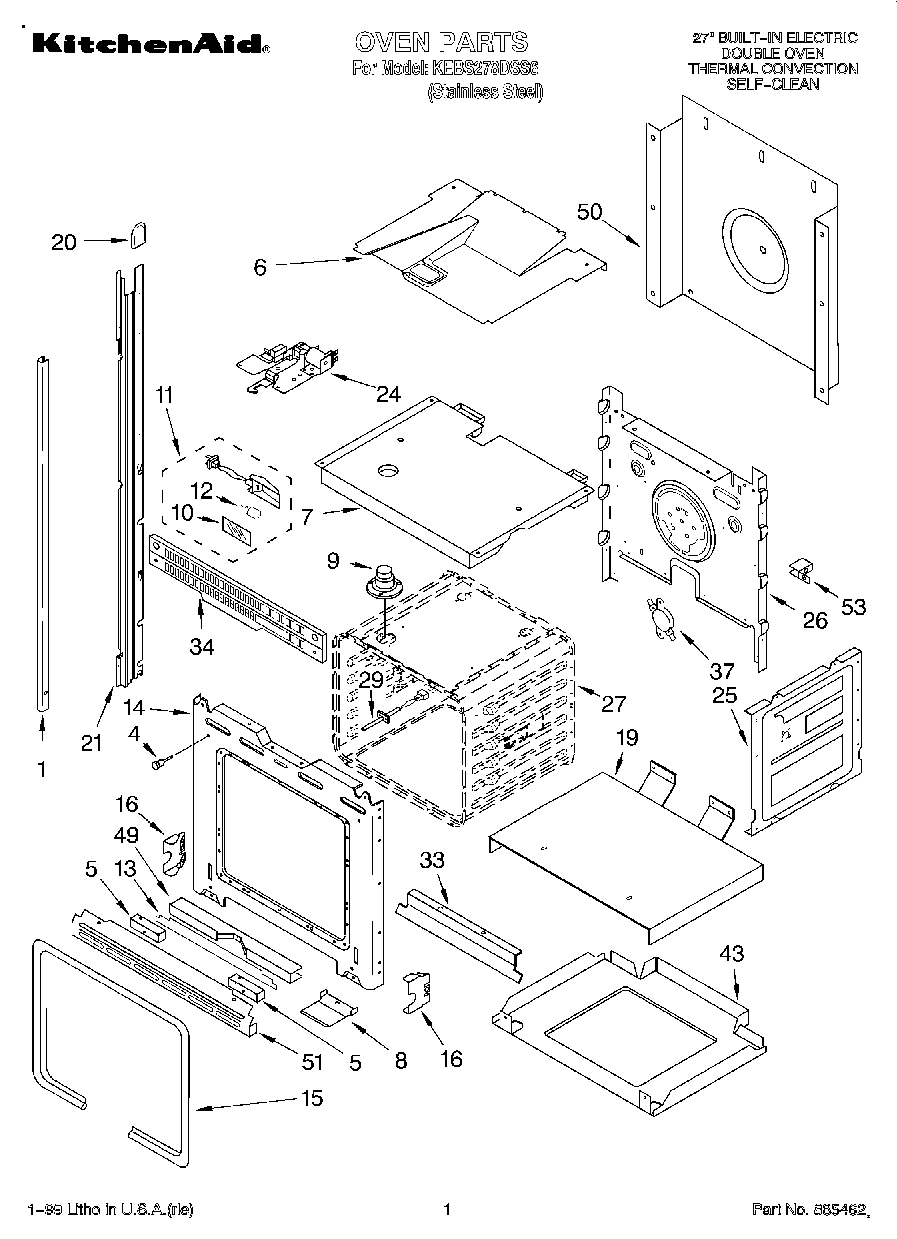

01 - OVEN

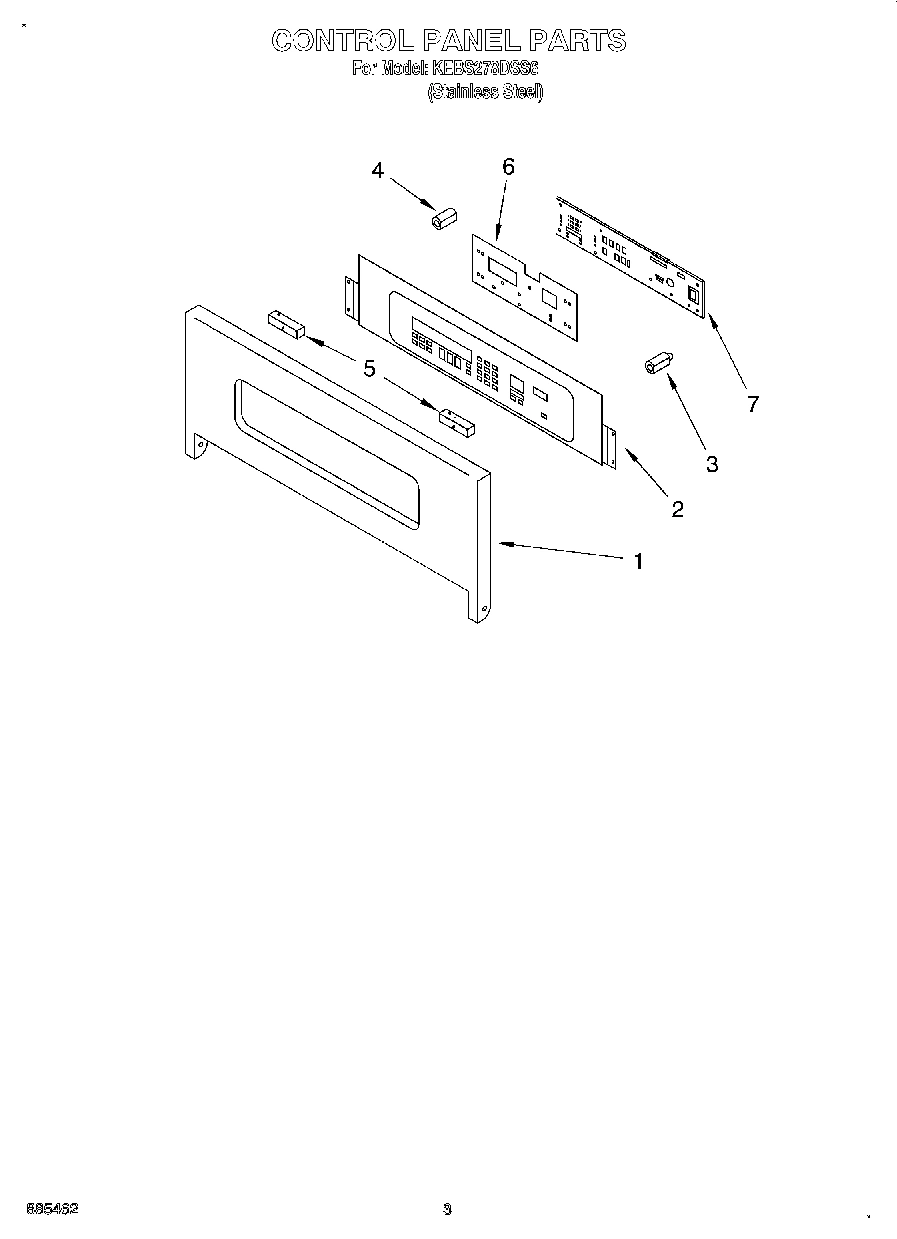

02 - CONTROL PANEL, LITERATURE

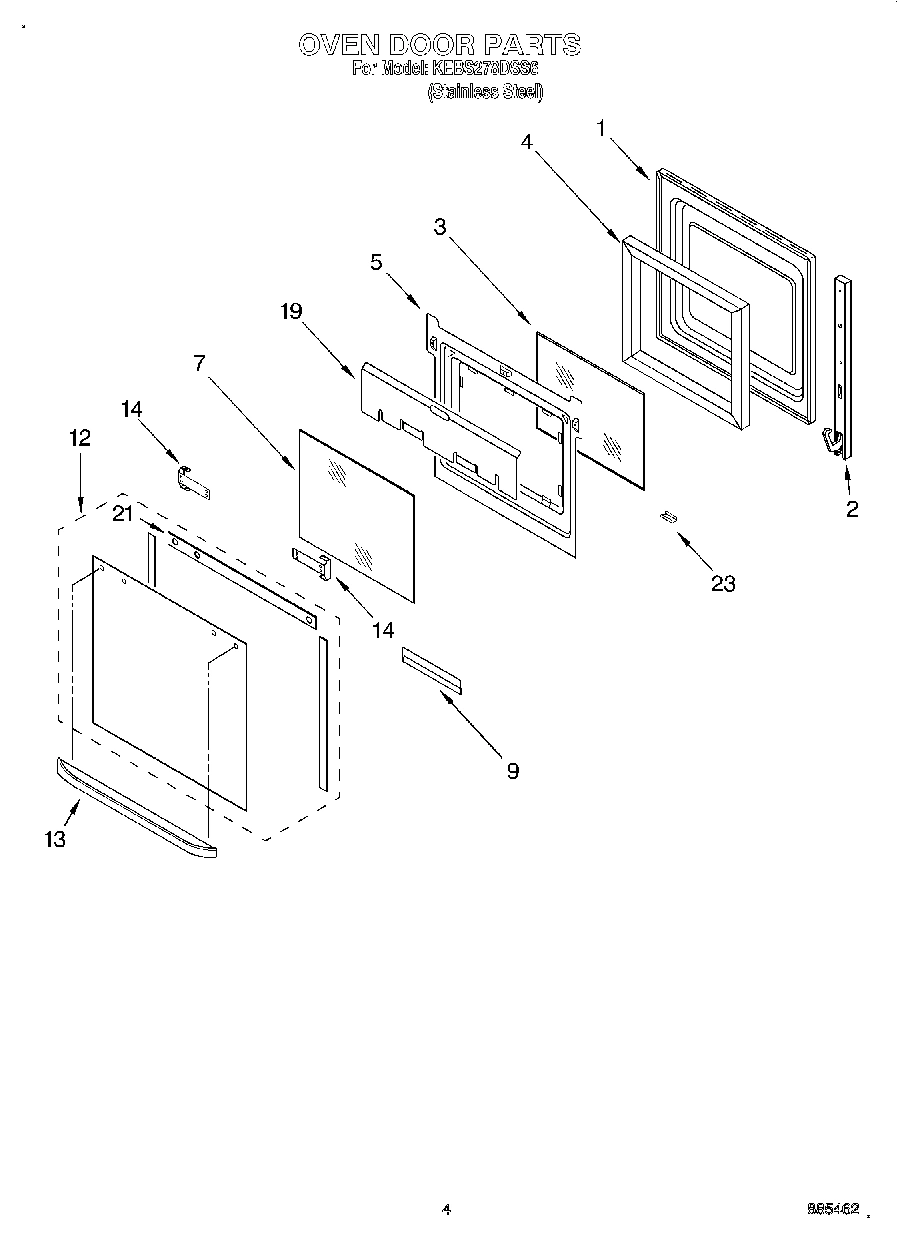

03 - OVEN DOOR

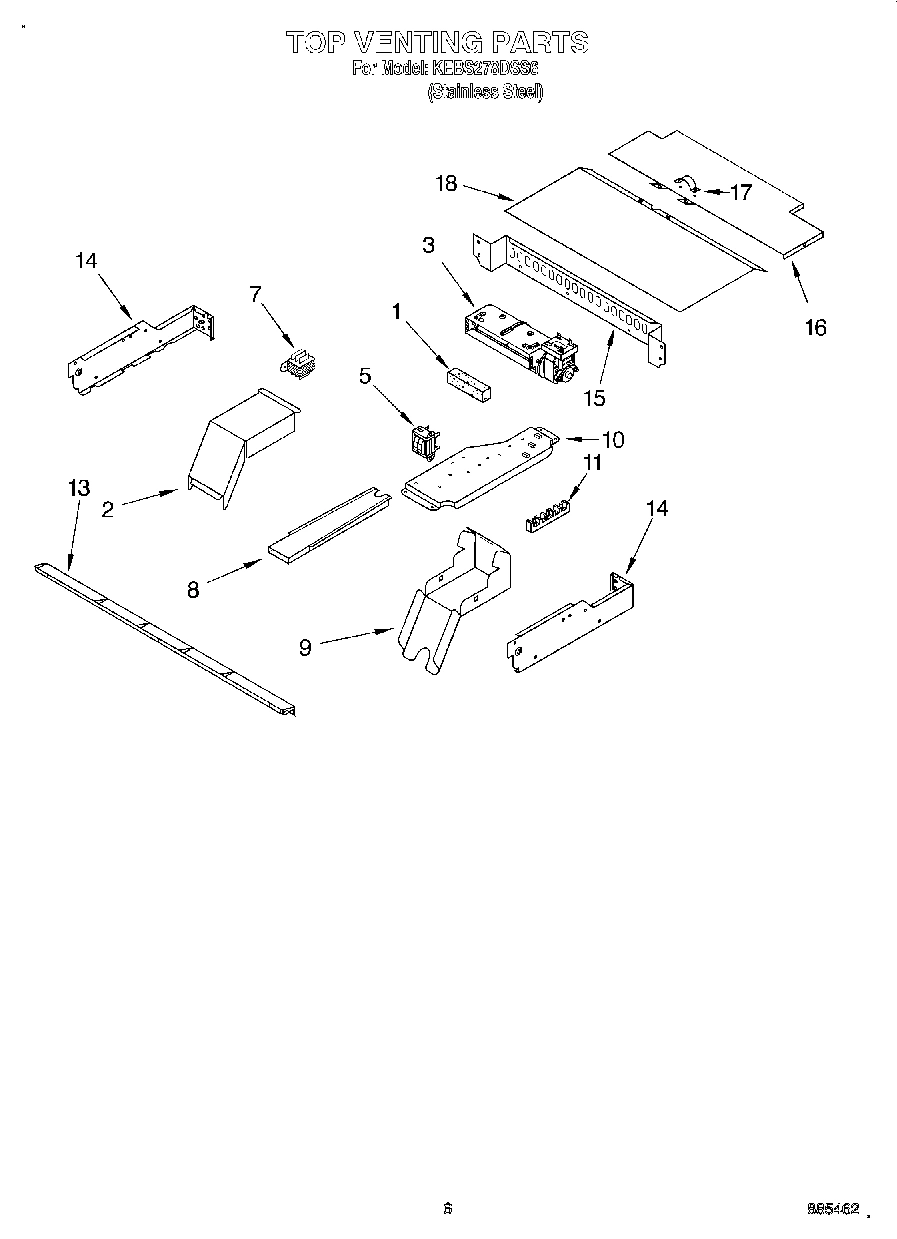

05 - TOP VENTING, OPTIONAL

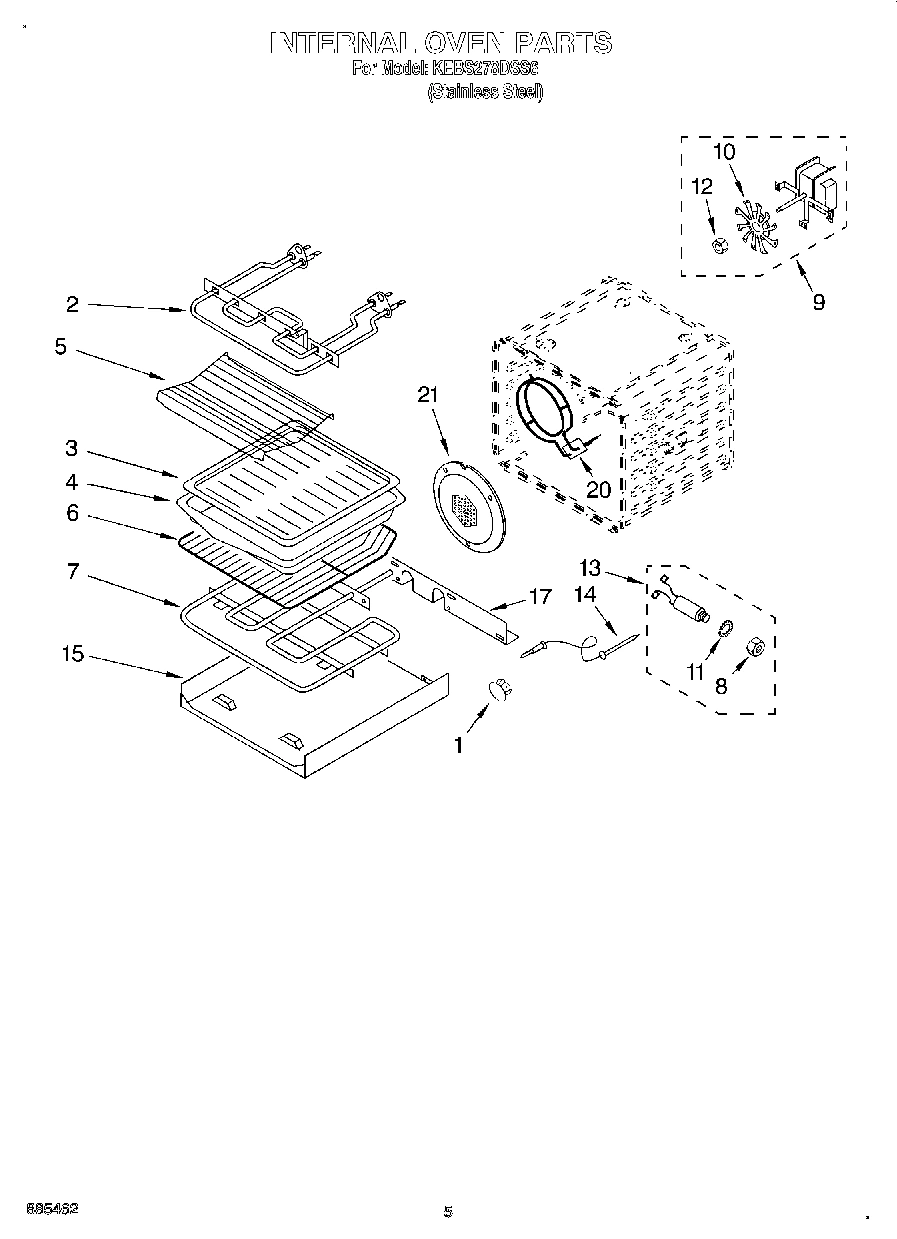

04 - INTERNAL OVEN
Common parts from model Whirlpool KEBS278DSS6
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452026 Contact Us For Availability
1
Control Panel Assy. WPL 4451790 Contact Us For Availability
1
Door Liner WPL 4451718 Contact Us For Availability
1
Plug, Button WPL 4448982 Contact Us For Availability
2
Membrane Switch WPL 4452322 Contact Us For Availability
3
Insulation, Board WPL 4452248 Contact Us For Availability
4
Insulation, Door WPL 4451721 Contact Us For Availability
4
Insulation, Board Support WPL 4452249 Contact Us For Availability
5
Spacer, Foam WPL 4452260 Contact Us For Availability
5
Retainer, Glass WPL 4451670 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Insulator, Dialectric WPL 4452345 Contact Us For Availability
7
Screw WPL 3400406 Contact Us For Availability
7
Microcomputer WPL 4448871 Contact Us For Availability
7
Transformer, Control WPL 4451658 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
10
Plate, Mounting WPL 4451789 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
13
Screw WPL 4159465 Contact Us For Availability
13
Door Handle WPL 4452087 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448548 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Bracket, Handle (Left Hand) WPL 4452488 Contact Us For Availability
15
Back, Control WPL 4452244 Contact Us For Availability
15
Tray, Bake WPL 4448722 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
18
Conduit, Double WPL 4450953 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Latch) WPL 4452239 Contact Us For Availability
18
Harness, Wire (Main) WPL 4454928 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
21
Seal, Door Top WPL 4452325 Contact Us For Availability
23
Retainer, Clip WPL 4451432 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
× ![]()
