Model Whirlpool KEBS277DBT6 – Common Parts &amp; Diagrams

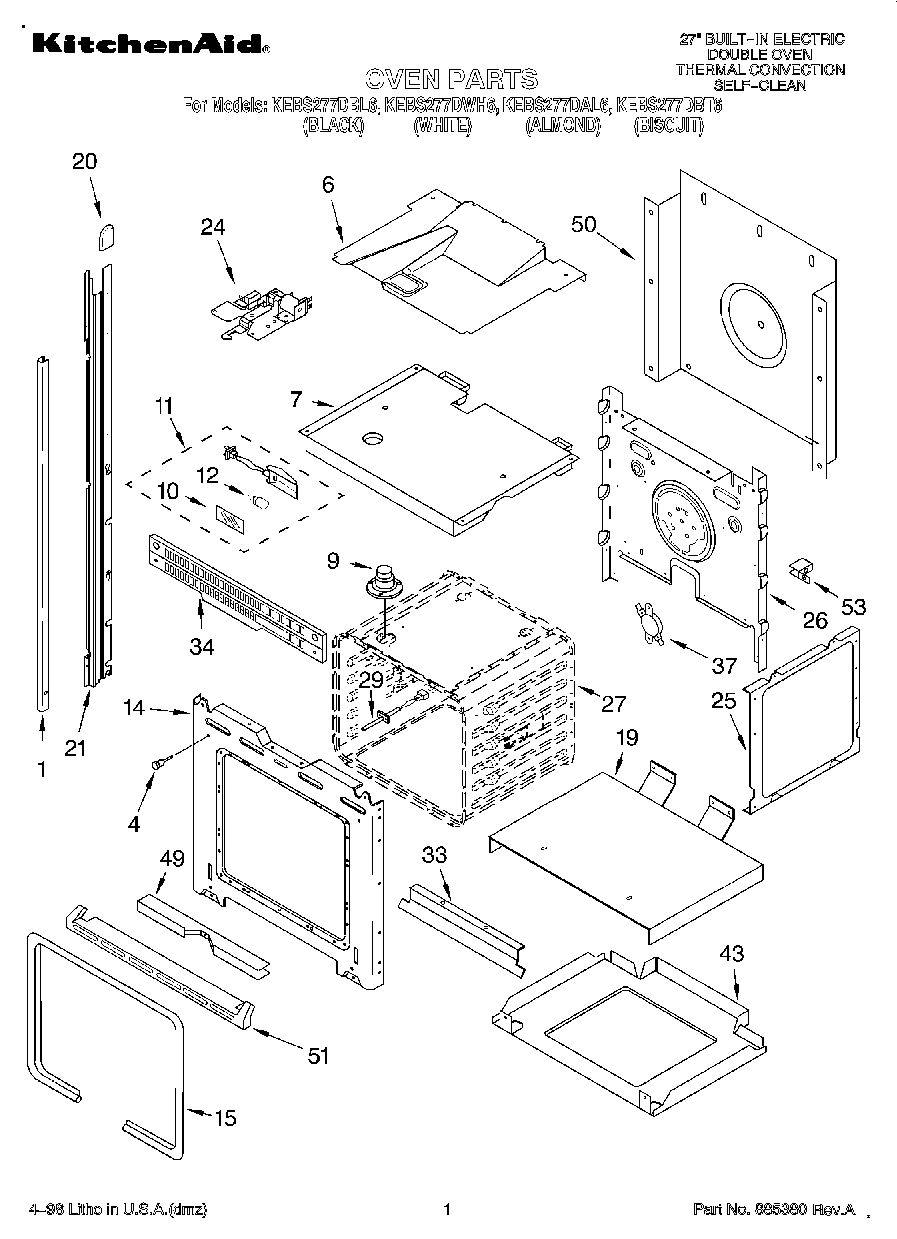

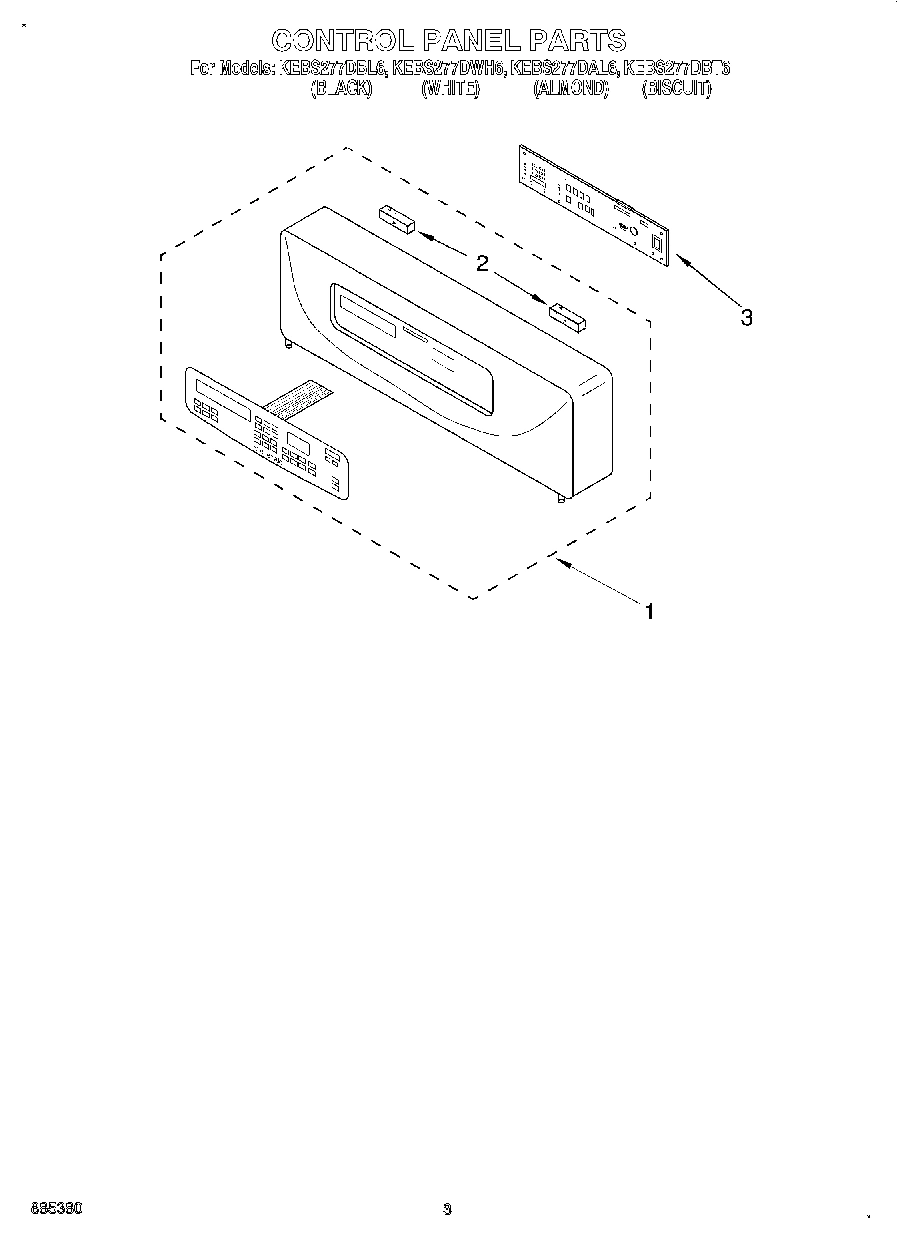

1

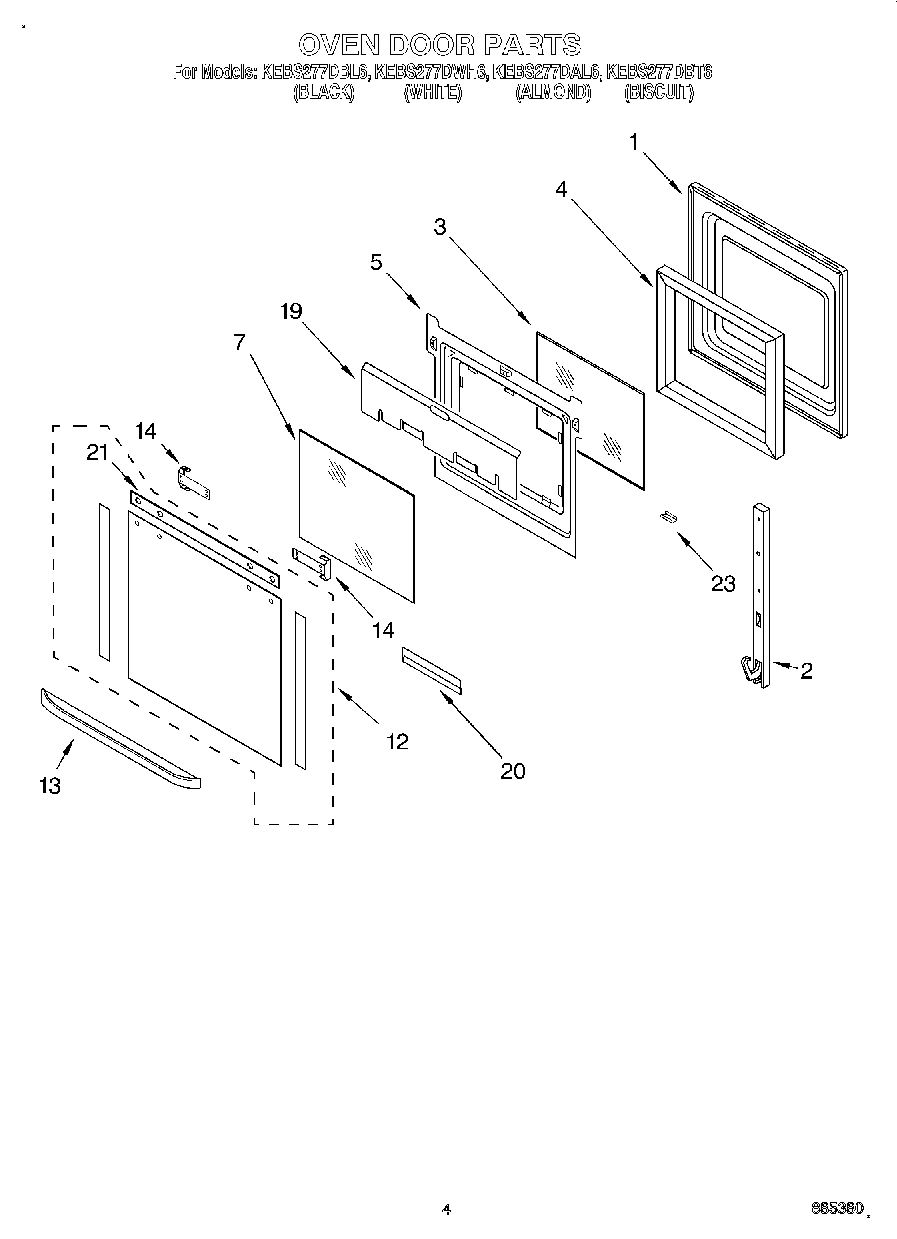

Door Liner WPL 4451718 Contact Us For Availability

2

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455523 Whirlpool Oven Door Hinge In Stock WPL WP4455523 $31.90

2

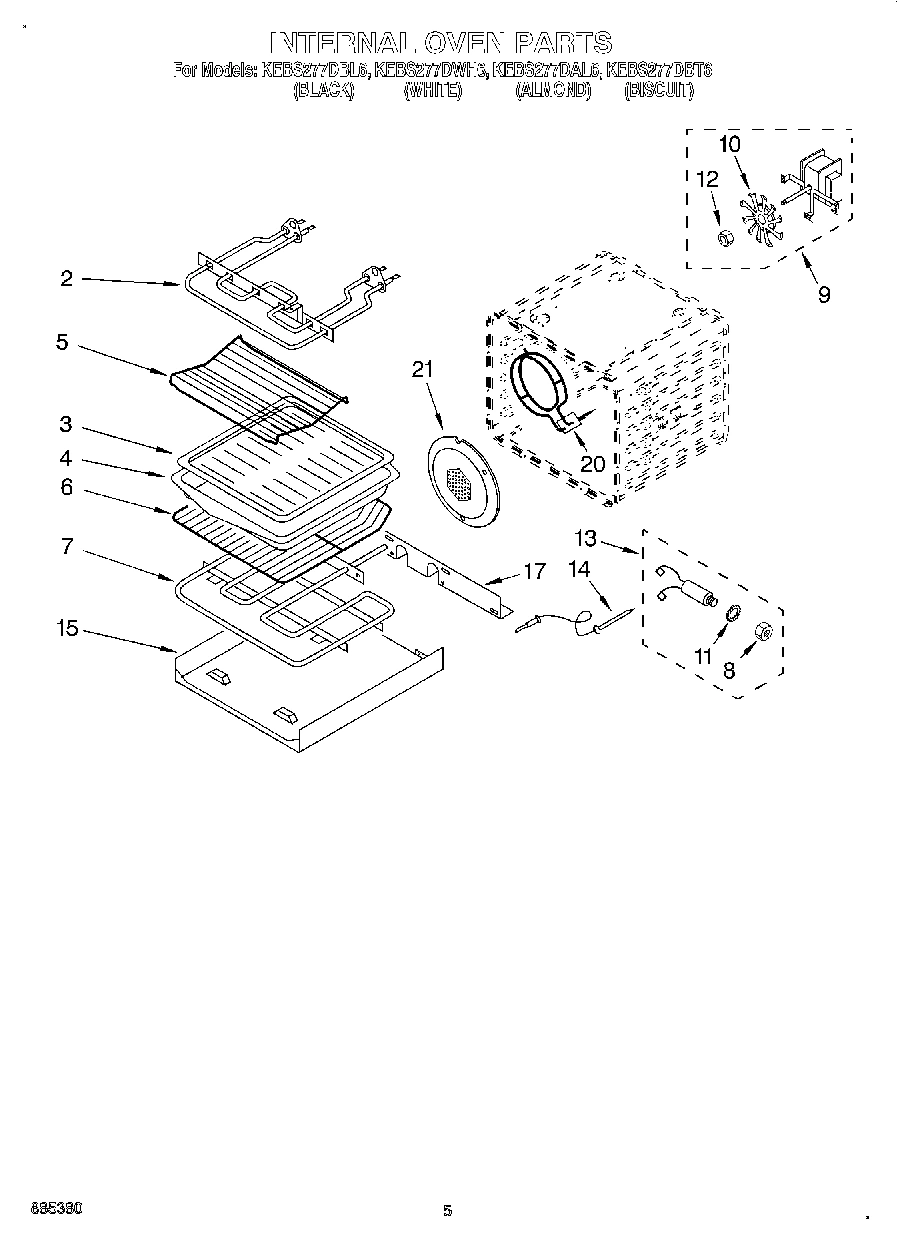

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

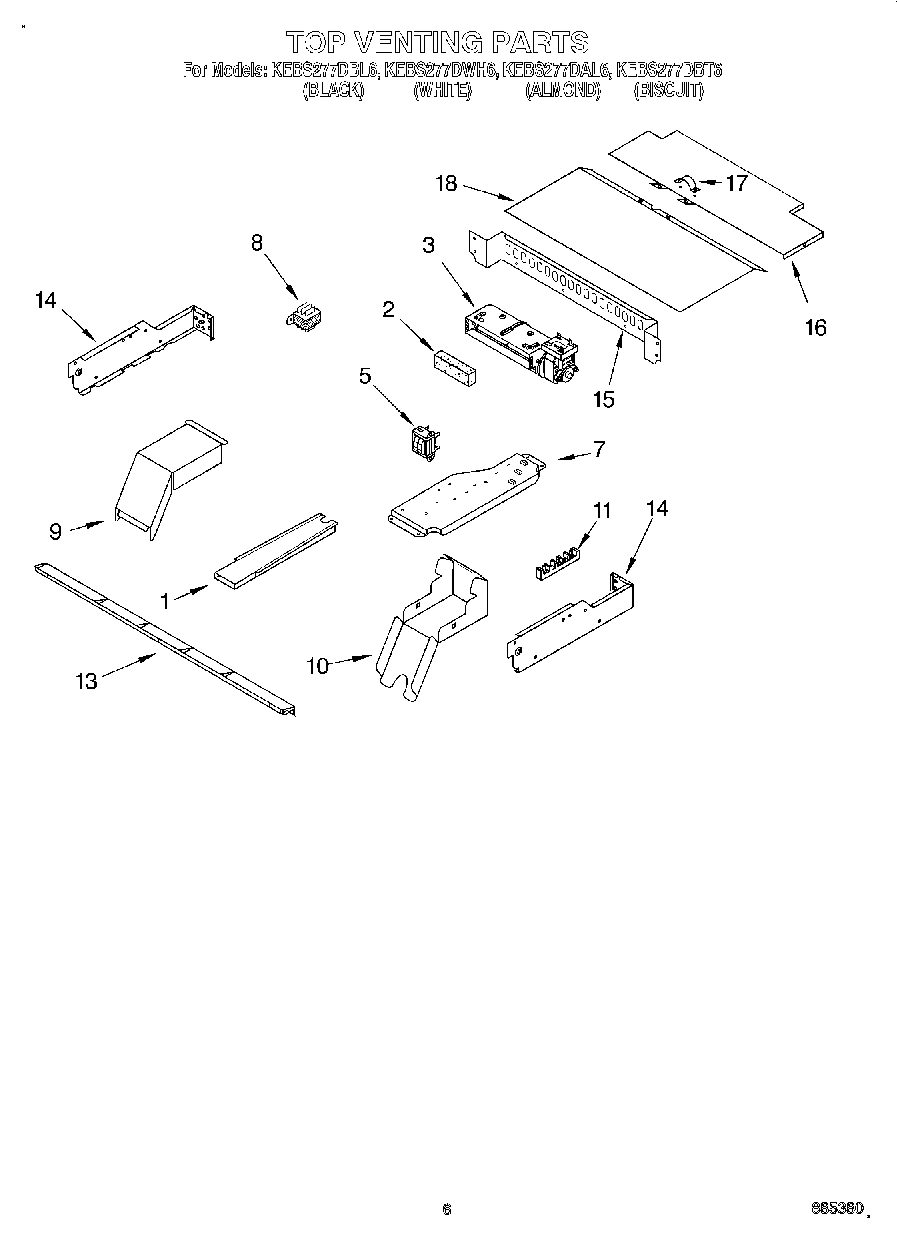

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Retainer, Glass WPL 4451670 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

7

Plate, Mounting WPL 4451789 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

8

Transformer, Control WPL 4450291 Contact Us For Availability

9

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

9

Convection Motor WPL 4451583 Contact Us For Availability

10

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Nut WPL 4452227 Contact Us For Availability

Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability

Door Glass, Assy (Almond) WPL 4452073 Contact Us For Availability

Door Glass, Assy (Biscuit) WPL 4452146 Contact Us For Availability

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black) WPL 4448411 Contact Us For Availability

Door Handle (White) WPL 4448412 Contact Us For Availability

Door Handle (Almond) WPL 4448413 Contact Us For Availability

Door Handle (Biscuit) WPL 4452128 Contact Us For Availability

Vent, (Control Panel) WPL 4448551 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

Tray, Bake WPL 4448722 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

Cover, Top Rear WPL 4450550 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

17

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

16515 Whirlpool Clip Backorder WPL 16515 $11.62

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4456654 Whirlpool Thermal Fuse In Stock WPL WP4456654 $13.65

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Conduit WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Cover, Top Front WPL 4450553 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Latch) WPL 4452239 Contact Us For Availability

Harness, Wire (Main) WPL 4454927 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Retainer, Glass WPL 4451668 Contact Us For Availability

21

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

21

Seal, Door Top WPL 4451673 Contact Us For Availability

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Almond) WPL 4450865 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

24

Latch Assembly WPL 4451424 Contact Us For Availability

24

Solenoid WPL 4451663 Contact Us For Availability

25

Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability

26

Back, Chassis WPL 4451545 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83505A1 Contact Us For Availability

29

Sensor WPL 4450026 Contact Us For Availability

33

Deflector, Vent WPL 4450280 Contact Us For Availability

34

Vent, Center WPL 4452161 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

Base, Chassis WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability

Trim, Bottom (Black) WPL 4448458 Contact Us For Availability

Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability

Trim, Bottom (Almond Model) WPL 4448460 Contact Us For Availability

Trim, Bottom (Biscuit) WPL 4452126 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

Insulation, Wrap WPL 4449315 Contact Us For Availability

BRACKET-SUPPORT WPL 4449845 Contact Us For Availability

Insulation, Back WPL 4450364 Contact Us For Availability
