Model Whirlpool KEBS247DWH2 – Common Parts & Diagrams
03 - OVEN DOOR
01 - OVEN

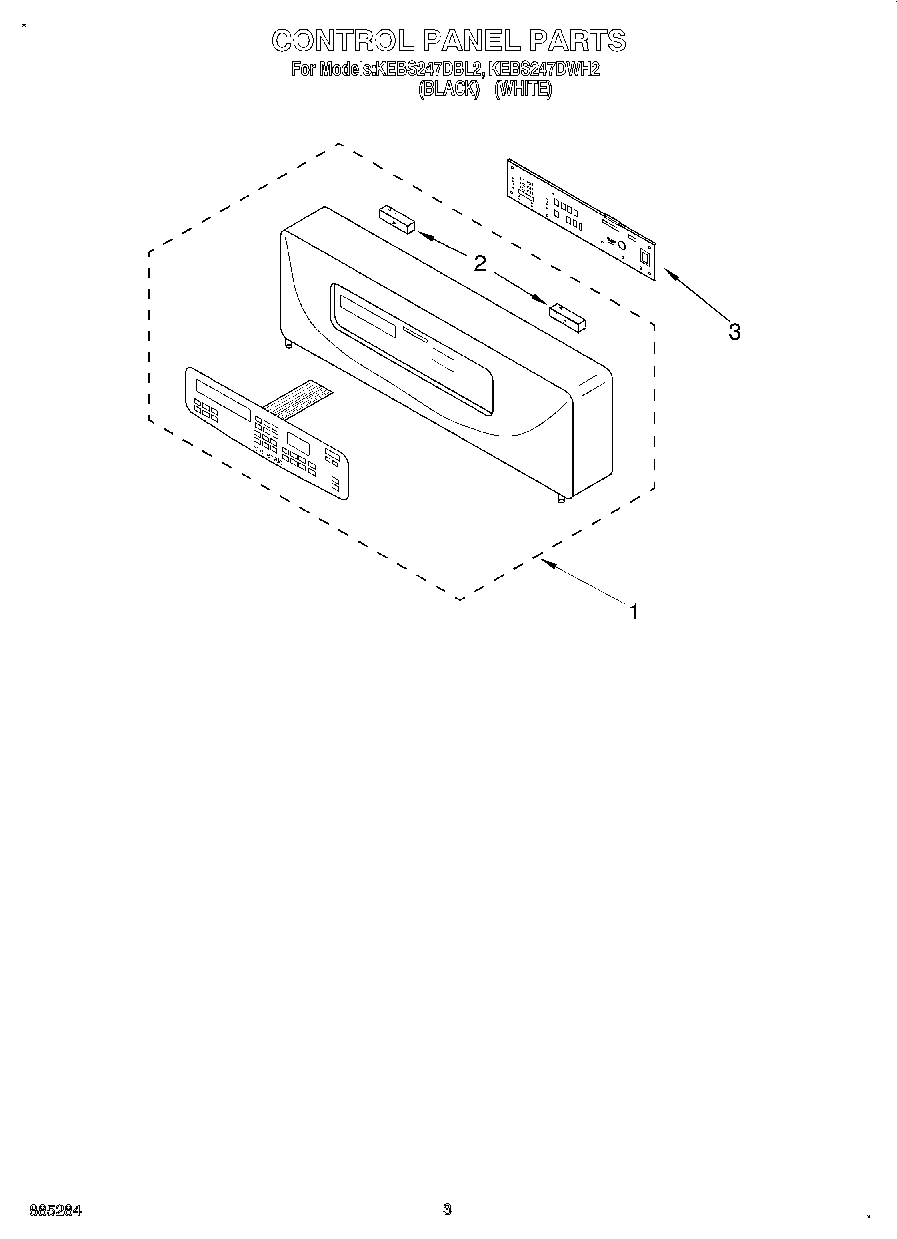

02 - CONTROL PANEL, LITERATURE

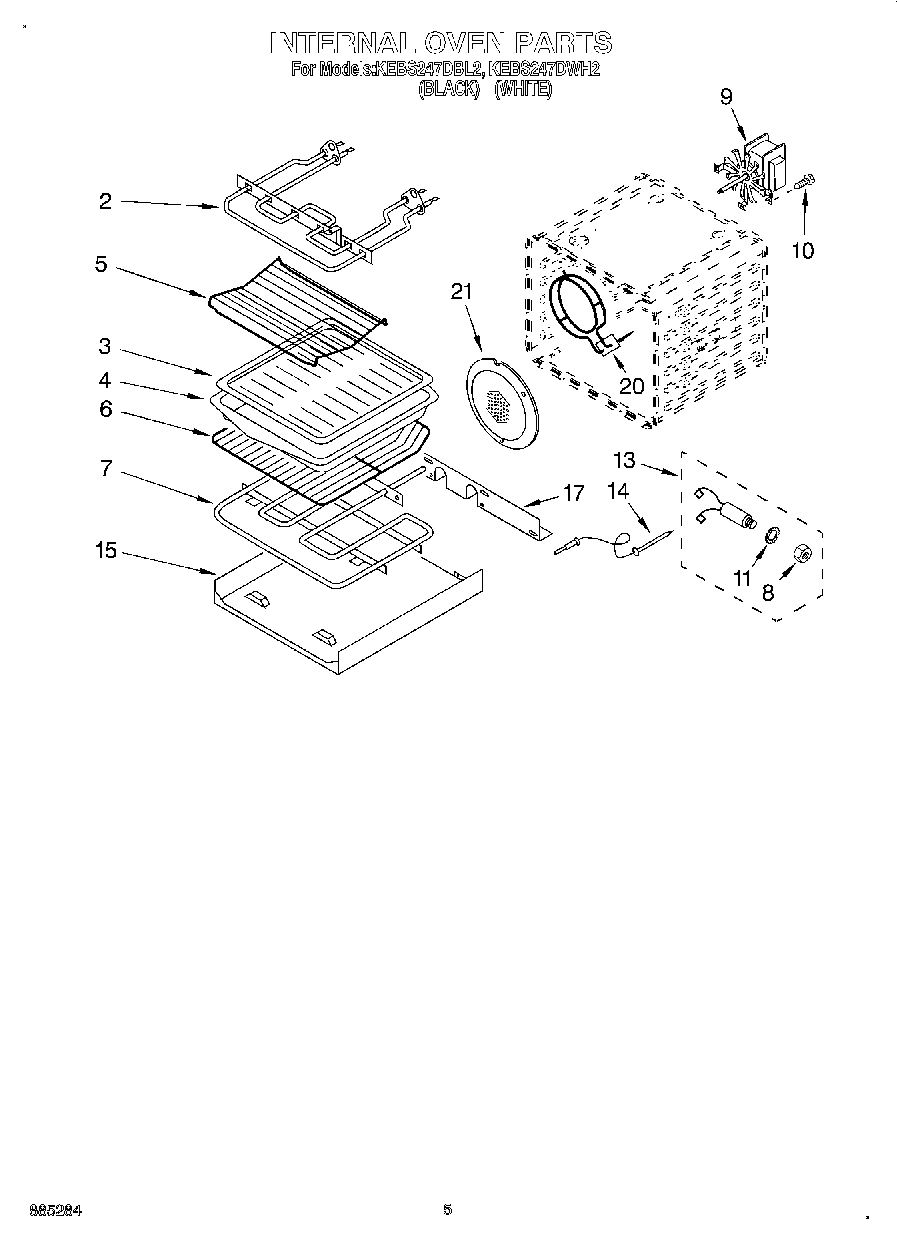

04 - INTERNAL OVEN

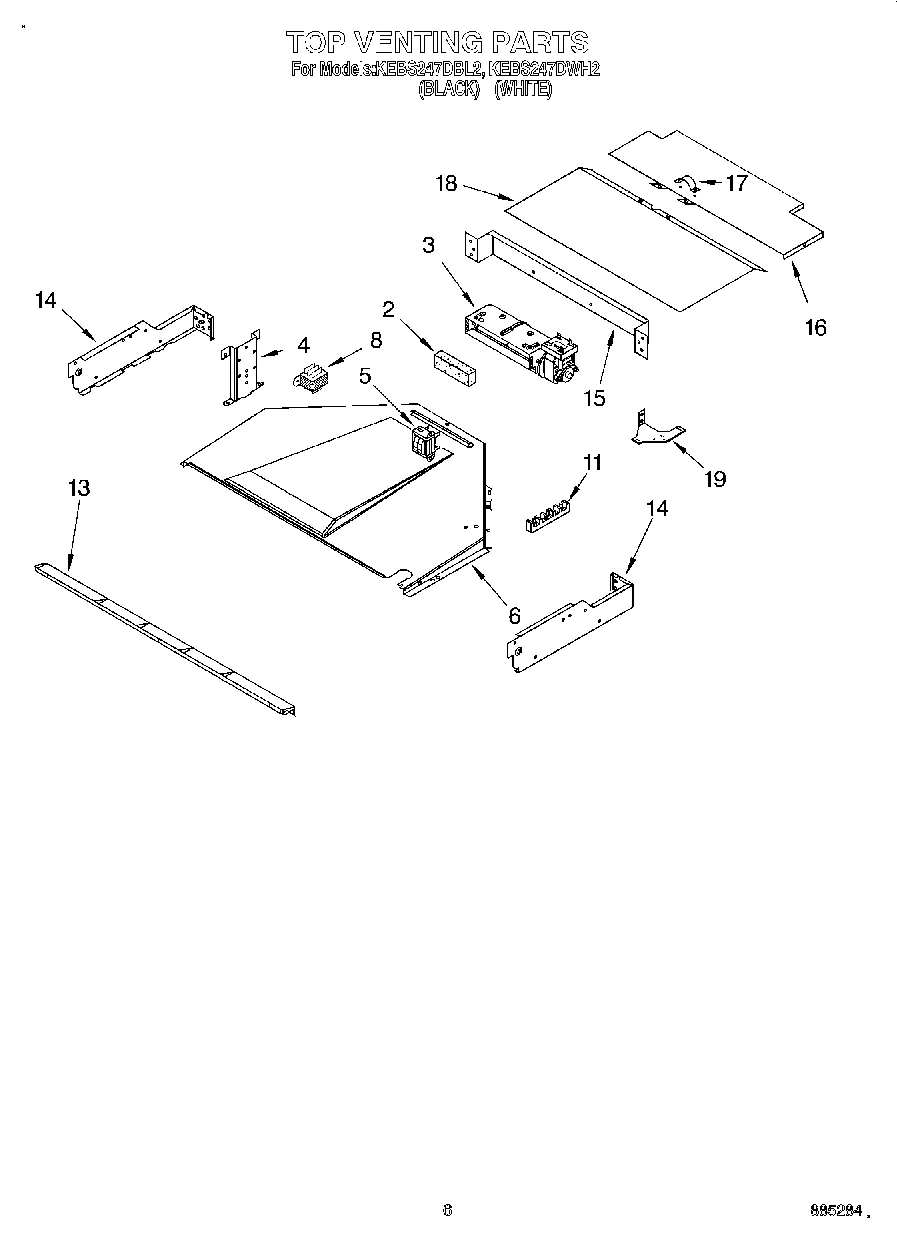

05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool KEBS247DWH2
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450409 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4454771 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (Black WPL 4451288 Contact Us For Availability
1
Control Panel Assy. W/Membrane, Switch (White WPL 4451289 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451032 Contact Us For Availability
2
Foam, Block WPL 3182384 Contact Us For Availability
3
Microcomputer WPL 4448871 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
4
Bracket, Transformer WPL 4450066 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Exhaust Duct WPL 4450546 Contact Us For Availability
7
Glass, Inner (2) WPL 4449251 Contact Us For Availability
8
Transformer, Control WPL 4450291 Contact Us For Availability
9
Convection Motor WPL 4448952 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448550 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
18
Cover, Top Front WPL 4450552 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
19
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4454709 Contact Us For Availability
19
Harness, Wire (Main) WPL 4454797 Contact Us For Availability
19
ADHESIVE LOCTITE (1/3 OZ WPL 591014 Contact Us For Availability
19
WPL 814387 WPL 814387 Contact Us For Availability
22
Shield, Latch WPL 4451036 Contact Us For Availability
23
Deflector, Latch WPL 4450051 Contact Us For Availability
24
Latch Assy WPL 4454710 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4450528 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83465A9 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
34
Vent, Center WPL 4449046 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4450289 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448455 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448456 Contact Us For Availability
52
Extension, Vent (Upper Oven) WPL 4450795 Contact Us For Availability
52
Extension, Vent (Lower Oven) WPL 4450797 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
