Model Whirlpool KEBS208DBS9 – Common Parts &amp; Diagrams

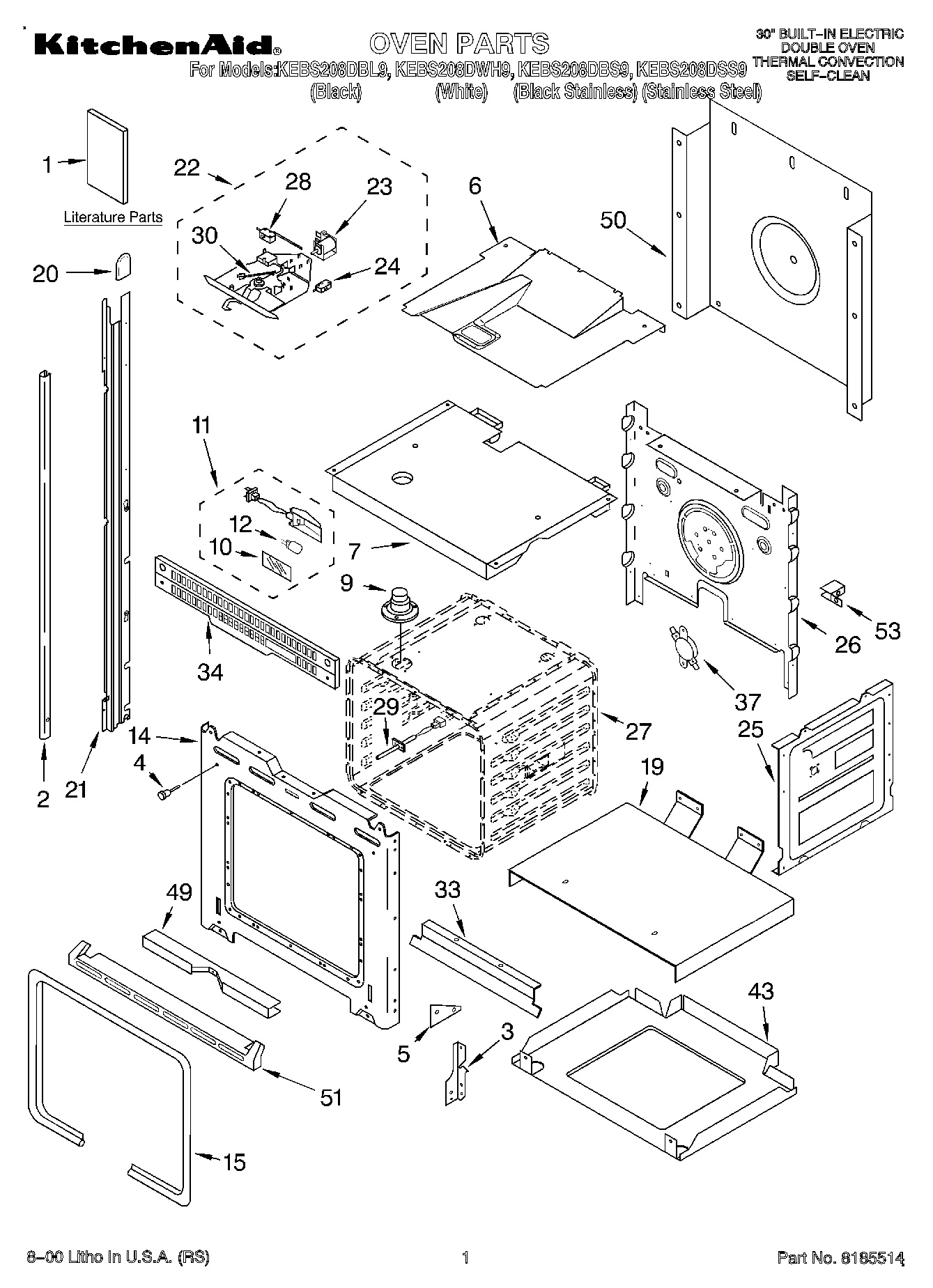

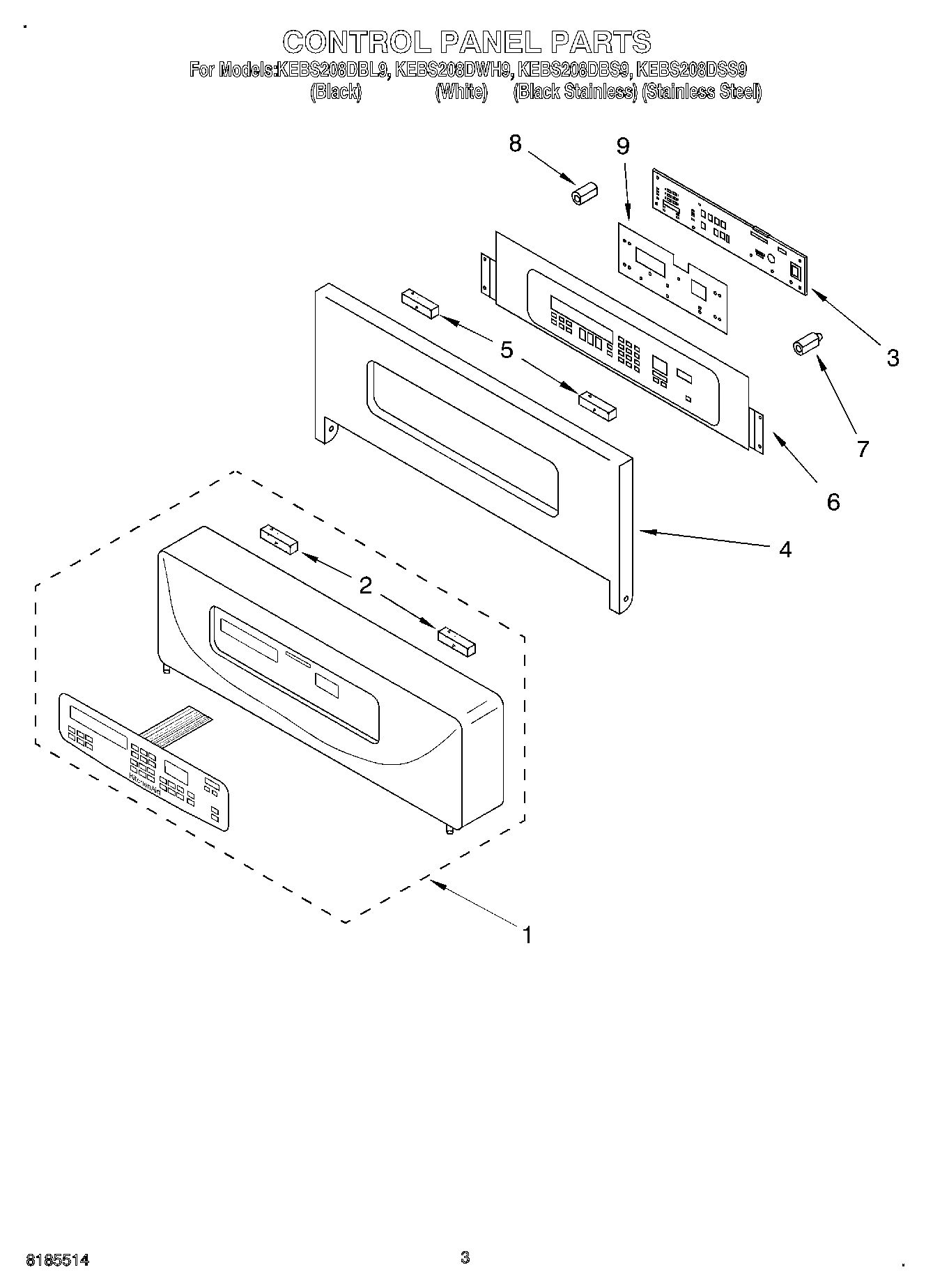

1

Control Panel Assy W/Membrane, Switch (White WPL 8300377 Contact Us For Availability

1

Control Panel Assy W/Membrane, Switch (Black WPL 8300378 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451879 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability

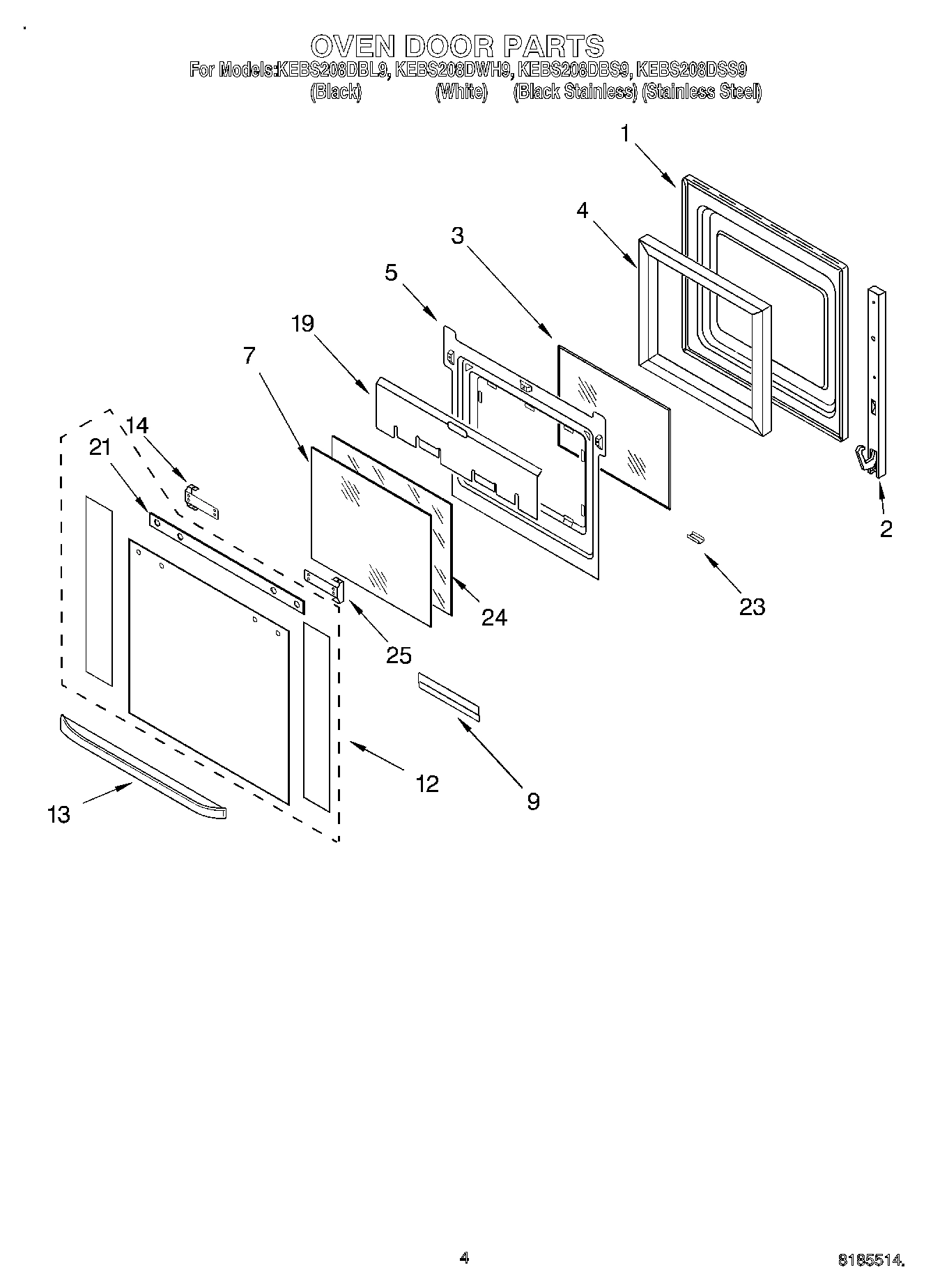

2

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $41.25

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $49.56

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

2

Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black & BS Mdls) WPL 4450850 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black & BS Mdls) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Stainless Steel) WPL 4452081 Contact Us For Availability

2

Trim, Side (LH Stainless Steel) WPL 4452082 Contact Us For Availability

3

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability

3

Microcomputer WPL 4453165 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Panel, Control WPL 4451791 Contact Us For Availability

5

WP4455509 Whirlpool Support Bracket Backorder WPL WP4455509 $27.76

5

Spacer, Foam WPL 4452260 Contact Us For Availability

5

Retainer, Glass WPL 4451671 Contact Us For Availability

6

Membrane Switch WPL 4452379 Contact Us For Availability

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Insulation, Board WPL 4452248 Contact Us For Availability

7

Top, Chassis WPL 4455286 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

Insulation, Board Support WPL 4452249 Contact Us For Availability

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

9

Insulator, Dialectric WPL 4455251 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $143.45

Door Glass, Assy (White Model) WPL 4452075 Contact Us For Availability

Door Glass, Assy (Black-Stainless) WPL 4452078 Contact Us For Availability

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

Door Handle (Black & BS Models) WPL 4448414 Contact Us For Availability

Handle, Door (White Model) WPL 4448415 Contact Us For Availability

Door Handle (Stainless Steel) WPL 4452088 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4451740 Contact Us For Availability

Screw WPL 4451040 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Tray, Bake WPL 4455037 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire (Latch) WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

WPL 4455620 WPL 4455620 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

Shield, Heat WPL 4450362 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4451674 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

23

Retainer, Clip (Black & BS Models) WPL 4450863 Contact Us For Availability

23

Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

25

Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability

25

Bracket, Handle Stainles Steel (Left Hand) WPL 4452488 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83396A7 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

W10145009 Whirlpool Vent Deflector Backorder WPL W10145009 $30.07

33

Deflector, Vent WPL 4451619 Contact Us For Availability

34

WPL 4452267 WPL 4452267 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

WPL 4455530 WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WPL 4448477 WPL 4448477 Contact Us For Availability

WPL 4448478 WPL 4448478 Contact Us For Availability

WPL 4452481 WPL 4452481 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability
