Model Whirlpool KEBS208DBL9 – Common Parts & Diagrams
03 - OVEN DOOR
05 - TOP VENTING

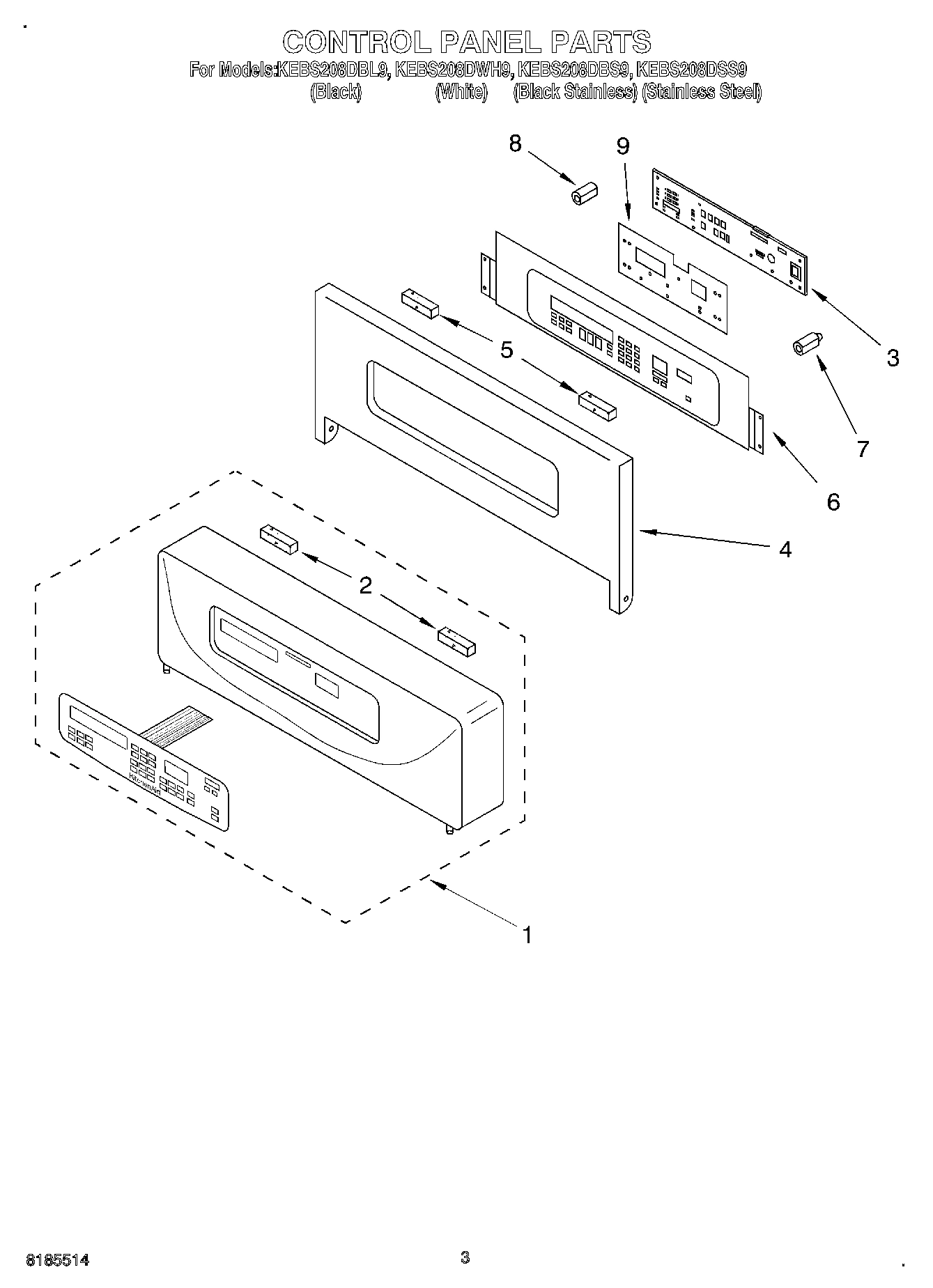

02 - CONTROL PANEL

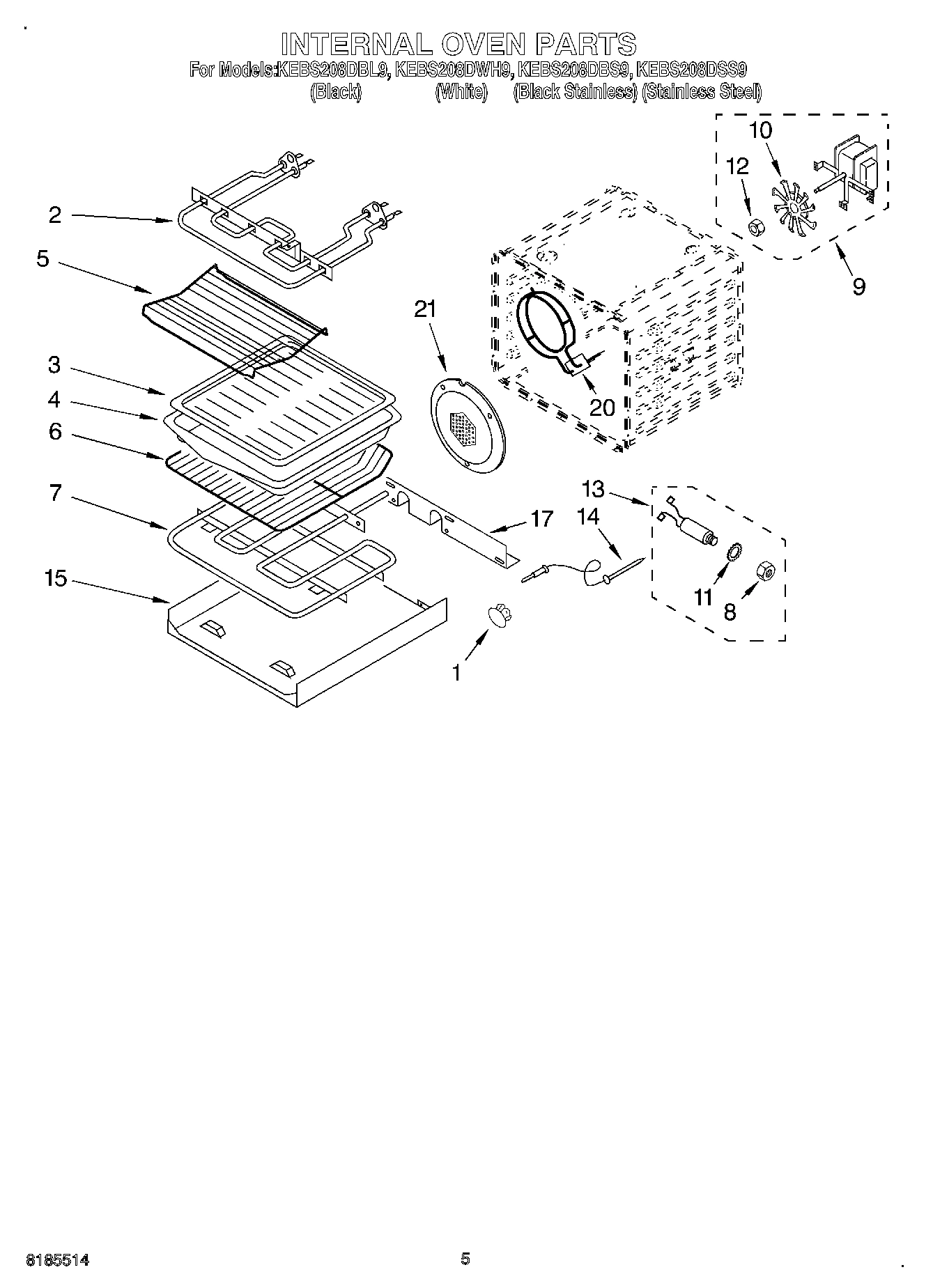

04 - INTERNAL OVEN

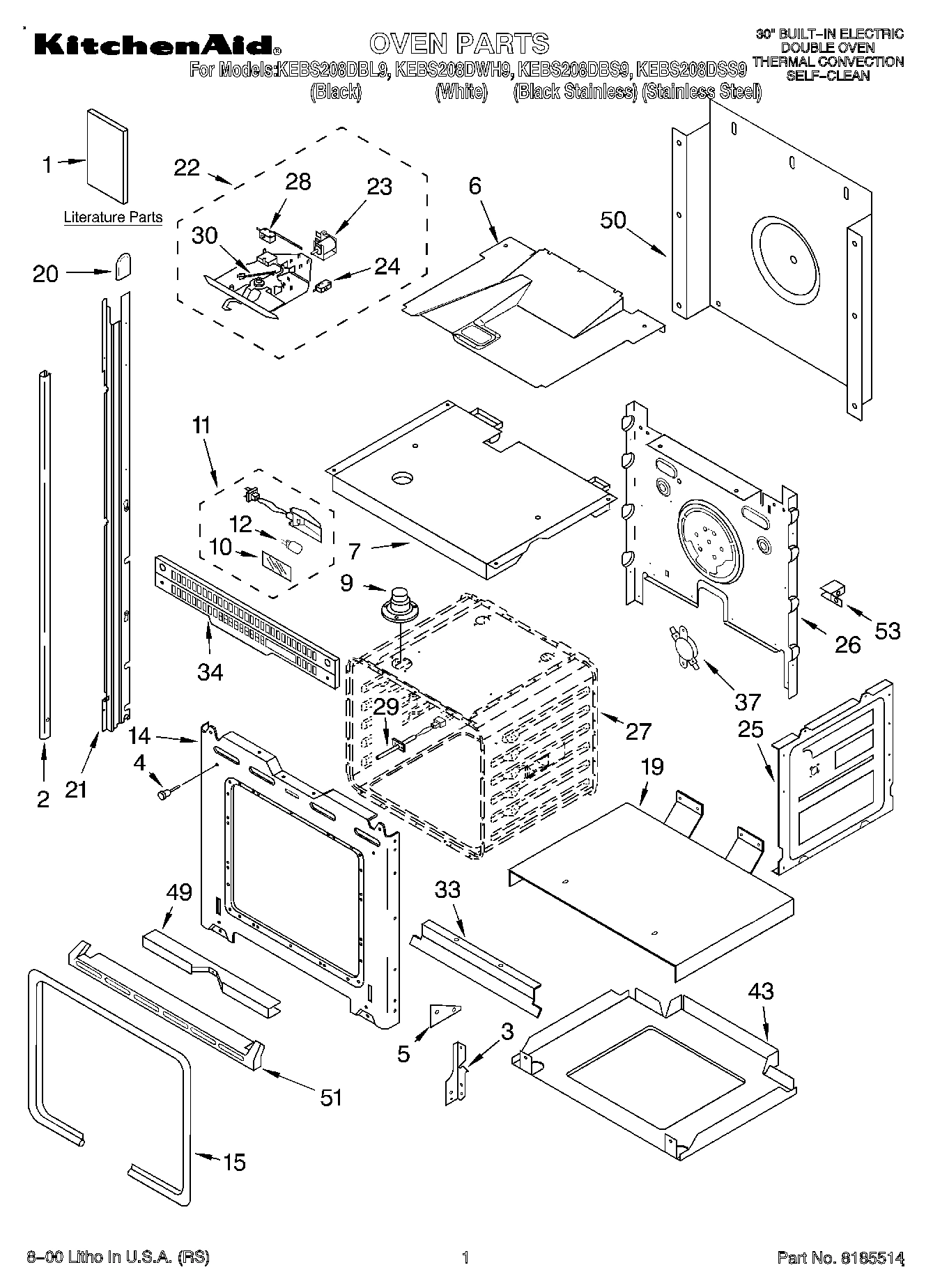

01 - OVEN, LITERATURE
Common parts from model Whirlpool KEBS208DBL9
1
Control Panel Assy W/Membrane, Switch (White WPL 8300377 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (Black WPL 8300378 Contact Us For Availability
1
Plug, Button WPL 4448982 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Cookbook (T/C Oven)) WPL LIT4449066 Contact Us For Availability
1
Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4451879 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
2
Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability
2
Trim, Side (RH Black & BS Mdls) WPL 4450850 Contact Us For Availability
2
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
2
Trim, Side (LH Black & BS Mdls) WPL 4450853 Contact Us For Availability
2
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
2
Trim, Side (RH Stainless Steel) WPL 4452081 Contact Us For Availability
2
Trim, Side (LH Stainless Steel) WPL 4452082 Contact Us For Availability
3
Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability
3
Microcomputer WPL 4453165 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4455594 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4455595 Contact Us For Availability
4
Panel, Control WPL 4451791 Contact Us For Availability
5
Spacer, Foam WPL 4452260 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
6
Membrane Switch WPL 4452379 Contact Us For Availability
6
Divider, Vent WPL 4452201 Contact Us For Availability
7
Insulation, Board WPL 4452248 Contact Us For Availability
7
Top, Chassis WPL 4455286 Contact Us For Availability
8
Insulation, Board Support WPL 4452249 Contact Us For Availability
9
Fan, Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
9
Insulator, Dialectric WPL 4455251 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
15
Tray, Bake WPL 4455037 Contact Us For Availability
19
Conduit, Double WPL 4450953 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Harness, Wire (Latch) WPL 4451926 Contact Us For Availability
19
Spacer, Harness WPL 4452222 Contact Us For Availability
19
WPL 4455620 WPL 4455620 Contact Us For Availability
19
WPL 591014 WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Glass, Inner WPL 4455257 Contact Us For Availability
24
Microswitch N.C. WPL 4452312 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83390A7 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
34
WPL 4452267 WPL 4452267 Contact Us For Availability
43
WPL 4455530 WPL 4455530 Contact Us For Availability
51
WPL 4448477 WPL 4448477 Contact Us For Availability
51
WPL 4448478 WPL 4448478 Contact Us For Availability
51
WPL 4452481 WPL 4452481 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
53
WPL 4450365 WPL 4450365 Contact Us For Availability
× ![]()
