Model Whirlpool KEBS207DBL11 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

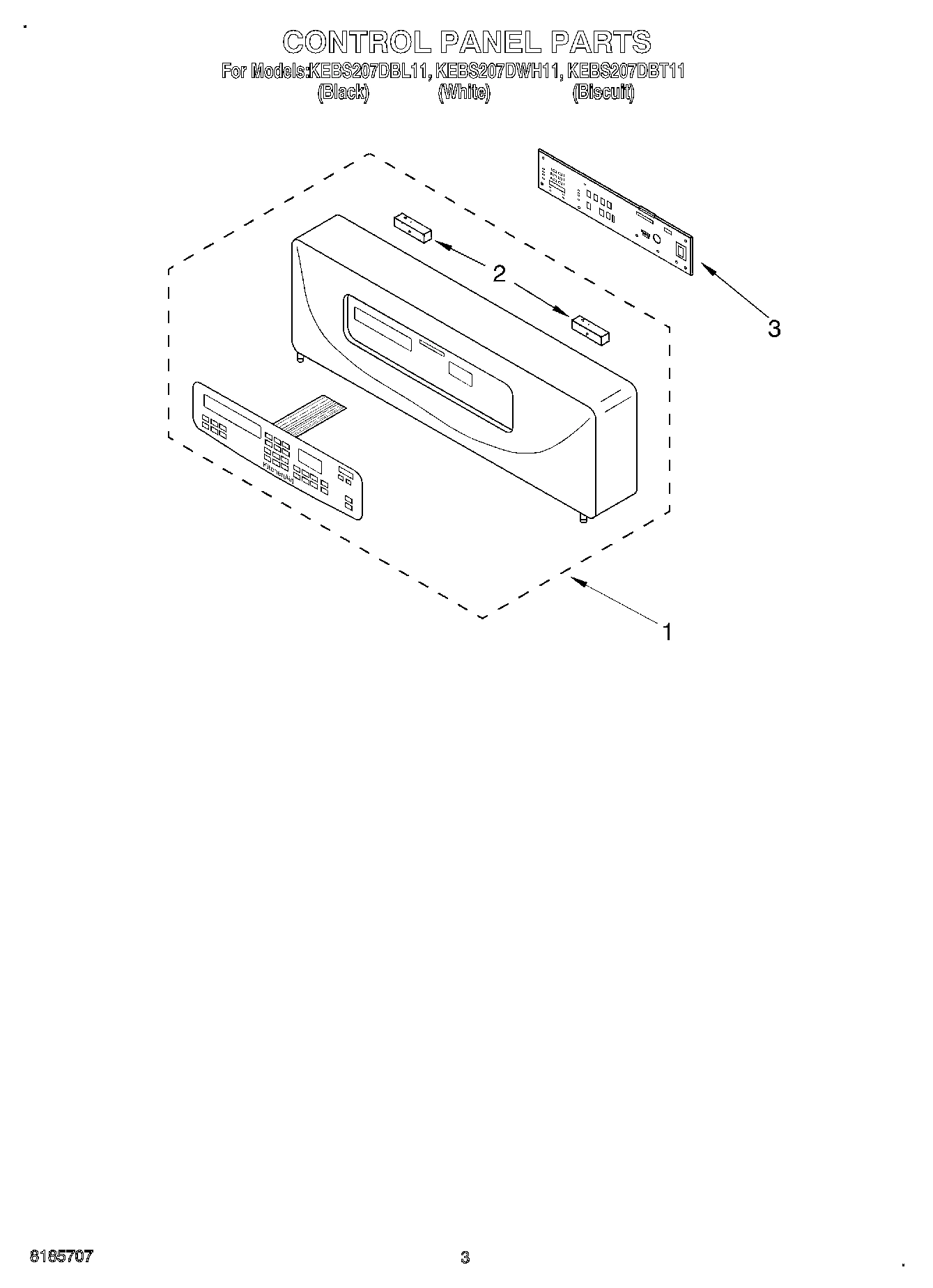

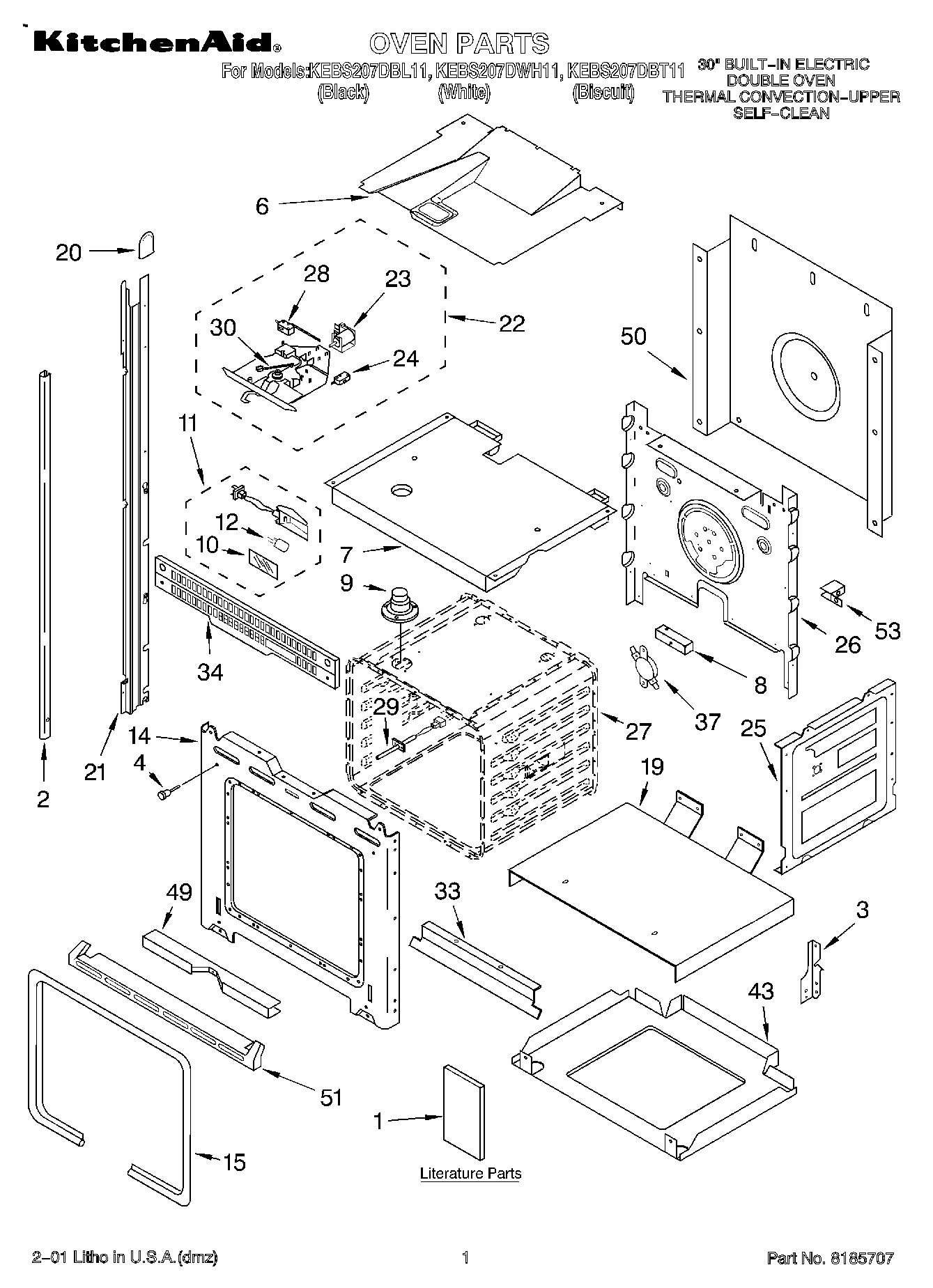

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300374 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White) WPL 8300375 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black) WPL 8300376 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability

1

Literature Parts (Tech Sheet (Oven)) WPL LIT4451879 Contact Us For Availability

1

Literature Parts (Use & Care Guide (T/C Oven) WPL LIT4451952 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $43.32

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $130.60

2

Gasket, Control Panel WPL 4451034 Contact Us For Availability

2

Trim, Side (Screw) (White & Almond) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450850 Contact Us For Availability

2

Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450853 Contact Us For Availability

2

Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4452122 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4452123 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Microcomputer WPL 4453165 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $58.95

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $51.37

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $101.31

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

7

Top, Chassis WPL 4455286 Contact Us For Availability

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

8

Spacer, Foam WPL 4452260 Contact Us For Availability

9

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

Convection Motor WPL 4451583 Contact Us For Availability

10

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

12

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $63.44

13

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $2.51

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $58.23

Bracket, Handle WPL 4450813 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $26.72

15

Tray, Bake WPL 4455037 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $30.25

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Harness, Wire WPL 4451926 Contact Us For Availability

WPL 4452222 WPL 4452222 Contact Us For Availability

WPL 4455726 WPL 4455726 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

19

Support, Insulation WPL 4451478 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $133.70

20

Retainer, Glass WPL 4451668 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $90.90

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $90.99

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $106.90

22

Latch Assembly WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI83312A3 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

Deflector, Vent WPL 4451619 Contact Us For Availability

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WPL 4448477 WPL 4448477 Contact Us For Availability

WPL 4448478 WPL 4448478 Contact Us For Availability

WPL 4452415 WPL 4452415 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability
