Model Whirlpool KEBS107DBT8 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts & Diagrams

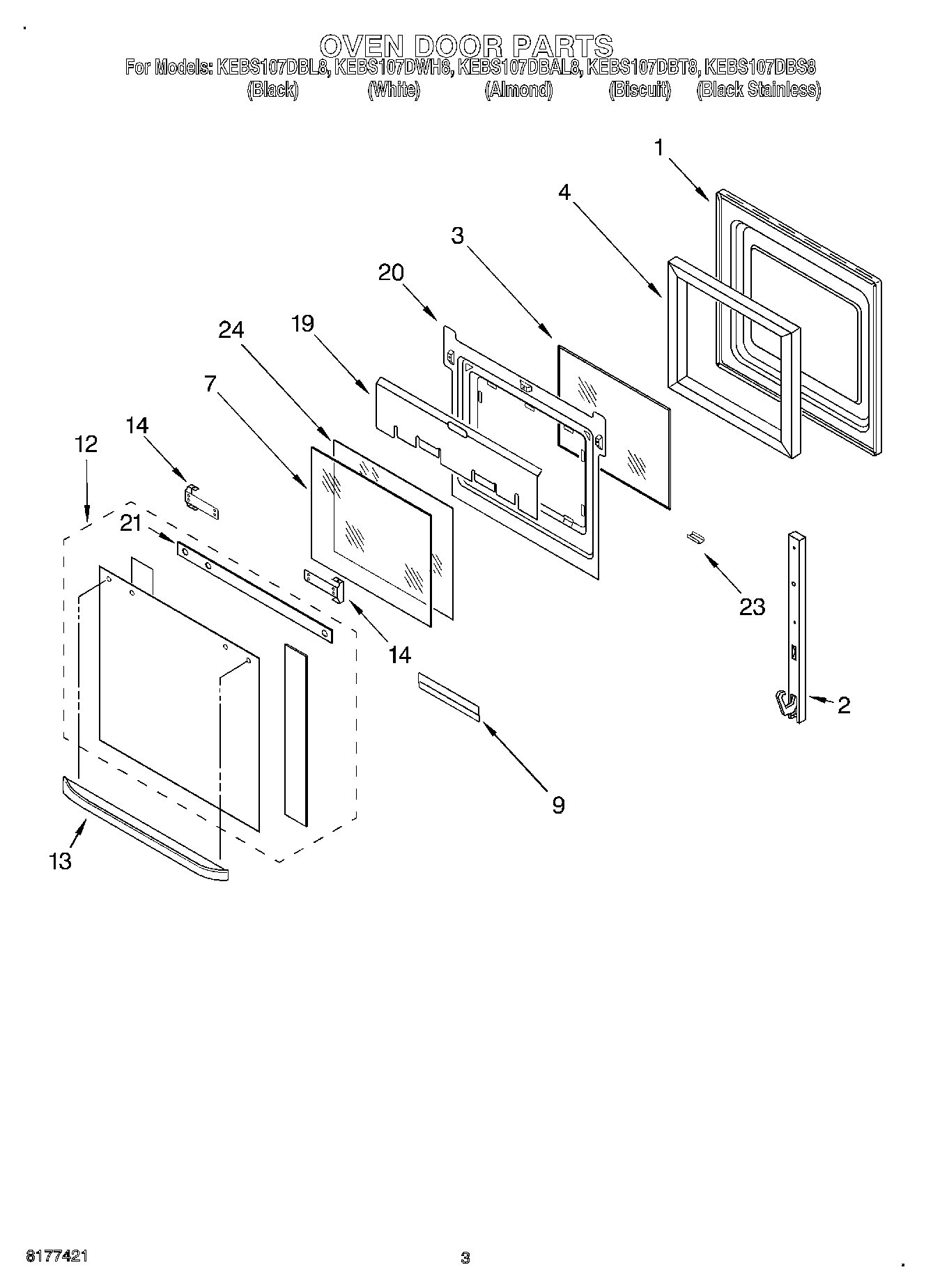

02 - OVEN DOOR

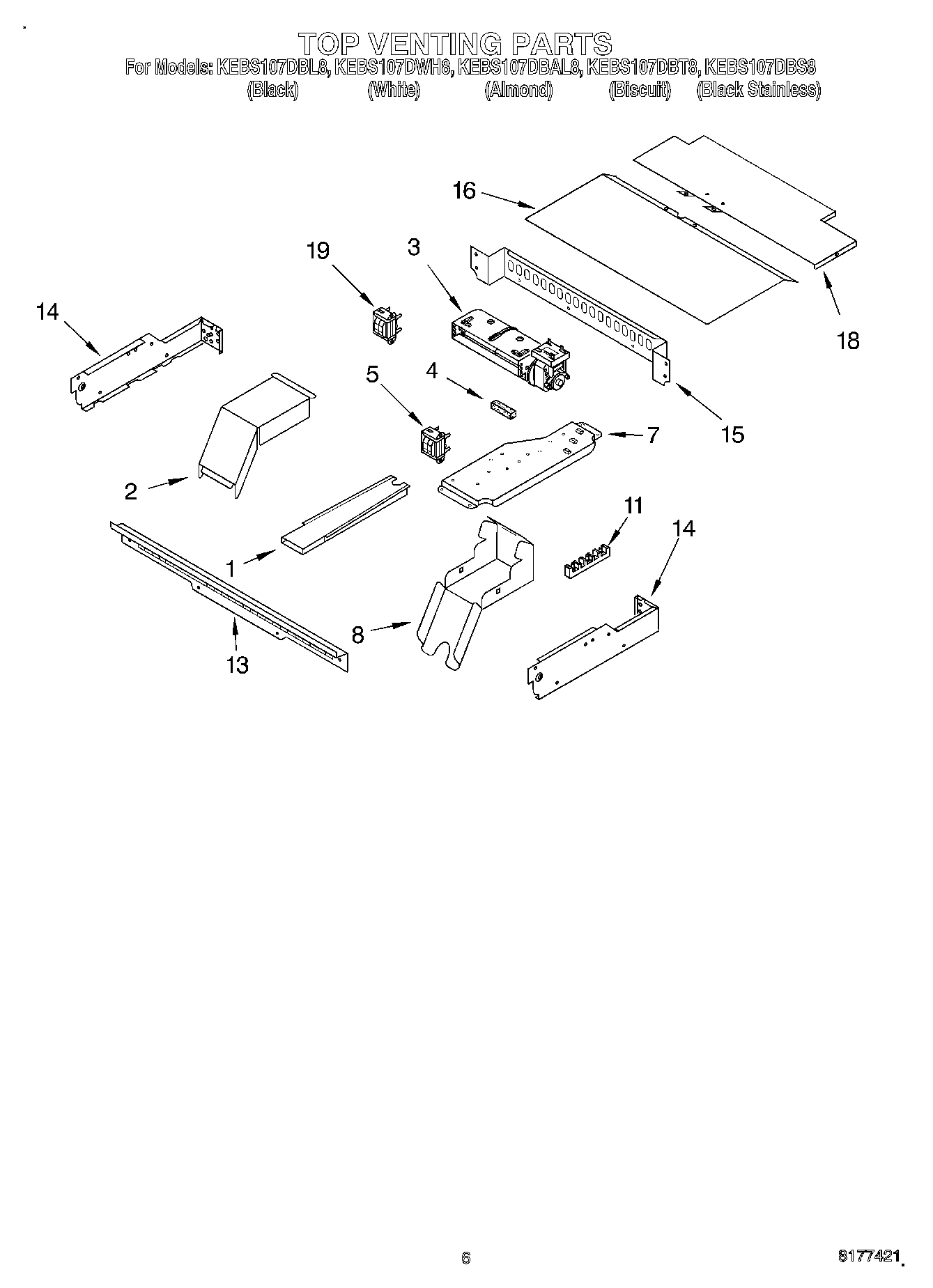

05 - TOP VENTING, OPTIONAL

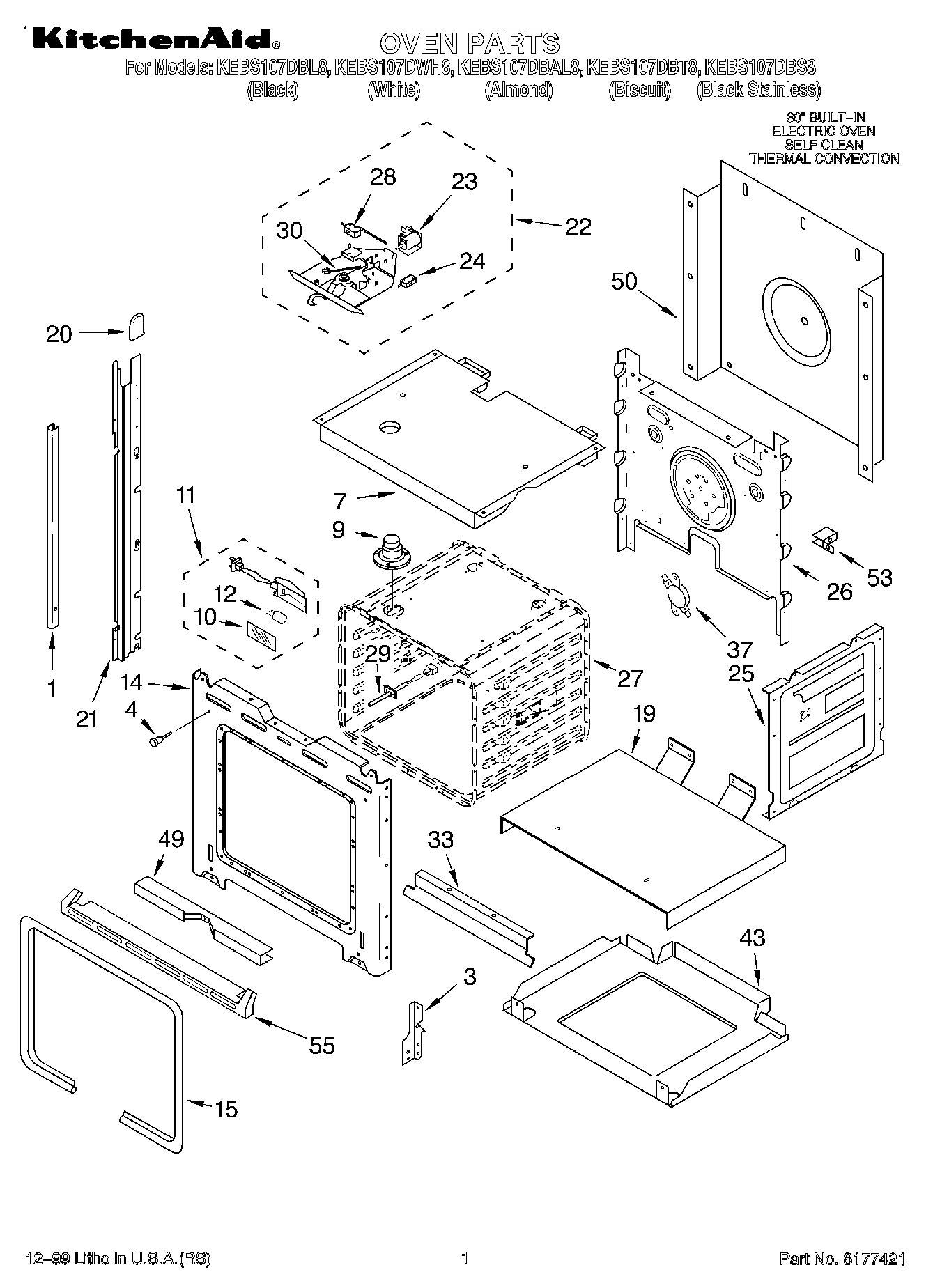

01 - OVEN

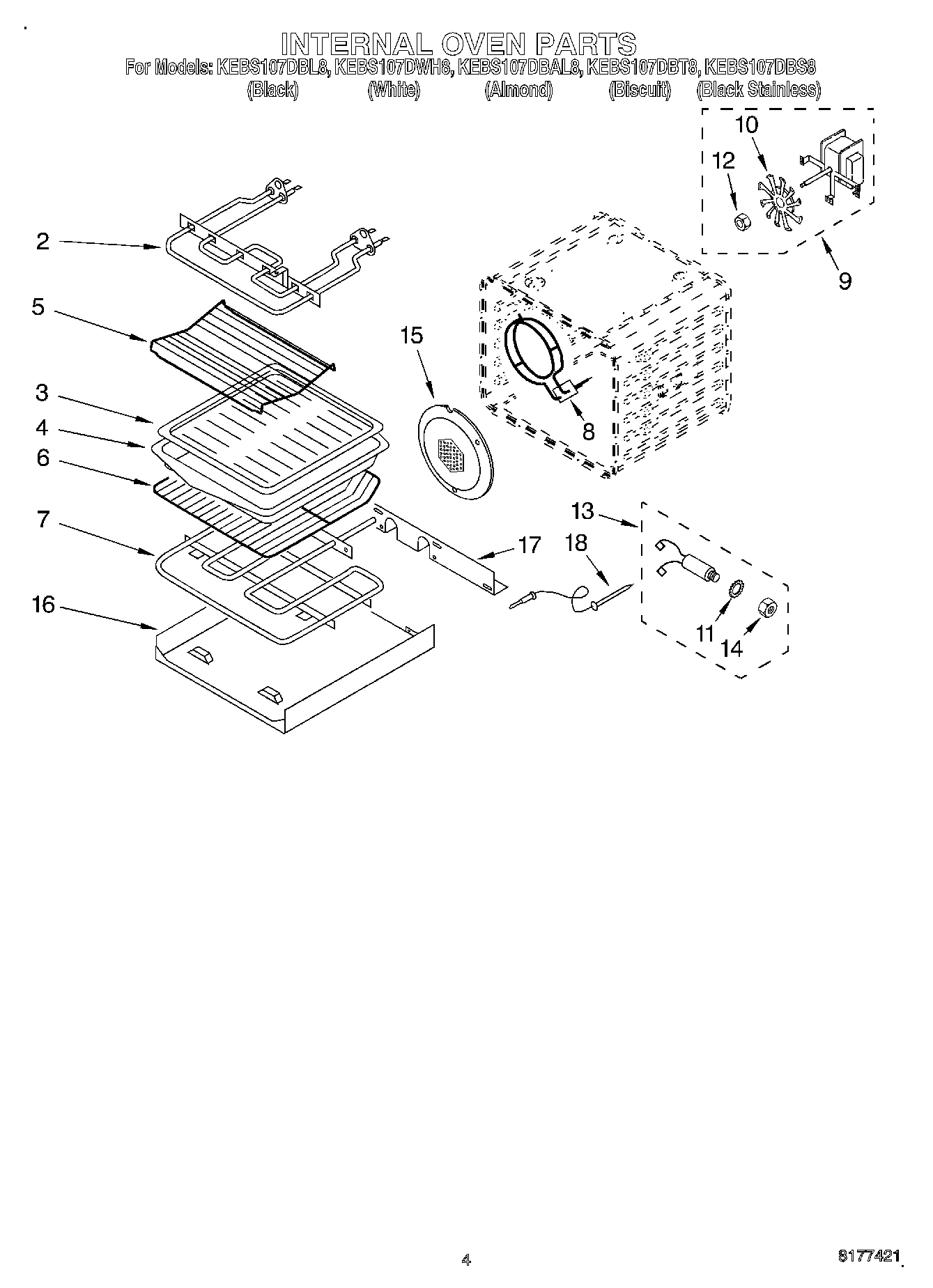

03 - INTERNAL OVEN

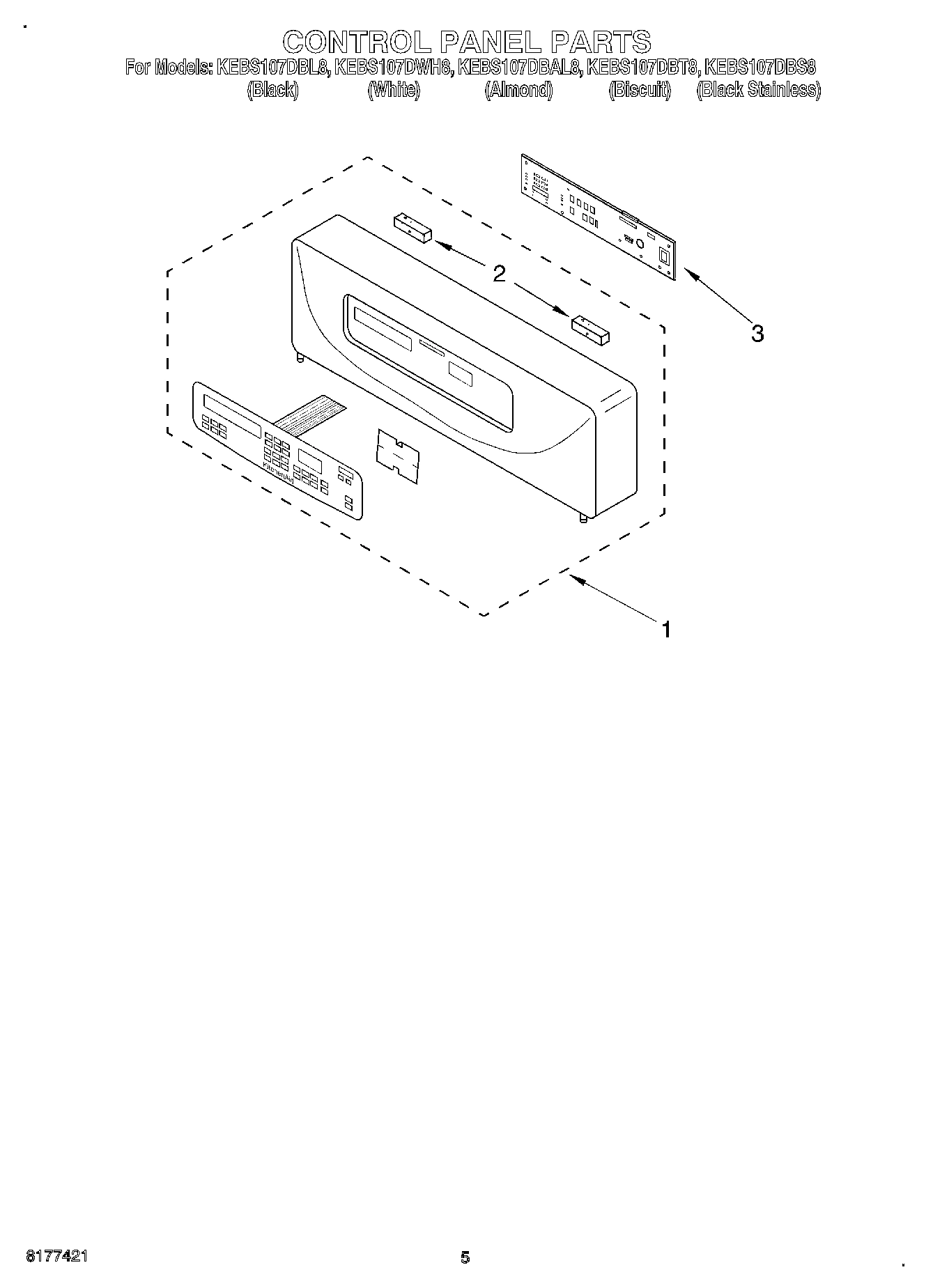

04 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool KEBS107DBT8 BUILT-IN ELECTRIC SINGLE OVEN
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Installation/ Undercounter WPL LIT3192225 Contact Us For Availability
Cookbook T/C WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Installation, MWO Trim Kit WPL LIT4450841 Contact Us For Availability
Tech Sheet WPL LIT4451876 Contact Us For Availability
Use & Care Guide WPL LIT4451952 Contact Us For Availability
1
Trim, Side (Right Hand) (Screw) WPL 4449041 Contact Us For Availability
1
Trim, Side (Right Hand) (Black & BS Models) WPL 4450844 Contact Us For Availability
1
Trim, Side (White, Right) WPL 4450845 Contact Us For Availability
1
Trim, Side (Right Hand) (Almond Model) WPL 4450846 Contact Us For Availability
1
Trim, Side ((Left Hand)) (Black & BS Models) WPL 4450847 Contact Us For Availability
1
Trim, Side (Left Hand) (White Model) WPL 4450848 Contact Us For Availability
1
(Trim, Side (Left Hand)) (Almond Model) WPL 4450849 Contact Us For Availability
1
Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability
1
Trim, Side (Left Hand) (Biscuit Model) WPL 4452121 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451908 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451911 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Almond WPL 4451913 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Biscui WPL 4451915 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Blower WPL 4455334 Contact Us For Availability
3
Reciever, Hinge (Left Hand) WPL 4454664 Contact Us For Availability
3
Reciever, Hinge (Right Hand) WPL 4454665 Contact Us For Availability
3
Microcomputer WPL 4451845 Contact Us For Availability
5
Rack, Roasting WPL 3181534 Contact Us For Availability
7
Top, Chassis WPL 4455190 Contact Us For Availability
9
Motor Convection WPL 4451583 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
12
Nut WPL 4452227 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
16
Tray, Hidden Bake WPL 4455037 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
19
Spacer, Harness WPL 4452222 Contact Us For Availability
19
Harness, Wire (Main) WPL 4452790 Contact Us For Availability
19
ADHESIVE LOCT WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
22
Latch Assembly WPL 4451896 Contact Us For Availability
23
Solenoid WPL 4452224 Contact Us For Availability
24
Glass, Inner WPL 4455257 Contact Us For Availability
24
Micro Switch N.C. WPL 4451422 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4452234 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI83018A6 Contact Us For Availability
28
Microswitch WPL 4451426 Contact Us For Availability
29
Sensor WPL 4451665 Contact Us For Availability
30
Spring, Latch WPL 4451537 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
53
WPL 4449845 WPL 4449845 Contact Us For Availability
55
WPL 4448477 WPL 4448477 Contact Us For Availability
55
WPL 4448478 WPL 4448478 Contact Us For Availability
55
WPL 4448862 WPL 4448862 Contact Us For Availability
55
WPL 4450365 WPL 4450365 Contact Us For Availability
55
WPL 4452415 WPL 4452415 Contact Us For Availability
× ![]()
