Model Whirlpool KEBI206DWH6 – Common Parts & Diagrams
03 - OVEN DOOR
05 - TOP VENTING, OPTIONAL

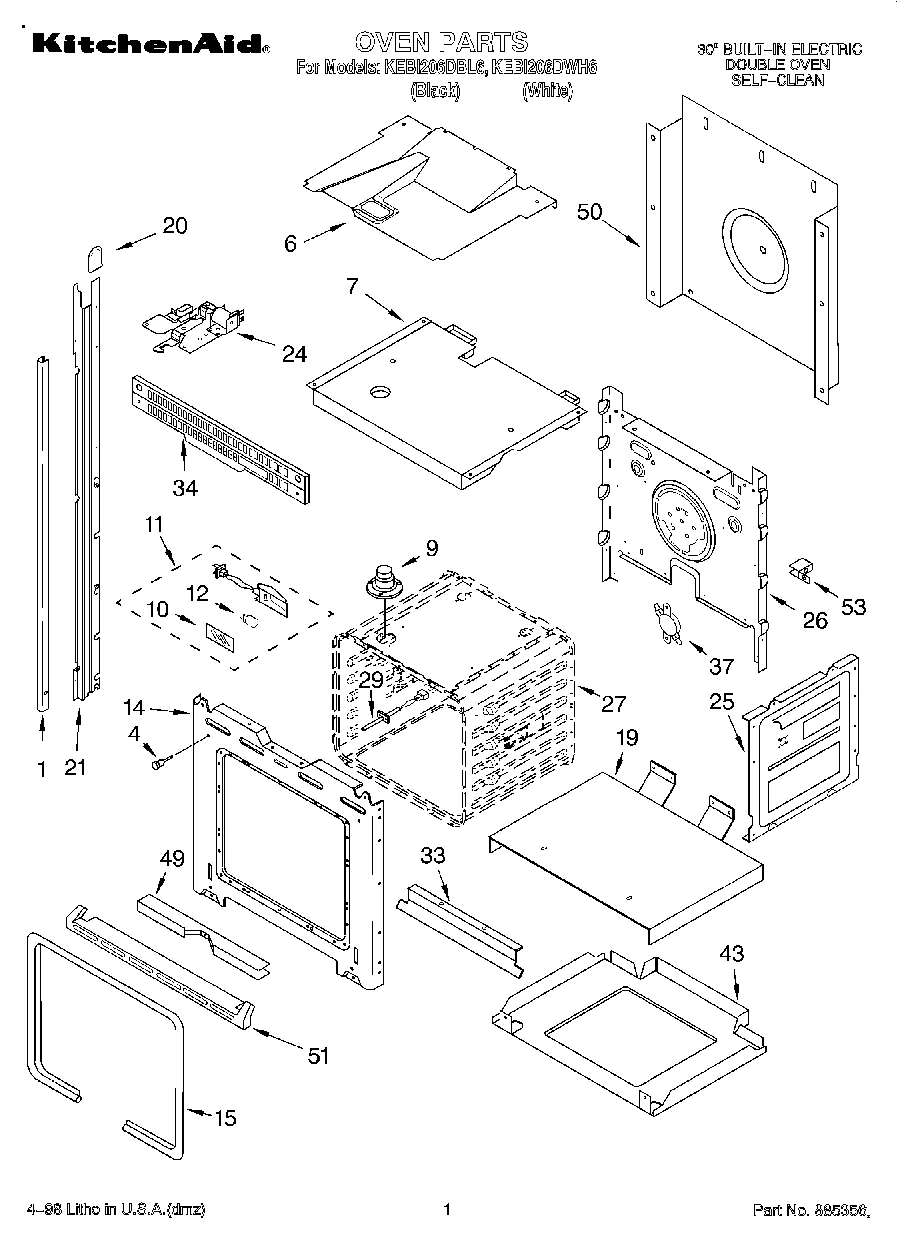

01 - OVEN

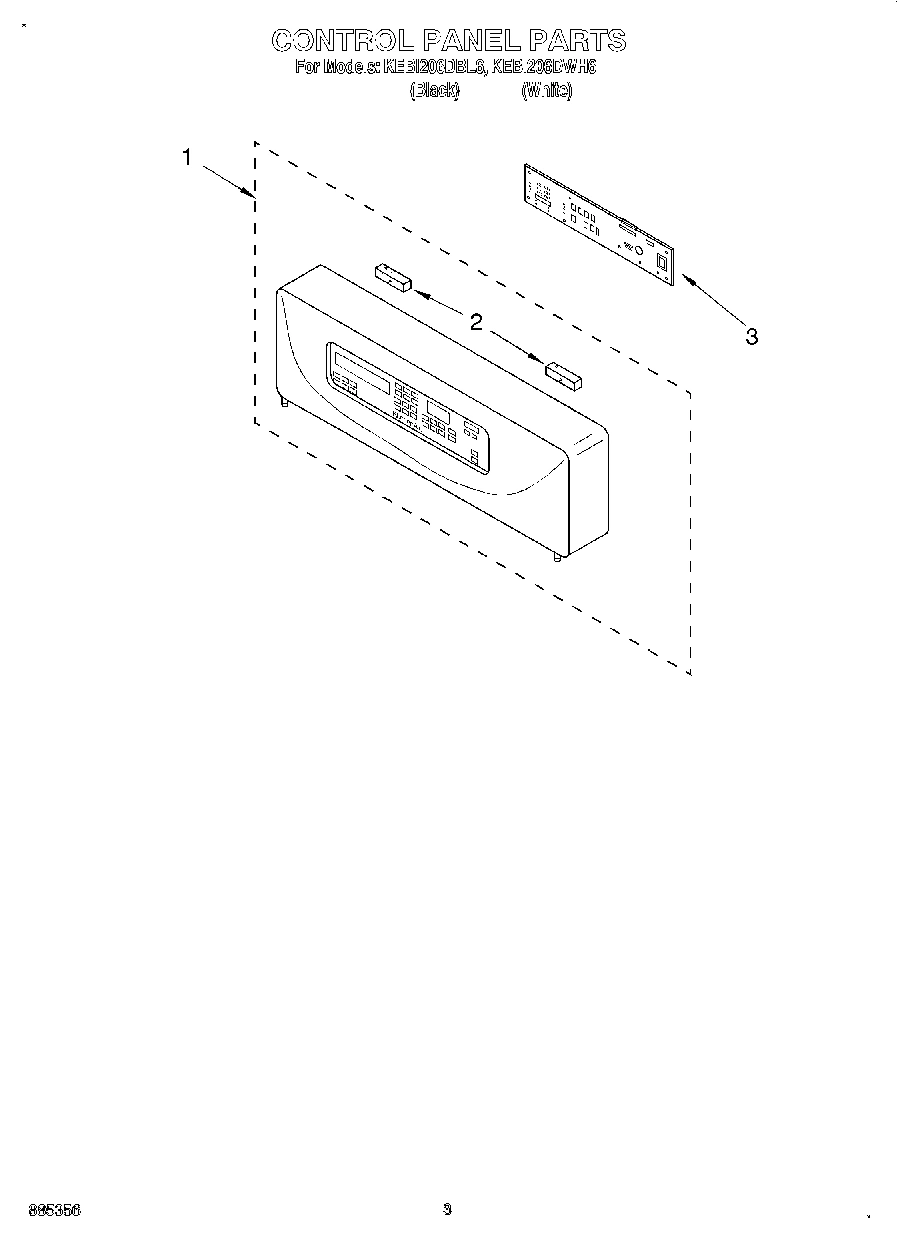

02 - CONTROL PANEL, LITERATURE

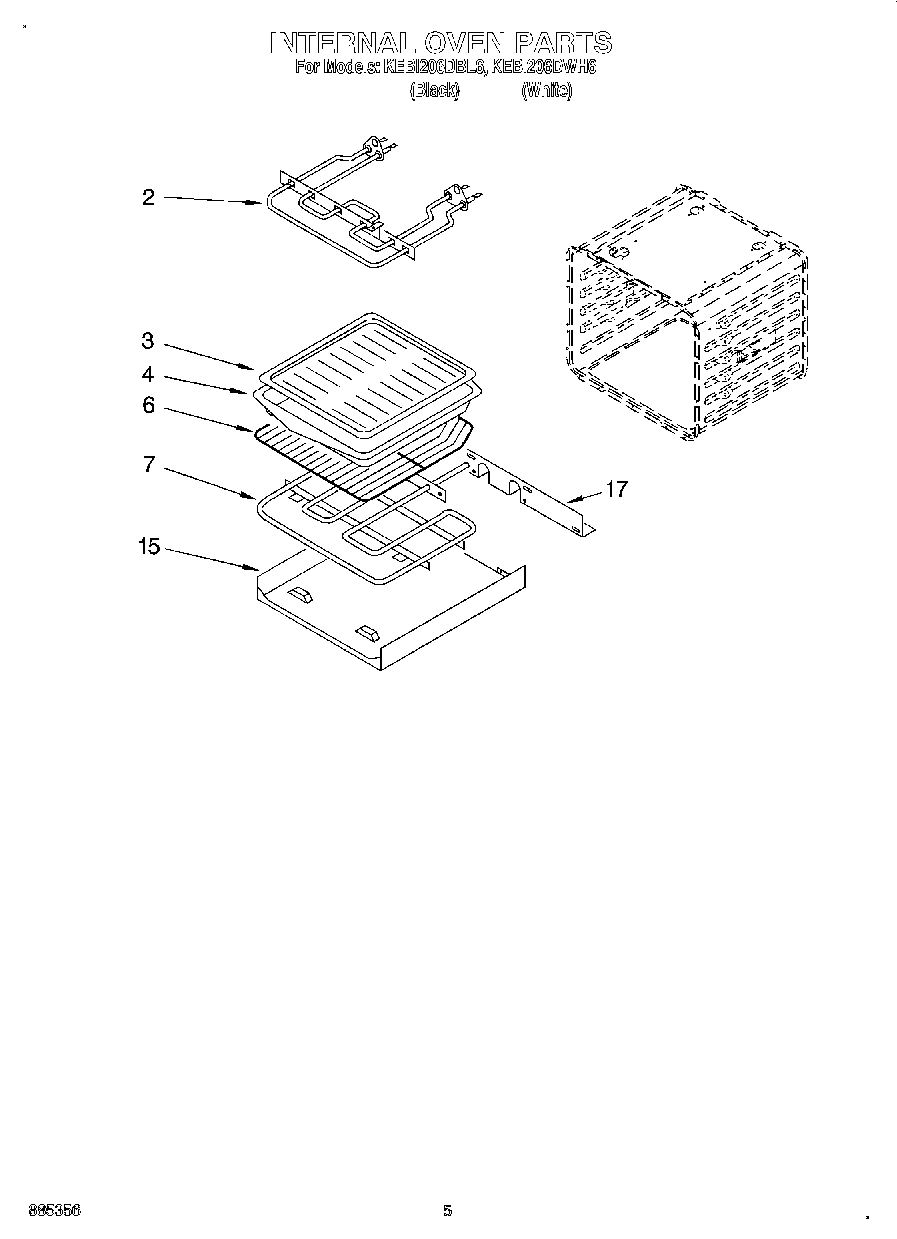

04 - INTERNAL OVEN
Common parts from model Whirlpool KEBI206DWH6
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
Cookbook, T/C Oven WPL LIT4449066 Contact Us For Availability
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450411 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4450571 Contact Us For Availability
Tech Sheet (Oven) WPL LIT4452025 Contact Us For Availability
1
Trim, Side (Screw White) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450850 Contact Us For Availability
1
Trim, Side (Right Hand) (White Model) WPL 4450851 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450853 Contact Us For Availability
1
Trim, Side (Left Hand)) (White Model) WPL 4450854 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Screw) WPL 4159465 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (Black WPL 4451282 Contact Us For Availability
1
Control Panel Assy W/Membrane, Switch (White WPL 4451283 Contact Us For Availability
2
Gasket, Control Panel WPL 4451034 Contact Us For Availability
3
Microcomputer WPL 4448868 Contact Us For Availability
6
Divider, Vent WPL 4452201 Contact Us For Availability
7
Top, Chassis WPL 4452044 Contact Us For Availability
9
Retainer, Glass WPL 4451668 Contact Us For Availability
10
Lens, Light WPL 4452163 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Frame, Front WPL 4451740 Contact Us For Availability
15
Tray, Bake WPL 4448723 Contact Us For Availability
18
Conduit, Double WPL 4450953 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
18
Spacer, Harness WPL 4452222 Contact Us For Availability
18
Harness, Wire (Latch) WPL 4452239 Contact Us For Availability
18
Harness, Wire (Main) WPL 4454926 Contact Us For Availability
18
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
19
Support, Insulation WPL 4451478 Contact Us For Availability
20
Cap, Spacer WPL 4451605 Contact Us For Availability
24
Latch Assembly WPL 4451424 Contact Us For Availability
24
Micro Switch N.C. WPL 4451422 Contact Us For Availability
24
Microswitch WPL 4451426 Contact Us For Availability
24
Solenoid WPL 4451663 Contact Us For Availability
25
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
26
Back, Chassis WPL 4451546 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI82763A9 Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
33
Deflector, Vent WPL 4451619 Contact Us For Availability
34
Vent, Center WPL 4452162 Contact Us For Availability
43
Base, Chassis WPL 4451398 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448461 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448462 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
53
Insulation, Back WPL 4450365 Contact Us For Availability
× ![]()
