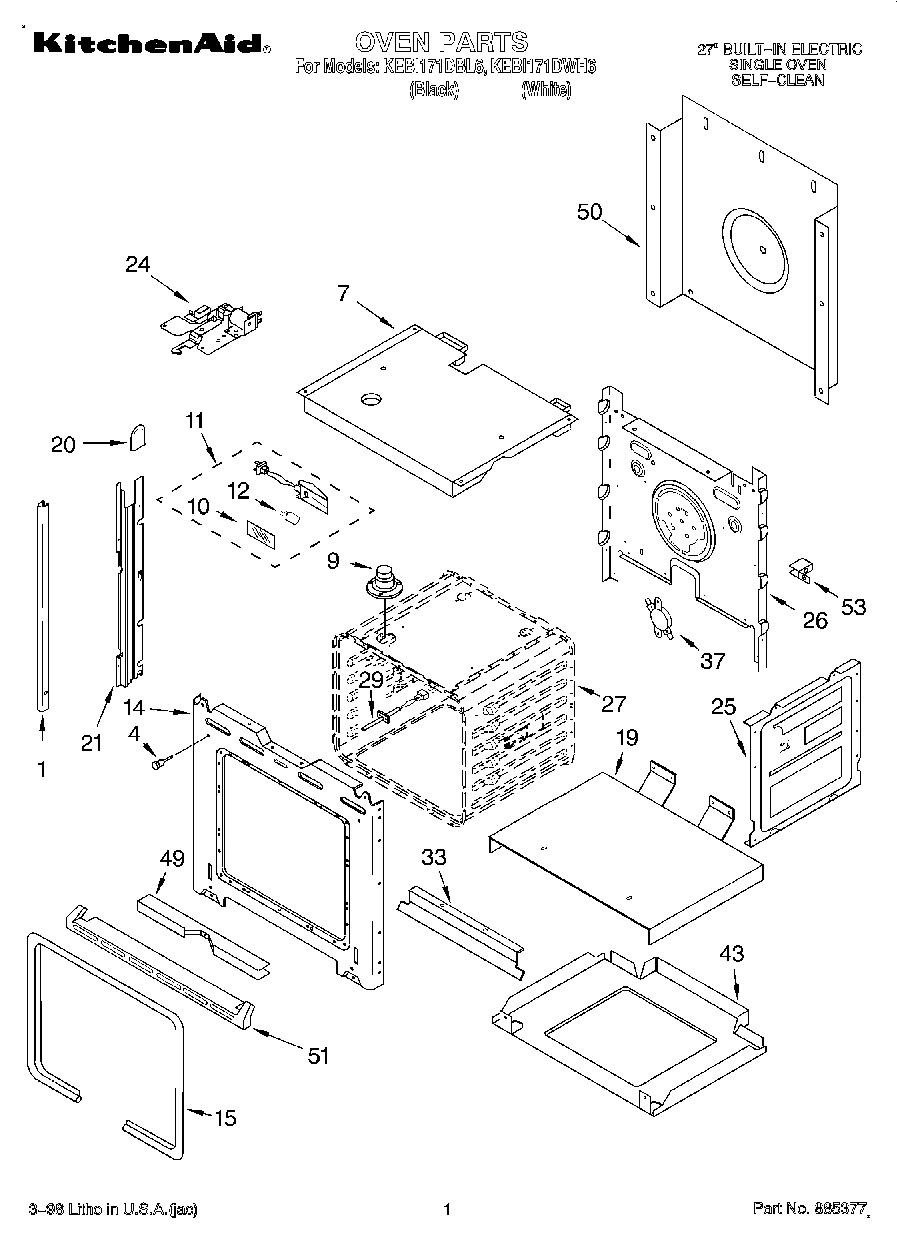

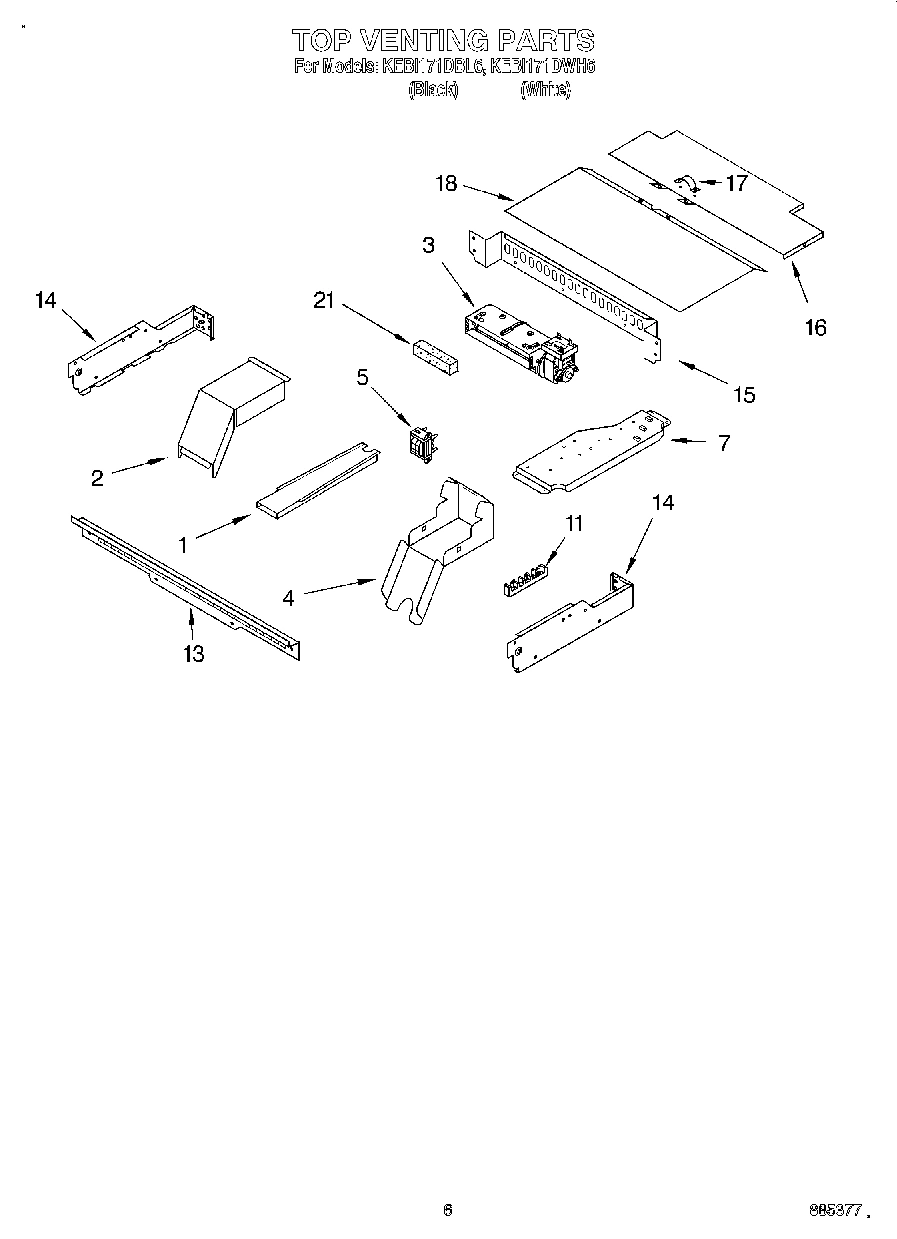

Model Whirlpool KEBI171DBL6 – Common Parts & Diagrams

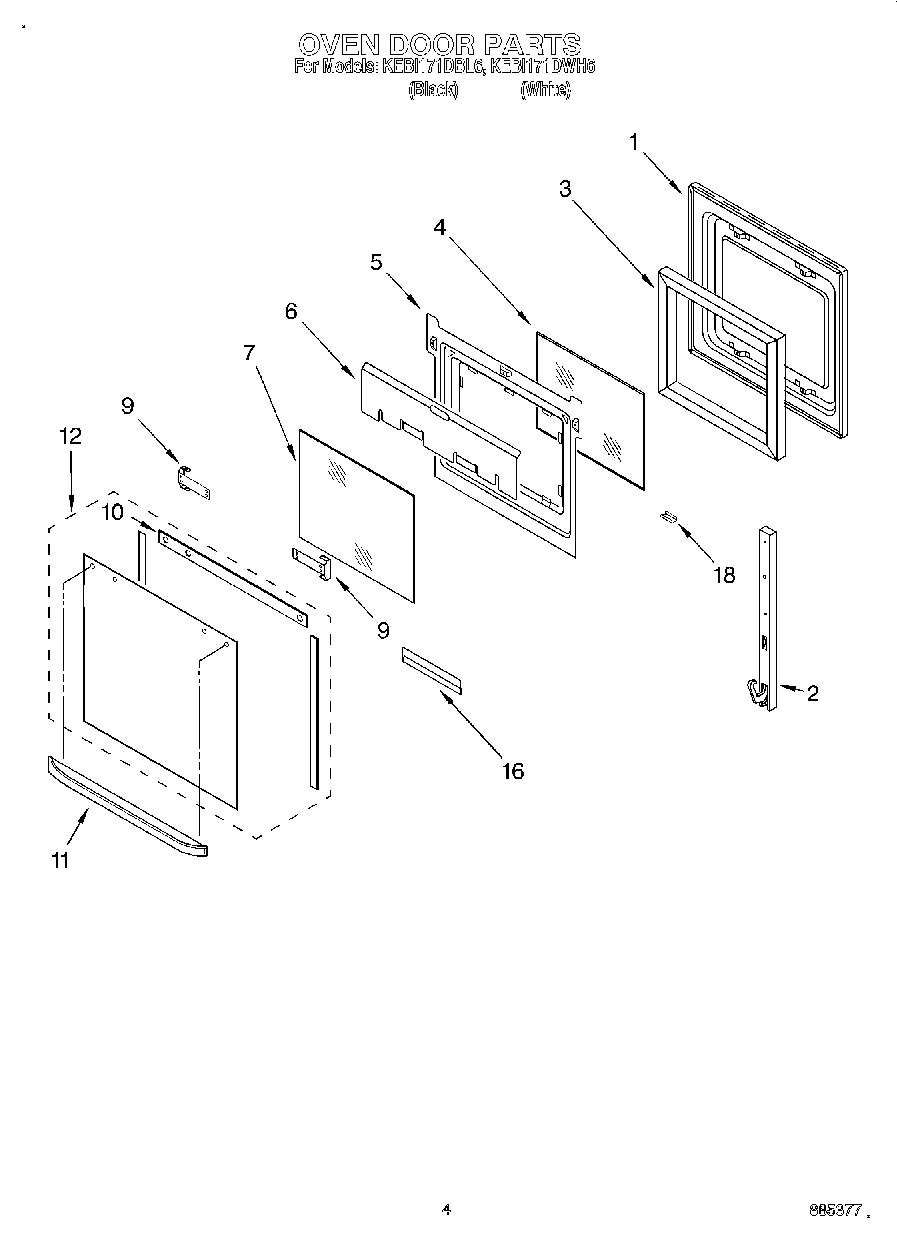

1
Door Liner
Door Liner WPL 4451718 Contact Us For Availability
View on Model
3
Insulation, Sides
Insulation, Sides WPL 4451721 Contact Us For Availability
View on Model
5
Retainer, Glass
Retainer, Glass WPL 4451670 Contact Us For Availability
View on Model
6
Rack, Oven
Rack, Oven WPL 4448715 Contact Us For Availability
View on Model
6
Shield, Heat
Shield, Heat WPL 4450361 Contact Us For Availability
View on Model
7
Plate, Mounting
Plate, Mounting WPL 4451789 Contact Us For Availability
View on Model
9
Bracket, Handle
Bracket, Handle WPL 4450813 Contact Us For Availability
View on Model
9
Screw
Screw WPL 4451040 Contact Us For Availability
View on Model
10
Lens, Light
Lens, Light WPL 4452163 Contact Us For Availability
View on Model
10
Seal, Top
Seal, Top WPL 4451673 Contact Us For Availability
View on Model
11
Handle (Black Model)
Handle (Black Model) WPL 4448411 Contact Us For Availability
View on Model
11
Handle (White Model)
Handle (White Model) WPL 4448412 Contact Us For Availability
View on Model
12
Door Glass, Assy (Black Model)
Door Glass, Assy (Black Model) WPL 4452071 Contact Us For Availability
View on Model
12
Door Glass, Assy (White Model)
Door Glass, Assy (White Model) WPL 4452072 Contact Us For Availability
View on Model
13
Vent, (Control Panel)
Vent, (Control Panel) WPL 4448551 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4449040 Contact Us For Availability
View on Model
15
Back, Control
Back, Control WPL 4452244 Contact Us For Availability
View on Model
16
Retainer, Glass
Retainer, Glass WPL 4451668 Contact Us For Availability
View on Model
16
Cover, Top Rear
Cover, Top Rear WPL 4450550 Contact Us For Availability
View on Model
18
Clip, Retainer (Black Model)
Clip, Retainer (Black Model) WPL 4450863 Contact Us For Availability
View on Model
18
Clip, Retainer (White Model)
Clip, Retainer (White Model) WPL 4450864 Contact Us For Availability
View on Model
18
Cover, Top Front
Cover, Top Front WPL 4450553 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c White)
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
View on Model
21
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
21
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
21
Wire (12 Ga. 150 c Red)
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
View on Model
21
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
21
Wire (14 Ga. 200 c Yellow)
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
View on Model
21
Harness, Wire (Main)
Harness, Wire (Main) WPL 4454924 Contact Us For Availability
View on Model
21
ADHESIVE LOCTITE (1/3 OZ.)
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
View on Model
24
Latch Assembly
Latch Assembly WPL 4451424 Contact Us For Availability
View on Model
25
Side, Chassis (R.H. & L.H.)
Side, Chassis (R.H. & L.H.) WPL 4454691 Contact Us For Availability
View on Model
26
Back, Chassis
Back, Chassis WPL 4451545 Contact Us For Availability
View on Model
27
Liner, Oven (Not a Serviceable Part)
Liner, Oven (Not a Serviceable Part) WPL ARI82737A7 Contact Us For Availability
View on Model
29
Sensor
Sensor WPL 4450026 Contact Us For Availability
View on Model
33
Deflector, Vent
Deflector, Vent WPL 4450280 Contact Us For Availability
View on Model
43
Base, Chassis
Base, Chassis WPL 4451397 Contact Us For Availability
View on Model
51
Trim, Bottom (Screw)
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
View on Model
51
Trim, Bottom (Black Model)
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
View on Model
51
Trim, Bottom (White Model)
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
View on Model
53
Insulation, Wrap
Insulation, Wrap WPL 4449315 Contact Us For Availability
View on Model
53
BRACKET-SUPPORT
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
View on Model
53
Insulation, Back
Insulation, Back WPL 4450364 Contact Us For Availability
View on Model
