Model Whirlpool KEBI171DBL1 – Common Parts & Diagrams

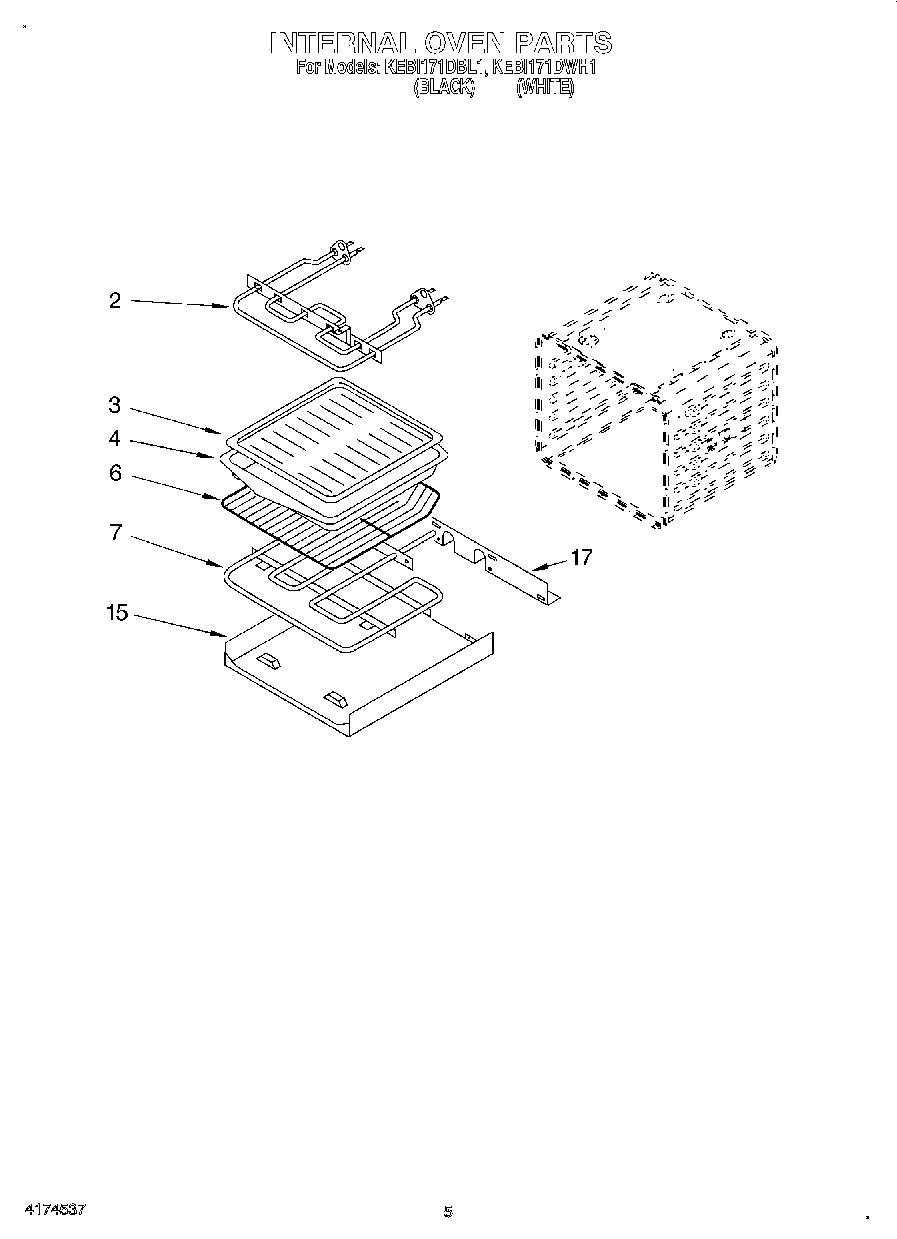

04 - INTERNAL OVEN

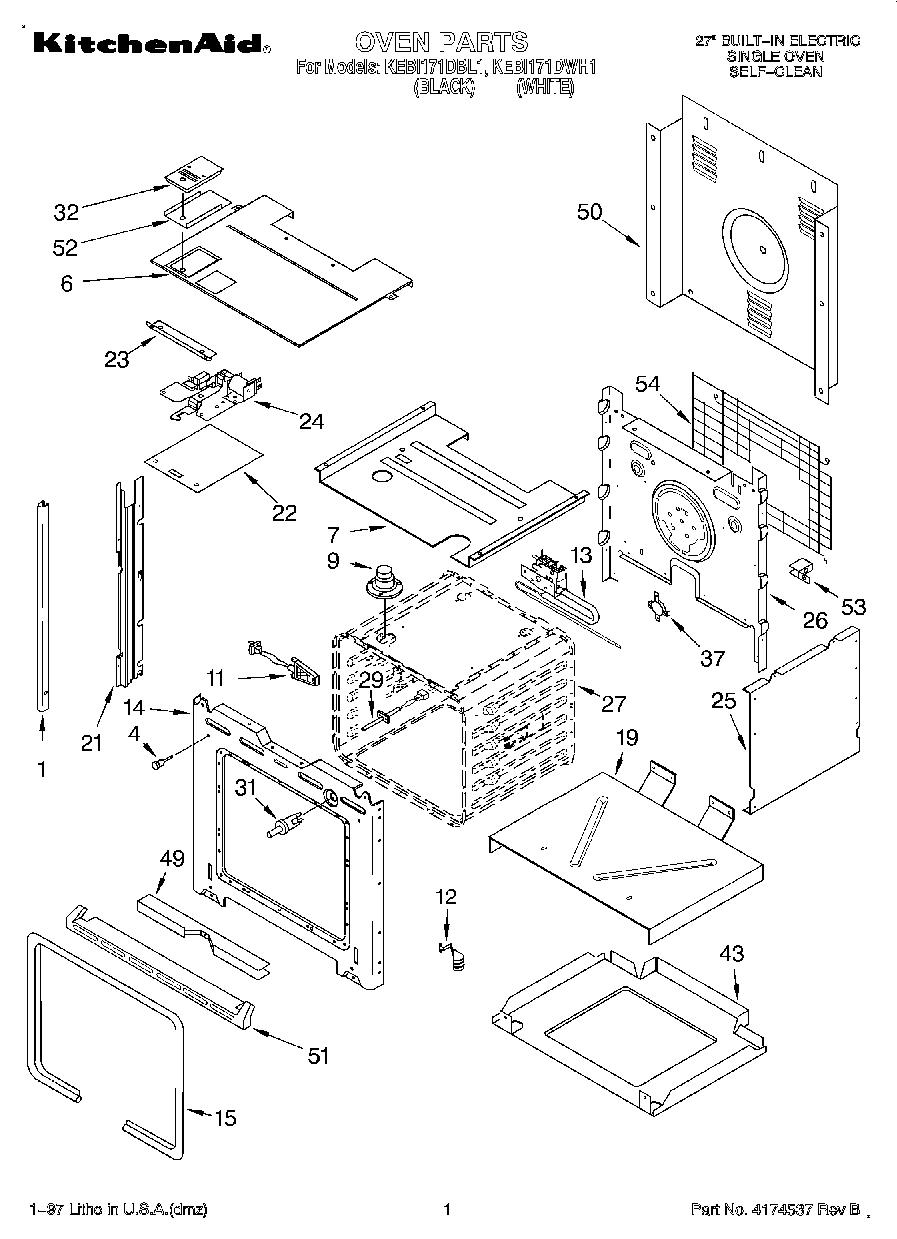

01 - OVEN
02 - CONTROL PANEL, LITERATURE
03 - OVEN DOOR
05 - TOP VENTING, OPTIONAL
Common parts from model Whirlpool KEBI171DBL1
Easy Set Guide WPL LIT4449264 Contact Us For Availability
Installation Instructions WPL LIT4450410 Contact Us For Availability
Use & Care Guide WPL LIT4450570 Contact Us For Availability
Installation/ Undercounter WPL LIT4450839 Contact Us For Availability
Tech Sheet WPL LIT4450918 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (Black WPL 4451254 Contact Us For Availability
1
Control Panel Assy. W/Membrane Switch (White WPL 4451255 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Screw WPL 4159465 Contact Us For Availability
2
Gasket, Control Panel WPL 4451033 Contact Us For Availability
3
Microcomputer WPL 4448865 Contact Us For Availability
3
Blower WPL 4450920 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Shield, Heat WPL 4450361 Contact Us For Availability
6
Exhaust Duct WPL 4450366 Contact Us For Availability
8
Insulation Top & Bottom WPL 4448679 Contact Us For Availability
9
Bracket, Handle WPL 4450813 Contact Us For Availability
9
Screw WPL 4451040 Contact Us For Availability
10
Seal, Top WPL 4450836 Contact Us For Availability
11
Handle (Black Model) WPL 4448411 Contact Us For Availability
11
Handle (White Model) WPL 4448412 Contact Us For Availability
12
Glass, Outer (Black Model) WPL 4450696 Contact Us For Availability
12
Glass, Outer (White Model) WPL 4450697 Contact Us For Availability
13
Safety Switch (Oven Temp) WPL 4450812 Contact Us For Availability
13
Vent, (Control Panel) WPL 4448551 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
15
Seal, Sides WPL 4450838 Contact Us For Availability
15
Back, Control WPL 4450658 Contact Us For Availability
16
Retainer, Glass WPL 4449031 Contact Us For Availability
16
Cover, Top Rear WPL 4450550 Contact Us For Availability
17
Retainer, Glass WPL 4450470 Contact Us For Availability
18
Clip, Retainer (Black Model) WPL 4450863 Contact Us For Availability
18
Clip, Retainer (White Model) WPL 4450864 Contact Us For Availability
18
Cover, Top Front WPL 4450553 Contact Us For Availability
19
Bracket, Blower WPL 4450545 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
21
Seal, Foam WPL 3182384 Contact Us For Availability
21
Harness, Wire (Latch) WPL 4450753 Contact Us For Availability
21
Harness, Wire (Door Switch) WPL 4450951 Contact Us For Availability
21
Harness, Wire (Main) WPL 4450962 Contact Us For Availability
21
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
21
Roll Tape, Exhaust Duct WPL 814387 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
50
Cover, Back WPL 4450544 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448458 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448459 Contact Us For Availability
52
Vent Extension WPL 4450795 Contact Us For Availability
53
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
54
Insulation, Wrap WPL 4449315 Contact Us For Availability
54
Insulation, Back WPL 4450364 Contact Us For Availability
54
Spacer, Harness WPL 4451002 Contact Us For Availability
× ![]()
