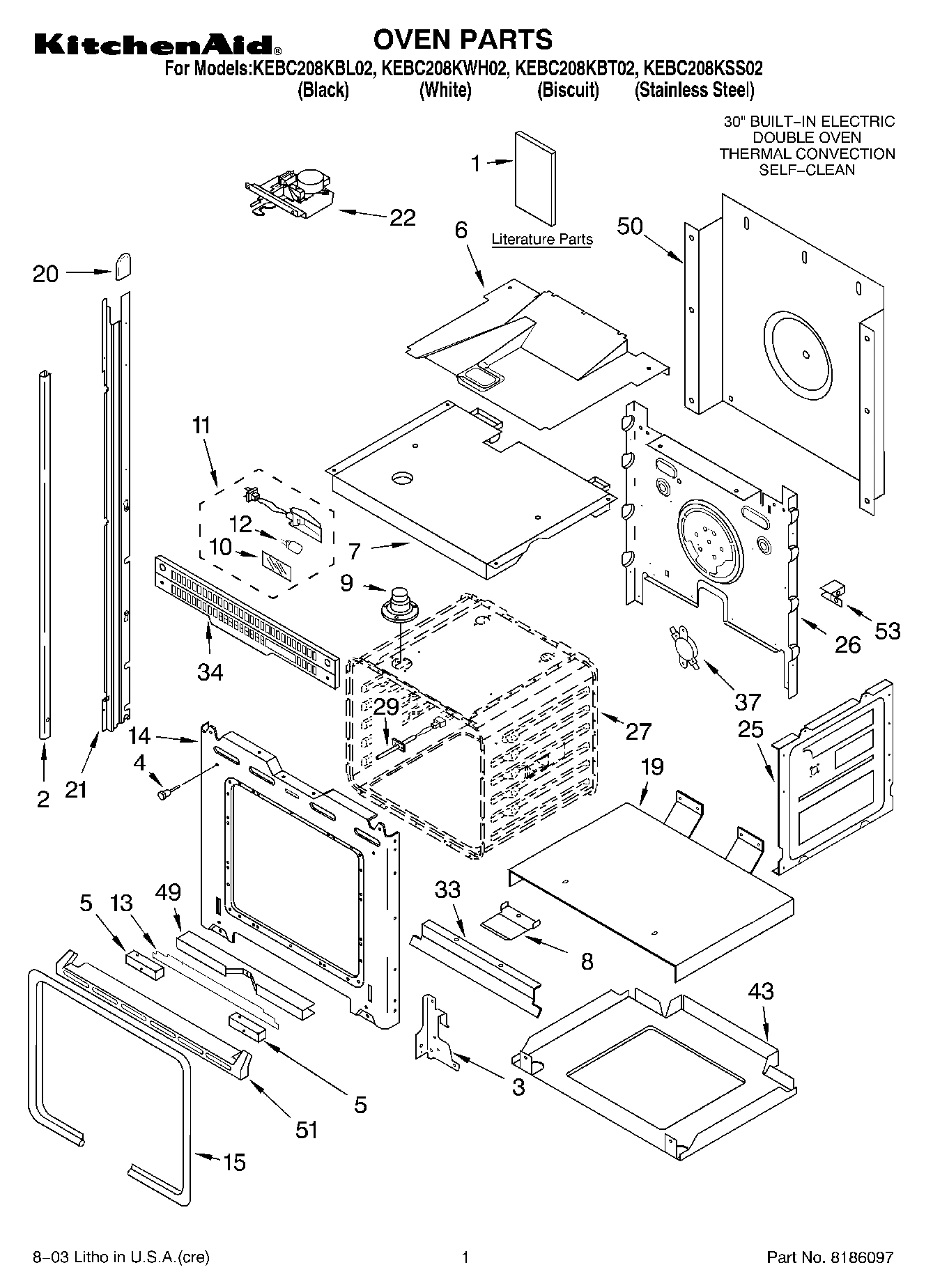

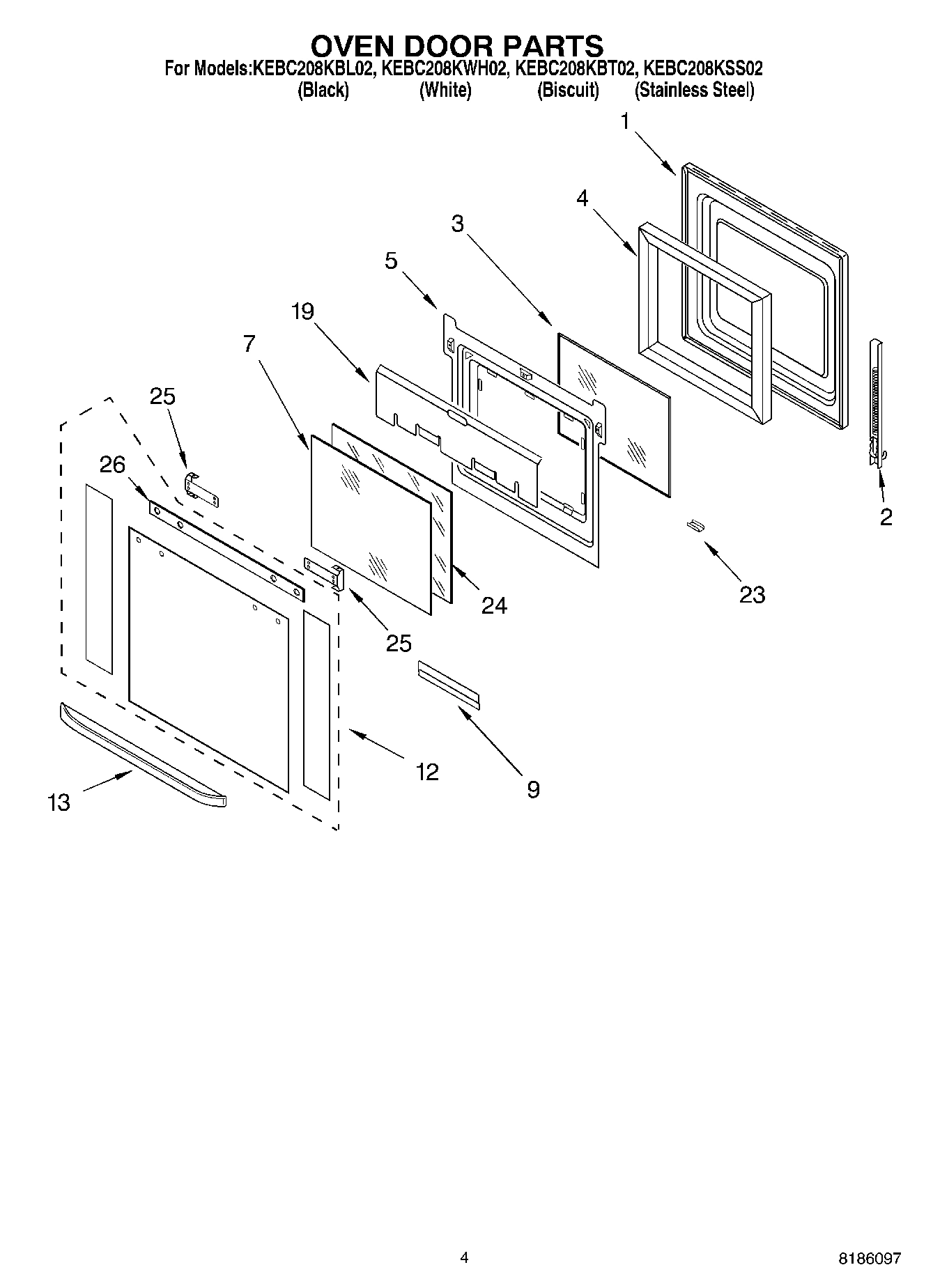

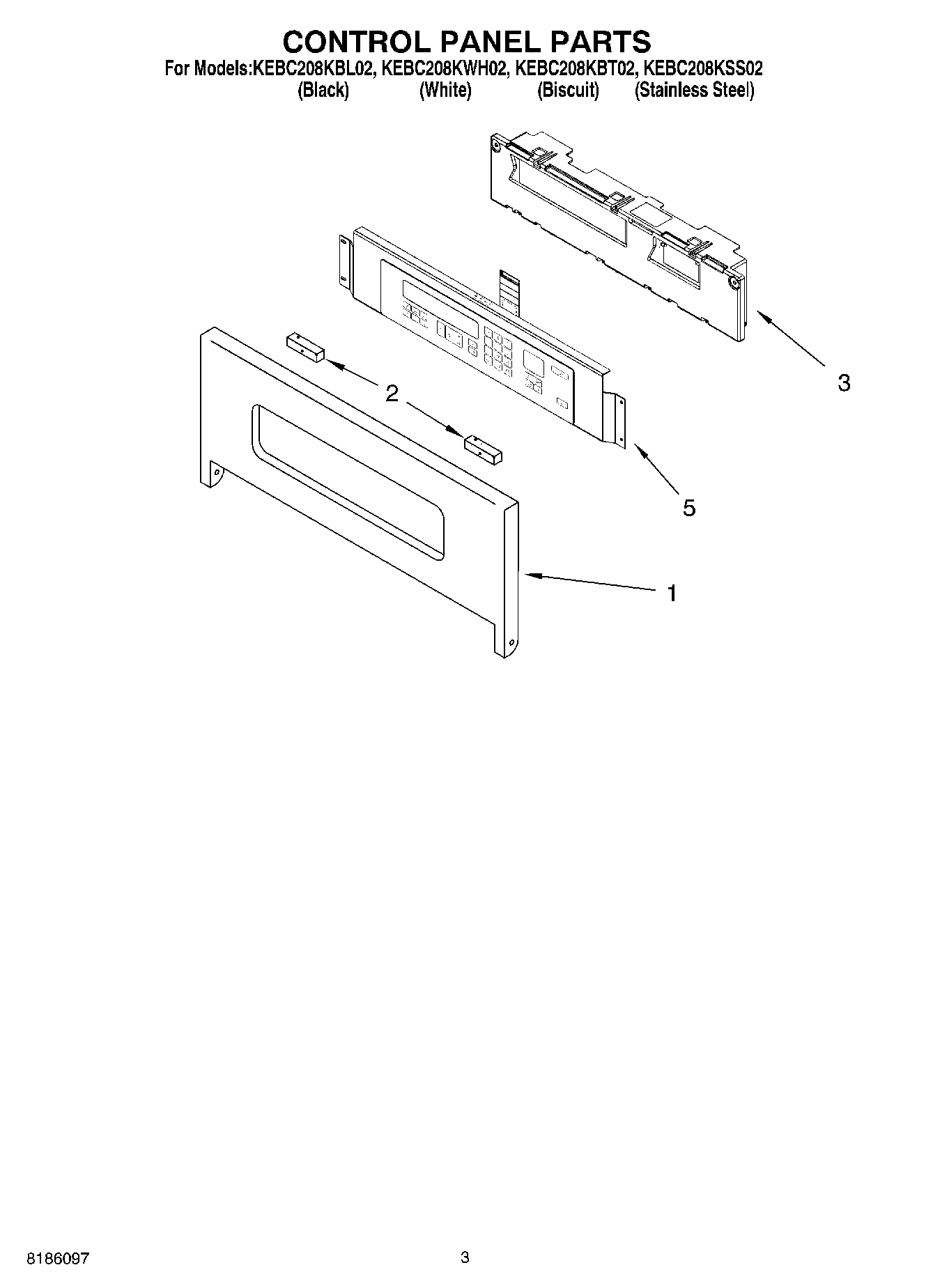

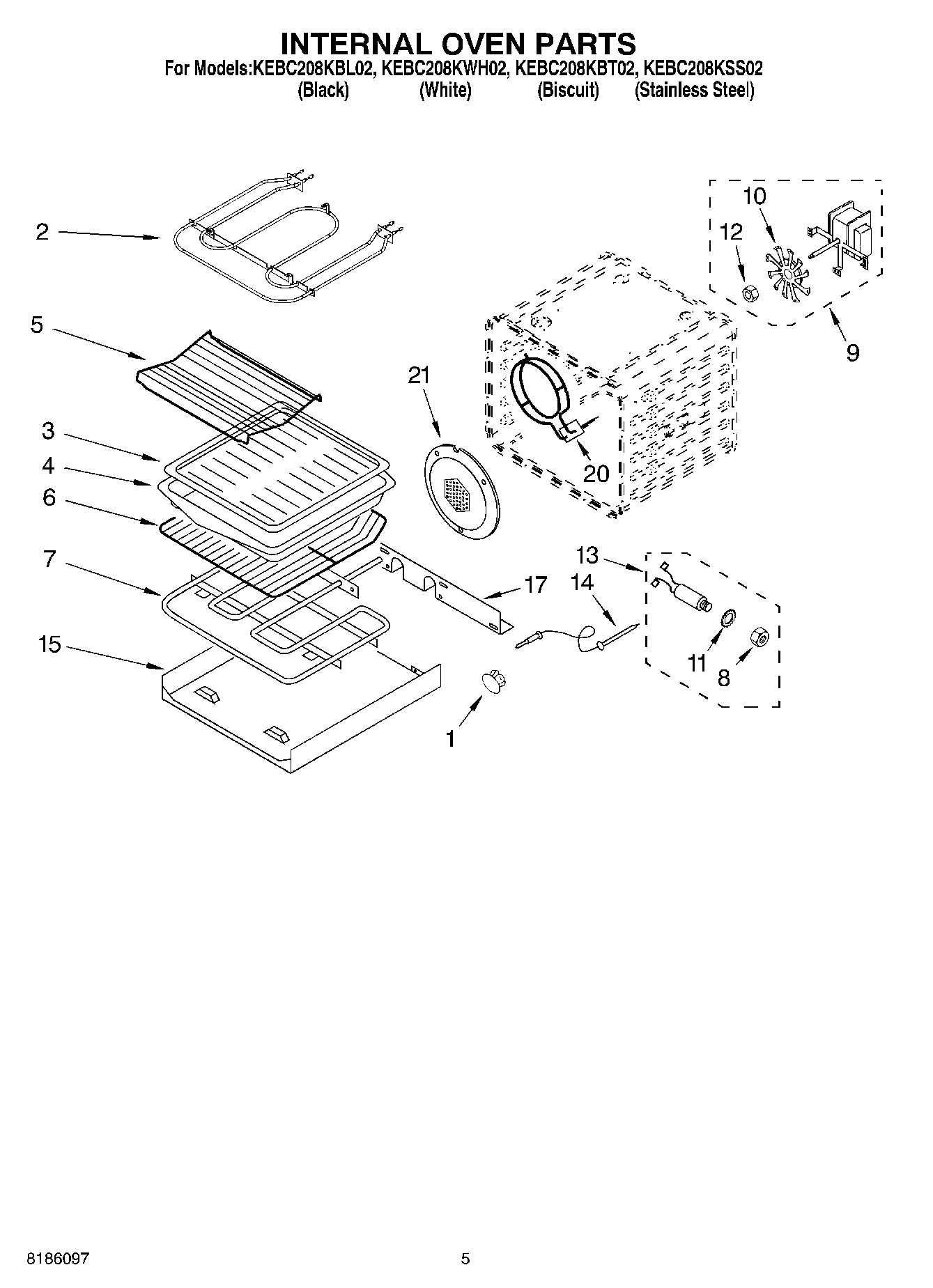

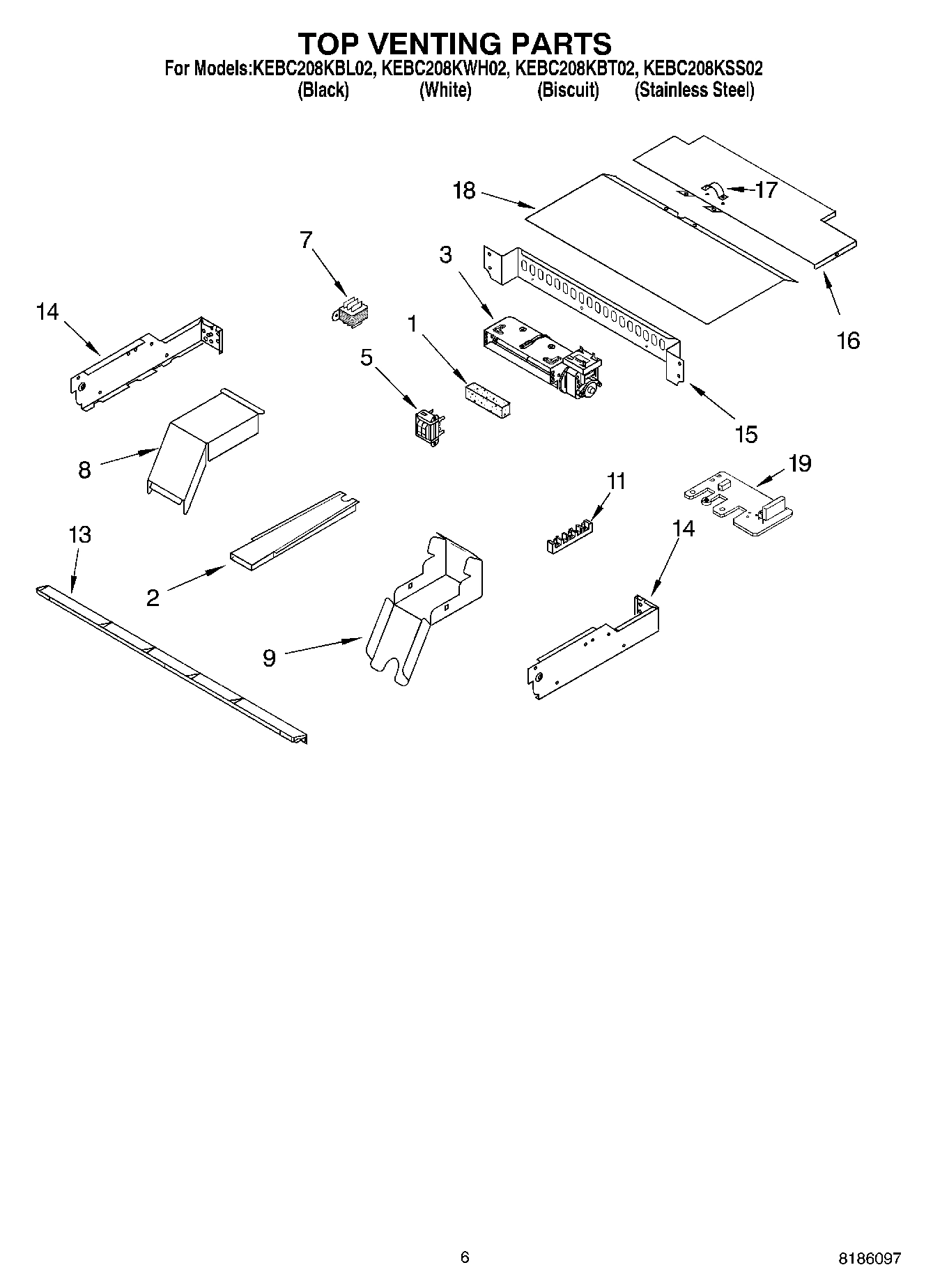

Model Whirlpool KEBC208KBT02 30`` BUILT-IN ELECTRIC DOUBLE OVEN THERMAL CONVECT – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPL 8301871 WPL 8301871 Contact Us For Availability

Conduit, Double WPL 4450953 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI82094A9 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI82095A5 Contact Us For Availability

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

Panel, Control Stainless Steel WPL 4451791 Contact Us For Availability

1

Panel, Control (Black) WPL 4452604 Contact Us For Availability

1

Panel, Control (White) WPL 4452605 Contact Us For Availability

1

Panel, Control (Biscuit) WPL 4452974 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4455993 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8300886 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8302066 Contact Us For Availability

2

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455426 Whirlpool Trim Backorder WPL WP4455426 $66.54

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $38.08

2

WP9760575 Whirlpool Door Hinge (Right) In Stock WPL WP9760575 $40.68

2

WP9760577 Whirlpool Oven Right Door Hinge Backorder WPL WP9760577 $39.95

2

WP9760578 Whirlpool Oven Left Door Hinge In Stock WPL WP9760578 $41.78

2

Spacer, Foam WPL 4452260 Contact Us For Availability

2

Trim, Side (Stainless Steel) WPL 4452081 Contact Us For Availability

2

Trim, Side (Stainless Steel) WPL 4452082 Contact Us For Availability

2

Trim, Side Left (White) WPL 4455374 Contact Us For Availability

2

Trim, Side Right (White) WPL 4455375 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4455379 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4455425 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4455427 Contact Us For Availability

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability

3

Latch, Sister Board WPL 8301848 Contact Us For Availability

3

Assy, Control WPL 8301890 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

5

Switch, Membrane (Black) WPL 8301978 Contact Us For Availability

5

Switch, Membrane (White) WPL 8301979 Contact Us For Availability

5

Switch, Membrane (Biscuit) WPL 8301980 Contact Us For Availability

5

Switch, Membrane (Stainless Steel) WPL 8301981 Contact Us For Availability

5

Spacer, Foam WPL 4452490 Contact Us For Availability

5

Retainer, Glass WPL 8300778 Contact Us For Availability

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

4455807 Whirlpool Oven Vent Deflector Backorder WPL 4455807 $45.86

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4450470 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

11

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

11

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

11

Screw WPL 3400080 Contact Us For Availability

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Door Glass, Assy (White Model) WPL 4455390 Contact Us For Availability

Door Glass, Assy (Black Model) WPL 4455391 Contact Us For Availability

Door Glass, Assy (Biscuit Model) WPL 4455395 Contact Us For Availability

Insulation Bottom Vent WPL 4452337 Contact Us For Availability

Door Handle (Black) WPL 4452502 Contact Us For Availability

Door Handle (White) WPL 4452503 Contact Us For Availability

Door Handle (Biscuit) WPL 4452871 Contact Us For Availability

Door Handle (Stainless Steel) WPL 4455851 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Tray, Bake WPL 4455037 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

16

WP4450551 Whirlpool Top Cabinet Backorder WPL WP4450551 $52.43

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $45.99

19

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

19

Support, Insulation WPL 4451478 Contact Us For Availability

19

Shield, Heat WPL 4450362 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

21

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Stainless Steel) WPL 4451432 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

24

Glass, Inner WPL 8300974 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.13

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

26

Seal, Door WPL 4452326 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI82092A2 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WPL 4455147 WPL 4455147 Contact Us For Availability

WPL 4455443 WPL 4455443 Contact Us For Availability

WPL 4455445 WPL 4455445 Contact Us For Availability

WPL 4455447 WPL 4455447 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability

WPL ARI82093A8 WPL ARI82093A8 Contact Us For Availability
