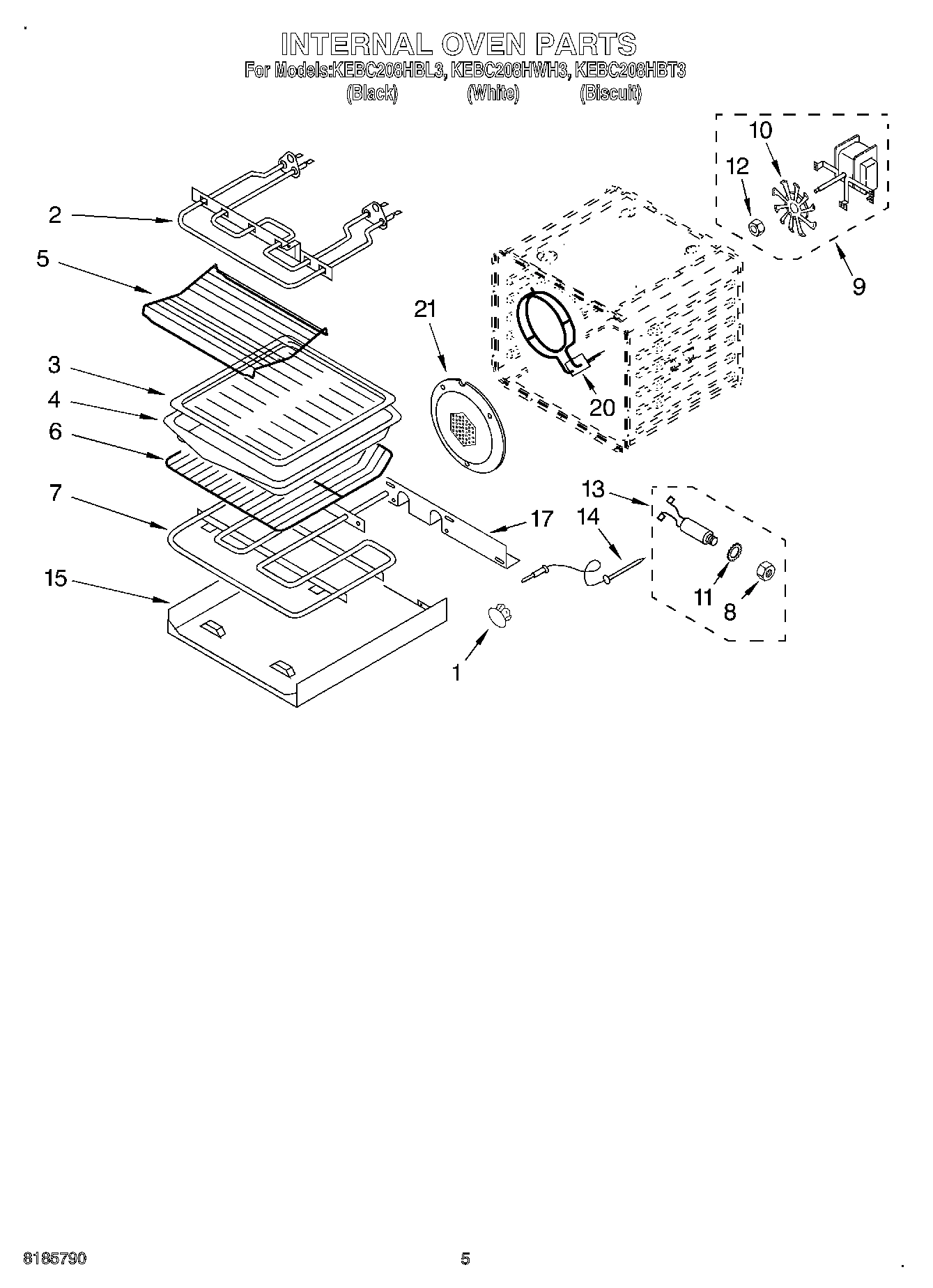

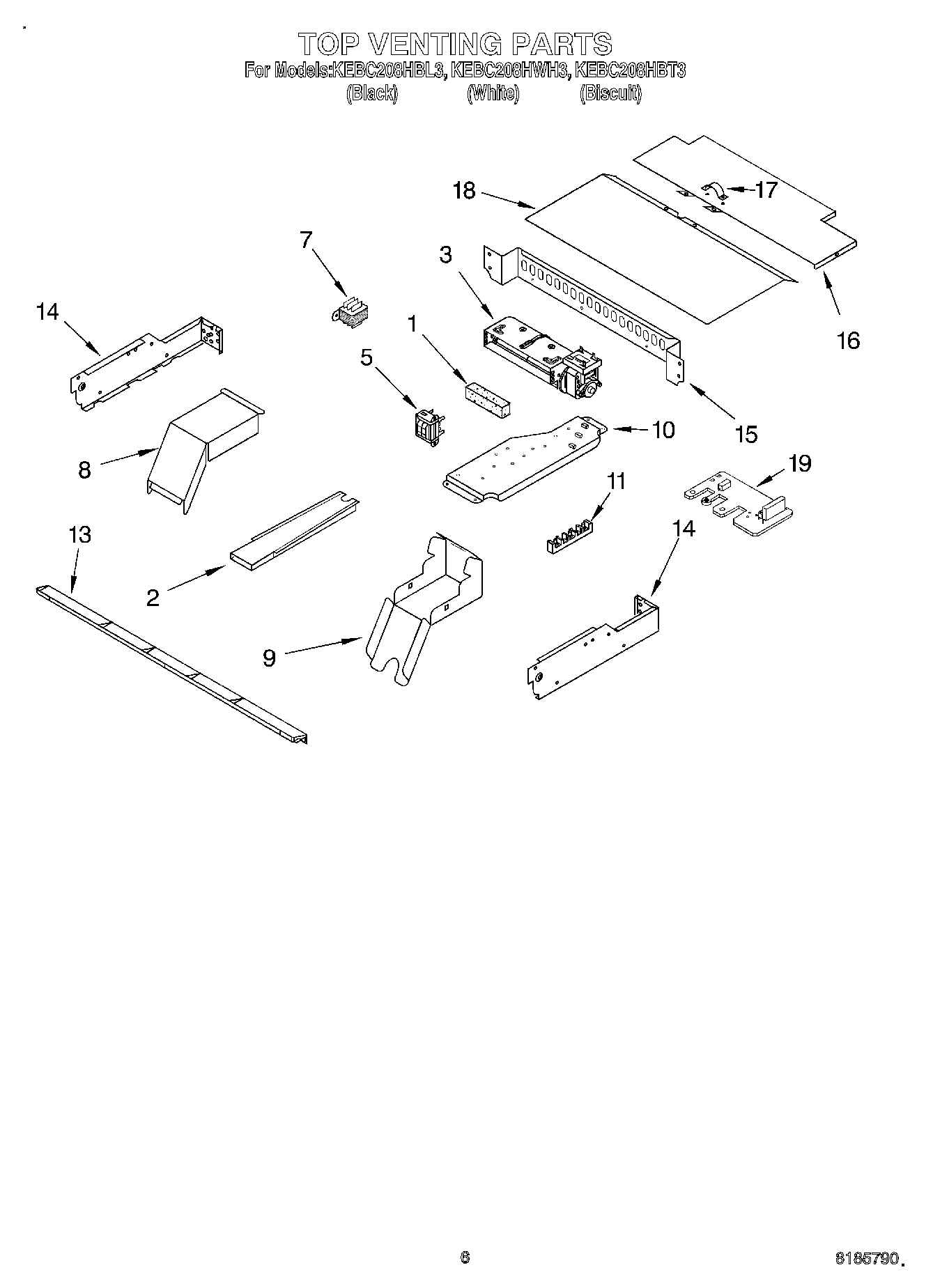

Model Whirlpool KEBC208HBL3 BUILT-IN ELECTRIC DOUBLE OVEN – Common Parts &amp; Diagrams

1

Panel, Control (Black) WPL 4452604 Contact Us For Availability

1

Panel, Control (White) WPL 4452605 Contact Us For Availability

1

Panel, Control (Biscuit) WPL 4452974 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT4450411 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451879 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4451952 Contact Us For Availability

2

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP4455426 Whirlpool Trim Backorder WPL WP4455426 $66.54

2

WP4455526 Whirlpool Door Hinge In Stock WPL WP4455526 $49.56

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

Spacer, Foam WPL 4452260 Contact Us For Availability

2

Trim, Side (Screw) (White Model) WPL 4449041 Contact Us For Availability

2

Trim, Side Left (White) WPL 4455374 Contact Us For Availability

2

Trim, Side Right (White) WPL 4455375 Contact Us For Availability

2

Trim, Side (RH Biscuit) WPL 4455379 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4455425 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4455427 Contact Us For Availability

3

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

Blower (Upper Oven 60MM) WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Microcomputer WPL 4453165 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

5

Switch, Membrane (Black) WPL 4455406 Contact Us For Availability

5

Switch, Membrane (White) WPL 4455412 Contact Us For Availability

5

Switch, Membrane (Biscuit) WPL 4455418 Contact Us For Availability

5

Retainer, Glass WPL 4451671 Contact Us For Availability

6

Insulation, Board WPL 4452248 Contact Us For Availability

6

Divider, Vent WPL 4452201 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Insulation, Board Support WPL 4452249 Contact Us For Availability

7

Top, Chassis WPL 4455286 Contact Us For Availability

8

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

8

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

9

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Fan, Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Nut WPL 4452227 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4455390 Contact Us For Availability

Door Glass, Assy (Black Model) WPL 4455391 Contact Us For Availability

Door Glass, Assy (Biscuit Model) WPL 4455395 Contact Us For Availability

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

Door Handle (Black) WPL 4452502 Contact Us For Availability

Door Handle (White) WPL 4452503 Contact Us For Availability

Door Handle (Biscuit) WPL 4452871 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Tray, Bake WPL 4455037 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4451985 Whirlpool Noise Filter Board Backorder WPL WP4451985 $56.15

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Conduit, Double WPL 4450953 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

Shield, Heat WPL 4450362 Contact Us For Availability

20

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814373 Whirlpool Oven Rail Mount Backorder WPL 814373 $86.57

814374 Whirlpool Oven Rail Mount Backorder WPL 814374 $86.66

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

22

Latch Assembly WPL 4451896 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

Retainer, Clip (White) WPL 4455400 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

Bracket, Handle (Left Hand) WPL 4452960 Contact Us For Availability

26

Back, Chassis WPL 4452234 Contact Us For Availability

26

Seal, Door WPL 4452326 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI82038A4 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

Spring, Latch WPL 4451537 Contact Us For Availability

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

34

Vent, Center WPL 4452267 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

Base, Chassis WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

Trim, Bott WPL 4455443 Contact Us For Availability

WPL 4455445 WPL 4455445 Contact Us For Availability

WPL 4455447 WPL 4455447 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability
