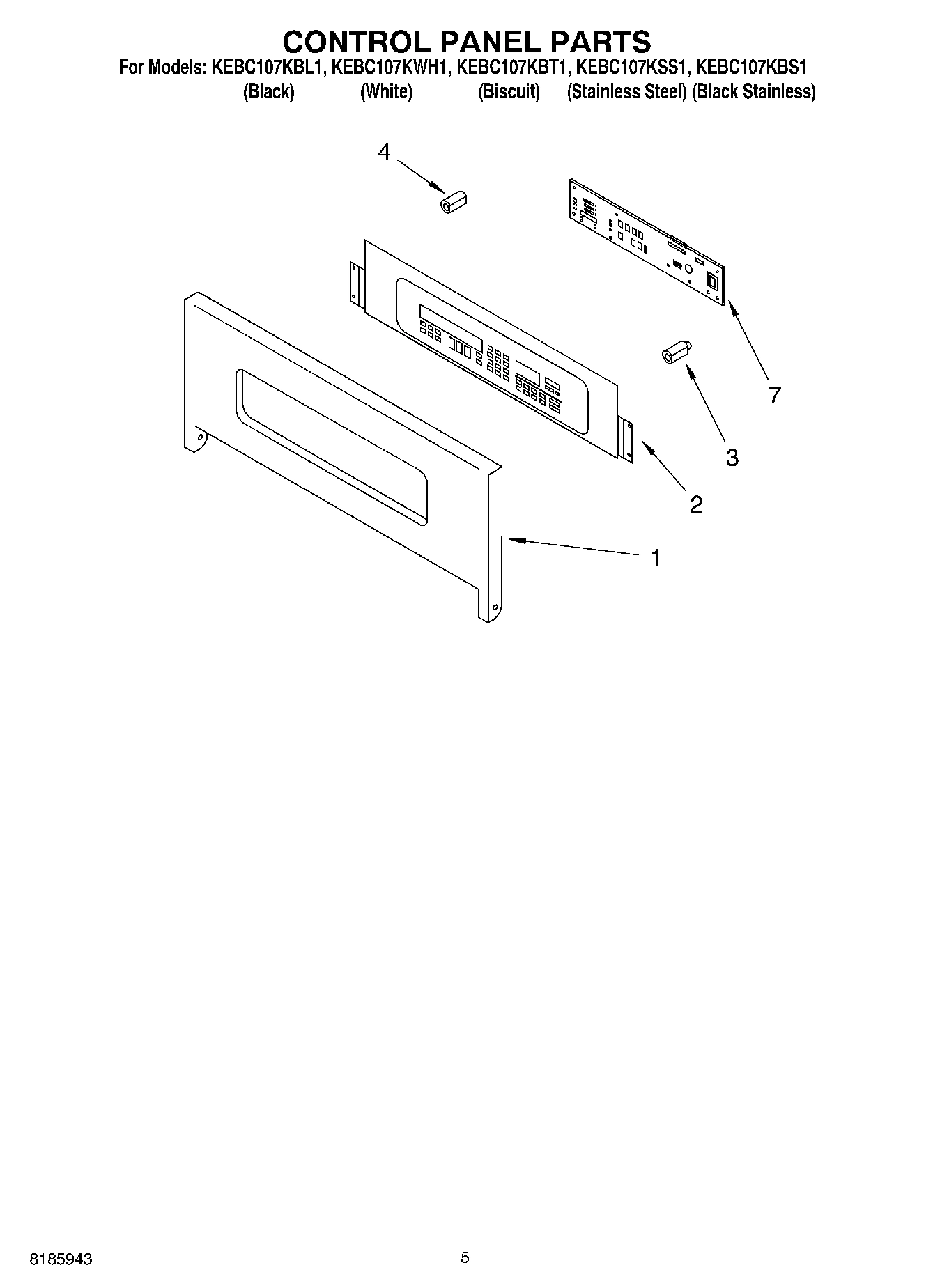

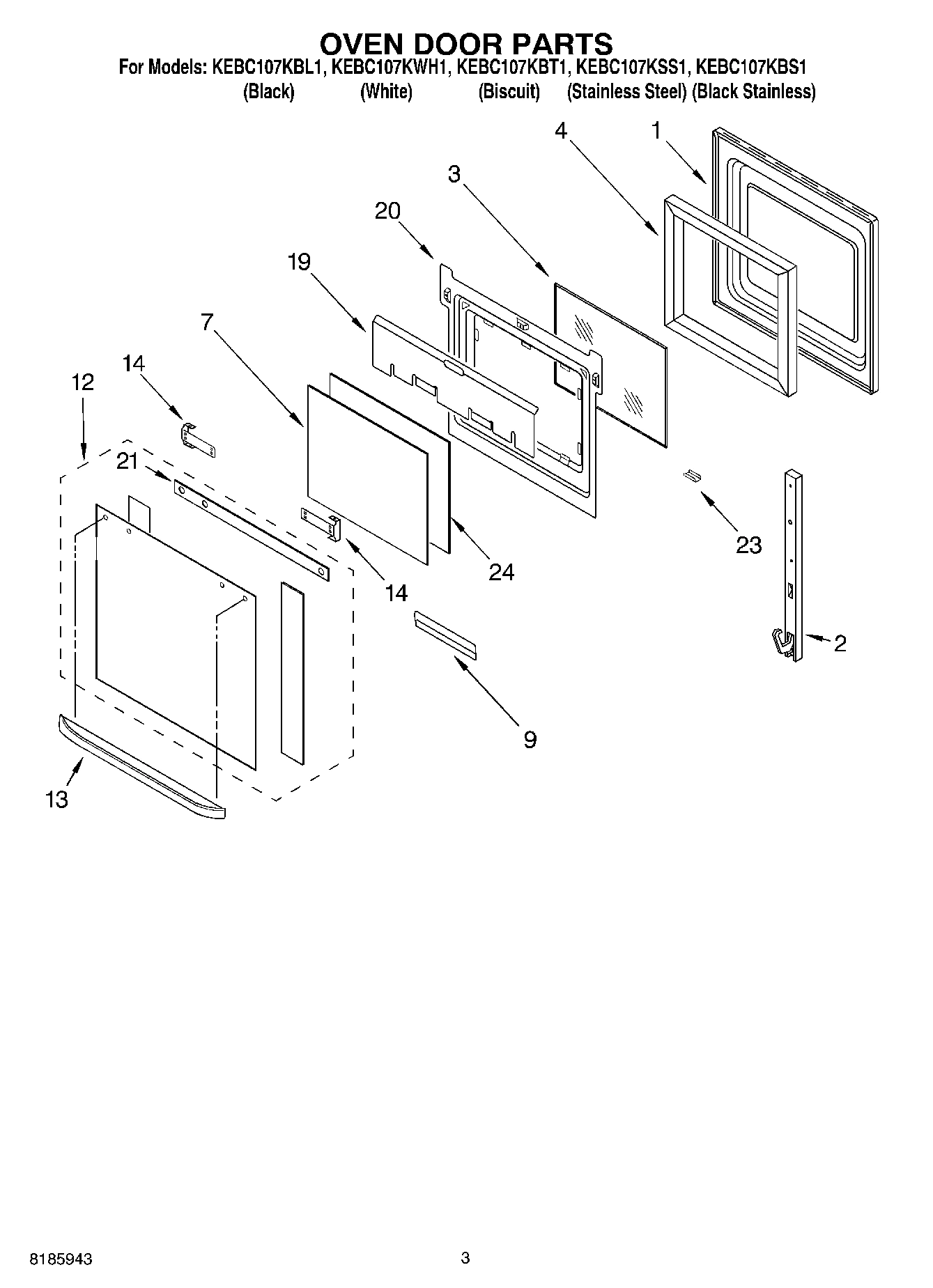

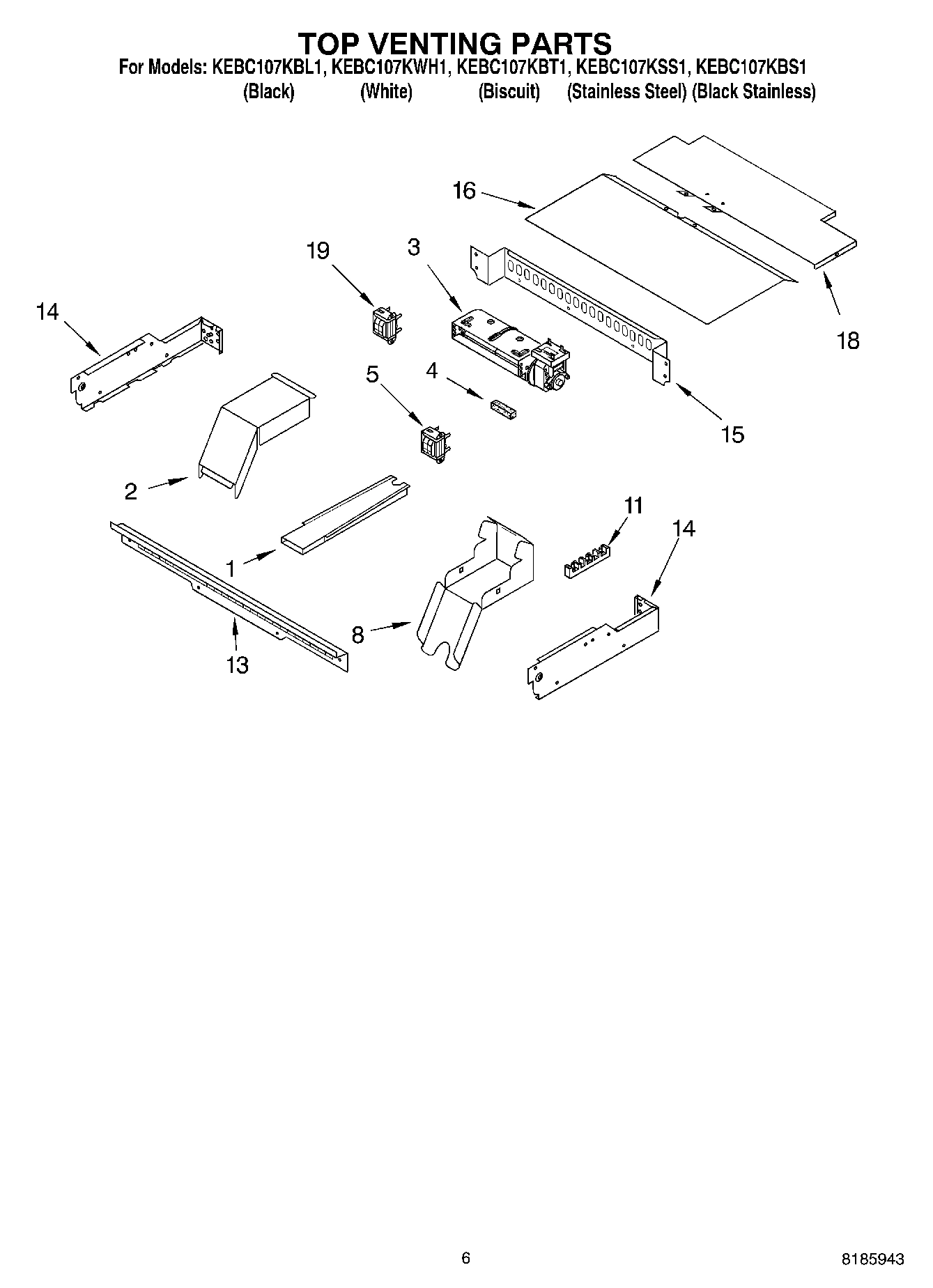

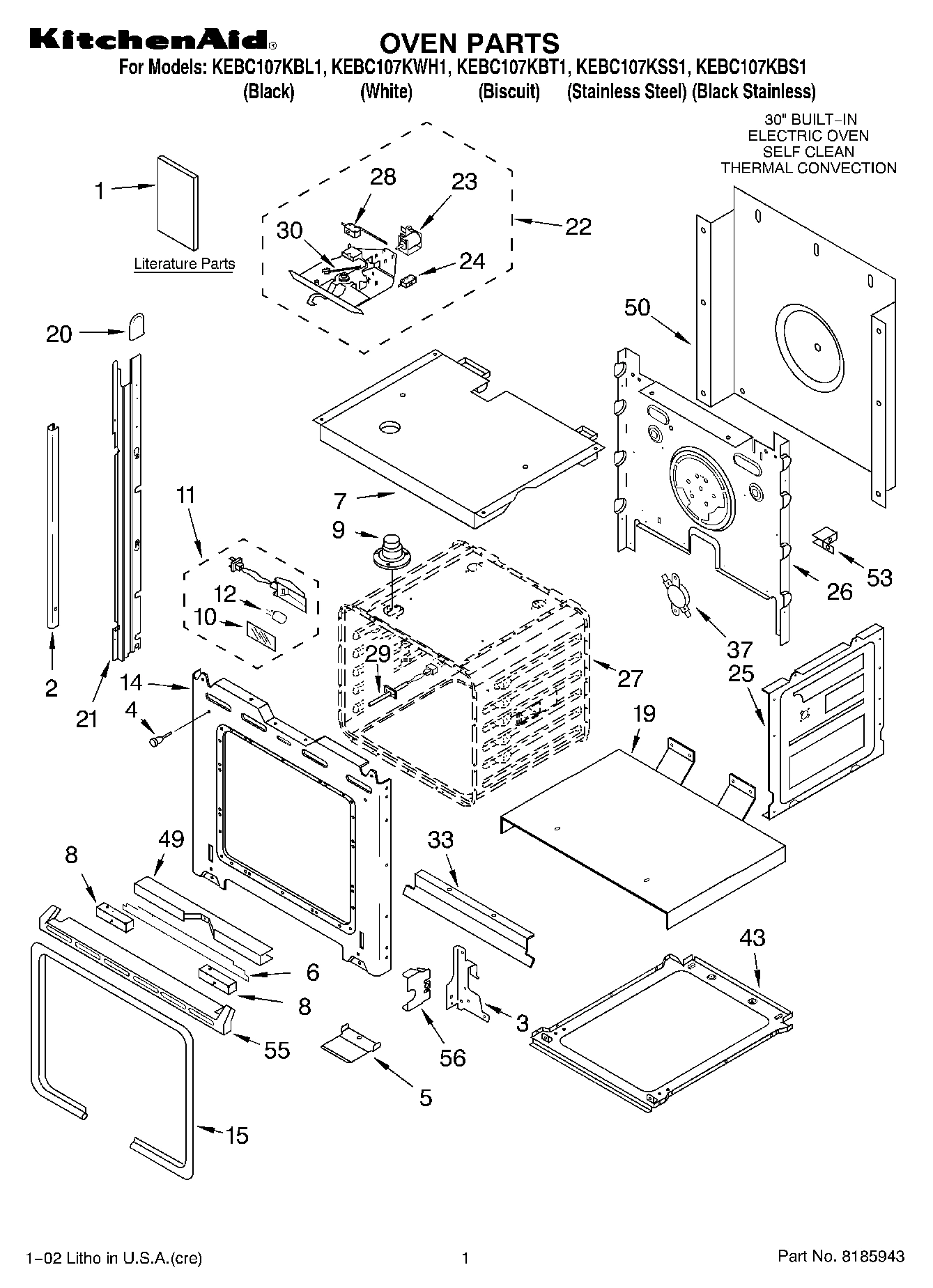

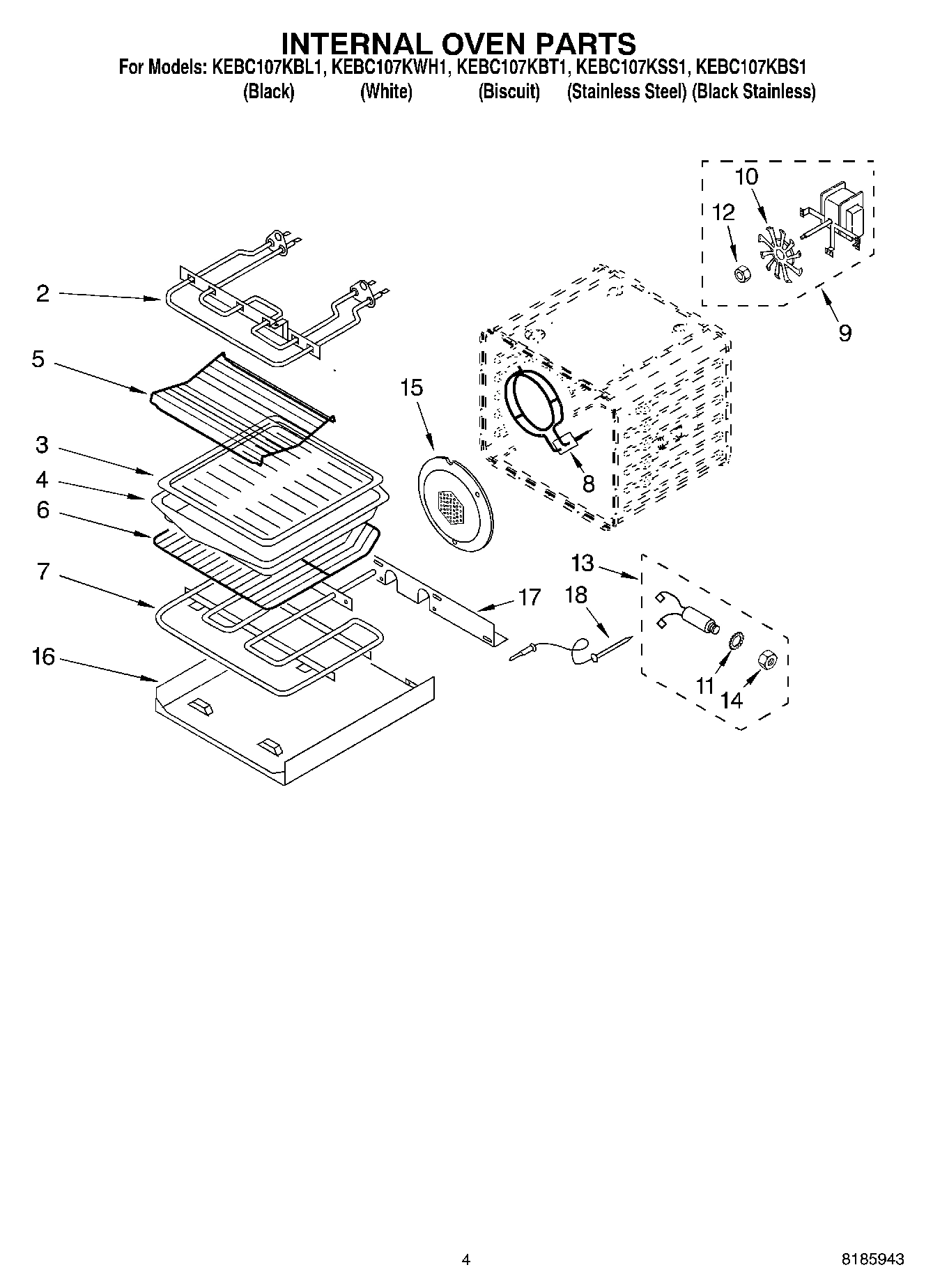

Model Whirlpool KEBC107KBL1 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Stainless Steel WPL 4455147 Contact Us For Availability

1

Panel, Control Stainless Steel WPL 4451791 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $105.02

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $2.51

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $130.60

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

Blower WPL 8300788 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $95.80

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $79.34

7

4451175 Whirlpool Bake Element In Stock WPL 4451175 $101.31

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

8

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $133.70

8

Spacer, Foam WPL 4452490 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.89

12

Nut WPL 4452227 Contact Us For Availability

13

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $63.44

13

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

13

Vent, Control Panel WPL 4448549 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $35.63

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $30.23

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

Bracket, Handle (Stainless Steel) WPL 4455804 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

15

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $106.90

15

Back, Control WPL 4452244 Contact Us For Availability

16

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

16

Cover, Top Rear WPL 4450551 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $30.25

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.29

18

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $58.23

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4451761 Whirlpool Oven Support Bracket Backorder WPL 4451761 $5.71

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $28.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $91.19

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Support, Insulation WPL 4451478 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Harness, Wire (Main) WPL 4455901 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 8300642 WPL 8300642 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

21

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $40.63

21

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $42.93

21

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

22

Latch Assy WPL 4451896 Contact Us For Availability

23

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI81374A3 Contact Us For Availability

28

Micr WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WPL 4451537 WPL 4451537 Contact Us For Availability

33

WPL 4452496 WPL 4452496 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

43

WPL 4455530 WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

53

WPL 4449845 WPL 4449845 Contact Us For Availability

55

WPL 4455443 WPL 4455443 Contact Us For Availability

55

WPL 4455445 WPL 4455445 Contact Us For Availability

55

WPL 4455447 WPL 4455447 Contact Us For Availability

56

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

56

W11684730 Whirlpool Insulation Backorder WPL W11684730 $47.58

56

WPL 4450365 WPL 4450365 Contact Us For Availability
