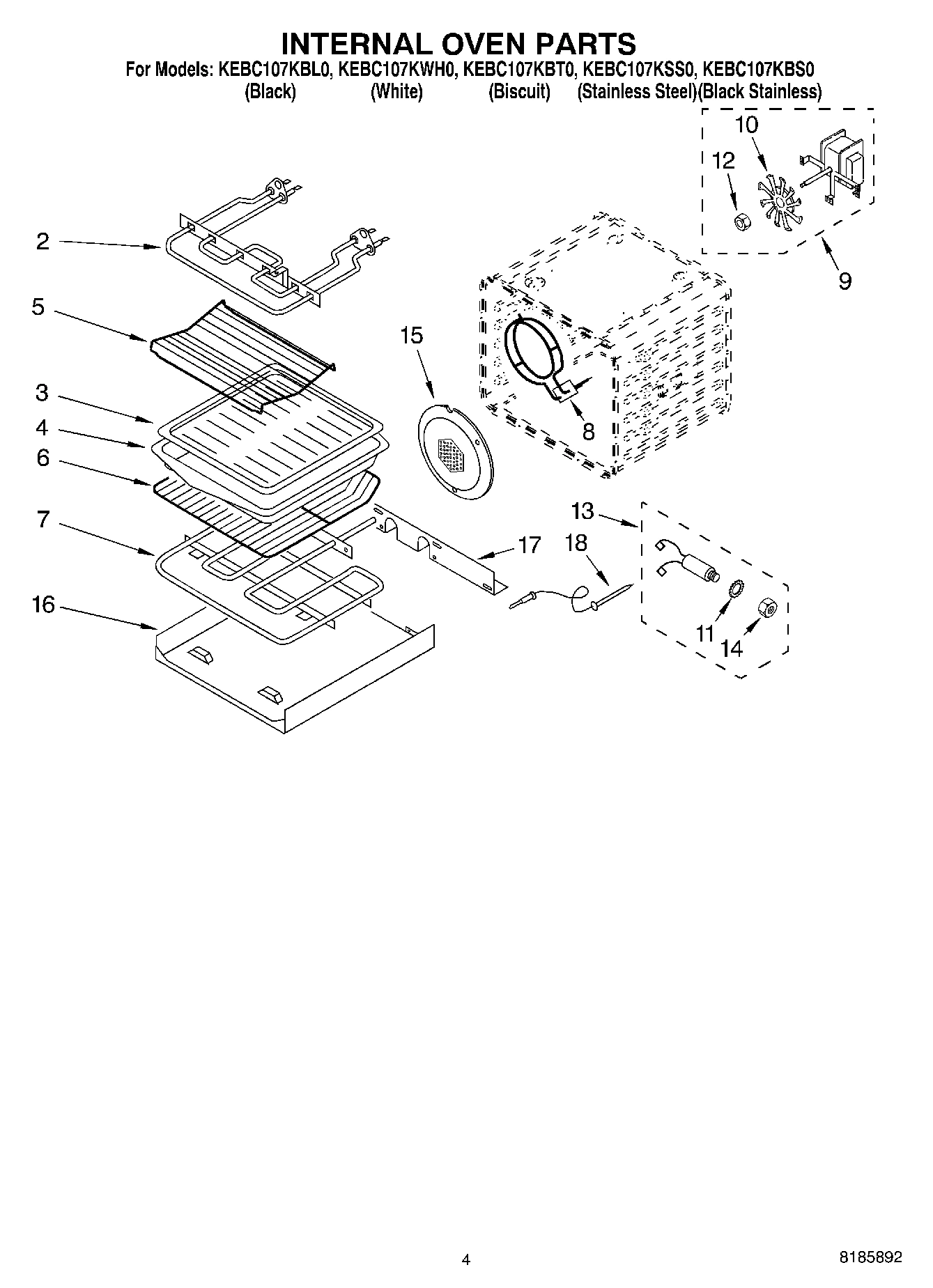

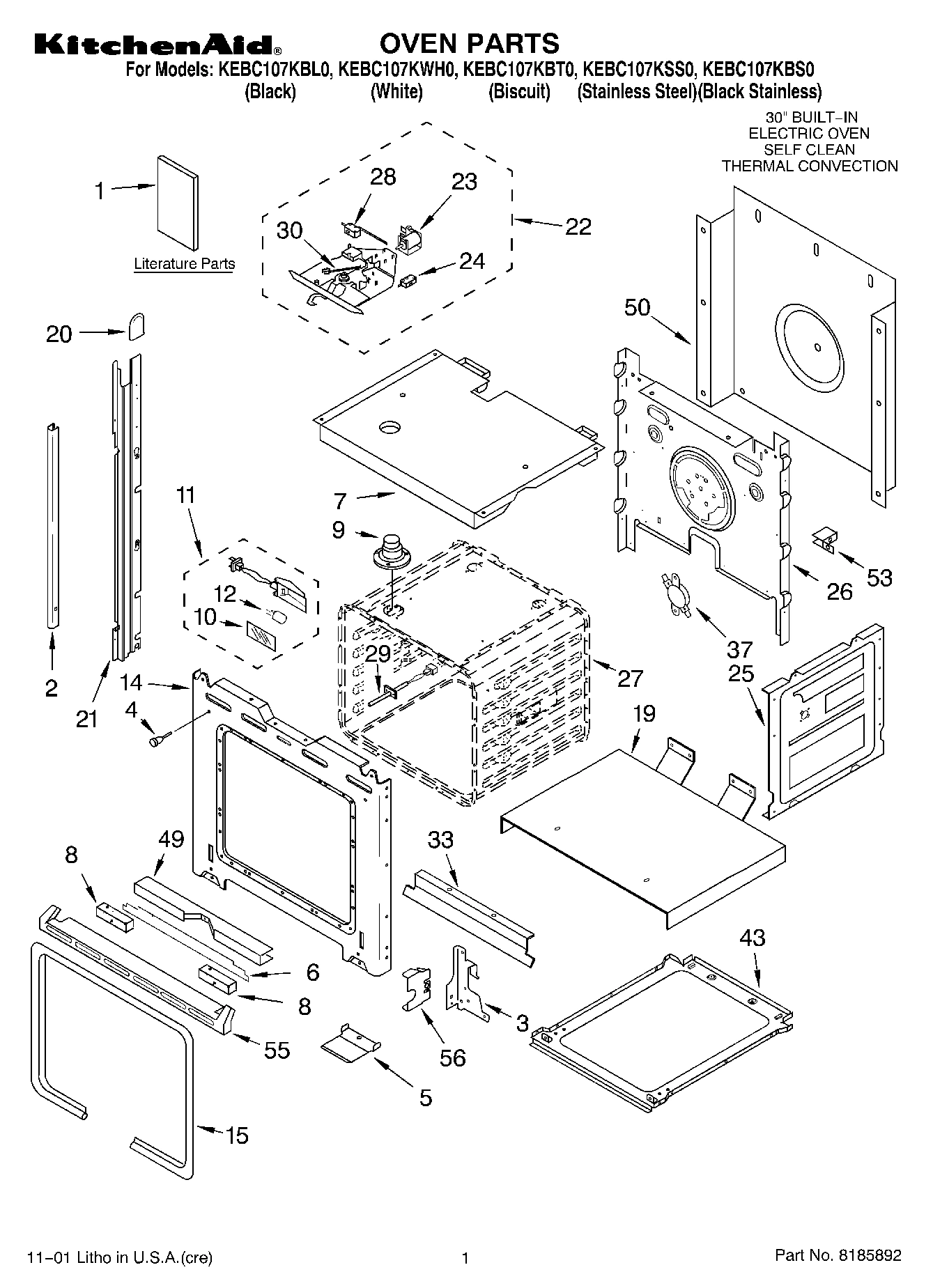

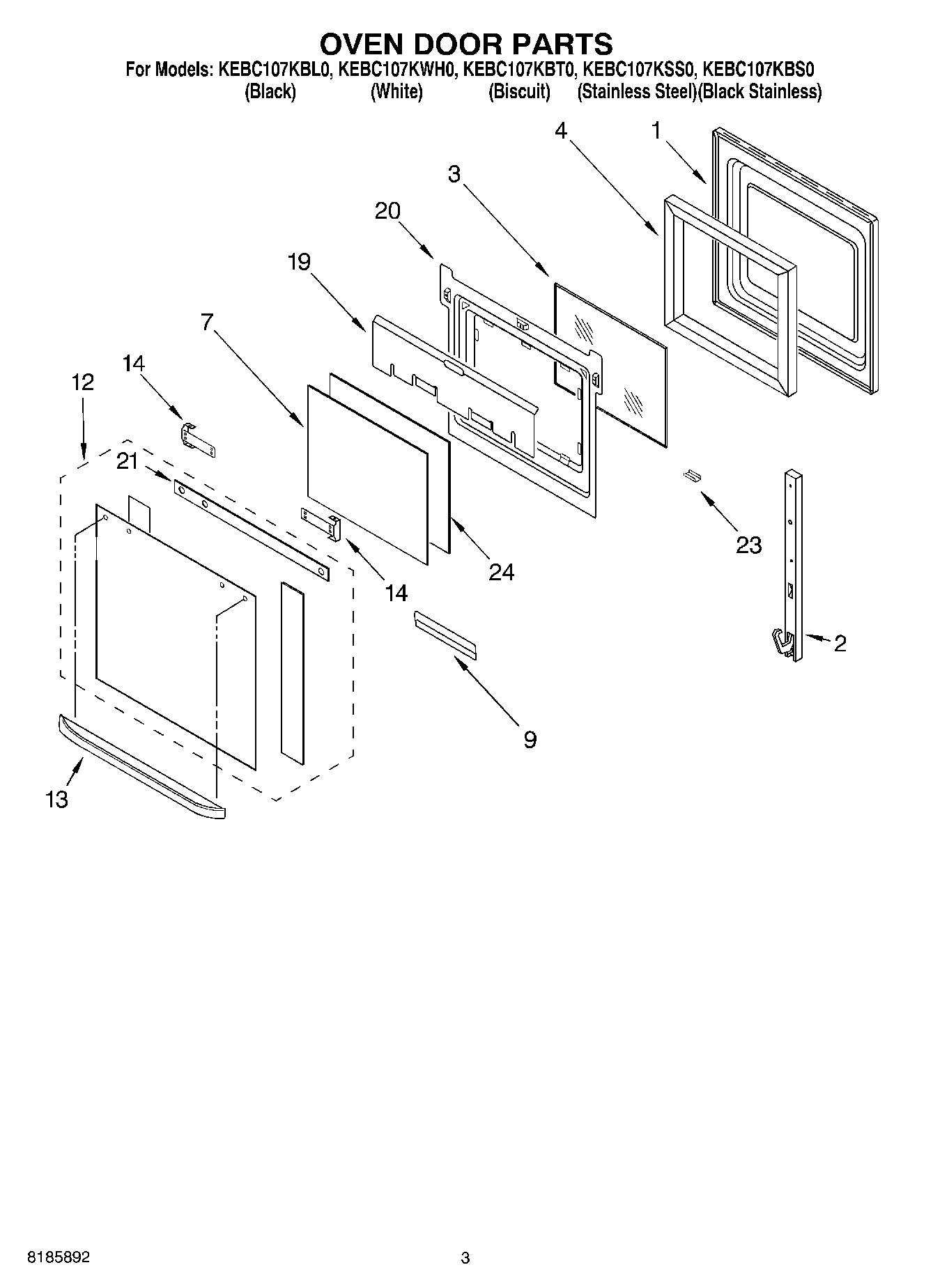

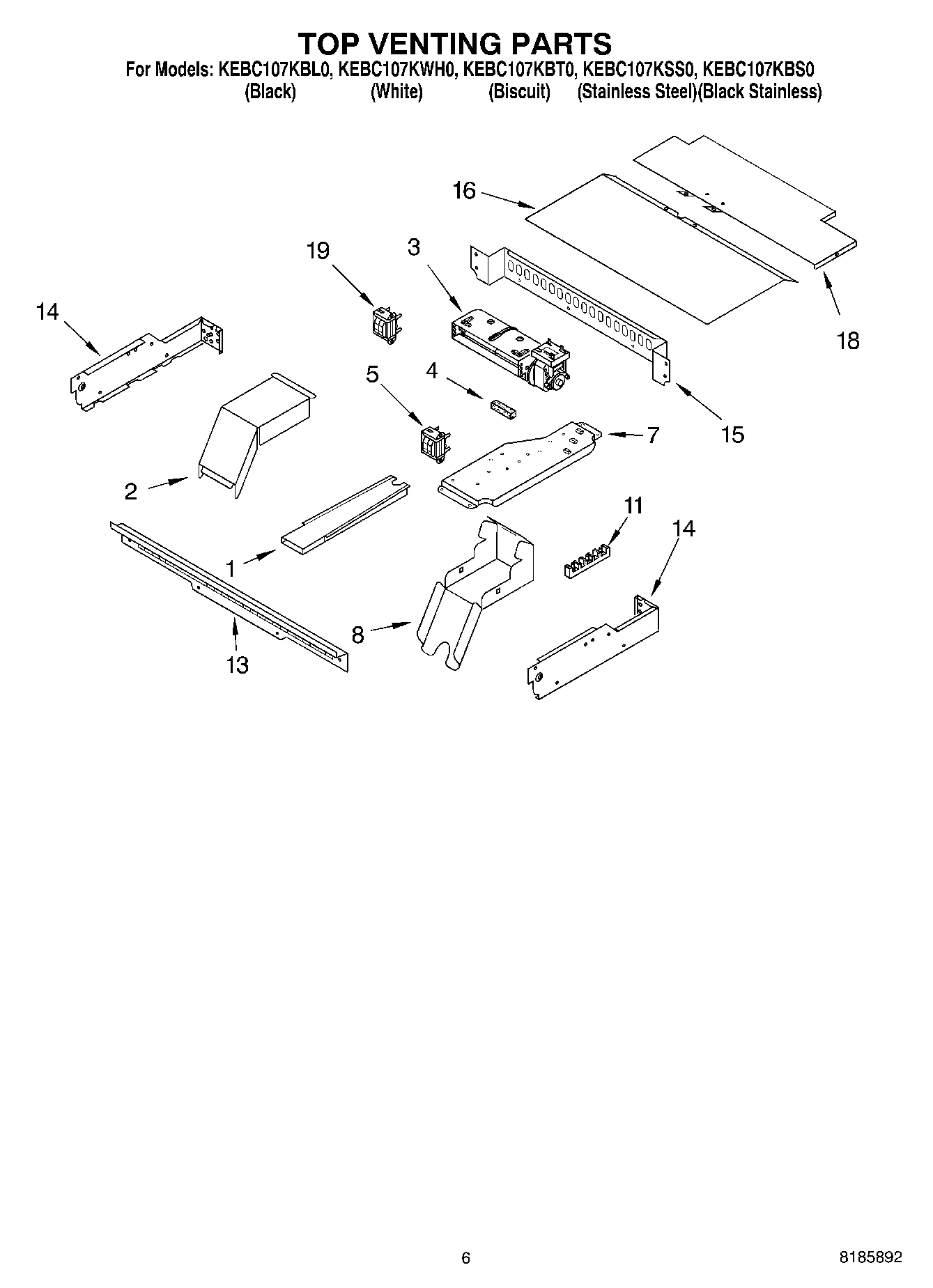

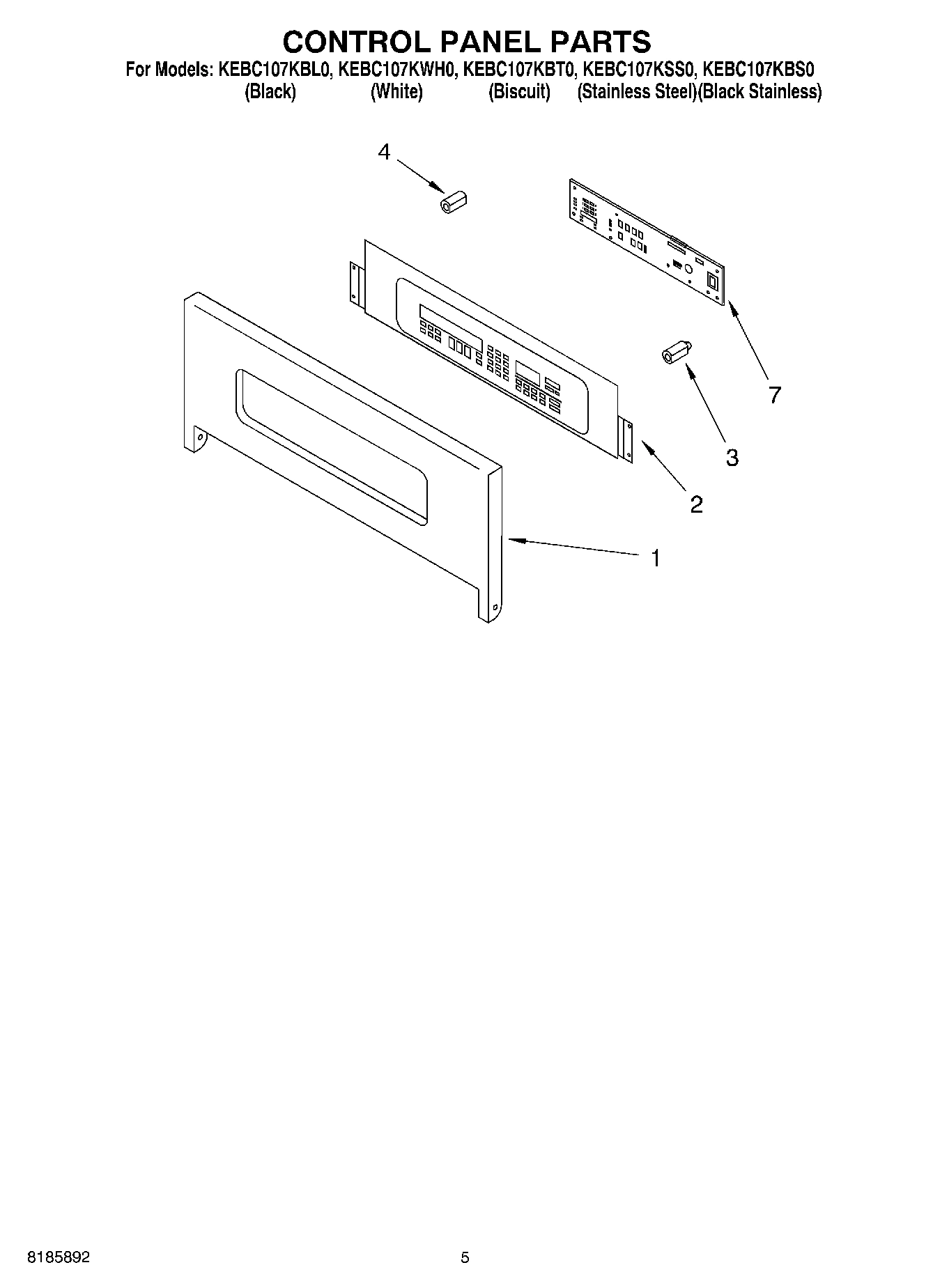

Model Whirlpool KEBC107KBL0 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Panel, Control Stainless Steel WPL 4451791 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation/ Undercounter) WPL LIT3192225 Contact Us For Availability

1

Literature Parts (Easy Set Guide) WPL LIT4449264 Contact Us For Availability

1

Literature Parts (Installation/ MWO Trim Kit) WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451876 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300654 Contact Us For Availability

1

Literature Parts (Use & Care Guide (Oven)) WPL LIT8300886 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

4455377 Whirlpool Oven Trim Backorder WPL 4455377 $100.02

2

W10144984 Whirlpool Trim Backorder WPL W10144984 $84.17

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WPW10144983 Whirlpool Trim Backorder WPL WPW10144983 $59.53

2

WPW10207400 Whirlpool Broil Element In Stock WPL WPW10207400 $118.34

2

Trim, Side (Right Hand) (Black) WPL 4455376 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit) WPL 4455378 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit) WPL 4455424 Contact Us For Availability

2

Trim, Side (LH White) WPL 4455429 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Blower WPL 4455334 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

5

4455807 Whirlpool Oven Vent Deflector Backorder WPL 4455807 $45.86

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Insulation WPL 4452337 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Top, Chassis WPL 4455865 Contact Us For Availability

8

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

8

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

8

Spacer, Foam WPL 4452490 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

10

Lens, Light WPL 4452163 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

Screw WPL 3400080 Contact Us For Availability

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Door Glass, Assy (White) WPL 4455390 Contact Us For Availability

Door Glass, Assy (Black) WPL 4455391 Contact Us For Availability

Door Glass, Assy (Biscuit) WPL 4455395 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Door Handle (Black) WPL 4452502 Contact Us For Availability

Door Handle (White) WPL 4452503 Contact Us For Availability

Door Handle (Biscuit) WPL 4452871 Contact Us For Availability

Door Handle (Stainless Steel) WPL 4455851 Contact Us For Availability

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

Bracket, Handle (Stainless Steel) WPL 4455804 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Bracket, Handle (Screw SS) WPL 3191684 Contact Us For Availability

Bracket, Handle (Screw) WPL 4451040 Contact Us For Availability

Bracket, Handle (Left Hand) WPL 4452960 Contact Us For Availability

Frame, Front WPL 4455612 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

16

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

17

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

18

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Shield, Heat WPL 4450362 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

20

Retainer, Glass WPL 8300778 Contact Us For Availability

20

Cap, Spacer WPL 4451605 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $38.69

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $40.88

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

Seal, Door Top WPL 4452326 Contact Us For Availability

22

Latch Assy WPL 4451896 Contact Us For Availability

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Stainless Steel) WPL 4451432 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

24

Glass, Inner WPL 4455257 Contact Us For Availability

24

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

26

Back, Chassis WPL 4452234 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI81353A4 Contact Us For Availability

28

Microswitch WPL 4451426 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WPL 4451537 WPL 4451537 Contact Us For Availability

33

9760677 Whirlpool Oven Vent Deflector Backorder WPL 9760677 $61.70

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

43

WPL 4455530 WPL 4455530 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

53

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

53

WPL 4449845 WPL 4449845 Contact Us For Availability

55

WPL 4455443 WPL 4455443 Contact Us For Availability

55

WPL 4455445 WPL 4455445 Contact Us For Availability

55

WPL 4455447 WPL 4455447 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WPL 4455147 WPL 4455147 Contact Us For Availability

WPL 4450365 WPL 4450365 Contact Us For Availability
