Model Whirlpool KDSS907XSP01 30`` Slide-In Dual Fuel Convection Range – Common Parts & Diagrams

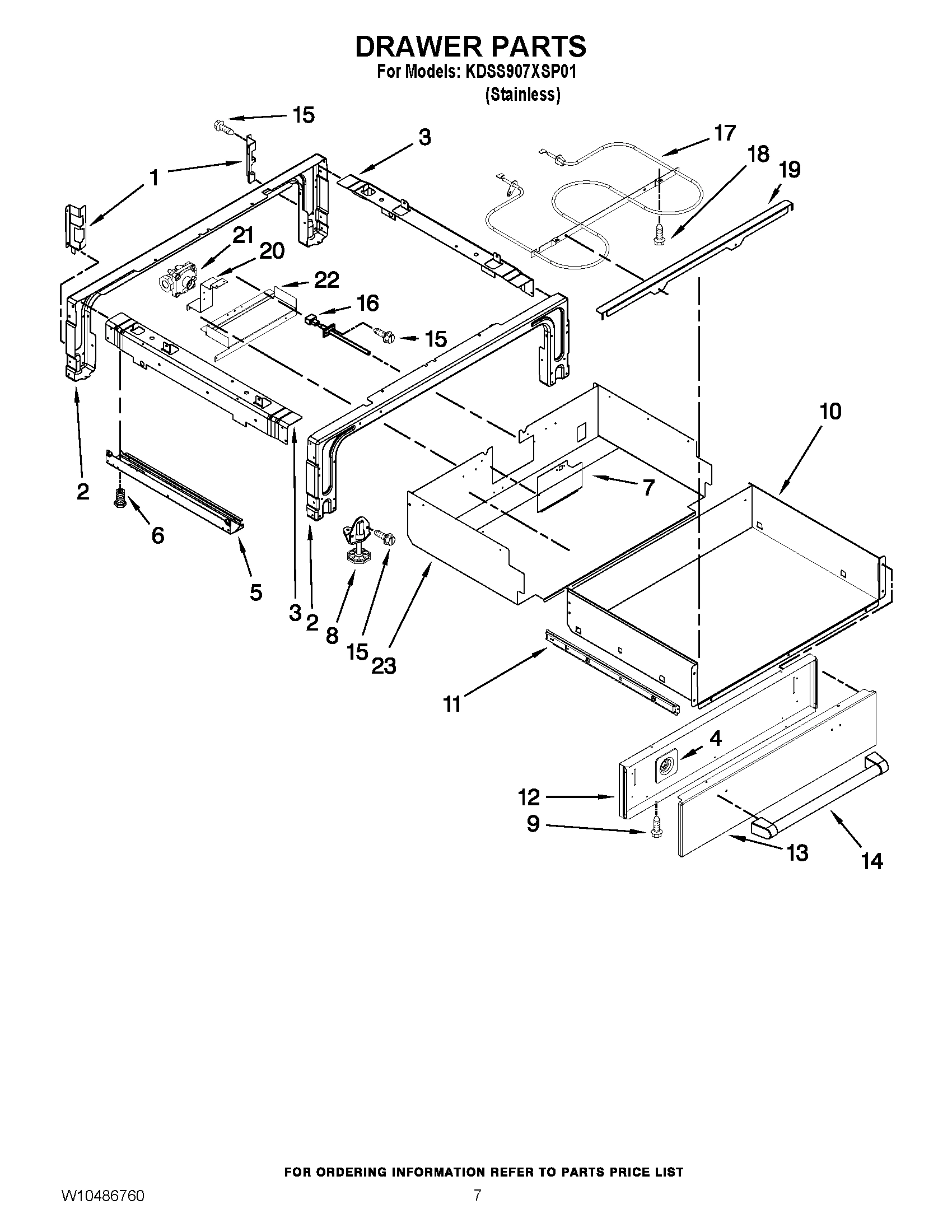

04 - DRAWER PARTS

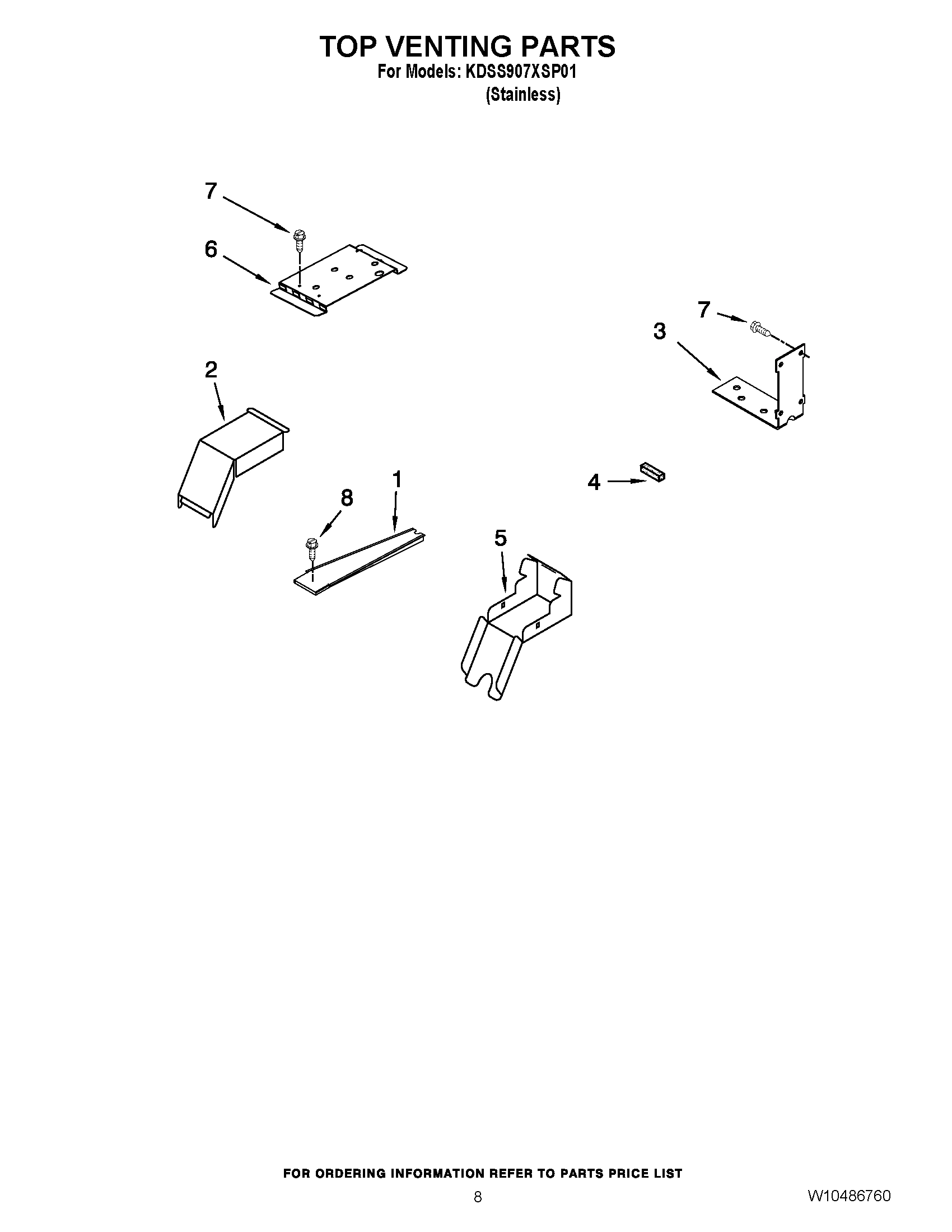

05 - TOP VENTING PARTS
07 - COOKTOP BURNER PARTS
06 - INTERNAL OVEN PARTS
08 - TRIPLE CROWN BURNER
02 - OVEN PARTS
09 - CONTROL PANEL PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
01 - COOKTOP PARTS
03 - DOOR PARTS
Common parts from model Whirlpool KDSS907XSP01 30`` Slide-In Dual Fuel Convection Range
1
PANEL, DOOR WPL W10277749 Contact Us For Availability
1
Vent, Exhaust WPL 4451759 Contact Us For Availability
1
Control Panel WPL W10156274 Contact Us For Availability
1
Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Guide Easy Set WPL 9763467 Contact Us For Availability
1
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
INSTALLER INSTRUCTIONS WPL W10075750 Contact Us For Availability
1
Tech Sheet WPL W10112147 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10440543 Contact Us For Availability
1
USE & CARE GUIDE WPL W10449873 Contact Us For Availability
2
Plate, Closure WPL 8285250 Contact Us For Availability
2
ELBOW, VENT TOP WPL 4455178 Contact Us For Availability
2
BURNER BOX WPL W10208808 Contact Us For Availability
3
Control, Interface WPL W10181439 Contact Us For Availability
3
Bracket, Mounting WPL 9761784 Contact Us For Availability
4
Cooktop WPL W10175861 Contact Us For Availability
4
Tray, Bake Hidden WPL 4455037 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
4
Shield, Console WPL W10105370 Contact Us For Availability
5
Side, Base (Right) WPL 9759953 Contact Us For Availability
5
Side, Base (Left) WPL 9759954 Contact Us For Availability
5
ELBOW, VENT BOTTOM WPL 4455177 Contact Us For Availability
6
Bracket, Touchsensor WPL 9761745 Contact Us For Availability
7
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
8
Screw WPL 4449040 Contact Us For Availability
8
Bracket, Spark Module WPL W10108030 Contact Us For Availability
9
VALVE, TCB WPL 9760519 Contact Us For Availability
9
Gasket, Vent Shield WPL W10116195 Contact Us For Availability
9
Bracket, Burner WPL 9763445 Contact Us For Availability
9
SHIELD, HEAT TOP WPL 4457104 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability
10
TUBE, T.C.B. GAS (OUTER) WPL 9761072 Contact Us For Availability
10
Shield, Heat WPL 8301084 Contact Us For Availability
11
Bracket, Central WPL 9759230 Contact Us For Availability
12
KIT, BURNER GRATE WPL W10338795 Contact Us For Availability
12
Orifice (Internal) WPL 9762443 Contact Us For Availability
12
Orifice (External) WPL 9762442 Contact Us For Availability
12
BRACKET, HANDLE (LEFT) WPL W10246113 Contact Us For Availability
12
BRACKET, HANDLE (RIGHT) WPL W10246114 Contact Us For Availability
13
Seal, Window WPL 8522415 Contact Us For Availability
13
Tubing DF to Regulator WPL W10108840 Contact Us For Availability
14
DOOR ASSEMBLY, OUTER WPL W10246115 Contact Us For Availability
15
Orifice (LR, RF) WPL 9762937 Contact Us For Availability
15
Orifice (RR) WPL 9762938 Contact Us For Availability
15
Screw WPL W10129030 Contact Us For Availability
16
Screw WPL 3400062 Contact Us For Availability
17
Bumper, Door WPL 4448520 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
ELEMENT, WARMING WPL W10207401 Contact Us For Availability
18
Gasket WPL W10109920 Contact Us For Availability
19
KIT, BURNER CAP WPL 9763503CB Contact Us For Availability
21
Regulator WPL W10108850 Contact Us For Availability
21
Cover, Cooktop Rear WPL 9761755 Contact Us For Availability
33
Base, Chassis WPL 9759713 Contact Us For Availability
36
Vent, Bottom Upper WPL W10160347 Contact Us For Availability
43
Screw WPL 3400080 Contact Us For Availability
45
Cover, Terminal Box WPL 9757405 Contact Us For Availability
46
INSULATOR, TERMINAL BOX WPL 9759721 Contact Us For Availability
49
Slide, GOC WPL W10083460 Contact Us For Availability
50
APPLIANCE, MANAGER WPL W10181438 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
Orifice Kit WPL 9757426 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability
NI
HARNESS, TCB WPL 9756921 Contact Us For Availability
NI
Harness, Switch Electric WPL W10157935 Contact Us For Availability
NI
Harness, Main WPL W10141504 Contact Us For Availability
NI
Insulation, Wrap WPL 9756817 Contact Us For Availability
NI
Harness, Ground Strap WPL 9763481 Contact Us For Availability
NI
BUSHING SNAP SPLIT 1`` WPL 9757778 Contact Us For Availability
NI
EDGE PROTECTOR WPL W10127413 Contact Us For Availability
NI
SCREW WPL W10175937 Contact Us For Availability
NI
GROMMET, FLEX, 60MM WPL W10177363 Contact Us For Availability
× ![]()
