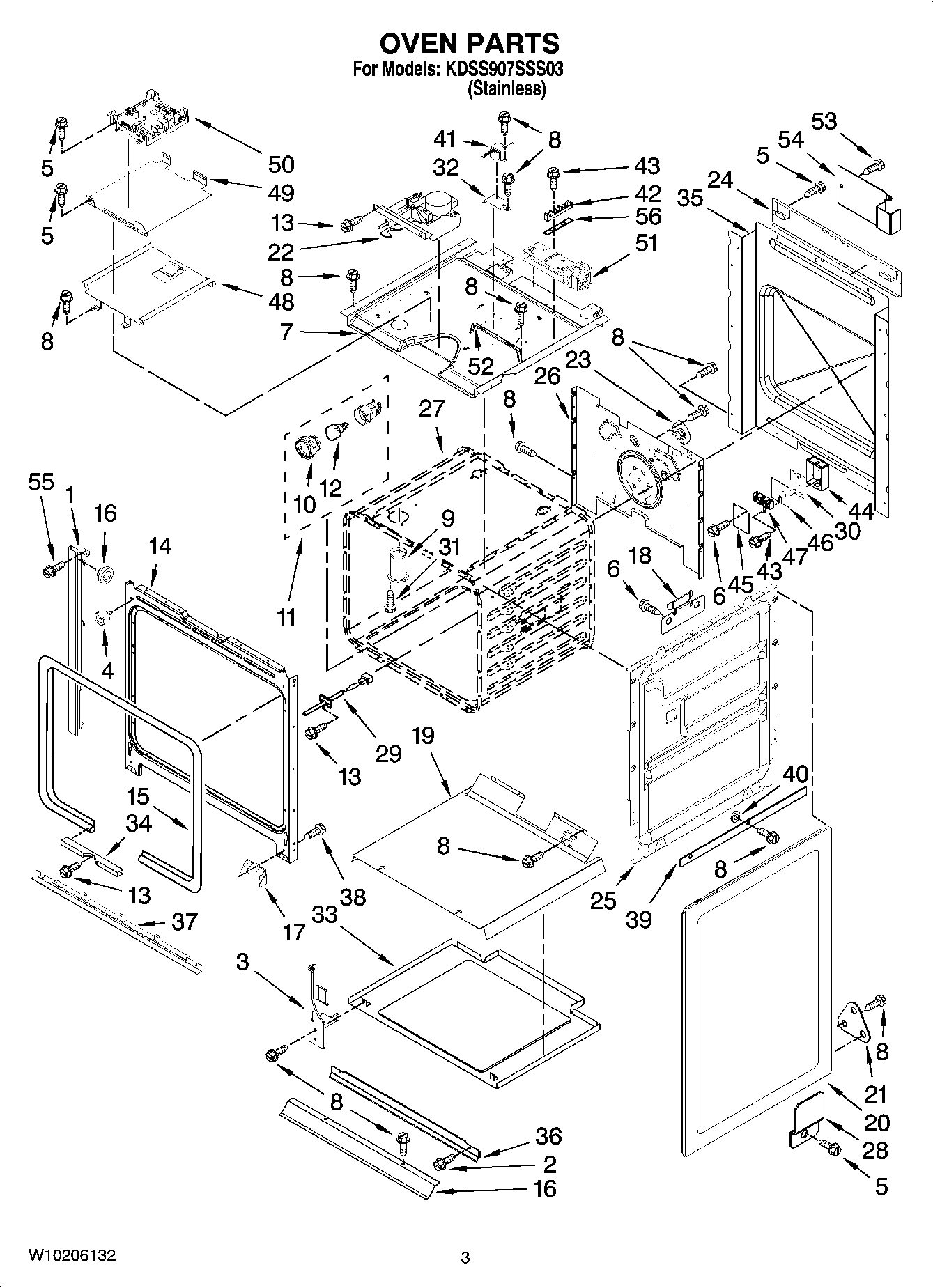

Model Whirlpool KDSS907SSS03 30`` Slide-In Dual Fuel CONVECTION – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

9756921 Whirlpool Range Wire Harness Backorder WPL 9756921 $152.71

9757426 Whirlpool Range LP Conversion Kit Backorder WPL 9757426 $17.97

9763481 Whirlpool Range Wire Harness Backorder WPL 9763481 $30.25

W10157935 Whirlpool Wire Harness Backorder WPL W10157935 $63.57

W10851603 Whirlpool Orifice Backorder WPL W10851603 $39.45

W11209404 Whirlpool Wire Harness Backorder WPL W11209404 $82.75

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability

Harness, Main WPL W10141504 Contact Us For Availability

Insulation, Wrap WPL 9756817 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $112.67

1

WP9761639 Whirlpool Orifice Holder In Stock WPL WP9761639 $107.71

1

WPW10128446 Whirlpool Orifice Holder Backorder WPL WPW10128446 $67.77

1

Burner Base Includes Orifice (RR) WPL W10128455 Contact Us For Availability

1

Control Panel WPL W10156274 Contact Us For Availability

1

Anti-Tip Instructions WPL 9757680 Contact Us For Availability

1

Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability

1

Guide Easy Set WPL 9763467 Contact Us For Availability

1

Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability

1

Tech Sheet WPL W10112147 Contact Us For Availability

1

Installation Instructions WPL W10154991 Contact Us For Availability

1

Use & Care Guide WPL W10162199 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

8285250 Whirlpool Oven Cover Plate Backorder WPL 8285250 $6.00

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

2

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $77.02

2

WP9761566 Whirlpool Membrane Switch In Stock WPL WP9761566 $219.17

2

Burner Box WPL W10153103 Contact Us For Availability

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

3

WP8285255 Whirlpool Burner Head Backorder WPL WP8285255 $64.83

3

Control, Interface WPL W10181439 Contact Us For Availability

3

Bracket, Mounting WPL 9761784 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $107.44

4

WP8285256 Whirlpool Burner Head Backorder WPL WP8285256 $66.34

4

Cooktop WPL W10175861 Contact Us For Availability

4

Tray, Bake Hidden WPL 4455037 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

5

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $140.71

5

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $41.60

5

Cap, Burner External WPL 8285258 Contact Us For Availability

5

Side, Base (Right) WPL 9759953 Contact Us For Availability

5

Side, Base (Left) WPL 9759954 Contact Us For Availability

6

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 $141.37

6

WP9757807 Whirlpool High Limit Thermostat Backorder WPL WP9757807 $39.66

6

WP9758829CB Whirlpool Burner Cap Backorder WPL WP9758829CB $28.11

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

7

WP3400702 Whirlpool Screw Backorder WPL WP3400702 $5.23

7

WP9756824 Whirlpool Wire Harness Backorder WPL WP9756824 $89.21

8

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.33

8

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $28.64

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

8

WPW10156265 Whirlpool Knob In Stock WPL WPW10156265 $49.17

8

Bracket, Spark Module WPL W10108030 Contact Us For Availability

9

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $134.50

9

VALVE, TCB WPL 9760519 Contact Us For Availability

9

Bracket, Burner WPL 9763445 Contact Us For Availability

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $87.13

Lens, Light (2) WPL W10067870 Contact Us For Availability

TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability

TUBE, T.C.B. GAS (OUTER) WPL 9761072 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Shield, Heat WPL 8301084 Contact Us For Availability

11

WP9763494 Whirlpool Surface Igniter Backorder WPL WP9763494 $27.76

11

WPW10110491 Whirlpool Spark Module In Stock WPL WPW10110491 $112.85

11

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

12

9762443 Whirlpool Range Orifice Spud Backorder WPL 9762443 $4.85

12

Grate, Burner (RH) WPL 9761555CB Contact Us For Availability

12

Orifice (External) WPL 9762442 Contact Us For Availability

8522415 Whirlpool Range Wind Gasket Backorder WPL 8522415 $30.25

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

Tubing DF to Regulator WPL W10108840 Contact Us For Availability

Grate, Burner (LH) WPL 9761556CB Contact Us For Availability

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $291.63

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $2.34

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

9762937 Whirlpool Range Orifice Backorder WPL 9762937 $33.69

W10129030 Whirlpool Screw Backorder WPL W10129030 $4.85

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

Orifice (RR) WPL 9762938 Contact Us For Availability

16

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $3.33

16

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $113.94

16

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $73.11

17

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

17

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

17

9760775 Whirlpool Range Warm Element Backorder WPL 9760775 $73.14

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

18

WP9761557CB Whirlpool Burner Grate In Stock WPL WP9761557CB $100.15

18

Badge WPL 8304603SS Contact Us For Availability

19

9761563CB Whirlpool Burner Cap Backorder WPL 9761563CB $45.35

19

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $27.49

21

W10491985 Whirlpool Screw Backorder WPL W10491985 $3.33

21

Regulator WPL W10108850 Contact Us For Availability

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $193.95

23

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

23

Cover, Cooktop Rear WPL 9761755 Contact Us For Availability

24

WP9763436 Whirlpool Rear Cover Backorder WPL WP9763436 $50.27

25

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

25

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $15.01

25

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $35.43

26

Gasket WPL W10109920 Contact Us For Availability

33

Base, Chassis WPL 9759713 Contact Us For Availability

34

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

36

Vent, Bottom Upper WPL W10160347 Contact Us For Availability

38

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

41

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $112.09

43

Screw WPL 3400080 Contact Us For Availability

45

Cover, Terminal Box WPL 9757405 Contact Us For Availability

46

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $41.32

47

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $14.49

49

Slide, GOC WPL W10083460 Contact Us For Availability

50

APPLIANCE, MANAGER WPL W10181438 Contact Us For Availability

51

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $145.66

55

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51
