Model Whirlpool KDRP707RSS01 30`` KITCHENAID FREE STANDING RANGE DUAL FUEL STEA – Common Parts &amp; Diagrams

4456627 Whirlpool Wire Harness Backorder WPL 4456627 $47.14

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, Wire (Ignitor 39``) WPL 4456628 Contact Us For Availability

Conv. Kit (L WPL 8301282 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bushing, Conduit WPL 3191506 Contact Us For Availability

S.Steel Cleaner WPL 4396920 Contact Us For Availability

Seal, Ribbon Cable WPL 4453192 Contact Us For Availability

Harness, Wire (Spark Module) WPL 4456549 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

WPL 8301668 WPL 8301668 Contact Us For Availability

WPL 9758951 WPL 9758951 Contact Us For Availability

WPL 9761098 WPL 9761098 Contact Us For Availability

WPL 9763620 WPL 9763620 Contact Us For Availability

WPL ARI81127A8 WPL ARI81127A8 Contact Us For Availability

WPL ARI81128A5 WPL ARI81128A5 Contact Us For Availability

WPL ARI81129A4 WPL ARI81129A4 Contact Us For Availability

WPL ARI81130A5 WPL ARI81130A5 Contact Us For Availability

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

1

Vent, Bottom Lower WPL 4452802 Contact Us For Availability

1

Vent, Exhaust WPL 9758955 Contact Us For Availability

1

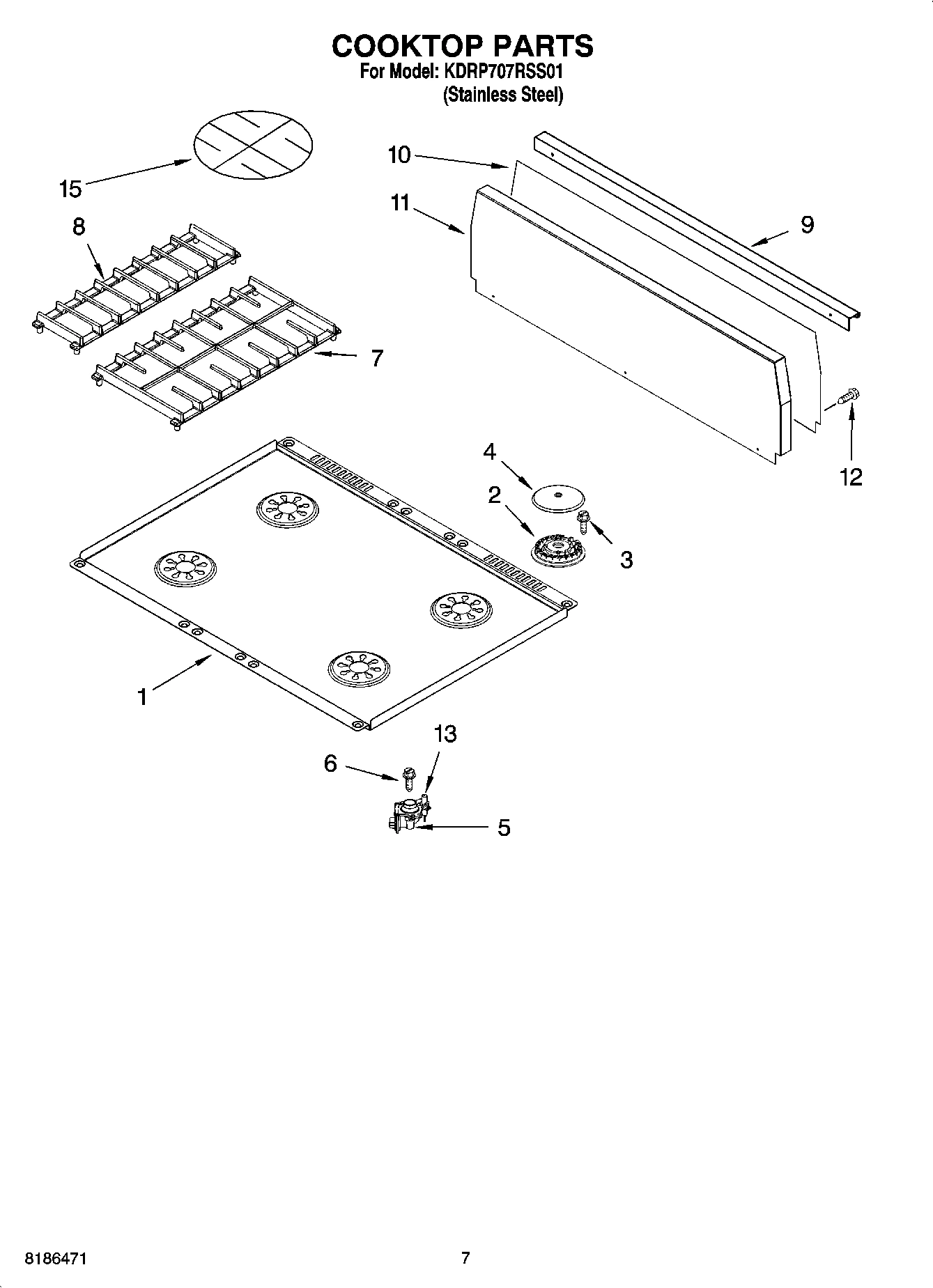

Cooktop WPL 9760697 Contact Us For Availability

1

Safer Cooking Tips WPL 3191638 Contact Us For Availability

1

Installation Instructions WPL 9758978 Contact Us For Availability

1

Tech Sheet WPL 9758979 Contact Us For Availability

1

Safer Cooking Tips WPL 9759133 Contact Us For Availability

1

Conversion Instructions WPL 9759441 Contact Us For Availability

1

Cook Book WPL 9762575 Contact Us For Availability

1

Use & Care Guide WPL 9763071 Contact Us For Availability

2

WP9760577 Whirlpool Oven Right Door Hinge Backorder WPL WP9760577 $39.95

2

WP9760578 Whirlpool Oven Left Door Hinge In Stock WPL WP9760578 $41.78

2

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

2

Burner Head (4) WPL 4455849 Contact Us For Availability

2

Vent-Top WPL 9758954 Contact Us For Availability

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

3

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

Blower 60MM WPL 9759837 Contact Us For Availability

4

W10737569 Whirlpool Broil Pan Backorder WPL W10737569 $60.42

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

4

Cap, Burner (4) WPL 4455243 Contact Us For Availability

4

Vent-Bottom WPL 9758953 Contact Us For Availability

4

Retainer, Gasket WPL 9758595 Contact Us For Availability

5

8186360 Whirlpool Oven Drain Pump Backorder WPL 8186360 $135.94

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

5

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

WPW10155786 Whirlpool Range Surface Burner Or In Stock WPL WPW10155786 $46.08

5

Control, Zodiac WPL 9761103 Contact Us For Availability

5

Deflector, Center WPL 4452800 Contact Us For Availability

5

Rack, Roasting WPL 3181534 Contact Us For Availability

6

W11550107 Whirlpool Oven Rack Backorder WPL W11550107 $56.40

6

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

6

Transformer, Control WPL 8300642 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

Gasket WPL 4453323 Contact Us For Availability

7

Vent, Center WPL 9761913 Contact Us For Availability

7

Grate, Burner (2) WPL 4457331 Contact Us For Availability

7

Top, Chassis WPL 9758832 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

Valve, Burner (4) WPL 4456818 Contact Us For Availability

8

Bracket, Blower WPL 9758956 Contact Us For Availability

8

Grate, Filler WPL 4457150 Contact Us For Availability

9

9758999 Whirlpool Oven Thermal Fuse Backorder WPL 9758999 $40.61

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Bracket, Mounting Regulator WPL 9759092 Contact Us For Availability

9

Retainer, Glass WPL 9759634 Contact Us For Availability

9

Trim, Island WPL 4454961 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $60.62

Burner Switch & Harness Assembly WPL 4457173 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

Support, Backsplash WPL 4455031 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light Backorder WPL WP4448972 $50.93

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WP9759091 Whirlpool Regulator Backorder WPL WP9759091 $128.39

WPW10160821 Whirlpool Fan Cover Backorder WPL WPW10160821 $101.81

Spacer, Glass WPL 9759635 Contact Us For Availability

Trim, Backsplash WPL 4454959 Contact Us For Availability

W10401225 Whirlpool Oven Outer Door Glass Backorder WPL W10401225 $145.96

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Gusset WPL 4455644 Contact Us For Availability

Nut WPL 4452227 Contact Us For Availability

W11643125 Whirlpool Element Backorder WPL W11643125 $44.43

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

WP9782116 Whirlpool Surface Igniter In Stock WPL WP9782116 $30.07

Support, Channel WPL 4455643 Contact Us For Availability

Door Handle WPL 4455851 Contact Us For Availability

4455115 Whirlpool Oven Knob Backorder WPL 4455115 $13.83

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

Brace, Rear WPL W10015710 Contact Us For Availability

Side, Control Top WPL 4452442 Contact Us For Availability

Frame, Front WPL 9762237 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

Plate, Simmer WPL 4455109 Contact Us For Availability

Trim, Front (Right Side) WPL 4452804 Contact Us For Availability

Trim, Front (Left Side) WPL 4453205 Contact Us For Availability

16

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

16

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

16

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

WP4452997 Whirlpool PB Switch Backorder WPL WP4452997 $53.03

Side Chassis (Left Side) WPL 9761933 Contact Us For Availability

Side Chassis (Right Side) WPL 9761934 Contact Us For Availability

Spacer, Foam WPL 4452260 Contact Us For Availability

18

8186352 Whirlpool Boiler Backorder WPL 8186352 $207.38

18

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $29.99

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

Tray, Drip WPL 9762142 Contact Us For Availability

Shield, Heat Top WPL 4457103 Contact Us For Availability

Support, Insulation WPL 4451478 Contact Us For Availability

20

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

20

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

20

Reservoir (Includes Clamps) WPL 9761145 Contact Us For Availability

21

Switch, Cancel (Drain Pump) WPL 4457218 Contact Us For Availability

21

Seal, Door Top WPL 4452326 Contact Us For Availability

21

Bracket, Support WPL 4455510 Contact Us For Availability

22

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

22

Gasket, Sensor WPL 9762243 Contact Us For Availability

23

4453115 Whirlpool Oven Adapter Backorder WPL 4453115 $43.39

23

4453116 Whirlpool Oven Adapter Backorder WPL 4453116 $68.92

23

Sensor, Level WPL 9761107 Contact Us For Availability

24

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

24

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.13

24

Control, Taurus (Appliance Mngr) WPL 9761155 Contact Us For Availability

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

WP4452842 Whirlpool Light Switch Backorder WPL WP4452842 $35.47

SUPPRESSOR WPL 8302143 Contact Us For Availability

Bracket (3rd Glass) WPL 8302094 Contact Us For Availability

26

Control, Steam WPL 9758985 Contact Us For Availability

26

Back, Chassis WPL 9758830 Contact Us For Availability

27

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

27

Liner, Oven (Not serviceable) WPL ARI81125A4 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

31

Screw, 8-18 x 3/8 WPL 4449040 Contact Us For Availability

33

Orifice, Boiler WPL 9758597 Contact Us For Availability

34

Cover, Orifice Boiler WPL 9758596 Contact Us For Availability

35

8186365 Whirlpool Oven Hose Backorder WPL 8186365 $35.79

36

8186366 Whirlpool Oven Hose Backorder WPL 8186366 $68.83

37

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $77.29

38

8186367 Whirlpool Oven Hose Assembly Backorder WPL 8186367 $26.21

40

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

41

Screw WPL 9762844 Contact Us For Availability

43

Base, Chassis WPL 4455649 Contact Us For Availability

50

Cover, Back WPL 9758583 Contact Us For Availability

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

Button, Plug WPL 4448982 Contact Us For Availability

Insulation, Back WPL 4450365 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI81126A3 Contact Us For Availability
