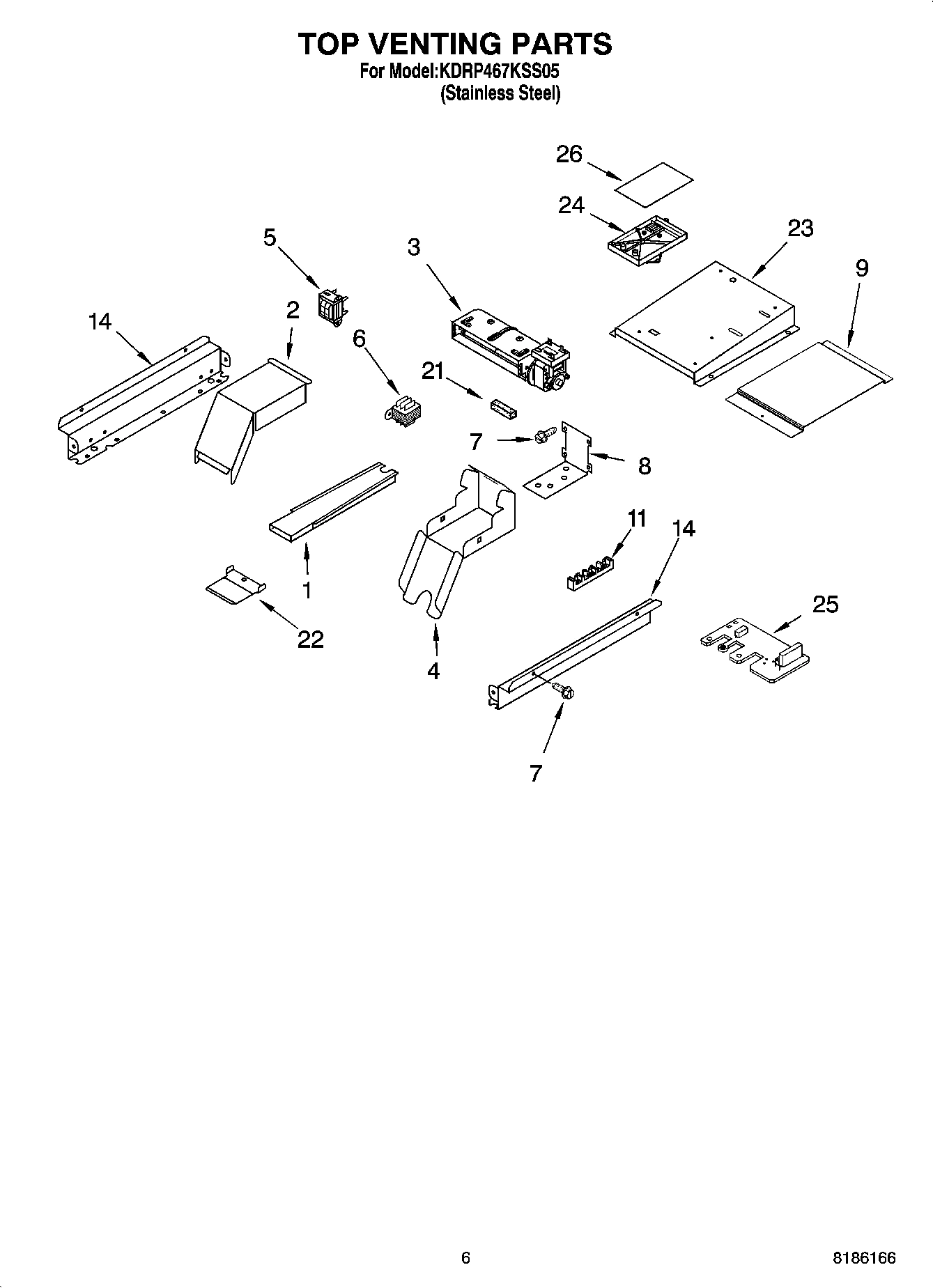

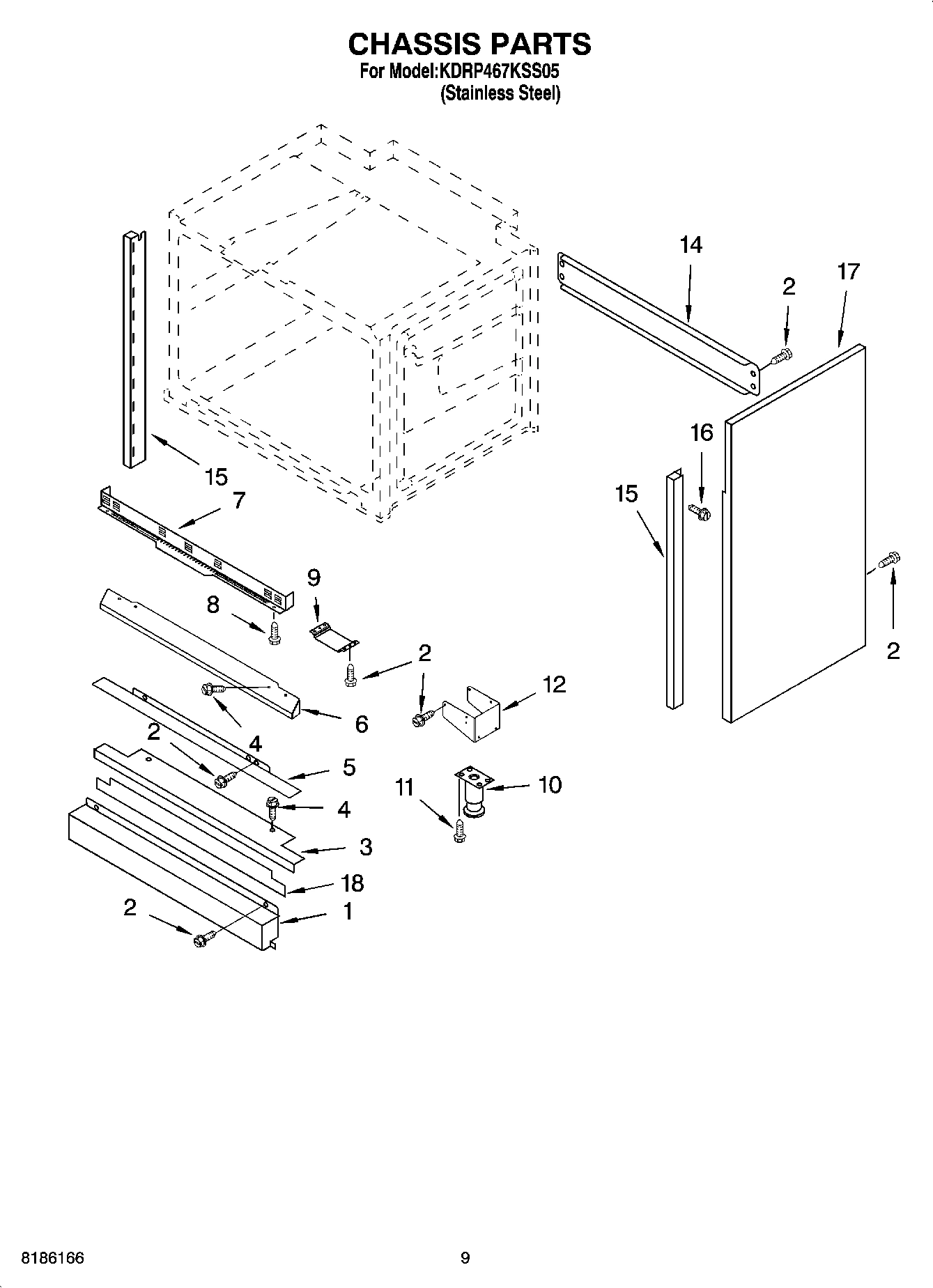

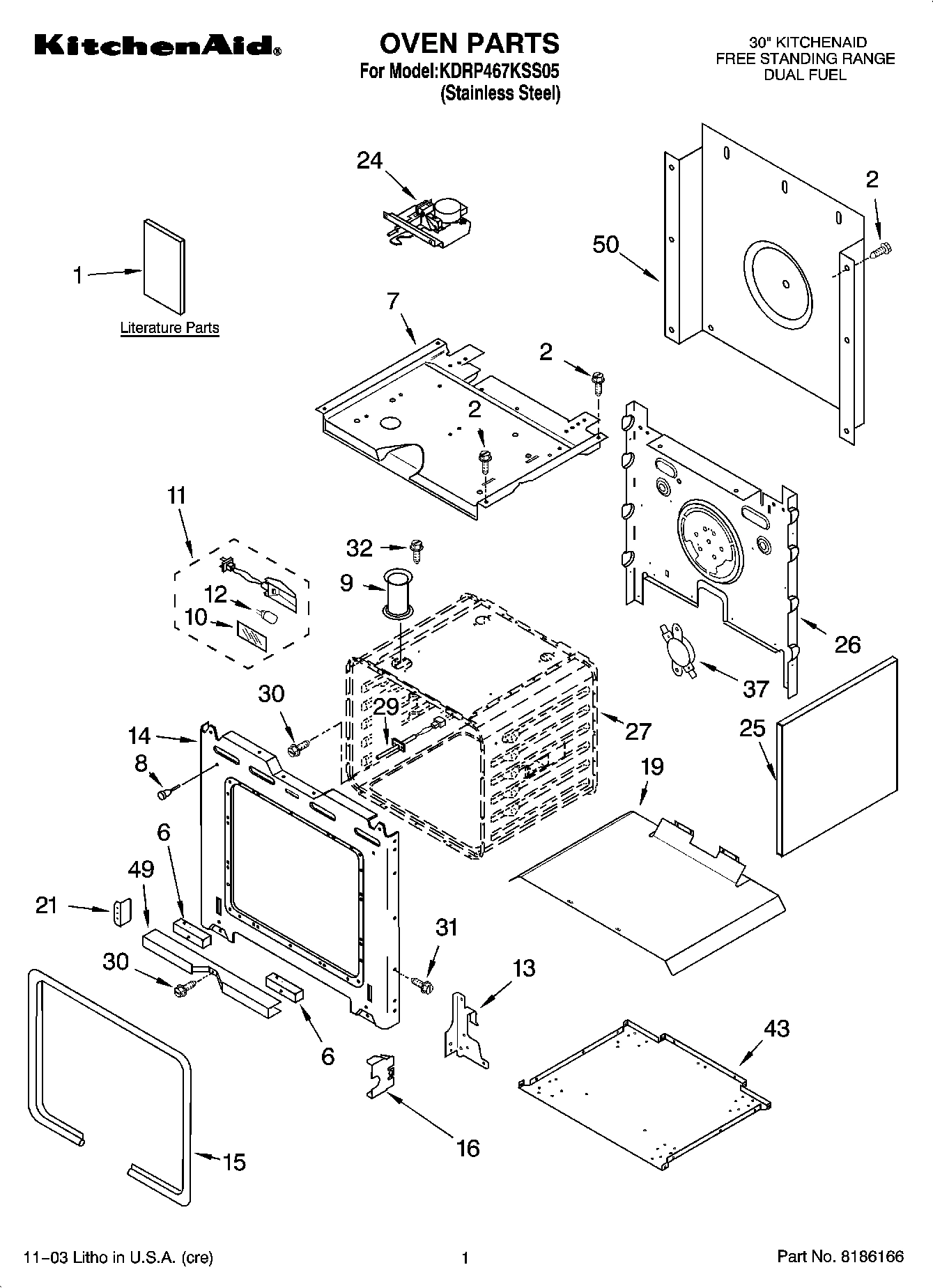

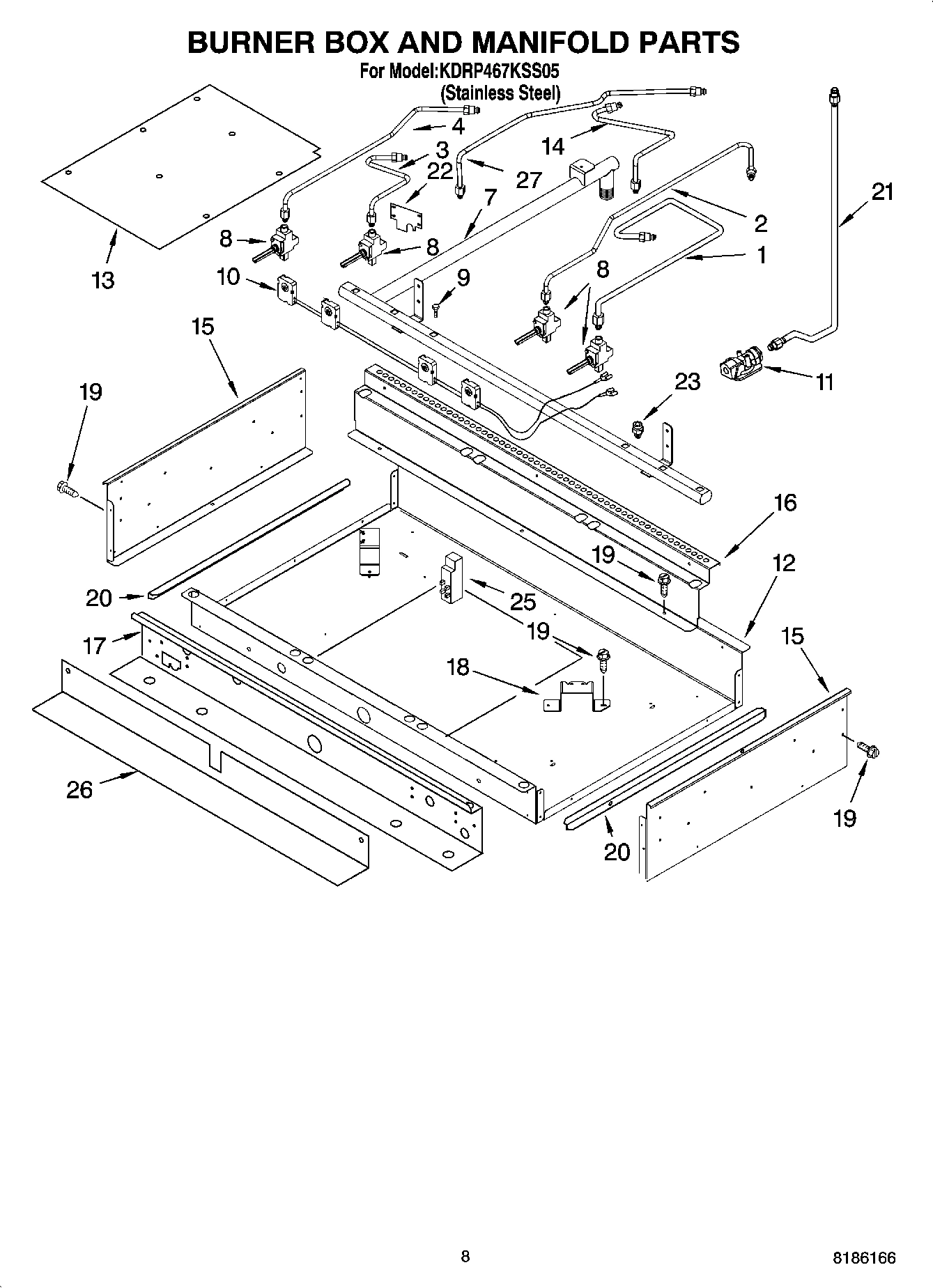

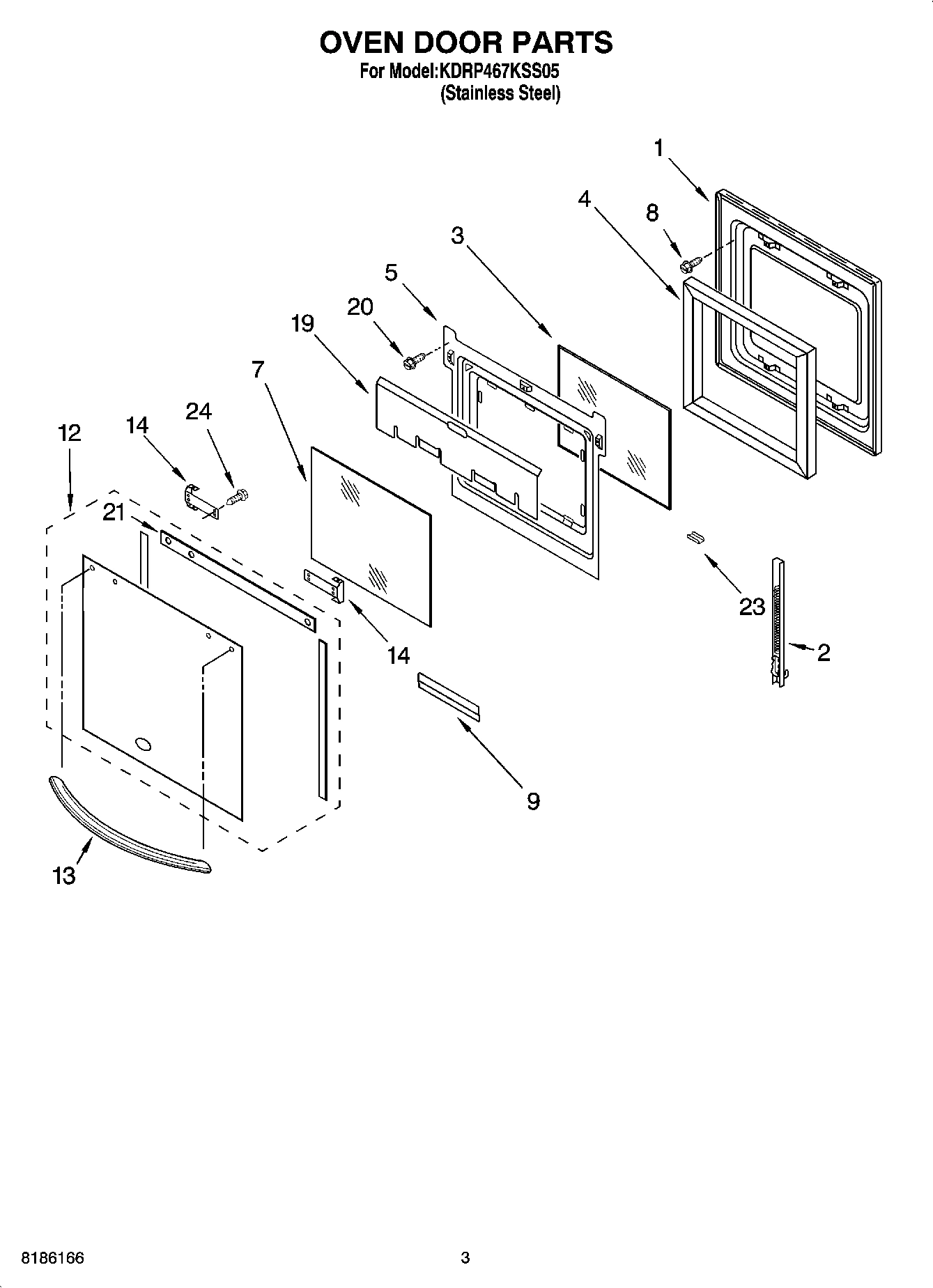

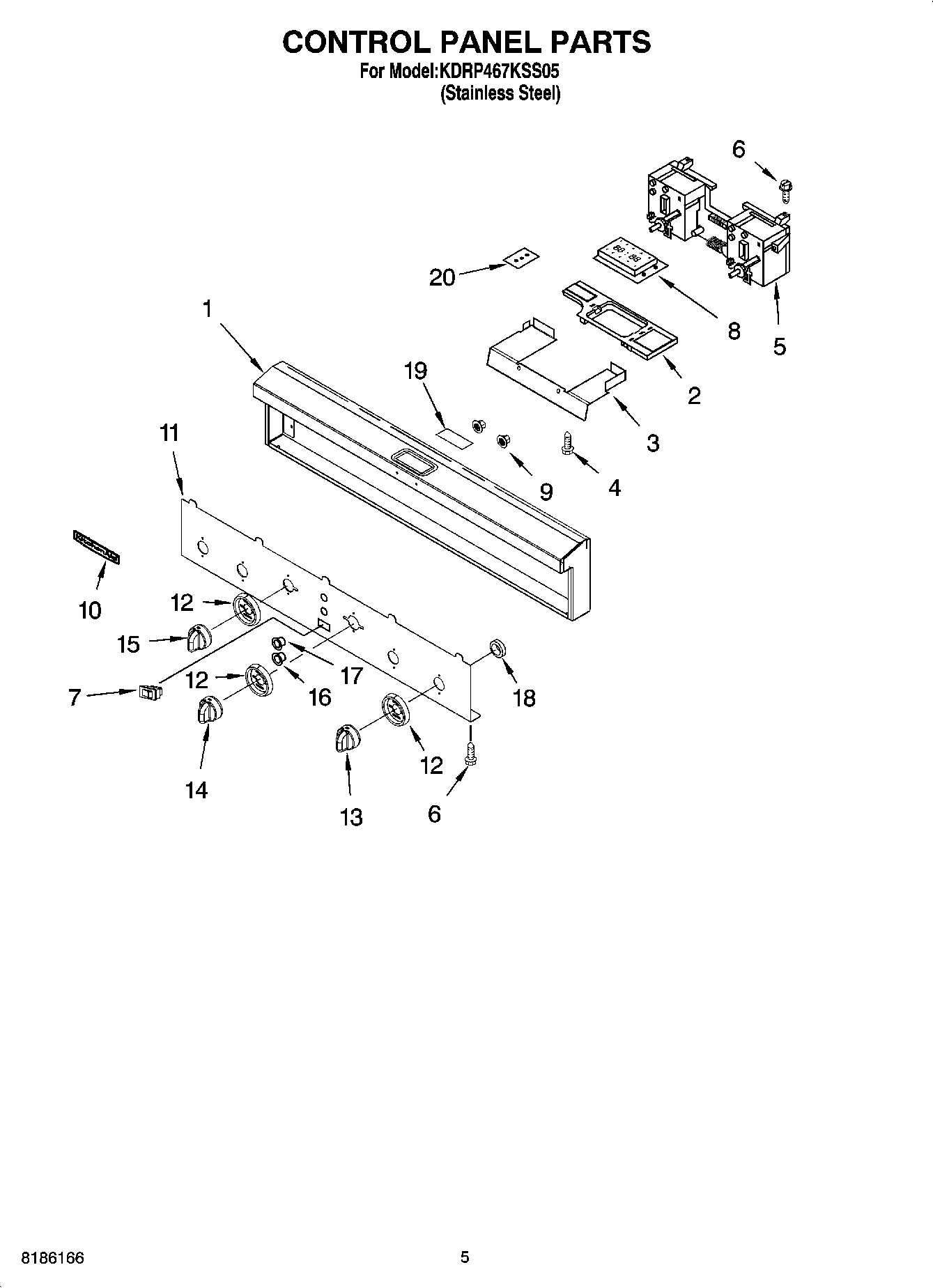

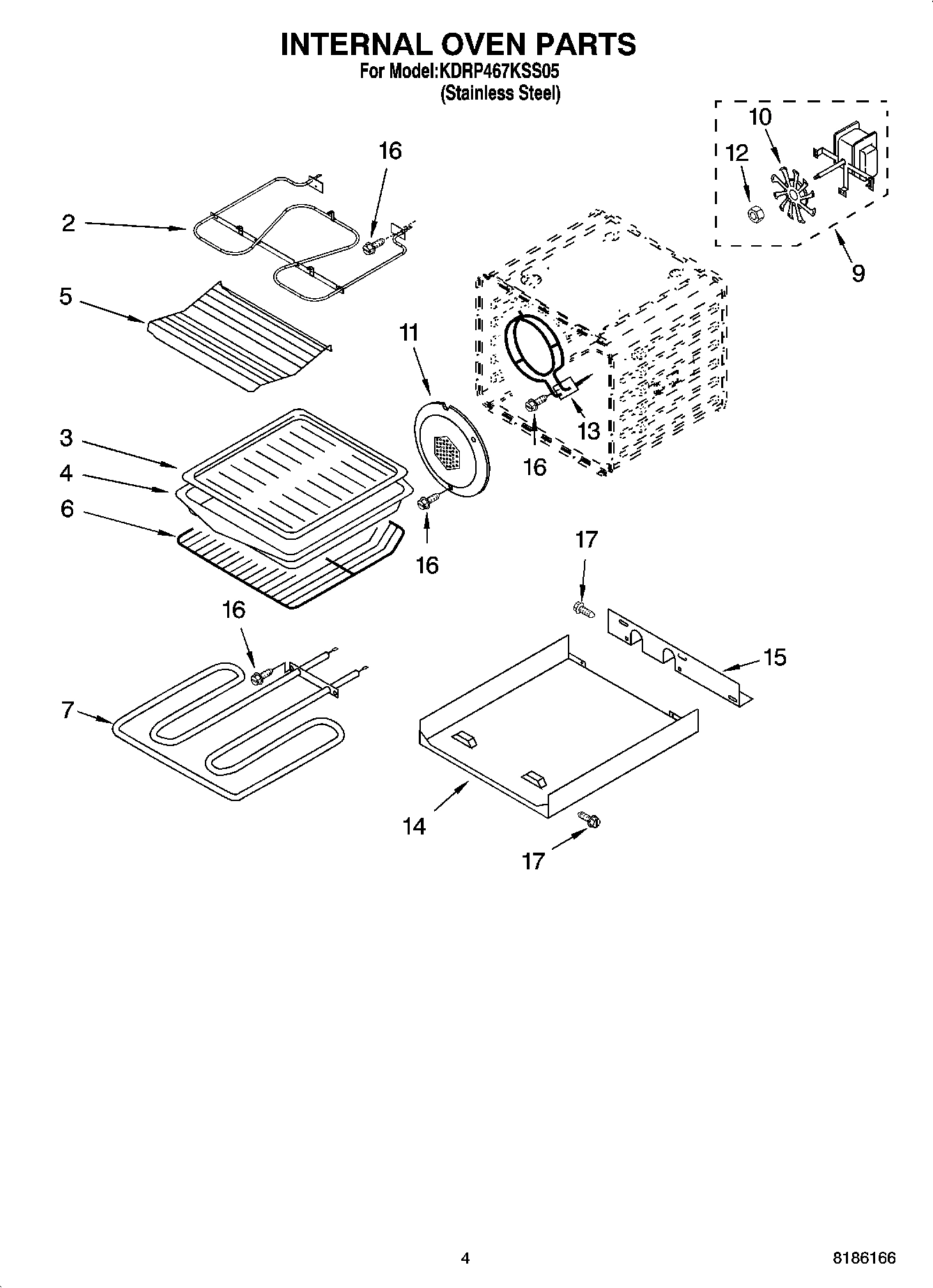

Model Whirlpool KDRP467KSS05 30`` KITCHENAID FREE STANDING RANGE DUAL FUEL – Common Parts &amp; Diagrams

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4453191 Whirlpool Seal Backorder WPL 4453191 $30.89

4456627 Whirlpool Wire Harness In Stock WPL 4456627 $49.50

814381 Whirlpool Pin In Stock WPL 814381 $3.70

W10138103 Whirlpool Anti-Tip Bracket Backorder WPL W10138103 $91.77

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Harness, Wire (Ignitor 42``) WPL 4456628 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI81073A3 Contact Us For Availability

Bushing WPL 1129449 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bushing, Conduit WPL 3191506 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Seal, Ribbon Cable WPL 4453192 Contact Us For Availability

Harness, Wire (Main) WPL 4456550 Contact Us For Availability

Harness, Wire (Spark Module) WPL 4456552 Contact Us For Availability

ADHESIVE LOCTITE (1/3 O WPL 591014 Contact Us For Availability

WPL 8284782 WPL 8284782 Contact Us For Availability

WPL 8301467 WPL 8301467 Contact Us For Availability

WPL ARI81076A7 WPL ARI81076A7 Contact Us For Availability

WPL ARI81077A2 WPL ARI81077A2 Contact Us For Availability

WPL ARI81078A7 WPL ARI81078A7 Contact Us For Availability

WPL ARI81079A9 WPL ARI81079A9 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

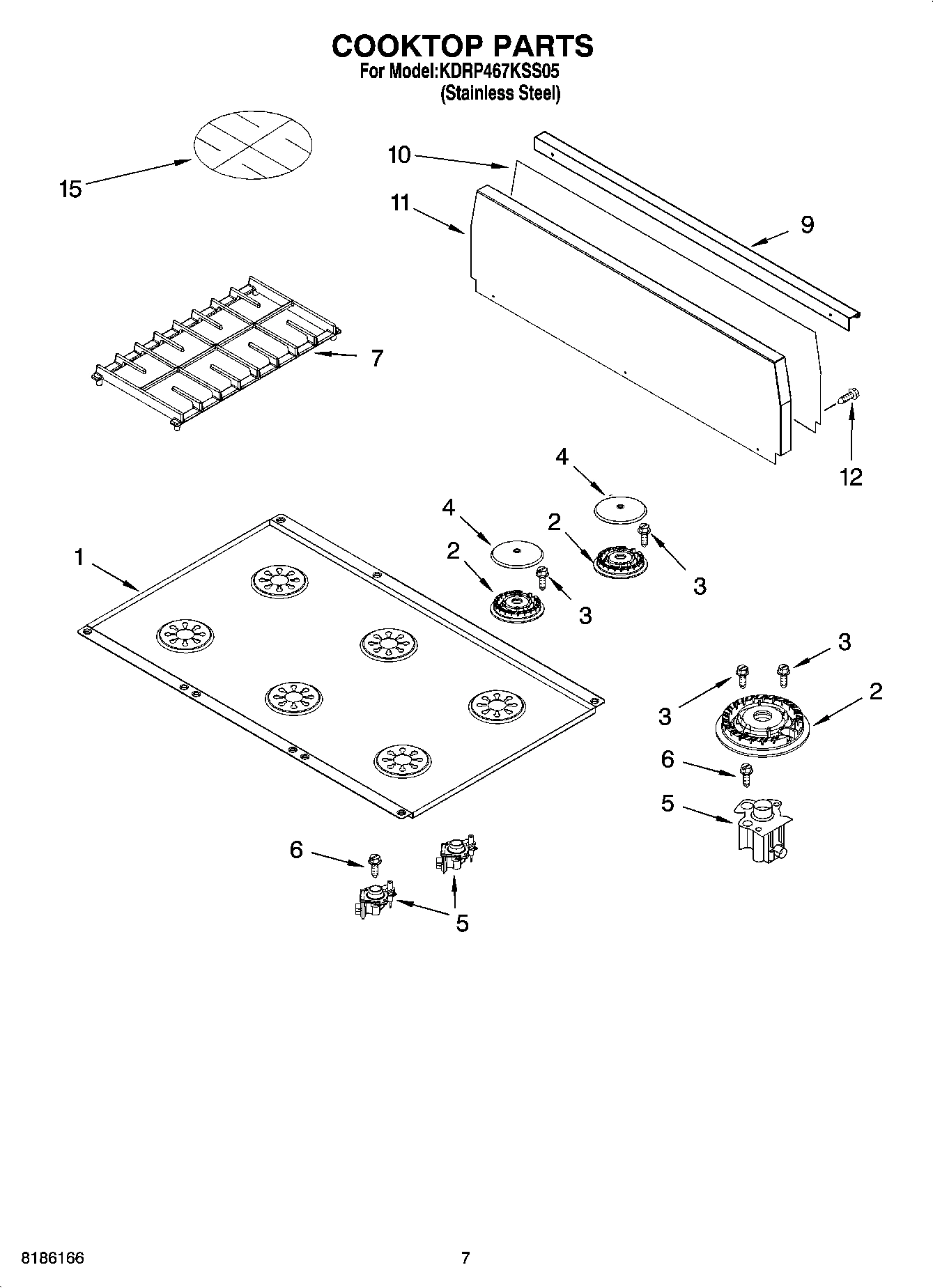

Cooktop WPL 4456865 Contact Us For Availability

1

Door Liner WPL 8300152 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4456556 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4456611 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8300988 Contact Us For Availability

1

Literature Parts (Conversion Instructions) WPL LIT8301171 Contact Us For Availability

1

Vent, Bottom Lower WPL 4452803 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $35.85

2

Burner Head (Turbi) WPL 4455849 Contact Us For Availability

2

Element, Broil WPL 4456105 Contact Us For Availability

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

3

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

Backer, Trim Lower WPL 4453329 Contact Us For Availability

4

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

4

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

4

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $27.49

4

Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability

4

Insulation, Door WPL 8300797 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

5

WPW10155786 Whirlpool Range Surface Burner Or In Stock WPL WPW10155786 $53.24

5

Orifice Holder (Auxi (Includes Orific & Ignit WPL 4456920 Contact Us For Availability

5

Deflector, Center WPL 4452801 Contact Us For Availability

6

Screw, 6-19 x 1 WPL 4449746 Contact Us For Availability

6

Spacer, Foam WPL 4452260 Contact Us For Availability

6

Vent, Bottom Upper WPL 8300978 Contact Us For Availability

7

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

7

WP4452842 Whirlpool Light Switch Backorder WPL WP4452842 $37.24

7

Top, Chassis WPL 8301017 Contact Us For Availability

7

Grate, Burner WPL 4454963 Contact Us For Availability

7

Gasket WPL 4453327 Contact Us For Availability

7

Vent, Center WPL 4455983 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WP4452999 Whirlpool Display Assembly Backorder WPL WP4452999 $116.66

8

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $140.71

8

Valve, Burner (Bronze) WPL 4456818 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

9

Trim, Island WPL 4454962 Contact Us For Availability

9

Bracket, Mounting Regulator WPL 4455604 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

Burner Switch & Harness Assembly WPL 4456903 Contact Us For Availability

Lens, Light WPL 4452163 Contact Us For Availability

Support, Backsplash WPL 8284712 Contact Us For Availability

Foot Assembly WPL 4452430 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

Trim, Backsplash WPL 4454960 Contact Us For Availability

12

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.89

12

Gusset WPL 4455644 Contact Us For Availability

13

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

13

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

4455115 Whirlpool Range Knob Backorder WPL 4455115 $13.83

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

Frame, Front WPL 8300150 Contact Us For Availability

Brace, Rear WPL 4452434 Contact Us For Availability

4455141 Whirlpool Range Knob In Stock WPL 4455141 $11.09

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $26.72

Plate, Simmer WPL 4455109 Contact Us For Availability

Trim, Front (Right Side) WPL 4452804 Contact Us For Availability

Trim, Front (Left Side) WPL 4453205 Contact Us For Availability

16

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

16

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

17

WP4452997 Whirlpool PB Switch In Stock WPL WP4452997 $53.03

17

Side Chassis (Right Side) WPL 4452418 Contact Us For Availability

17

Side Chassis (Left Side) WPL 4452419 Contact Us For Availability

18

Insulation WPL 8300154 Contact Us For Availability

19

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

19

Support, Insulation WPL 8300184 Contact Us For Availability

20

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

21

Bracket, Support WPL 4455510 Contact Us For Availability

23

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

23

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

23

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

24

Control, Zodiac WPL 8300795 Contact Us For Availability

24

Latch, Motorized WPL 8302156 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

25

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $58.95

25

Screw (4) WPL 3400080 Contact Us For Availability

26

Insulator, Control Board WPL 4453207 Contact Us For Availability

26

Back, Chassis WPL 8300193 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI81074A8 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

31

Screw, 8-18 x 3/8 WPL 4449040 Contact Us For Availability

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

37

WP8300802 Whirlpool Thermostat In Stock WPL WP8300802 $81.16

43

Base, Chassis WPL 8300965 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

Insulation, Wrap WPL 8300158 Contact Us For Availability

Insulation, Back WPL 8300159 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI81075A5 Contact Us For Availability
