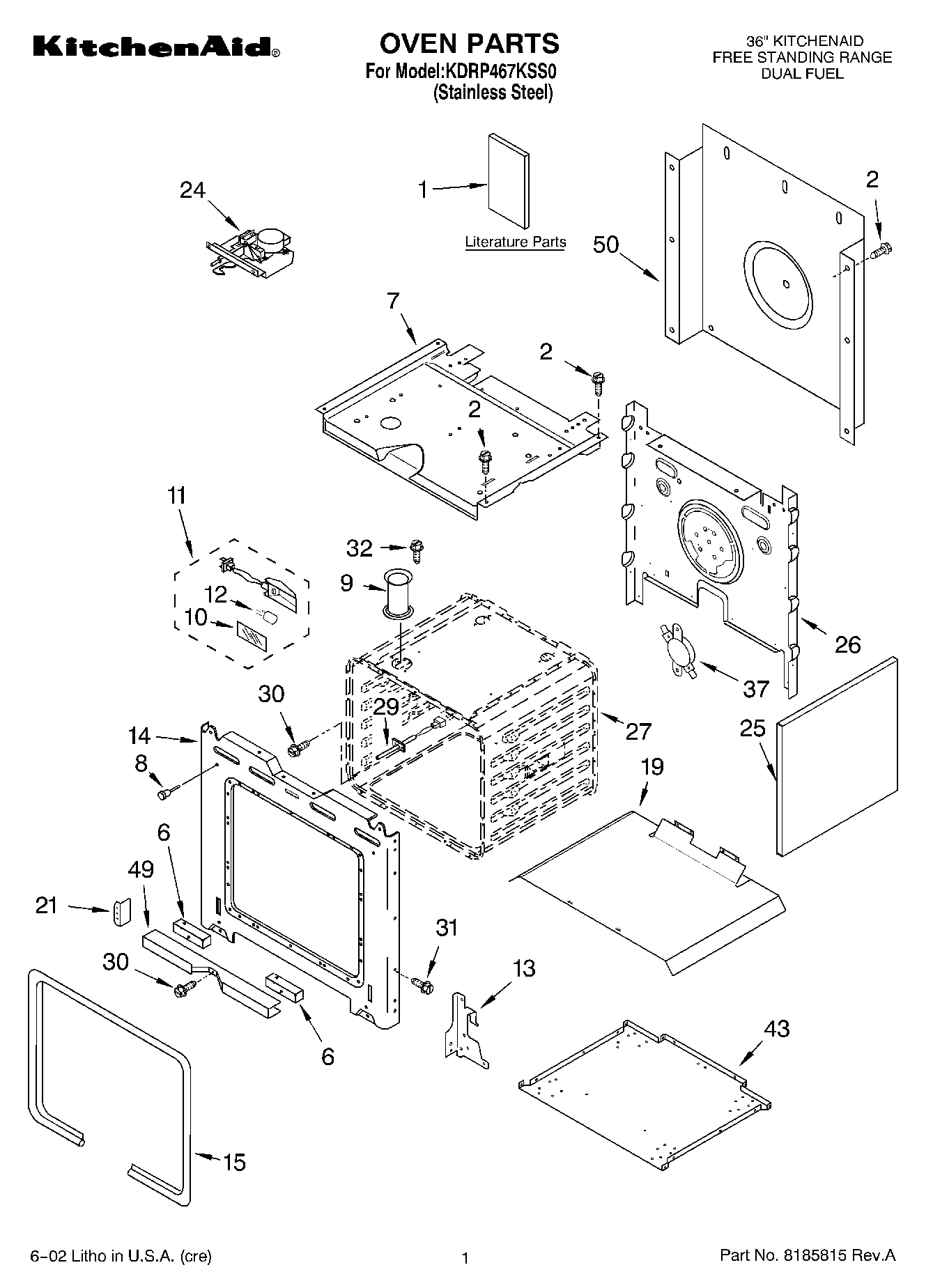

Model Whirlpool KDRP467KSS0 DUAL FUEL RANGE – Common Parts &amp; Diagrams

1

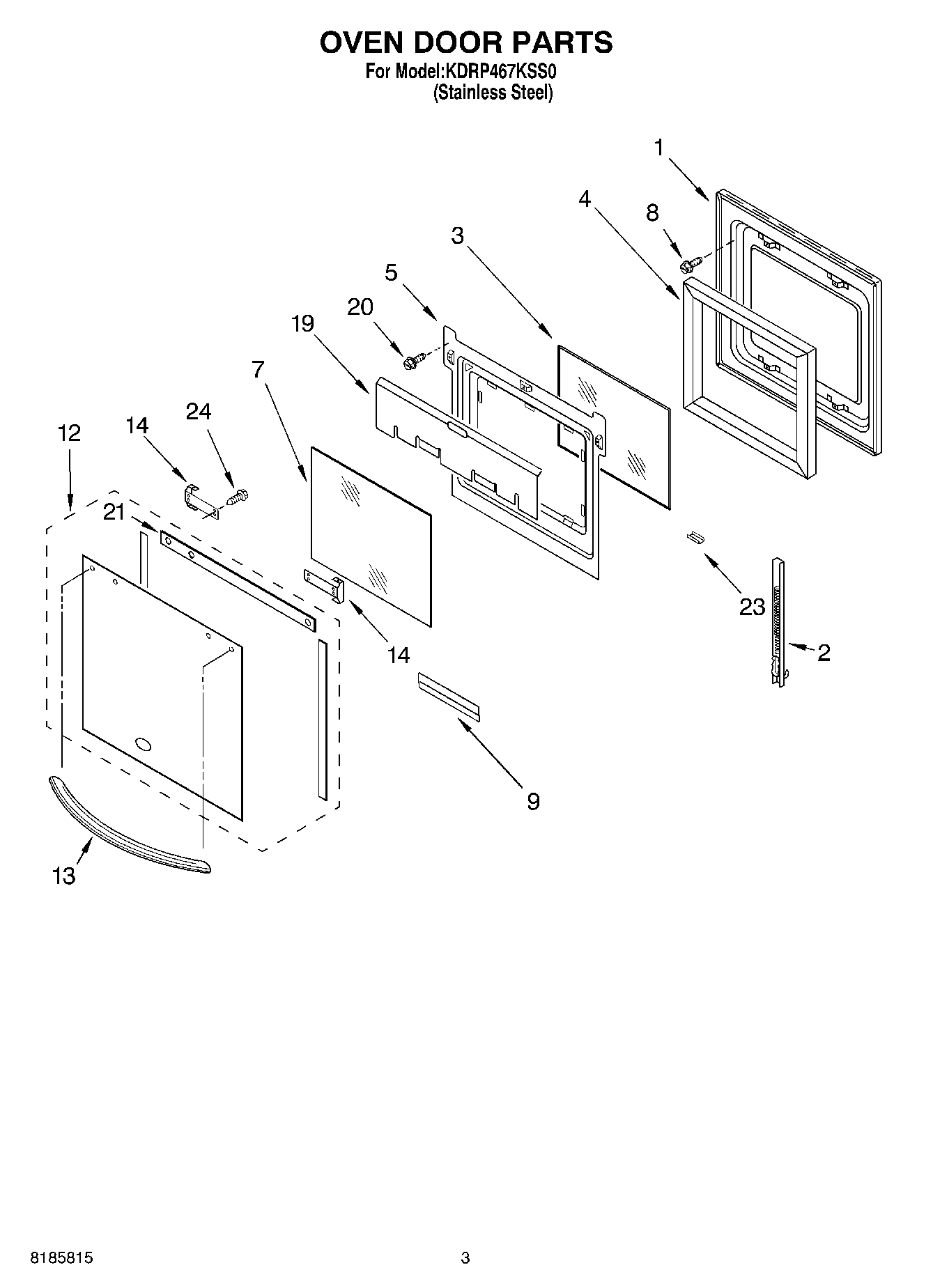

Door Liner WPL 8300152 Contact Us For Availability

1

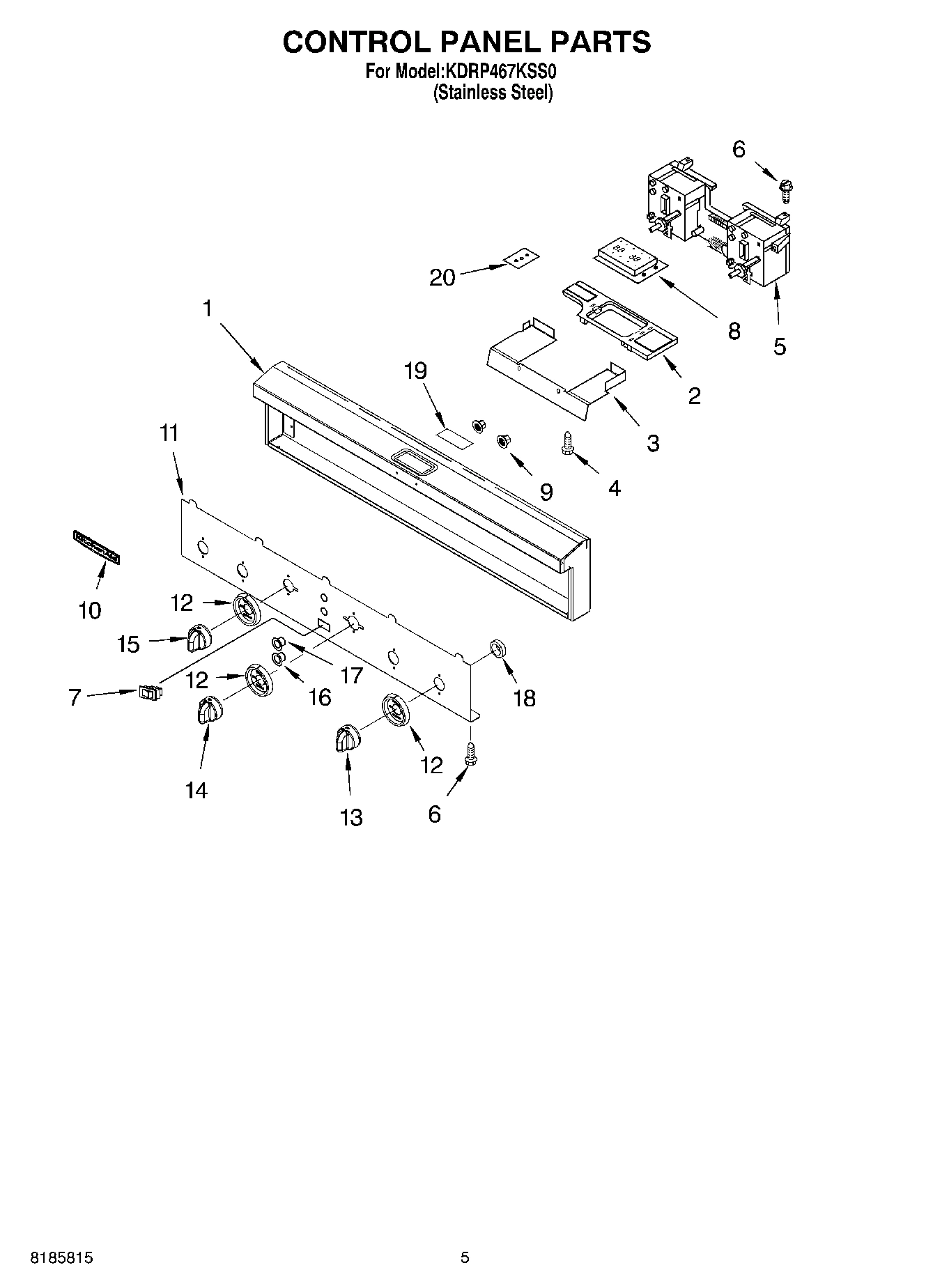

Panel, Control WPL 8300208 Contact Us For Availability

1

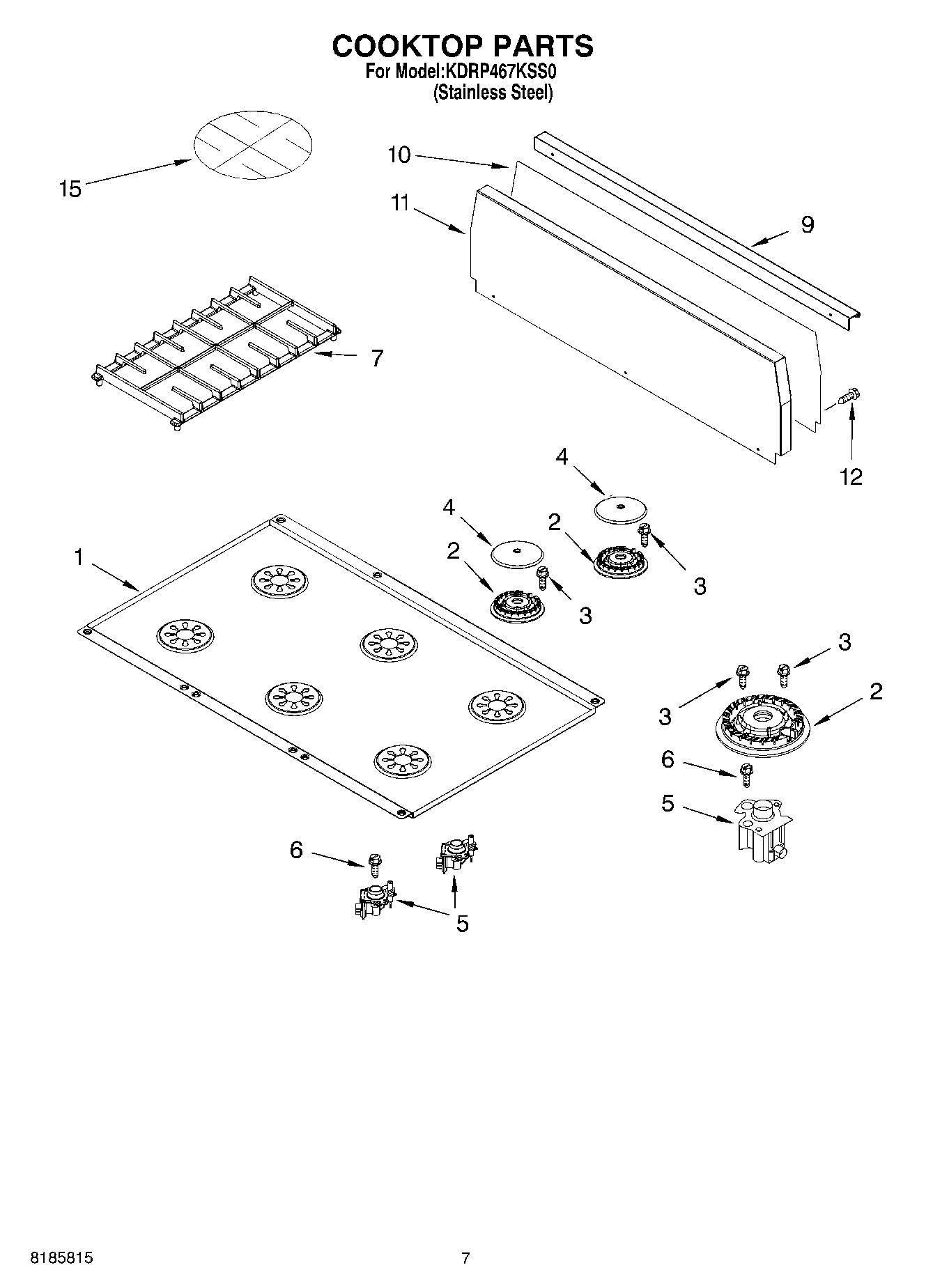

Cooktop WPL 8284664 Contact Us For Availability

1

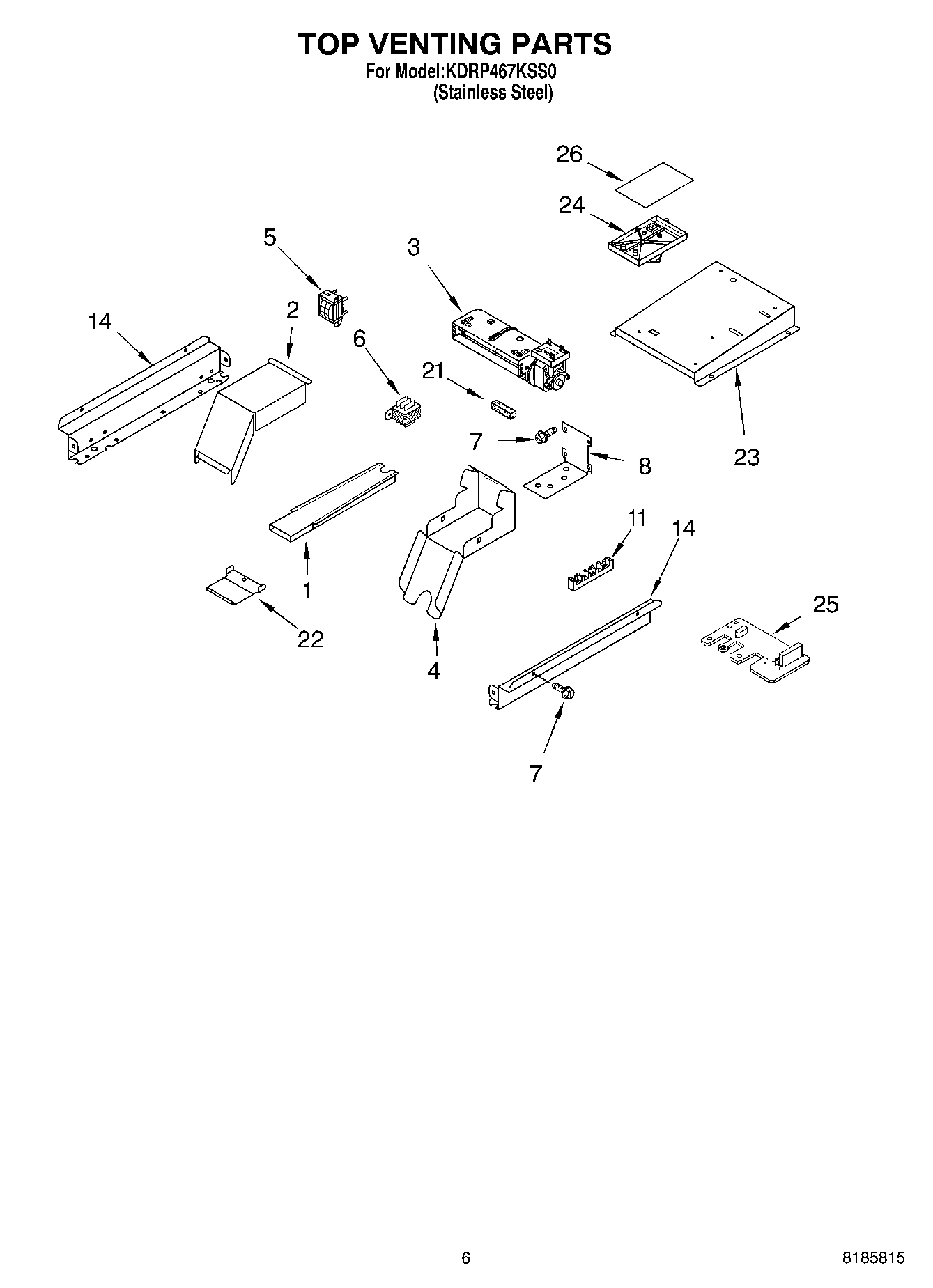

Vent, Bottom Lower WPL 4452803 Contact Us For Availability

2

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

2

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $38.08

2

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $39.62

2

Burner Head (Turbi) WPL 4455849 Contact Us For Availability

2

Bracket, Display WPL 4453000 Contact Us For Availability

3

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $79.44

3

Bracket, Display Mounting WPL 8300805 Contact Us For Availability

3

Backer, Trim Lower WPL 4453329 Contact Us For Availability

4

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $25.81

4

Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability

4

Insulation, Door WPL 8300797 Contact Us For Availability

5

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

5

Orifice Holder (Includes Orific & Ignitor) WPL 9754188 Contact Us For Availability

5

Retainer, Glass WPL 8300190 Contact Us For Availability

5

Control, Zodiac WPL 8300203 Contact Us For Availability

5

Deflector, Center WPL 4452801 Contact Us For Availability

6

Spacer, Foam WPL 4452260 Contact Us For Availability

6

Screw, 6-19 x 1 WPL 4449899 Contact Us For Availability

6

Vent, Bottom Upper WPL 8300978 Contact Us For Availability

7

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $80.64

7

WP4452842 Whirlpool Light Switch Backorder WPL WP4452842 $35.47

7

Top, Chassis WPL 8301017 Contact Us For Availability

7

Grate, Burner WPL 4454963 Contact Us For Availability

7

Gasket WPL 4453327 Contact Us For Availability

7

Vent, Center WPL 8300804 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WP4452999 Whirlpool Display Assembly Backorder WPL WP4452999 $116.66

8

Valve, Burner (Red) WPL 3191292 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $38.10

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

9

Trim, Island WPL 4454962 Contact Us For Availability

9

Bracket, Mounting Regulator WPL 4455604 Contact Us For Availability

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

Lens, Light WPL 4452163 Contact Us For Availability

Nameplate WPL 2005292 Contact Us For Availability

Support, Backsplash WPL 8284712 Contact Us For Availability

Foot Assembly WPL 4452430 Contact Us For Availability

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

Face, Control Panel WPL 8300167 Contact Us For Availability

Trim, Backsplash WPL 4454960 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $35.14

Assy, Door Glass WPL 8300172 Contact Us For Availability

Bezel, Knob WPL 4455192 Contact Us For Availability

Gusset WPL 4455644 Contact Us For Availability

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

WPW10078400 Whirlpool Knob Assembly In Stock WPL WPW10078400 $3.70

Door Handle WPL 8300148 Contact Us For Availability

4455115 Whirlpool Range Knob Backorder WPL 4455115 $13.83

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

Frame, Front WPL 8300150 Contact Us For Availability

Brace, Rear WPL 4452434 Contact Us For Availability

4455141 Whirlpool Range Knob Backorder WPL 4455141 $11.09

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $25.44

Plate, Simmer WPL 4455109 Contact Us For Availability

Trim, Front (Right Side) WPL 4452804 Contact Us For Availability

Trim, Front (Left Side) WPL 4453205 Contact Us For Availability

16

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

16

Button, Cancel WPL 4452998 Contact Us For Availability

17

WP4452997 Whirlpool PB Switch Backorder WPL WP4452997 $53.03

17

Side Chassis (Right Side) WPL 4452418 Contact Us For Availability

17

Side Chassis (Left Side) WPL 4452419 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4453191 Whirlpool Seal Backorder WPL 4453191 $29.43

814381 Whirlpool Pin In Stock WPL 814381 $3.70

W10138103 Whirlpool Anti-Tip Bracket Backorder WPL W10138103 $87.40

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $3.18

WP4450952 Whirlpool Conduit Backorder WPL WP4450952 $86.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPL 8301282 WPL 8301282 Contact Us For Availability

Spacer Ring WPL 4455719 Contact Us For Availability

Bushing WPL 1129449 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Bushing, Conduit WPL 3191506 Contact Us For Availability

Harness, Wire Ignitor (28``) WPL 3192230 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

Seal, Ribbon Cable WPL 4453192 Contact Us For Availability

ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability

Harness, Wire (Ignitor 39``) WPL 8284771 Contact Us For Availability

Harness, Wire Ignitor (Brown) WPL 8284772 Contact Us For Availability

Insul WPL 8300154 Contact Us For Availability

WPL 8300976 WPL 8300976 Contact Us For Availability

WPL 8301717 WPL 8301717 Contact Us For Availability

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

Support, Insulation WPL 8300184 Contact Us For Availability

Shield, Heat WPL 8300982 Contact Us For Availability

Glass, Display WPL 4455806 Contact Us For Availability

20

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 $5.00

20

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

21

Bracket, Support WPL 4455510 Contact Us For Availability

21

Seal, Door Top WPL 8300153 Contact Us For Availability

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $43.39

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $68.92

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

Retainer, Clip WPL 4451432 Contact Us For Availability

24

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.13

24

Control, Zodiac WPL 8300795 Contact Us For Availability

24

Latch, Motorized WPL 8300210 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $56.15

25

Screw (4) WPL 3400080 Contact Us For Availability

26

Back, Chassis WPL 8300193 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI81051A5 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

31

Screw, 8-18 x 3/8 WPL 4449040 Contact Us For Availability

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

37

WP8300802 Whirlpool Thermostat In Stock WPL WP8300802 $77.29

43

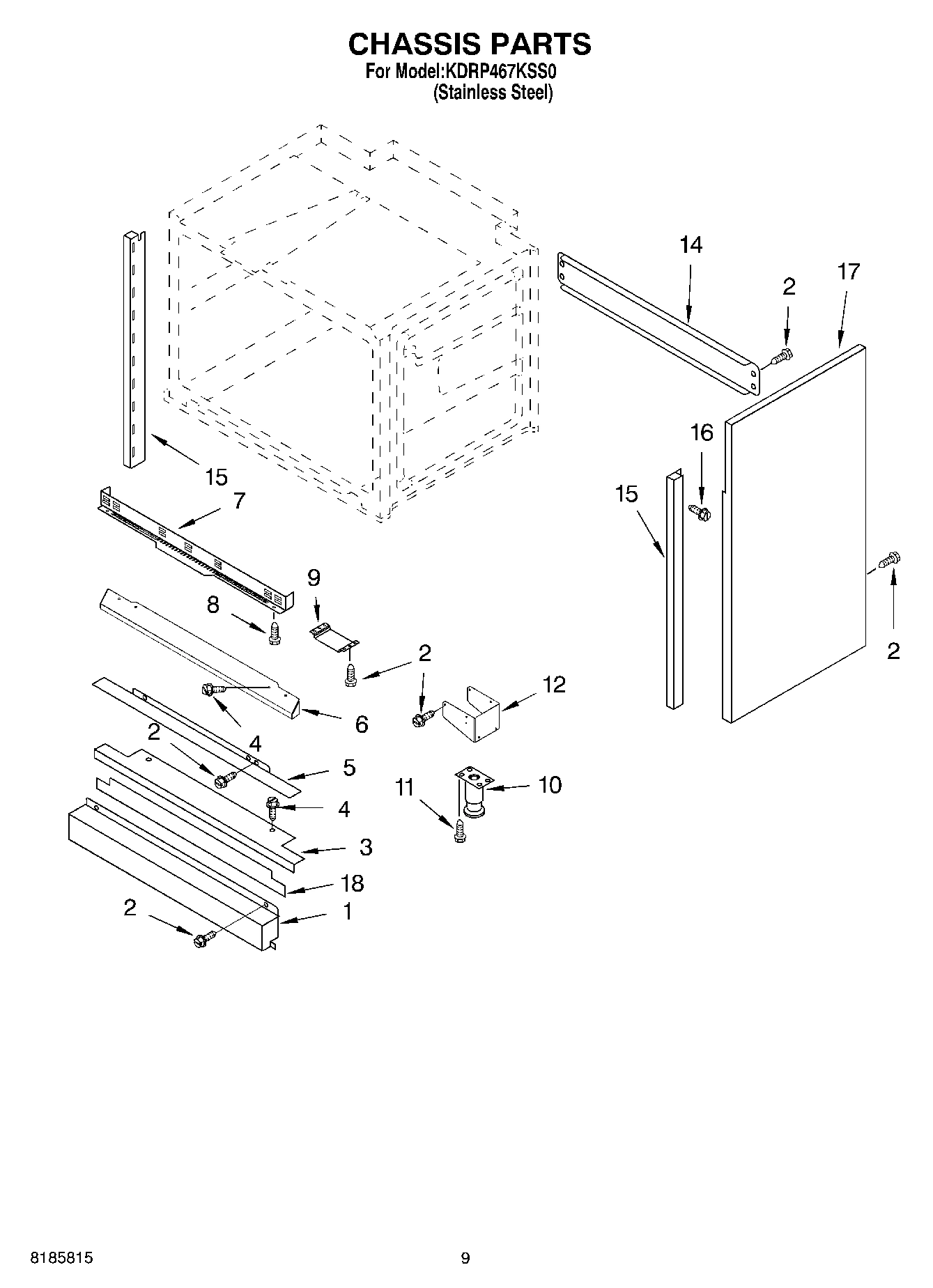

Base, Chassis WPL 8300965 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

W11684730 Whirlpool Insulation Backorder WPL W11684730 $45.31

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $49.46

Insulation, Back WPL 4450365 Contact Us For Availability

Insulation Bottom Vent WPL 4452337 Contact Us For Availability
